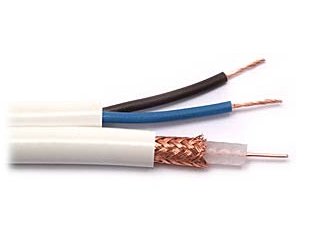

CCTV CABLE YAP-2X0.5/200
Войдите в учётную запись, чтобы мы могли сообщить вам об ответе
In section: 200 m Price for 1m when buying a whole roll ; Coaxial cable: YAP ; Inner conductor: Ø 0.59 mm Cu - Wire ; Outer coating: Ø 5.9 mm PVC ; Cable attenuation at 100m section: 27.0 dB @ 500 MHz ; Electrical cable: ; Inner conductor: 2 x 0.5 mm² Stranded wire Cu ;
| In section: | 200 m Price for 1m when buying a whole roll |
| Coaxial cable: | YAP |
| Inner conductor: | Ø 0.59 mm Cu - Wire |
| Dielectric: | Ø 3.7 mm PE full |
| Shield: |  |
| Braid: | Wire Cu |
| Impedance: | 75 Ω |
| Outer coating: | Ø 5.9 mm PVC |
| Cable attenuation at 100m section: | 11.3 dB @ 100 MHz 16.3 dB @ 200 MHz 27.0 dB @ 500 MHz 40.6 dB @ 1000 MHz 57.2 dB @ 1750 MHz |
| Electrical cable: | |
| Inner conductor: | 2 x 0.5 mm² Stranded wire Cu |
| Power wires resistance: | 4 Ω / 100 m |
| Guarantee: | 2 years |
Brand:
Mercor
