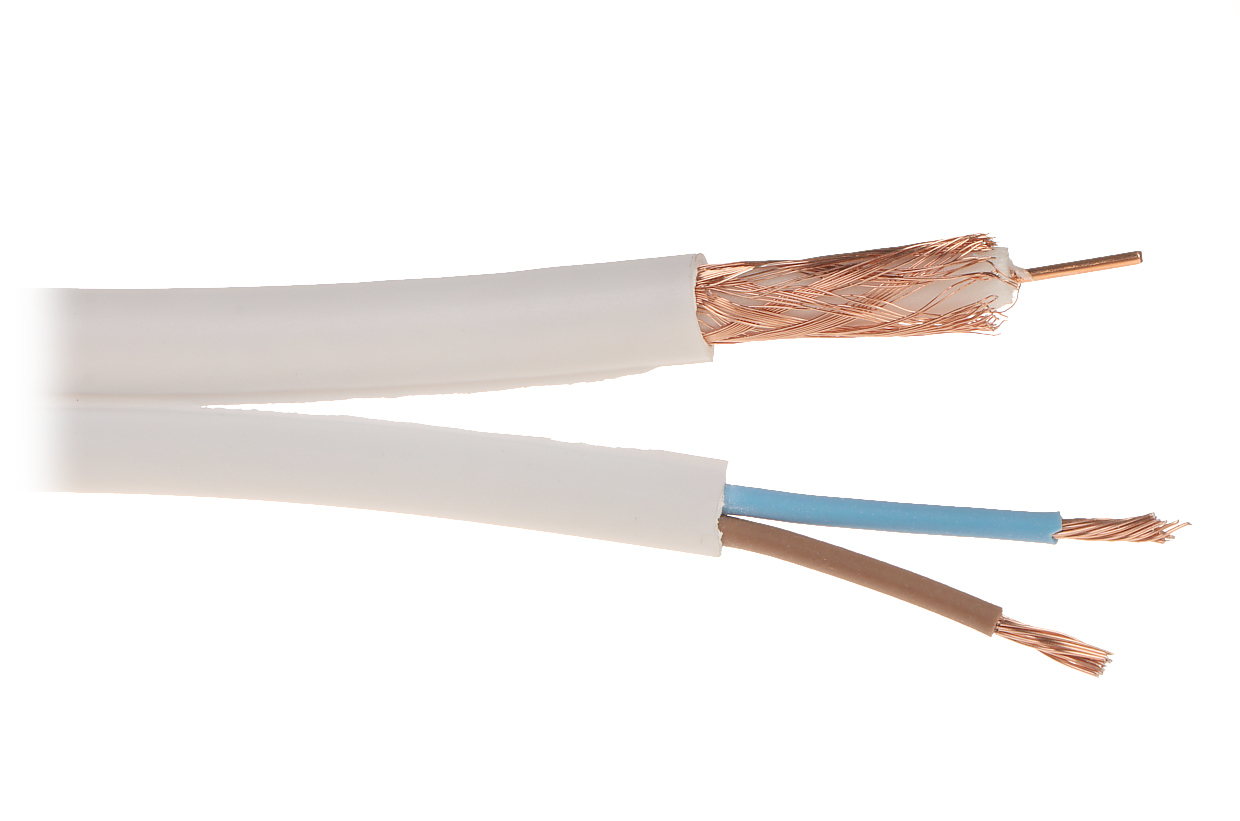

CCTV CABLE RG-59+2X0.75/200
Войдите в учётную запись, чтобы мы могли сообщить вам об ответе
In section: 200 m . Price for 1m when buying a whole roll ; Coaxial cable: RG59 ; Inner conductor: Ø 0.81 mm Cu ; Outer coating: Ø 6 mm PVC ; Cable attenuation at 100m section: 17.7 dB @ 450 MHz ; Electrical cable: ; Inner conductor: 2 x 0.75 mm² Stranded wire + Cu ;
| In section: | 200 m . Price for 1m when buying a whole roll |

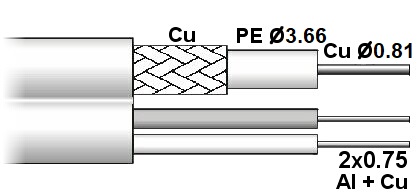

| Coaxial cable: | RG59 |
| Inner conductor: | Ø 0.81 mm Cu Wire |
| Dielectric: | Ø 3.66 mm PE full |
| Shield: |  |
| Braid: | Stranded wire Cu |
| Impedance: | 75 Ω |
| Outer coating: | Ø 6 mm PVC |
| Cable attenuation at 100m section: | 6.5 dB @ 50 MHz 8.4 dB @ 100 MHz 12.8 dB @ 230 MHz 17.7 dB @ 450 MHz 24.6 dB @ 860 MHz 26.6 dB @ 1000 MHz 30.9 dB @ 1350 MHz 34.9 dB @ 1750 MHz 39.9 dB @ 2150 MHz |
| Electrical cable: | |
| Inner conductor: | 2 x 0.75 mm² Stranded wire : Al + Cu |
| Power wires resistance: | 4 Ω / 100 m |
| Outer coating: | Ø 5.5 mm |
| Guarantee: | 2 years |
Brand:
Satec
