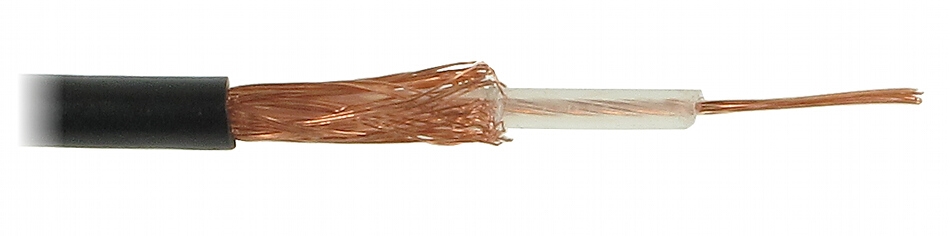

COAXIAL CABLE RG-174 50 Ω
Войдите в учётную запись, чтобы мы могли сообщить вам об ответе
In section: 100 m . Price for 1m when buying a whole roll ; Inner conductor: 7 x Ø 0.16 mm Cu Stranded wire ; Dielectric: Ø 1.6 mm ; Cable attenuation at 100m section: 96 dB @ 1000 MHz ;
| In section: | 100 m . Price for 1m when buying a whole roll |
| Inner conductor: | 7 x Ø 0.16 mm Cu Stranded wire |
| Dielectric: | Ø 1.6 mm PE full |
| Shield: |  |
| Braid: | 64 x Ø 0.1 mm Stranded wire Cu |
| Impedance: | 50 Ω |
| Outer coating: | Ø 2.8 mm PVC |
| Cable attenuation at 100m section: | 17.6 dB @ 30 MHz 21.1 dB @ 50 MHz 28.2 dB @ 100 MHz 21.6 dB @ 146 MHz 80 dB @ 440 MHz 96 dB @ 1000 MHz 240 dB @ 2400 MHz |
| Guarantee: | 2 years |
