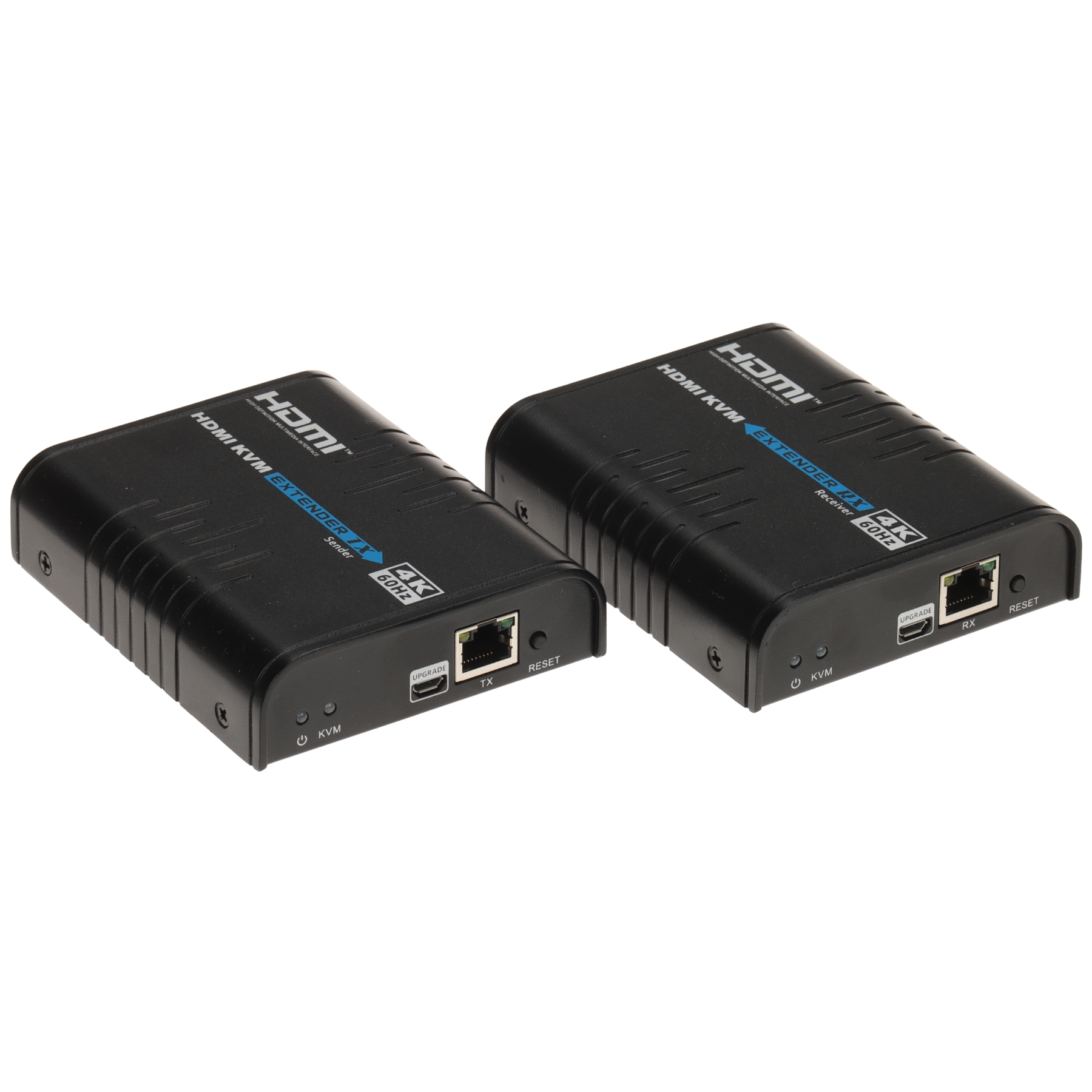

EXTENDER HDMI+USB-EX-100-4K-V3 4K UHD SIGNAL
Войдите в учётную запись, чтобы мы могли сообщить вам об ответе

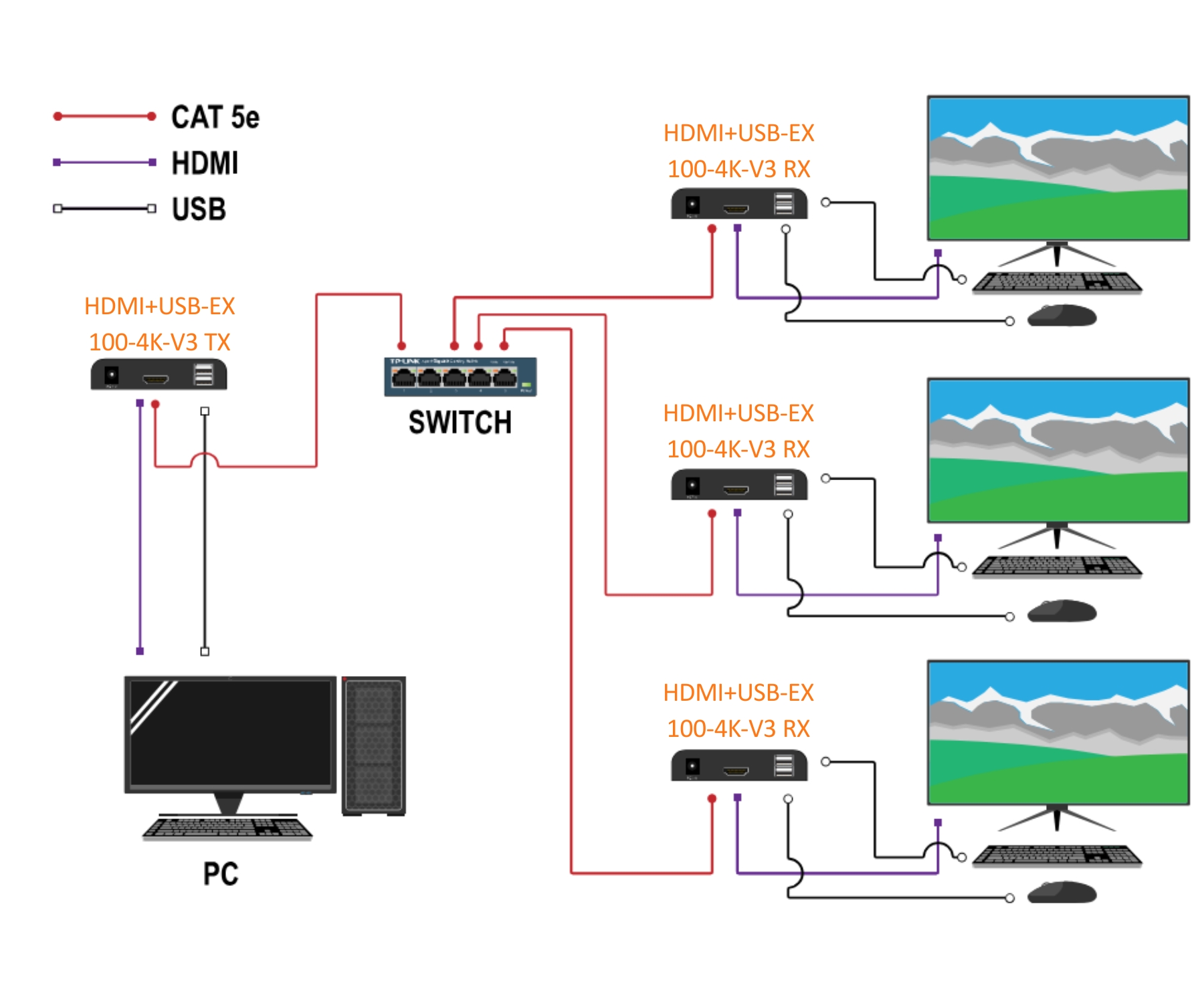

Device allows to send High Definition signal to the TV-Set receiver equipped with HDMI connector via UTP Cat. 5e, 6 cable; Extender also allows to extend an USB 2.0 port, eg. in order to control the recorder using the mouse; Max. number of receivers working in the same time: 253 ; Supported HDMI standard: 2.0 ; Protocols: HDbitT ; Main features: The devices do not require direct connection, they also operate via the LAN network The need for a separate power supply for the transmitter and receiver ;
| Supported HDMI resolutions: | 480i, 480p, 576i, 576p, 720p 1080i, 1080p, 4K UHD, 4K DCI, 800 x 600 px, 1024 x 768 px, 1280 x 1024 px, 1280 x 800 px, 1440 x 900 px, 1680 x 1050 px |
| Maximal transmission range: | 100 m UTP cat. 5, 5e, 6, 6A, 7 |
| Max. number of receivers working in the same time: | 253 |
| Supported HDMI standard: | 2.0 |
| Max. transmission speed: | 18 Gbps |
| HDMI output: | LPCM 2.0 |
| HDCP: | HDCP 1.4, HDCP 2.2 |
| Transmission delay: | |
| Protocols: | HDbitT |
| Main features: | |
| Main features: | |
| Main features: | |
| Protections: | |
| Power supply: | |
| Operation temp: | -20 °C ... 60 °C |
| Permissible relative humidity: | 0 % ... 90 % (non-condensing) |
| Weight: | 0.24 kg |
| Dimensions: | 109.6 x 89.5 x 26.3 mm - Transmitter or receiver dimensions |
| Manufacturer / Brand: | SIGNAL |
| Guarantee: | 2 years |
Brand:
Signal
