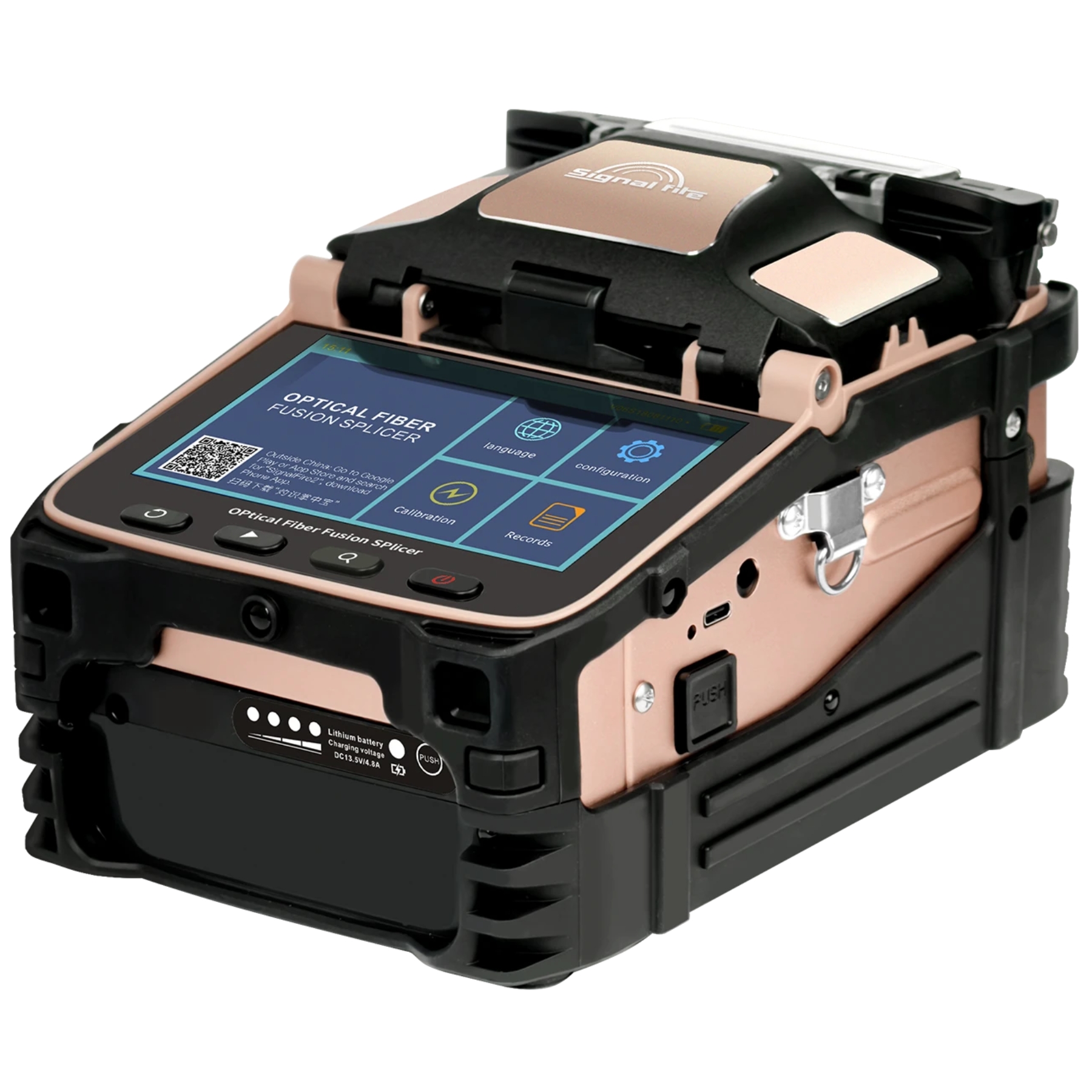

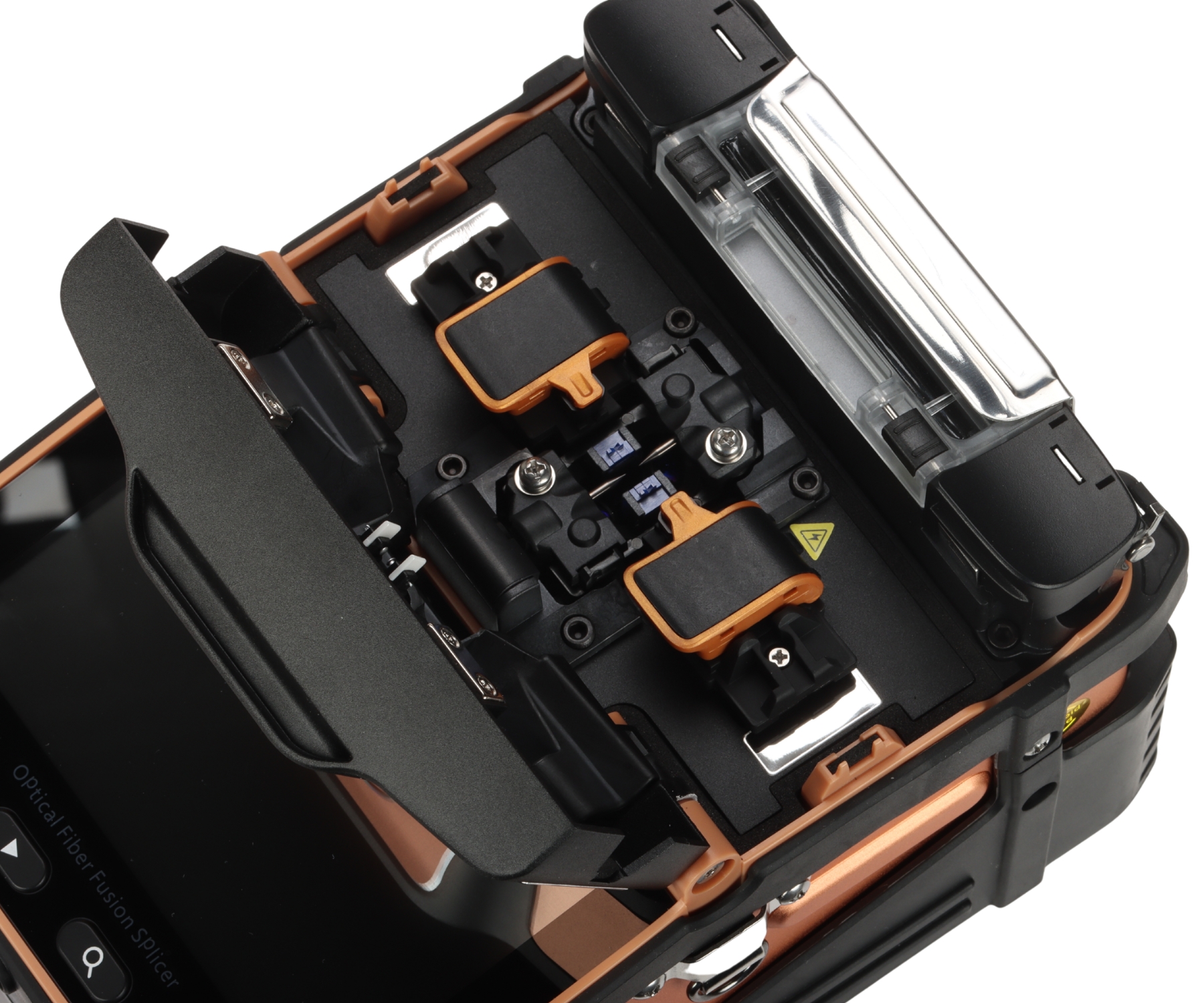

OPTICAL FIBER FUSION SPLICER AI-12 Signal Fire
Войдите в учётную запись, чтобы мы могли сообщить вам об ответе
Fiber optic type: Single-Mode (SM) - G.652, G.653, G.654, G.655, G.657, Multi-Mode (MM) - G.651 ; Optical Power Meter (OPM): Measurement range : -50 ... +26 dBm ; Display: 5 " touch screen ; MENU access: Bluetooth 4.2, Free Signalfire2 app for Android and iOS ; Power supply: 13.5 V DC USB-C 45 W ;
| Fiber alignment method: | 6 motors |
| Fiber positioning: | core alignment, cladding alignment |
| Splicing time: | 6 s |
| Splice protector sleeve heating time: | 15 s - Adaptable to outdoor conditions |
| Fiber optic type: | |
| Cladding diameter: | 80 ... 150 µm |
| Average splicing loss: | |
| Splicing mode: | automatic, semi-automatic |
| Fiber cleaver knife: | Built in stripper included (MC-16) |
| Visual Fault Locator of fiber cable (VFL): | |
| Optical Power Meter (OPM): | |
| Image zoom: | |
| Supported splice protector sleeve lengths: | 25 ... 60 mm |
| Mechanical strength test: | 2 N |
| Display: | 5 " touch screen |
| MENU access: | Bluetooth 4.2, Free Signalfire2 app for Android and iOS |
| Main features: | |

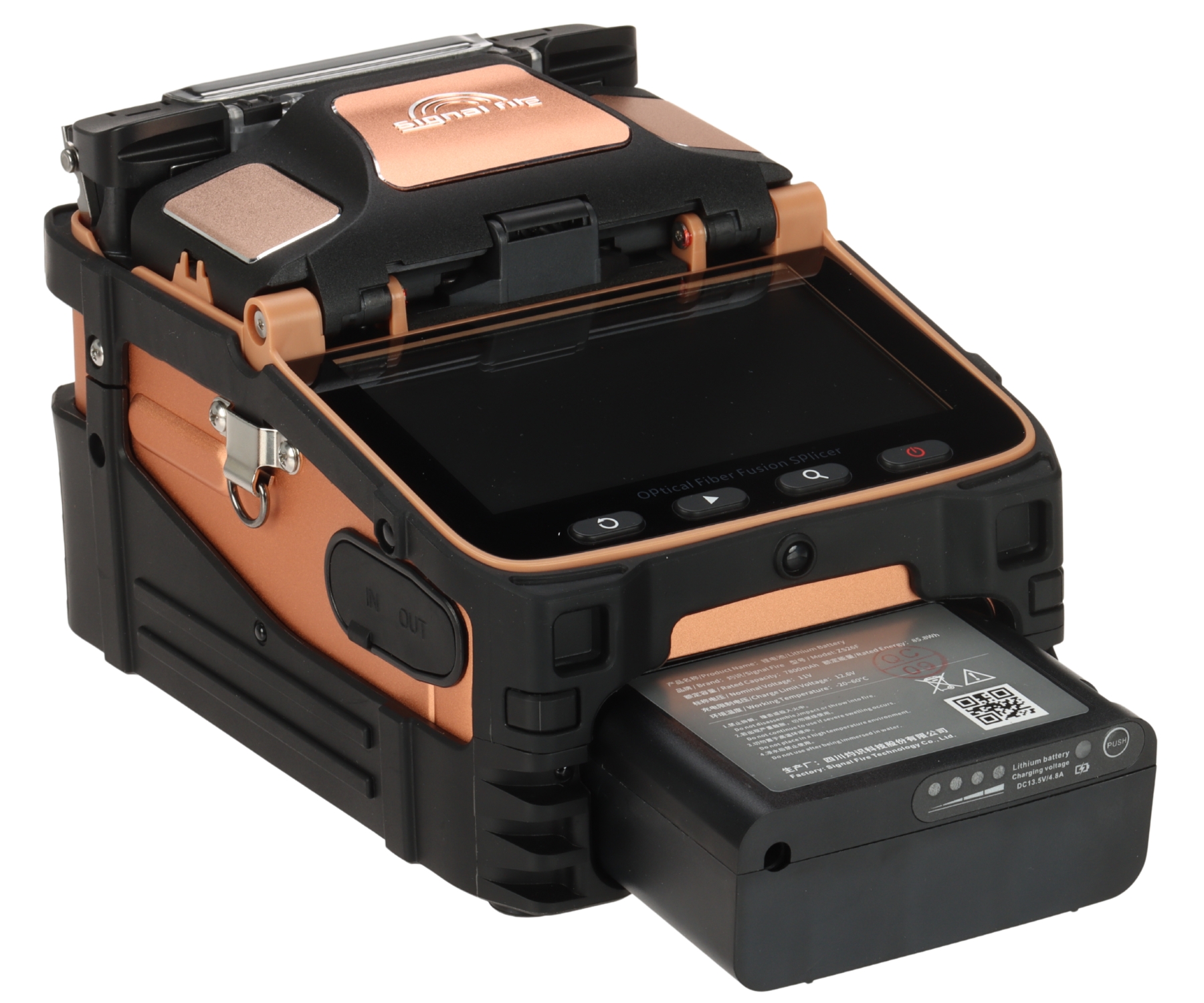

| Battery: | |
| Power supply: | |
| Proper operation conditions: | |
| Supported languages: | Polish, English, Arabic, Chinese, French, Spanish, Portuguese, Russian, Thai, Turkish, Ukrainian, Italian |
| Weight: | 2.10 kg (Splicer) 6.95 kg (whole set) |
| Dimensions: | 198 x 135 x 122 mm (Splicer) 293 x 270 x 237 mm (whole set) |
| Manufacturer / Brand: | Signal Fire |
| Guarantee: | 3 years |
