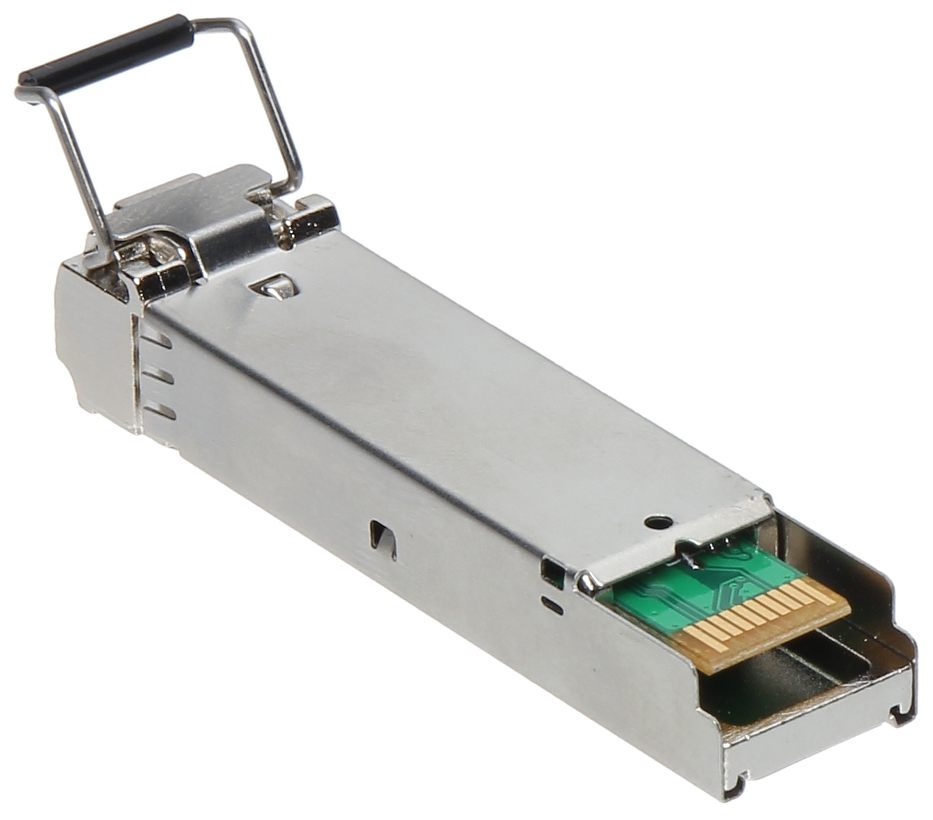

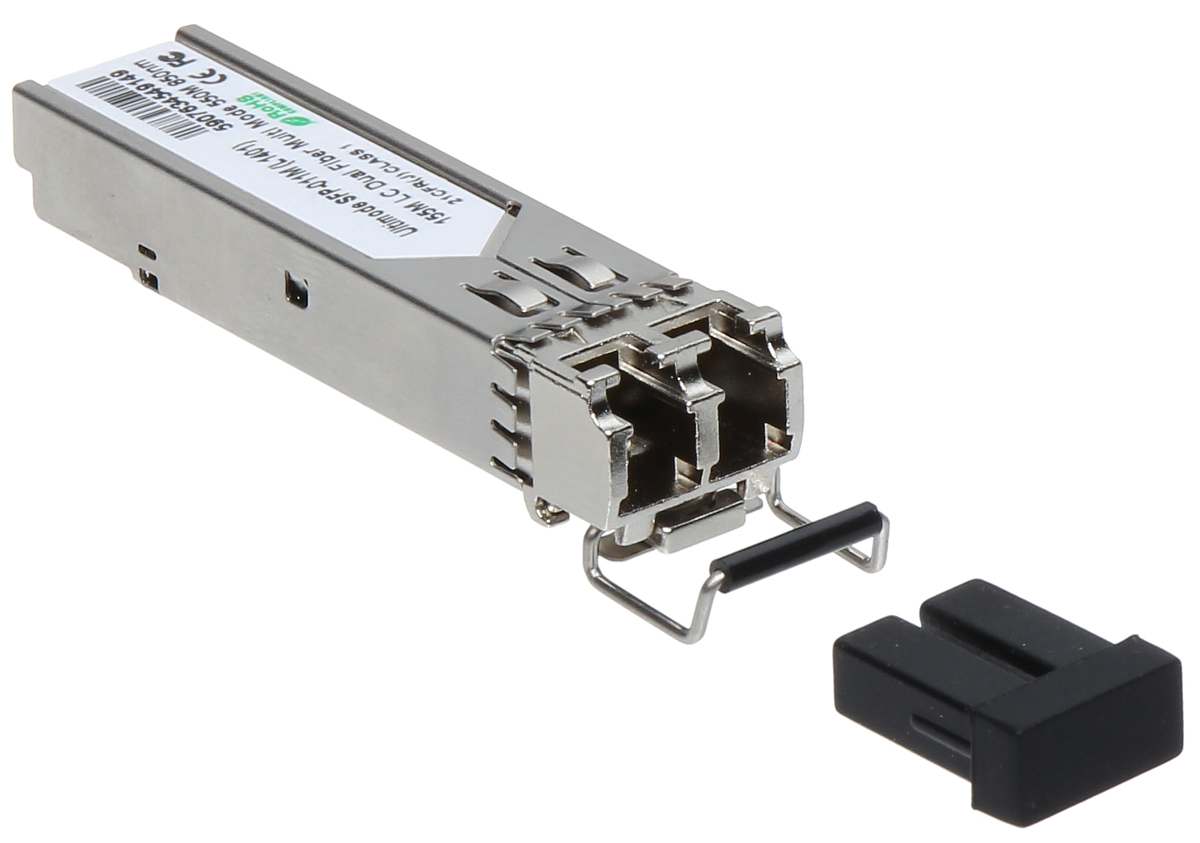

MULTI-MODE MODULE SFP-011M
Войдите в учётную запись, чтобы мы могли сообщить вам об ответе
Fiber type: 50/125 µm, 62.5/125 µm - Multi-mode fiber ; Maximal transmission range: 0.5 km @ 50/125 µm ; Transfer rate: max. 155 Mbps ; Optical connectors: 2 x LC / PC ;
| Transmission protocols: | IEEE 802.3u 100Base-FX |
| Fiber type: | 50/125 µm, 62.5/125 µm - Multi-mode fiber |
| Maximal transmission range: | 0.5 km @ 50/125 µm 0.3 km @ 62/125 µm |
| Transfer rate: | max. 155 Mbps |
| Number of used fibers: | 2 |
| Optical connectors: | 2 x LC / PC |
| Light source / optical wavelength: | Laser FP / 850 nm |
| Transmitter power: | -8 ... -3 dB |
| Receiver sensitivity: | ≥ -19 dB |
| Power supply: | 3.3 V DC |
| Operation temp: | 0 °C ... 70 °C |
| Weight: | 0.016 kg |
| Guarantee: | 2 years |
Brand:
Ultimode
