FIBER OPTIC CABLE DRAKA-U-DQ(ZN)BH/8G

€1.28

(Включая налог 21%)

Задать вопрос

КОД: DRAKA-U-DQ(ZN)BH/8G

В наличии: Нет в наличии

Минимальное количество для товара "FIBER OPTIC CABLE DRAKA-U-DQ(ZN)BH/8G" 1.

Описание
Особенности

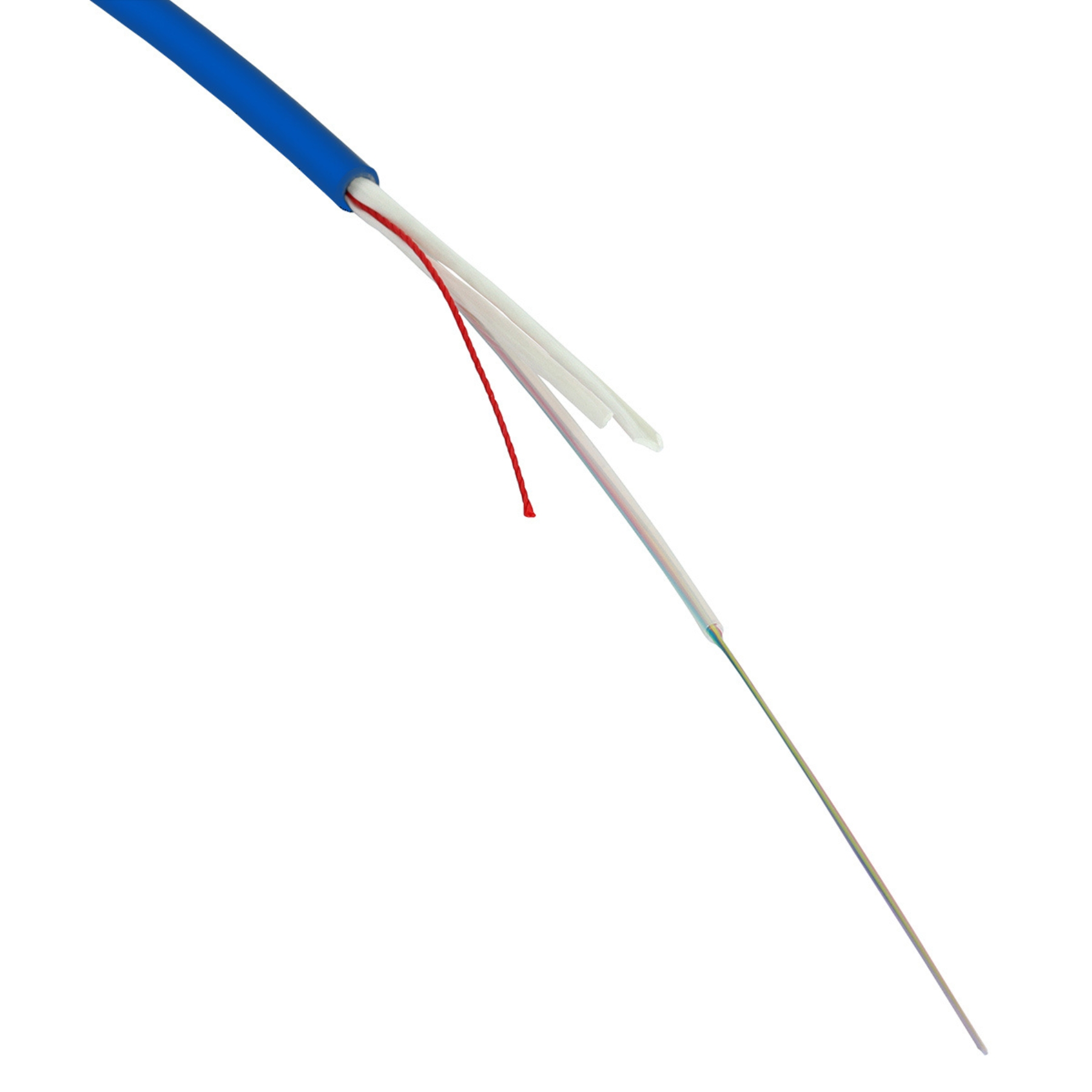

The DRAKA-U-DQ(ZN)BH/8G is an universal fiber optic cable for indoor and outdoor applications; Fiber type: Multimode fibers OM3 ; Number of fibers: 8 pcs ;

Fiber type:	Multimode fibers OM3, U-DQ(ZN)BH
Number of fibers:	8 pcs
Cable diameter:	6 mm
Cable weight:	45 kg / 1000 m
Buffer diameter:	250 µm
Maximum pulling force:	2000 N (dynamic)
Minimal bend radius:	120 mm (during installation)
Class CPR:	Eca
Main features:	rodent protected LSOH / LSZH coating UV radiation resistant gel-filled central tube reinforced by aramid yarn ripcord making it easier to cut the outer sheath of the cable
Application:	due to the small size and flexibility, the cables are ideal for installation in cable ducts it is used in modern FTTH and FTTB systems, in server rooms, between buildings installations universal fiber optic cables intended for horizontal connections in buildings and outside buildings in secondary sewage system
Supported norms:	ISO 11801-1 EN 50173-1
Operation temp:	-20 °C ... 70 °C
Installation temperature:	-20 °C ... 70 °C
Guarantee:	2 years
