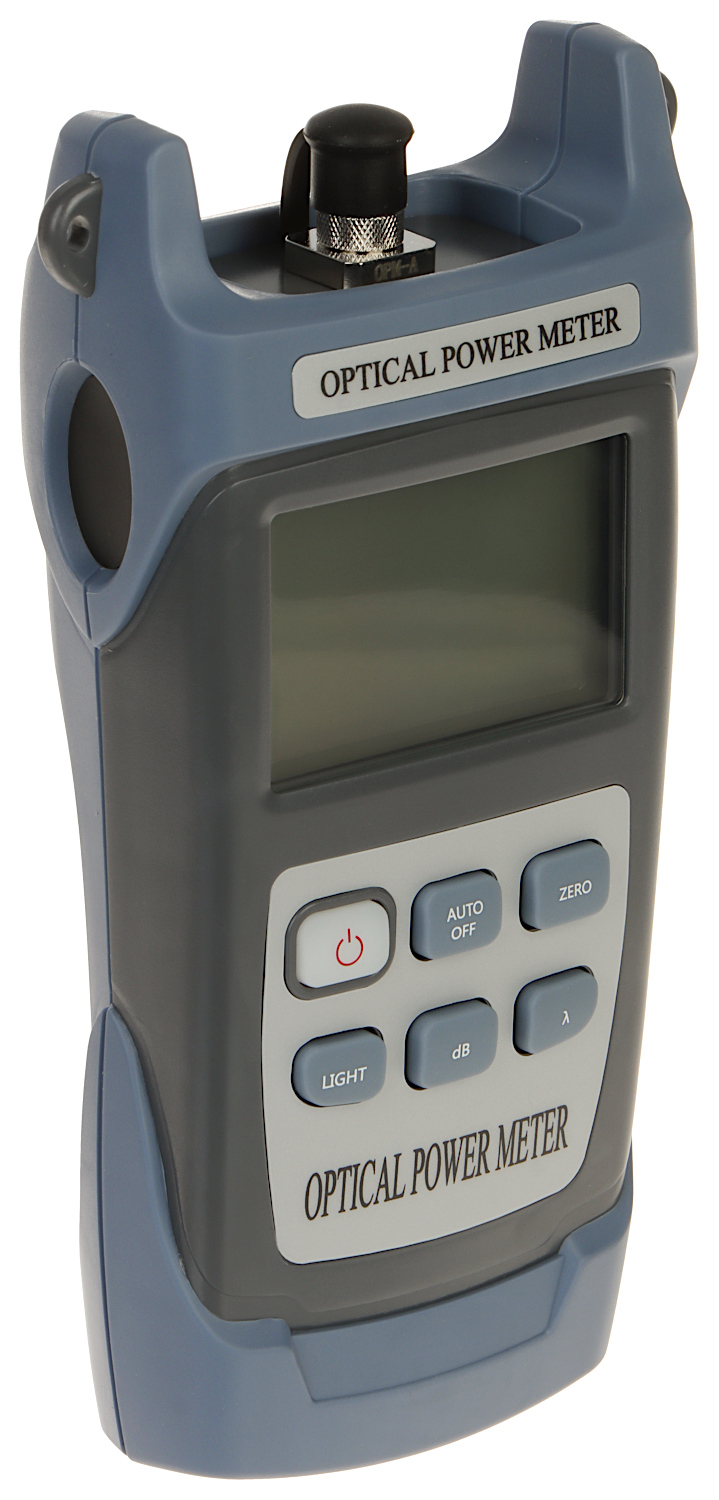

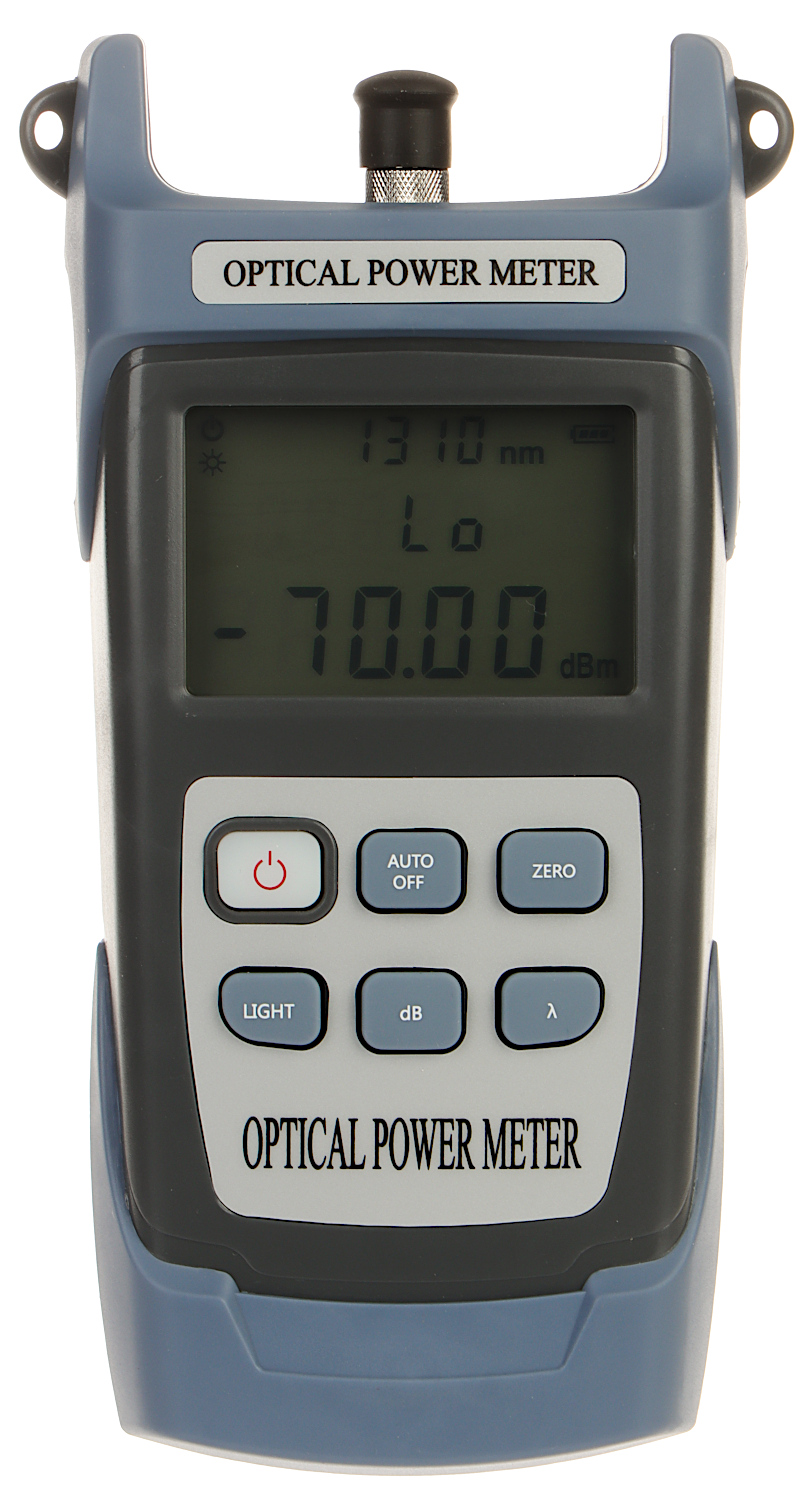

OPTICAL POWER METER OPM-XK30A
Войдите в учётную запись, чтобы мы могли сообщить вам об ответе
Optical wavelength: 850 nm / 1300 nm / 1310 nm / 1490 nm / 1550 nm / 1625 nm ; Power measurement range: 10 ... -70 dBm ; Power supply: 3 x 1.5 V - Battery type LR6 (AA) ;
| Sensor type: | InGaAs |
| Optical wavelength: | 850 nm / 980 nm / 1300 nm / 1310 nm / 1490 nm / 1550 nm / 1625 nm / 1650 nm |
| Power measurement range: | 10 ... -70 dBm |
| Accuracy: | ± 5 % |
| Measuring accuracy: | 0.01 dBm |

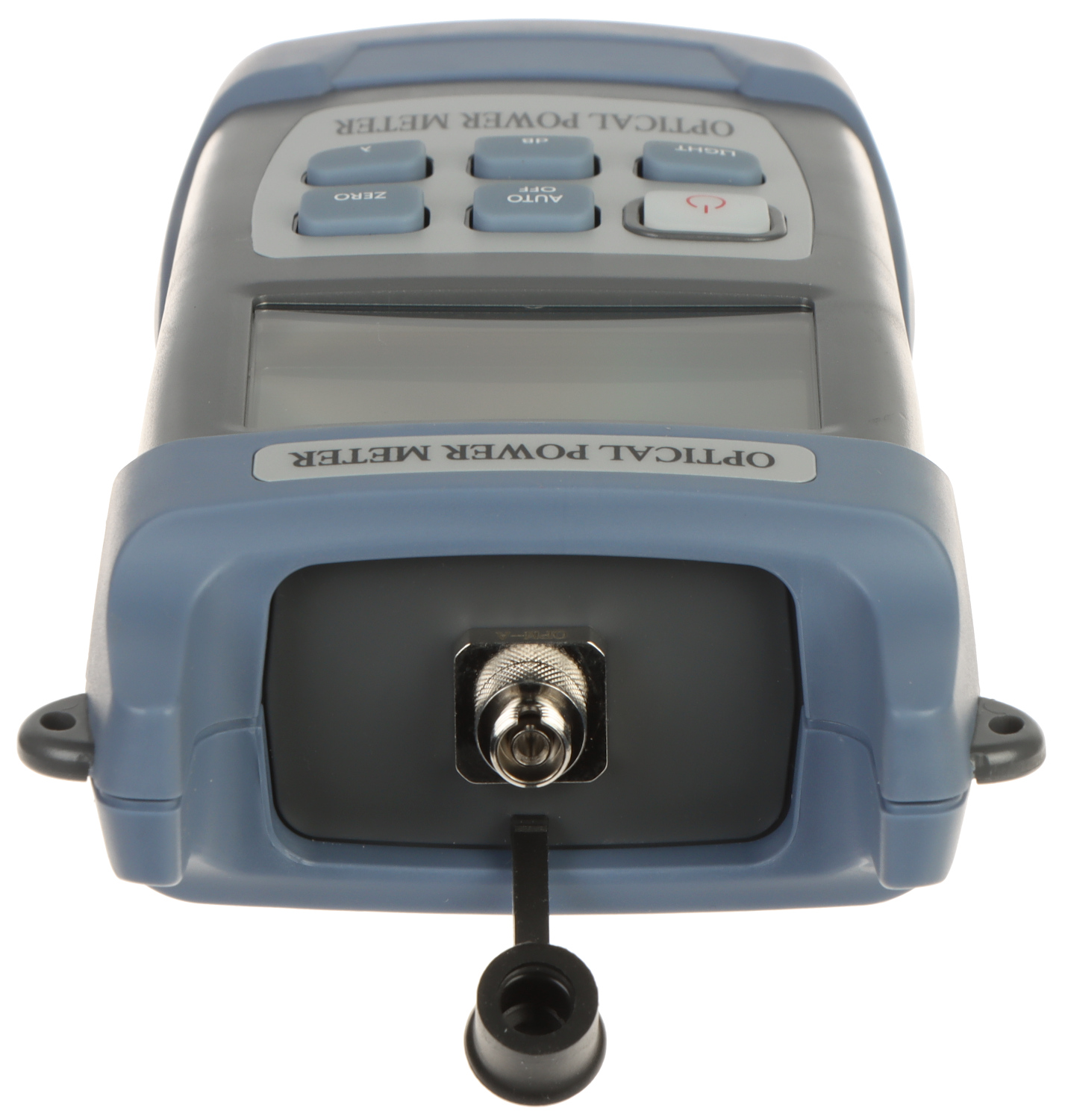

| Connector type: | ST |
| Main features: | |

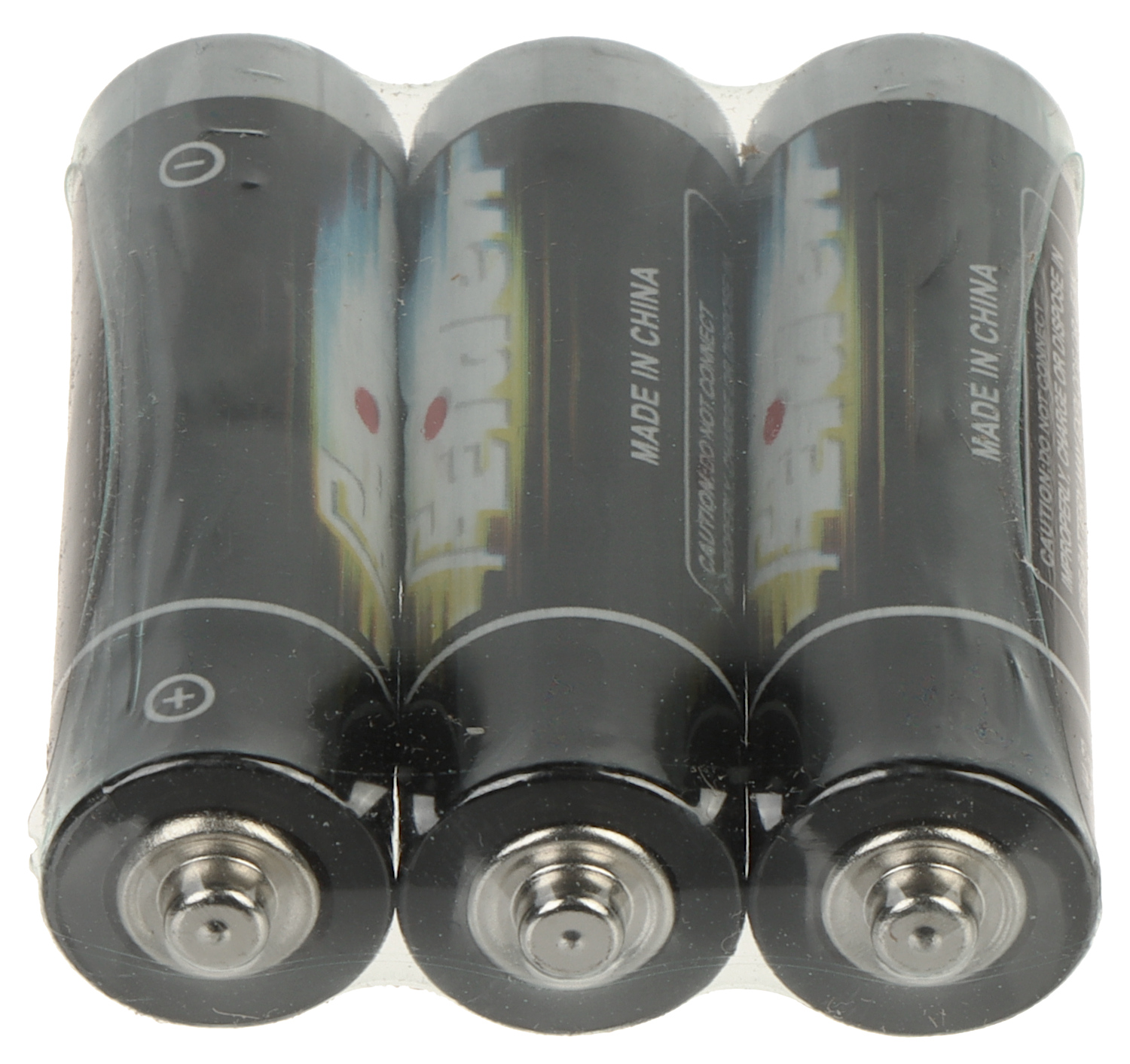

| Power supply: | 3 x 1.5 V - Battery type LR6 (AA) - In the kit |
| Backup time: | > 120 h |
| Weight: | 0,25 kg - Without batteries |
| Dimensions: | 185 x 100 x 46 mm |
| Guarantee: | 2 years |
Brand:
Delta Fiber
