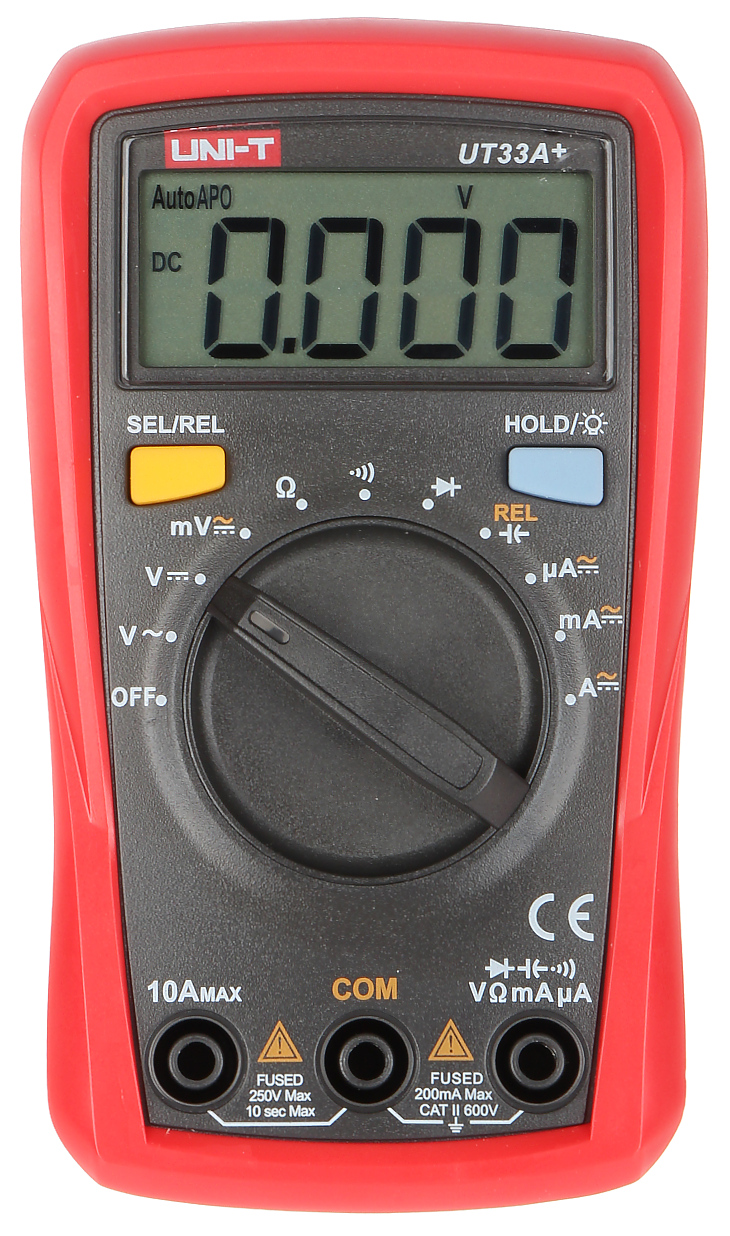

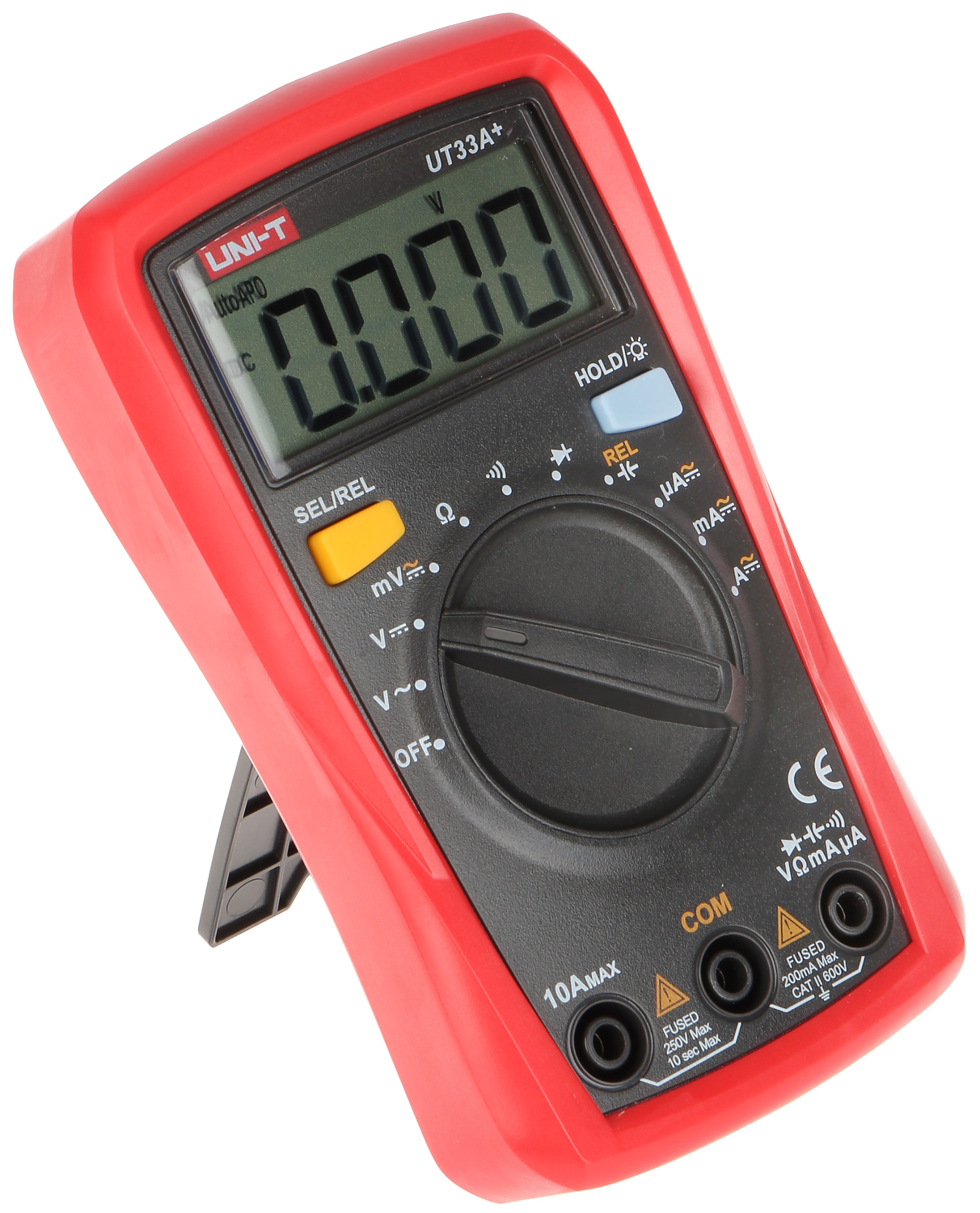

UNIVERSAL METER UT-33A+ UNI-T
Войдите в учётную запись, чтобы мы могли сообщить вам об ответе
UT-33A+ is a universal digital meter used to measure: voltage, current, resistance, capacitance; The meter has a function of automatic change of measuring ranges, as well as a relative measurement function (for capacitance measurement);
| DC voltage measurement: | 200 mV ± (0.7% + 3) @ 0.1 mV , 2000 mV ± (0.5% + 2) @ 1 mV , 20 V ± (0.7% + 3) @ 10 mV , 200 V ± (0.7% + 3) @ 100 mV , 600 V ± (0.7% + 3) @ 1 V |
| AC voltage measurement: | 200 mV ± (1.0% + 2) @ 0.1 mV , 2 V ± (0.7% + 3) @ 1 mV , 20 V ± (1.0% + 2) @ 10 mV , 200 V ± (1.2% + 3) @ 100 mV , 600 V ± (1.2% + 3) @ 1 V |
| DC current measurement: | 200 µA ± (1% + 2) @ 0.1 µA , 2000 µA ± (1% + 2) @ 1 µA , 20 mA ± (1% + 2) @ 10 µA , 200 mA ± (1% + 2) @ 100 µA , 2 A ± (1.2% + 5) @ 1 mA , 10 A ± (1.2% + 5) @ 10 mA |
| AC current measurement: | 200 µA ± (1.2% + 3) @ 0.1 µA , 2000 µA ± (1.2% + 3) @ 1 µA , 20 mA ± (1.2% + 3) @ 0.01 mA , 200 mA ± (1.2% + 3) @ 0.1 mA , 2 A ± (1.5% + 5) @ 1 mA , 10 µA ± (1.5% + 5) @ 10 mA |
| Resistance measurement: | 200 Ω ± (1% + 2) @ 0.1 Ω , 2 kΩ ± (0.8% + 2) @ 1 Ω , 20 kΩ ± (0.8% + 2) @ 10 Ω , 200 kΩ ± (0.8% + 2) @ 100 Ω , 20 MΩ ± (1.2% + 3) @ 10 kΩ , 200 MΩ ± (5% + 10) @ 100 kΩ |
| Capacitance measurement: | 2 nF ± (5% + 5) @ 0.001 nF , 20 nF ± (4% + 8) @ 0.01 nF , 200 nF ± (4% + 8) @ 0.1 nF , 2 µF ± (4% + 8) @ 0.001 µF , 20 µF ± (4% + 8) @ 0.01 µF , 200 µF ± (4% + 8) @ 0.1 µF , 2 mF ± (10%) @ 0.001 mF |
| Inductance measurement: |  |
| Frequency measurement: | |
| Temperature measurement: | |
| Automatic change of measuring ranges: |  |
| hFE: | |
| Diode test: | |
| Sound signal of the continuity test: | |
| Checking TTL logic states: | |
| RS-232: | |
| Main features: | |

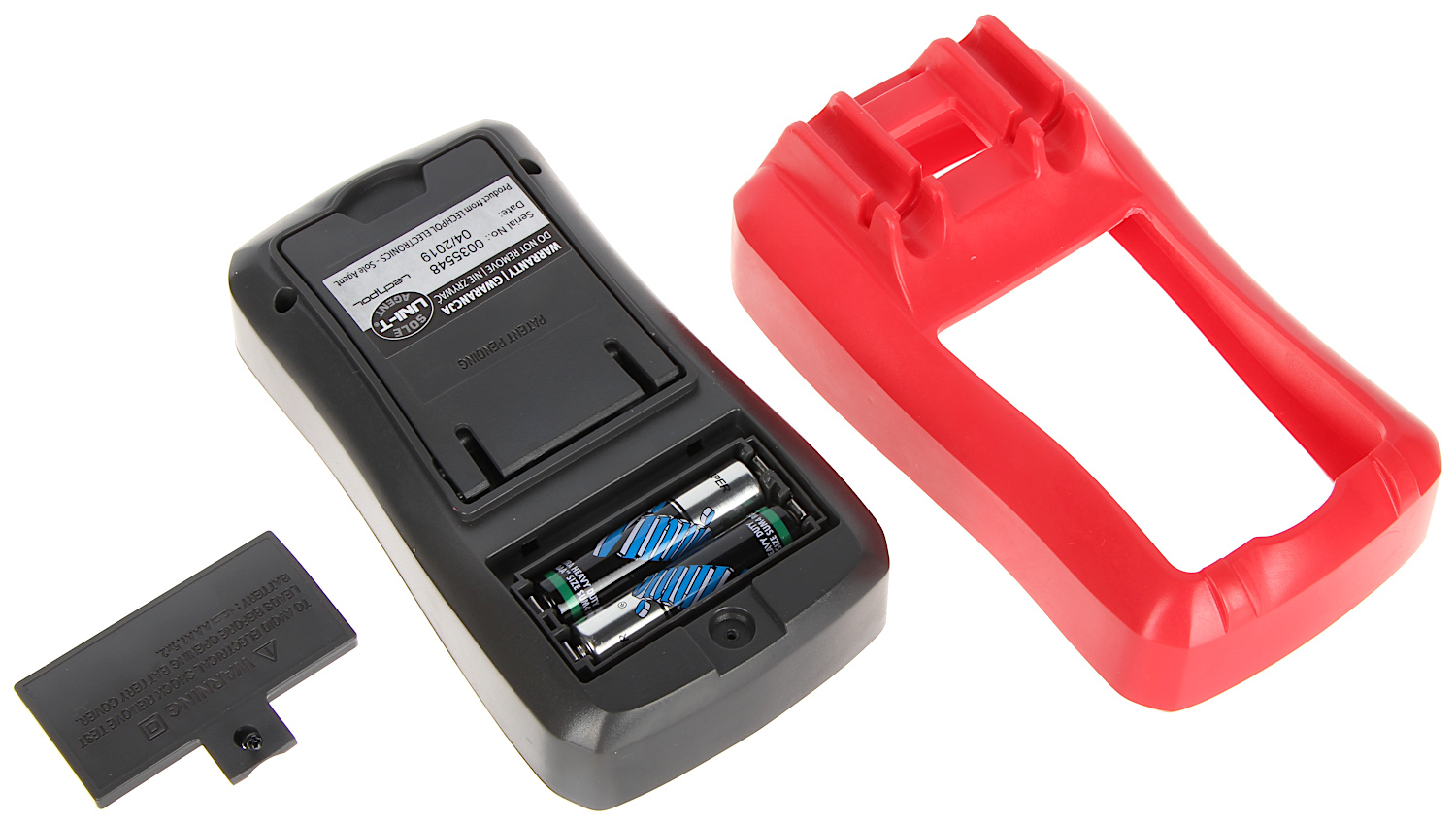

| Power supply: | 2 x 1.5V, type AAA/LR03 battery - included |
| Weight: | 0.26 kg |
| Dimensions: | 134 x 77 x 47 mm |
| Manufacturer / Brand: | UNI-T |
| Guarantee: | 2 years |
Brand:
UNI-T
