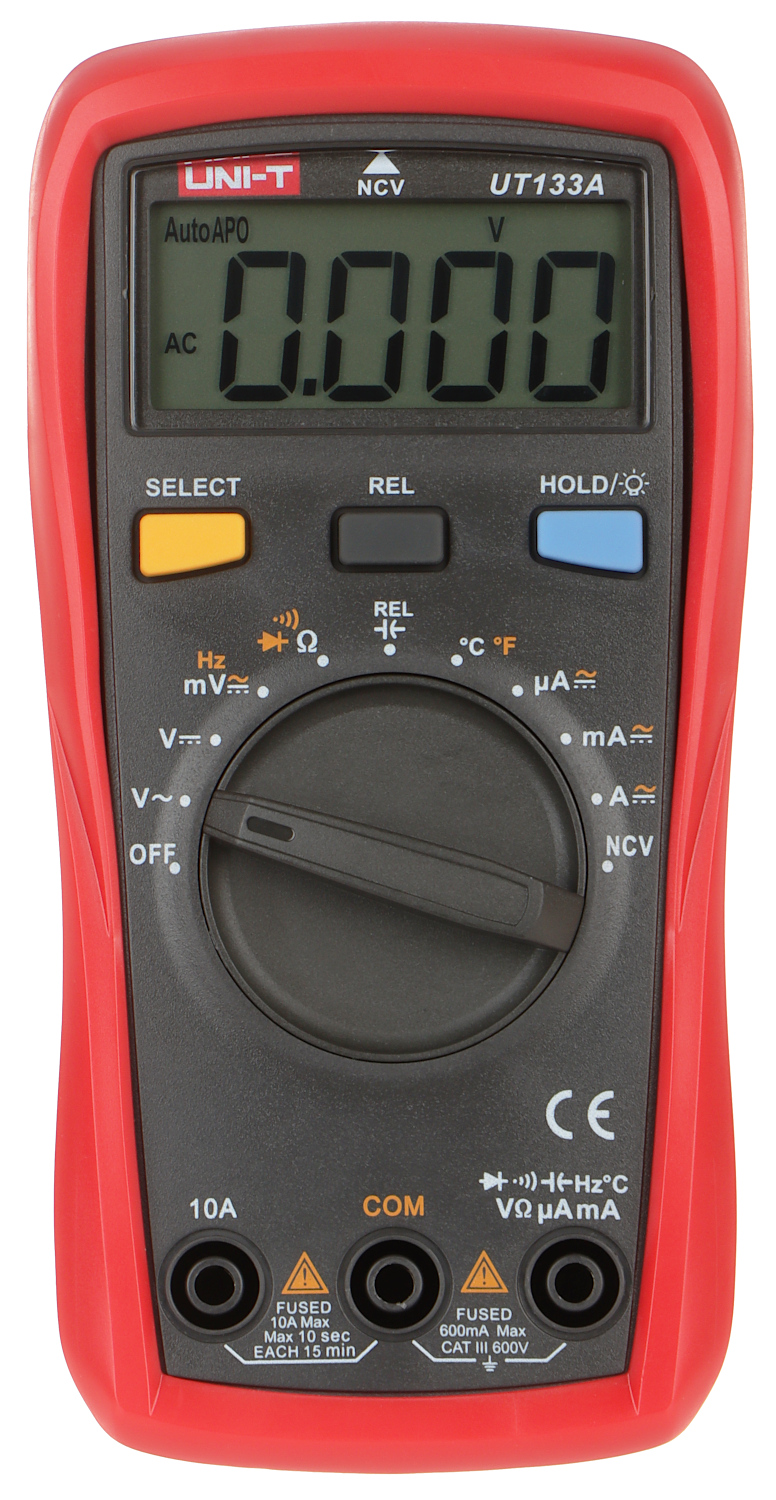

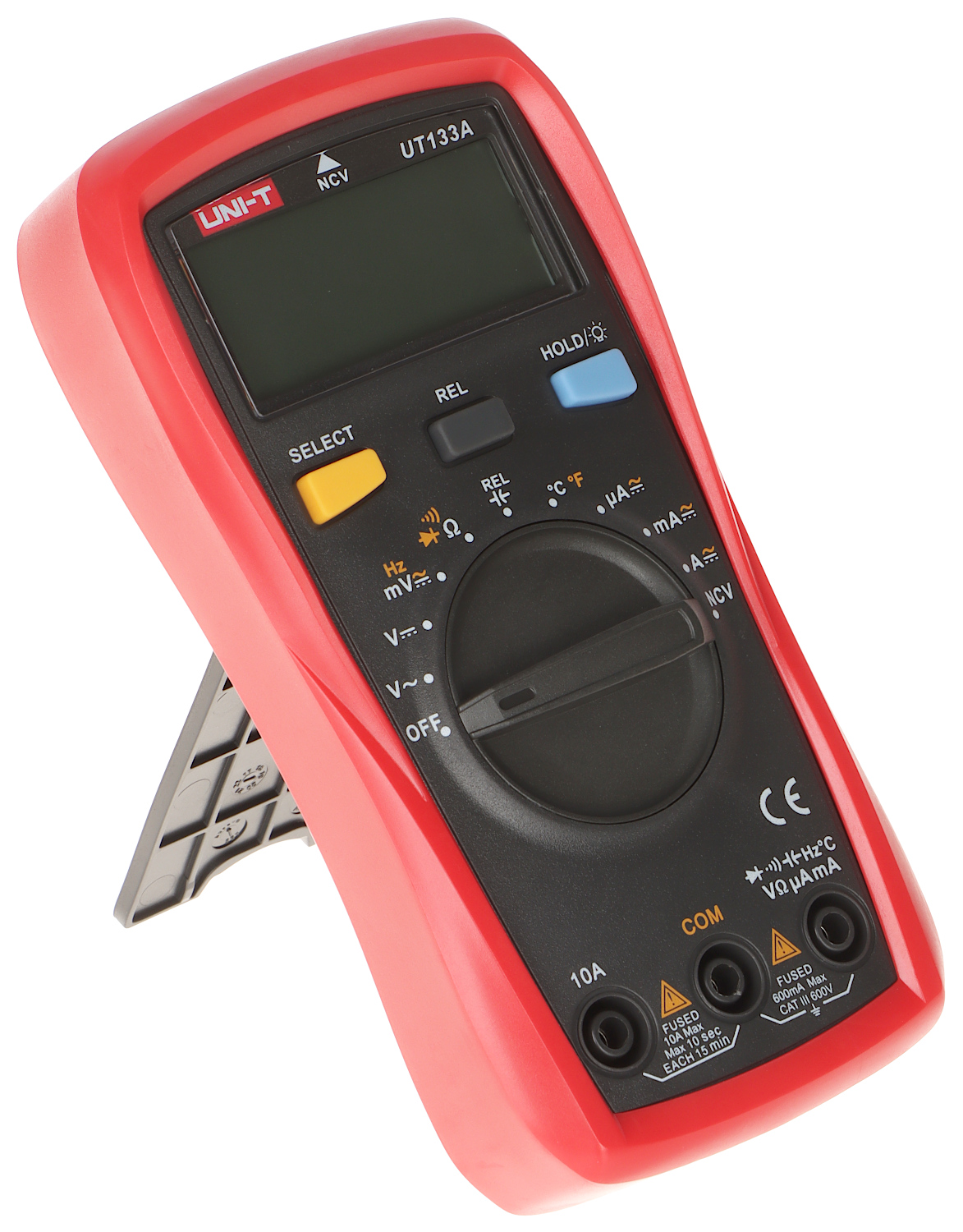

UNIVERSAL METER UT-133A UNI-T
Войдите в учётную запись, чтобы мы могли сообщить вам об ответе
Automatic change of measuring ranges; Main features: NCV - electric field detection function ;
| DC voltage measurement: | 600 mV ± (0.7% + 3) @ 0.1 mV , 6 V ± (0.5% + 3) @ 0.001 V , 60 V ± (0.7% + 3) @ 0.01 V , 600 V ± (0.7% + 3) @ 0.1 V |
| AC voltage measurement: | 600 mV ± (1.0% + 2) @ 0.1 mV , 6 V ± (0.7% + 3) @ 0.001 V , 60 V ± (1.0% + 2) @ 0.01 V , 600 V ± (1.2% + 3) @ 0.1 V |
| DC current measurement: | 600 µA ± (1.0% + 3) @ 0.1 µA , 6000 µA ± (1.0% + 3) @ 1 µA , 60 mA ± (1.0% + 3) @ 0.01 mA , 600 mA ± (1.0% + 3) @ 0.1 mA , 6 A ± (1.2% + 5) @ 0.001 A , 10 A ± (1.2% + 5) @ 0.01 A |
| AC current measurement: | 600 µA ± (1.2% + 3) @ 0.1 µA , 6000 µA ± (1.2% + 3) @ 1 µA , 60 mA ± (1.2% + 3) @ 0.01 mA , 600 mA ± (1.2% + 3) @ 0.1 mA , 6 A ± (1.5% + 5) @ 0.001 A , 10 A ± (1.5% + 5) @ 0.01 A |
| Resistance measurement: | 600 Ω ± (1.0% + 2) @ 0.1 Ω , 6 kΩ ± (0.8% + 2) @ 0.001 kΩ , 60 kΩ ± (0.8% + 2) @ 0.01 kΩ , 600 kΩ ± (0.8% + 2) @ 0.1 kΩ , 60 MΩ ± (2.0% + 5) @ 0.01 MΩ |
| Capacitance measurement: | 9.999 nF ± (4% + 10) @ 0.001 nF , 99.99 nF ± (4% + 5) @ 0.01 nF , 999.9 nF ± (4% + 5) @ 0.1 nF , 9.999 µF ± (4% + 5) @ 0.001 µF , 99.99 µF ± (4% + 5) @ 0.01 µF , 999.9 µF ± (4% + 5) @ 0.1 µF , 9.999 mF ± (10%) @ 0.001 mF |
| Inductance measurement: |  |
| Frequency measurement: | 60 Hz ... 1 MHz ± (0.1% + 5) @ 0.01 Hz ... 0.001 MHz |
| Square-wave signal duty ratio measurement: | |
| Temperature measurement: | -40 ... 40 °C ± 4 @ 1 °C , >40 ... 500 °C ± (1.0% + 4) @ 1 °C , >500 ... 1000 °C ± (2.0% + 4) @ 1 °C , -40 ... 104 °F ± 5 @ 1 °F , >104 ... 932 °F ± (1.5% + 5) @ 1 °F , >932 ... 1832 °F ± (2.5% + 5) @ 1 °F |
| Automatic change of measuring ranges: |  |
| hFE: | |
| Diode test: | |
| Sound signal of the continuity test: | |
| Checking TTL logic states: | |
| RS-232: | |
| Main features: | |

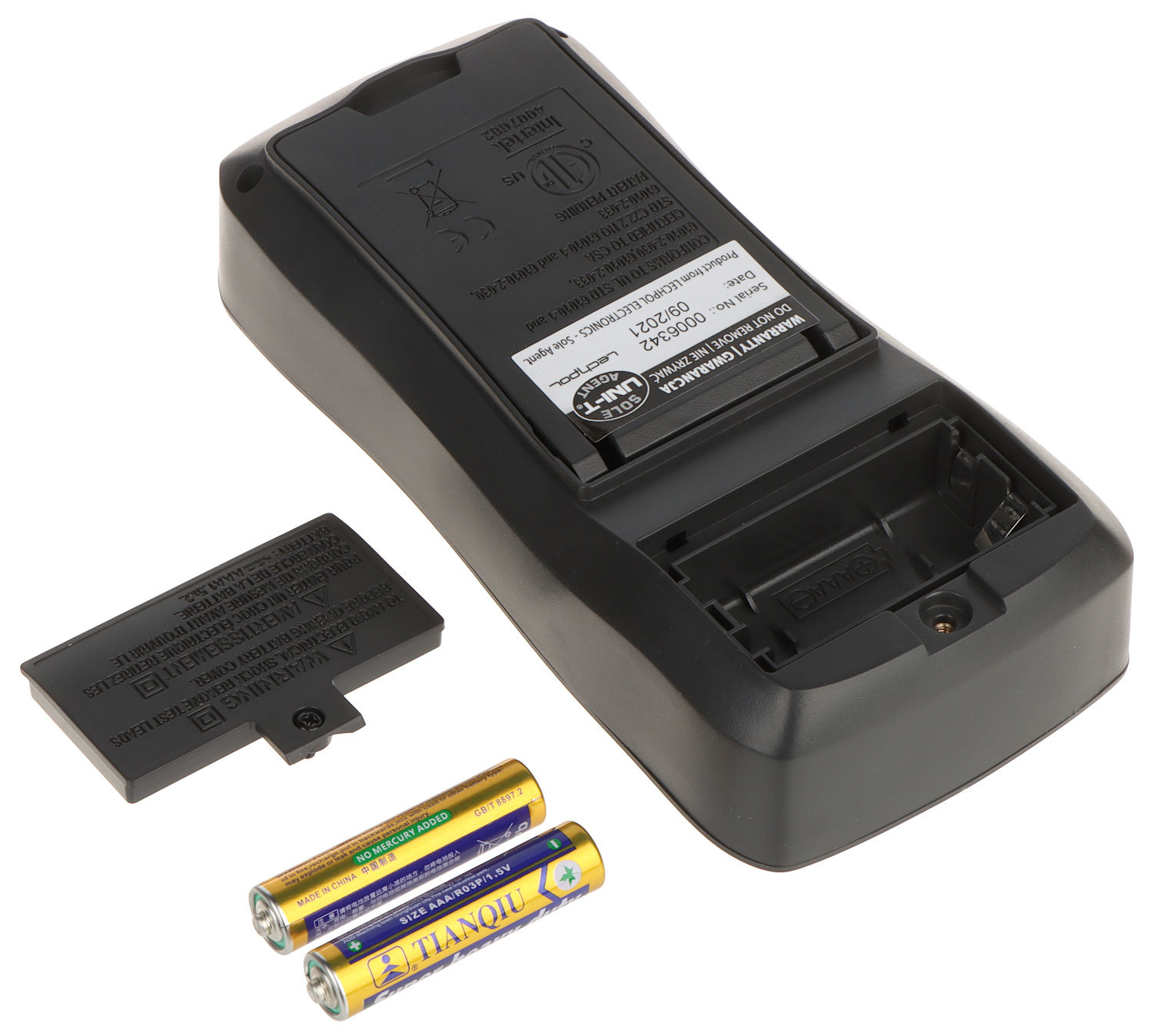

| Power supply: | 2 x 1.5V, type AAA/LR03 battery - included |
| Weight: | 0.25 kg |
| Dimensions: | 155 x 77 x 49 mm |
| Manufacturer / Brand: | UNI-T |
| Guarantee: | 2 years |
Brand:
UNI-T
