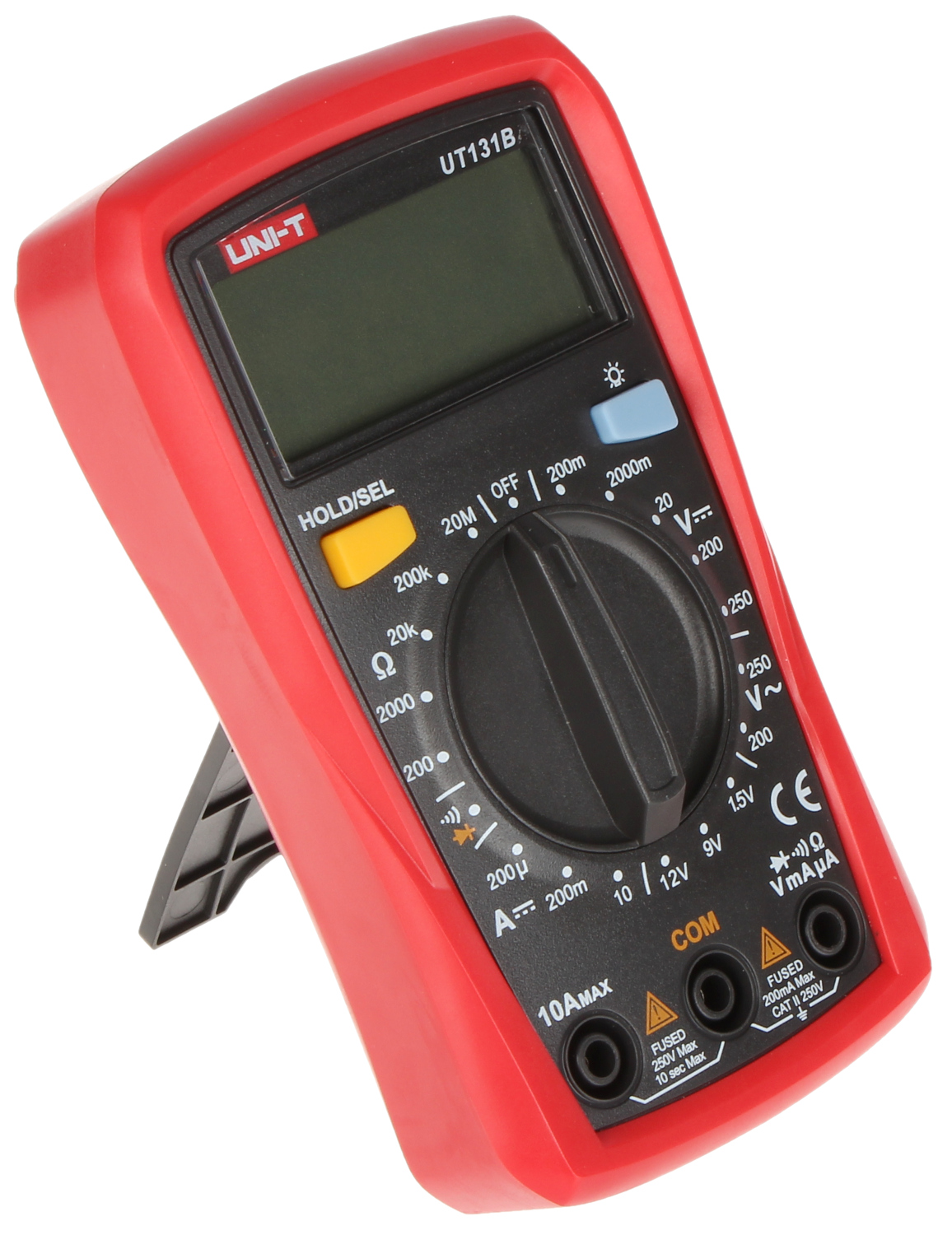

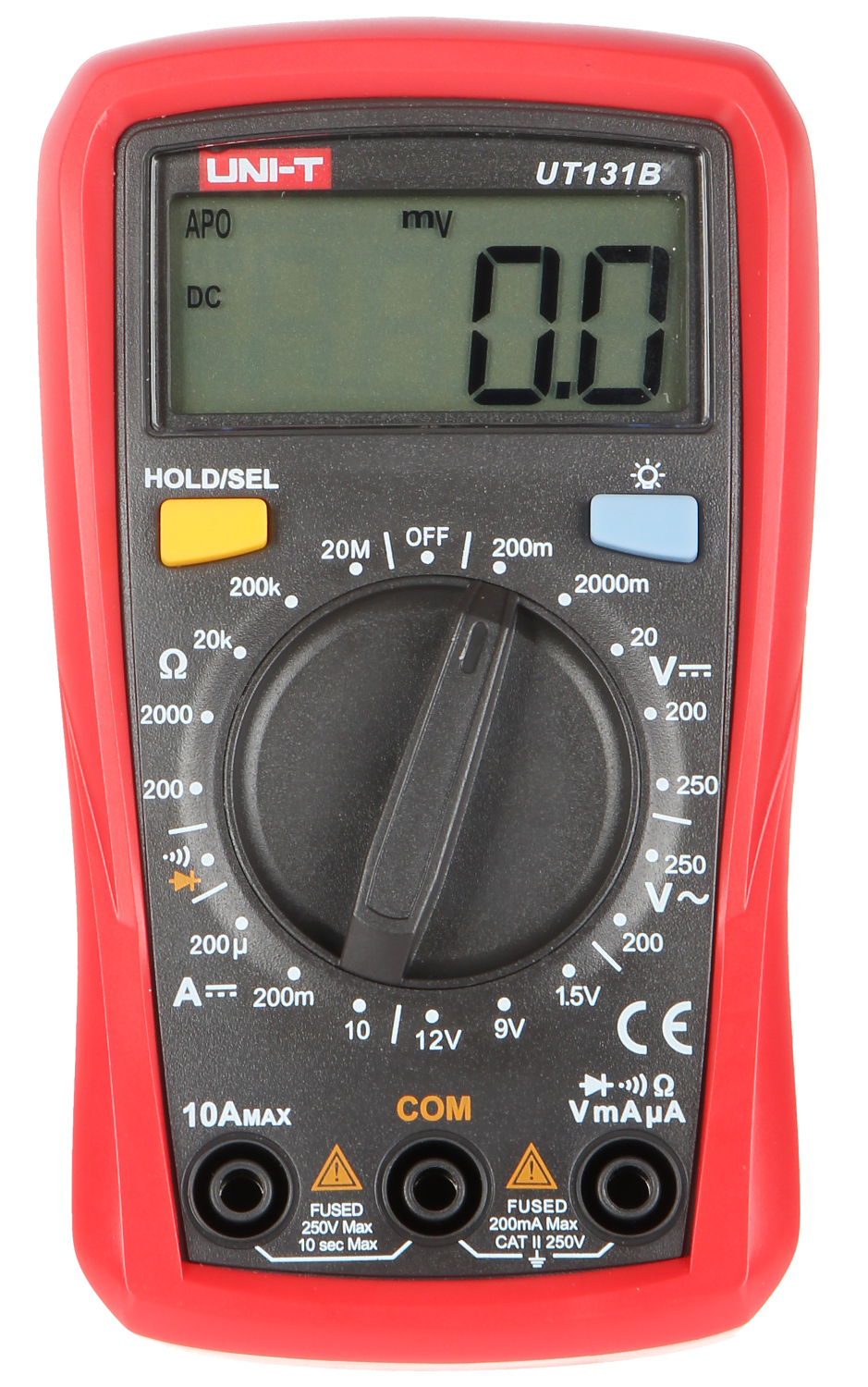

UNIVERSAL METER UT-131B UNI-T
Войдите в учётную запись, чтобы мы могли сообщить вам об ответе
The UT-131B is a universal digital meter used to measure: voltage, current, resistance, diodes; Main features: Measurement of the battery discharge level: 12V, 9V, 1.5V ;
| DC voltage measurement: | 200 mV ± (0.7% + 3) @ 0.1 mV , 2000 mV ± (0.5% + 2) @ 1 mV , 20 V ± (0.7% + 3) @ 0.01 V , 200 V ± (0.7% + 3) @ 0.1 V , 250 V ± (0.7% + 3) @ 1 V |
| AC voltage measurement: | 200 V ± (1.2% + 3) @ 0.1 V , 250 V ± (1.2% + 3) @ 1 V |
| DC current measurement: | 200 µA ± (1% + 2) @ 0.1 µA , 200 mA ± (1% + 2) @ 0.1 mA , 10 A ± (1.2% + 5) @ 0.01 A |
| AC current measurement: |  |
| Resistance measurement: | 200 Ω ± (1% + 2) @ 0.1 Ω , 2 kΩ ± (0.8% + 2) @ 1 Ω , 20 kΩ ± (0.8% + 2) @ 10 Ω , 200 kΩ ± (0.8% + 2) @ 100 Ω , 20 MΩ ± (1.2% + 3) @ 10 kΩ |
| Capacitance measurement: | |
| Inductance measurement: | |
| Frequency measurement: | |
| Temperature measurement: | |
| Automatic change of measuring ranges: | |
| hFE: | |
| Diode test: |  |
| Sound signal of the continuity test: | |
| Checking TTL logic states: | |
| RS-232: | |
| Main features: | |

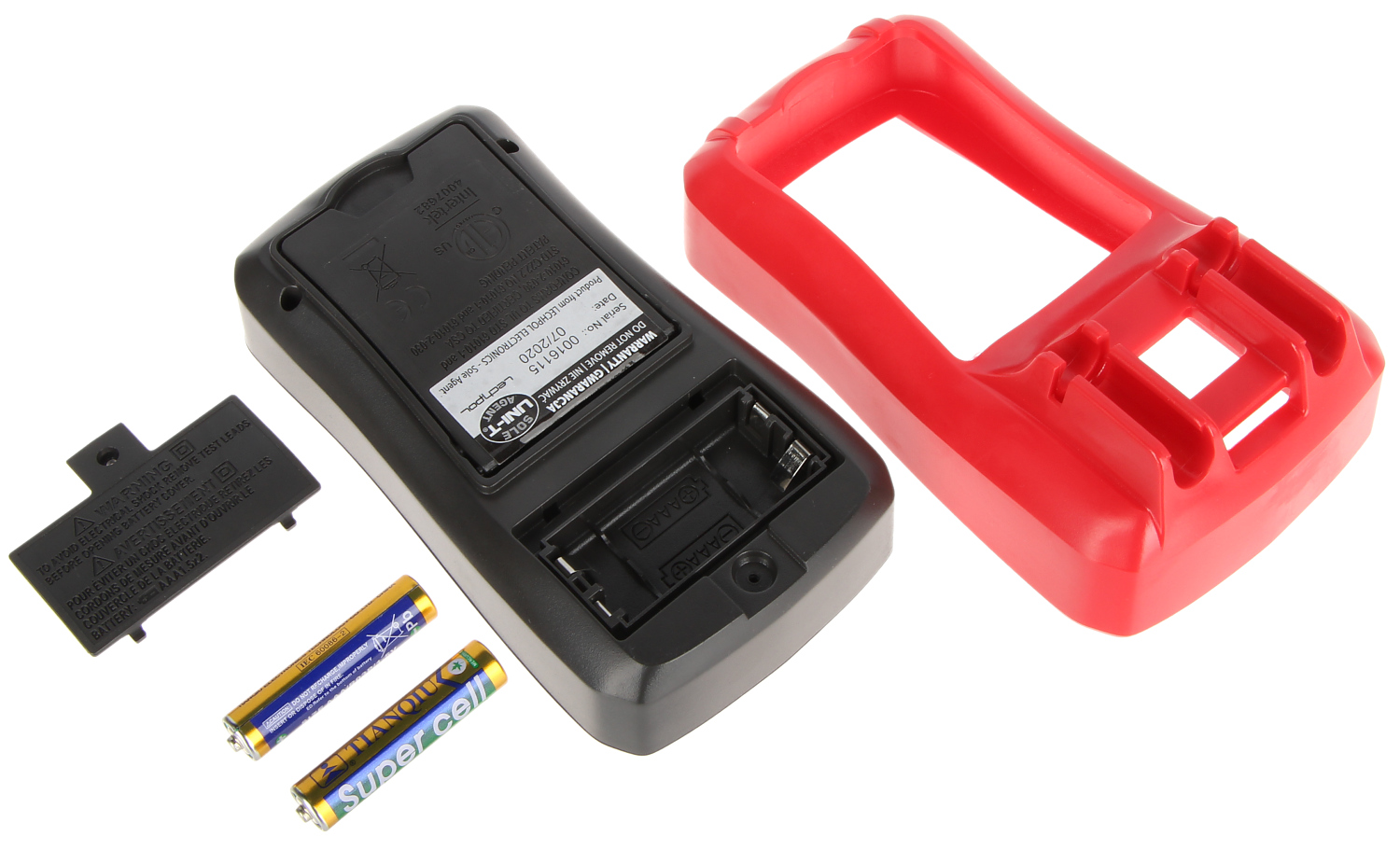

| Power supply: | 2 x 1.5V, type AAA/LR03 battery - included |
| Weight: | 0.21 kg |
| Dimensions: | 134 x 77 x 47 mm |
| Manufacturer / Brand: | UNI-T |
| Guarantee: | 2 years |
Brand:
UNI-T
