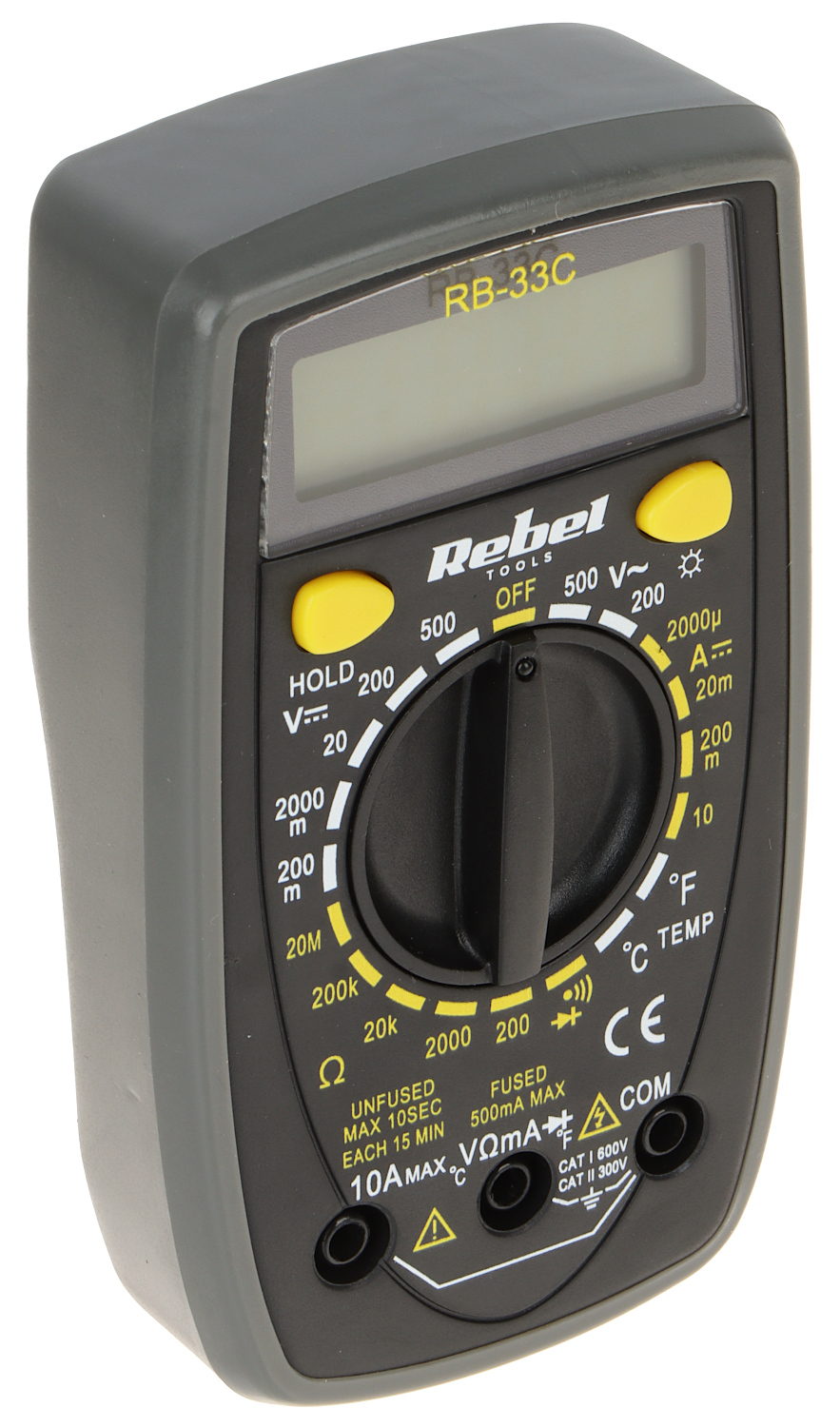

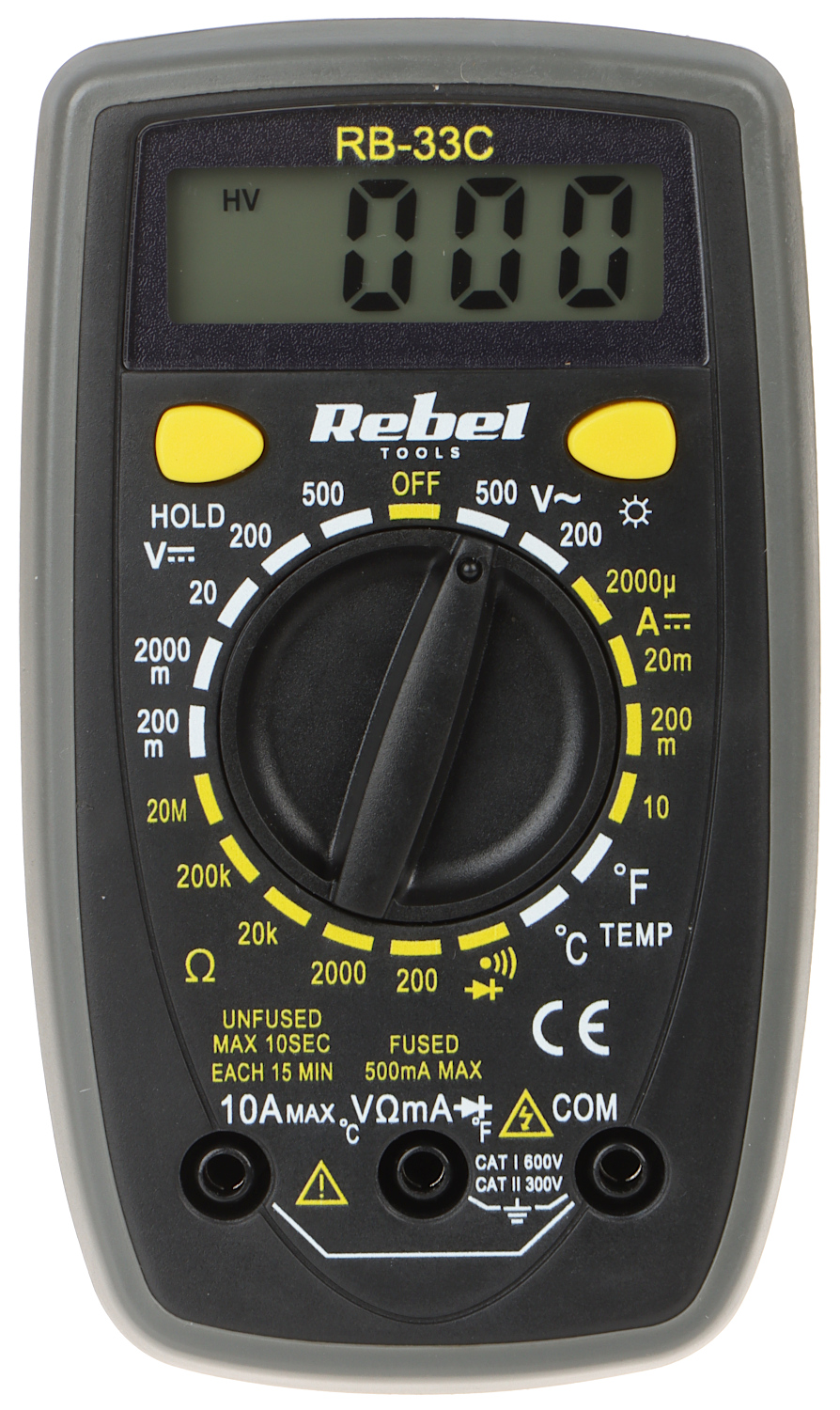

UNIVERSAL METER RB-33C REBEL Tools
Войдите в учётную запись, чтобы мы могли сообщить вам об ответе
RB-33C is a universal digital meter used to measure: voltage, current, resistance, temperature, diodes;
| DC voltage measurement: | 200 mV ± (0.5% + 3) @ 0.1 mV , 2000 mV ± (0.8% + 5) @ 1 mV , 20 V ± (0.8% + 5) @ 0.01 V , 200 V ± (0.8% + 5) @ 0.1 V , 500 V ± (1.0% + 5) @ 1 V |
| AC voltage measurement: | 200 V ± (2.0% + 10) @ 0.1 V , 500 V ± (2.0% + 10) @ 1 V |
| DC current measurement: | 200 µA ± (1.8% + 2) @ 0.1 µA , 2000 µA ± (1.8% + 2) @ 1 µA , 20 mA ± (1.8% + 2) @ 0.01 mA , 200 mA ± (2.0% + 2) @ 0.1 mA , 10 A ± (2.0% + 10) @ 0.01 A |
| AC current measurement: |  |
| Resistance measurement: | 200 Ω ± (1.0% + 10) @ 0.1 Ω , 2000 Ω ± (1.0% + 4) @ 1 Ω , 20 kΩ ± (1.0% + 4) @ 0.01 kΩ , 200 kΩ ± (1.0% + 4) @ 0.1 kΩ , 20 MΩ ± (1.0% + 10) @ 0.001 MΩ |
| Capacitance measurement: | |
| Inductance measurement: | |
| Frequency measurement: | |
| Square-wave signal duty ratio measurement: | |
| Temperature measurement: | -40 ... 150 °C ± (1.0% + 4) @ 1 °C , >150 ... 1370 °C ± (1.5% + 15) @ 1 °C -40 ... 302 °F ± (1.0% + 4) @ 1 °F , 302 ... 1999 °F ± (1.5% + 15) @ 1 °F |
| Automatic change of measuring ranges: | |
| hFE: | |
| Diode test: |  |
| Sound signal of the continuity test: | |
| Checking TTL logic states: | |
| RS-232: | |
| Main features: | |

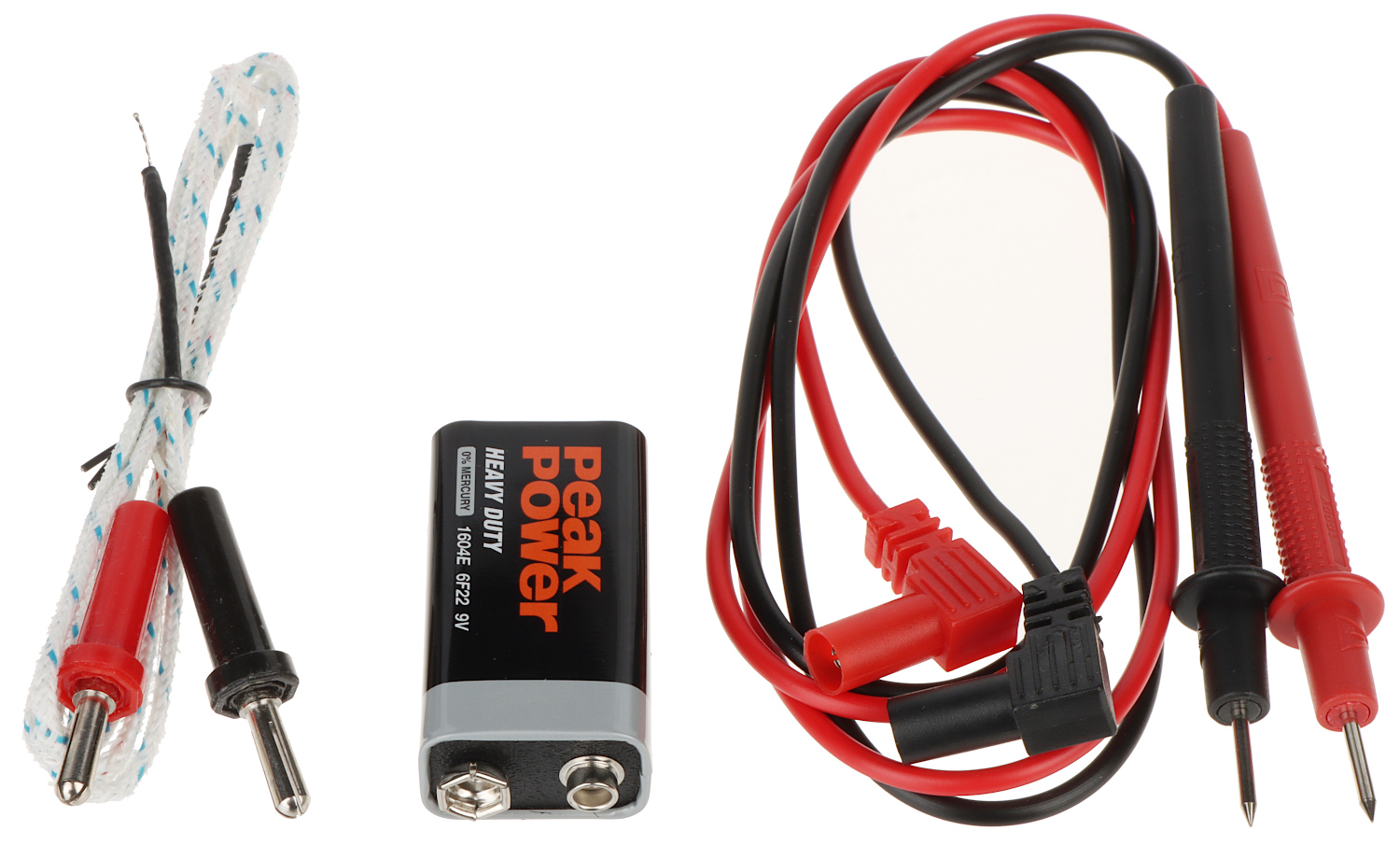

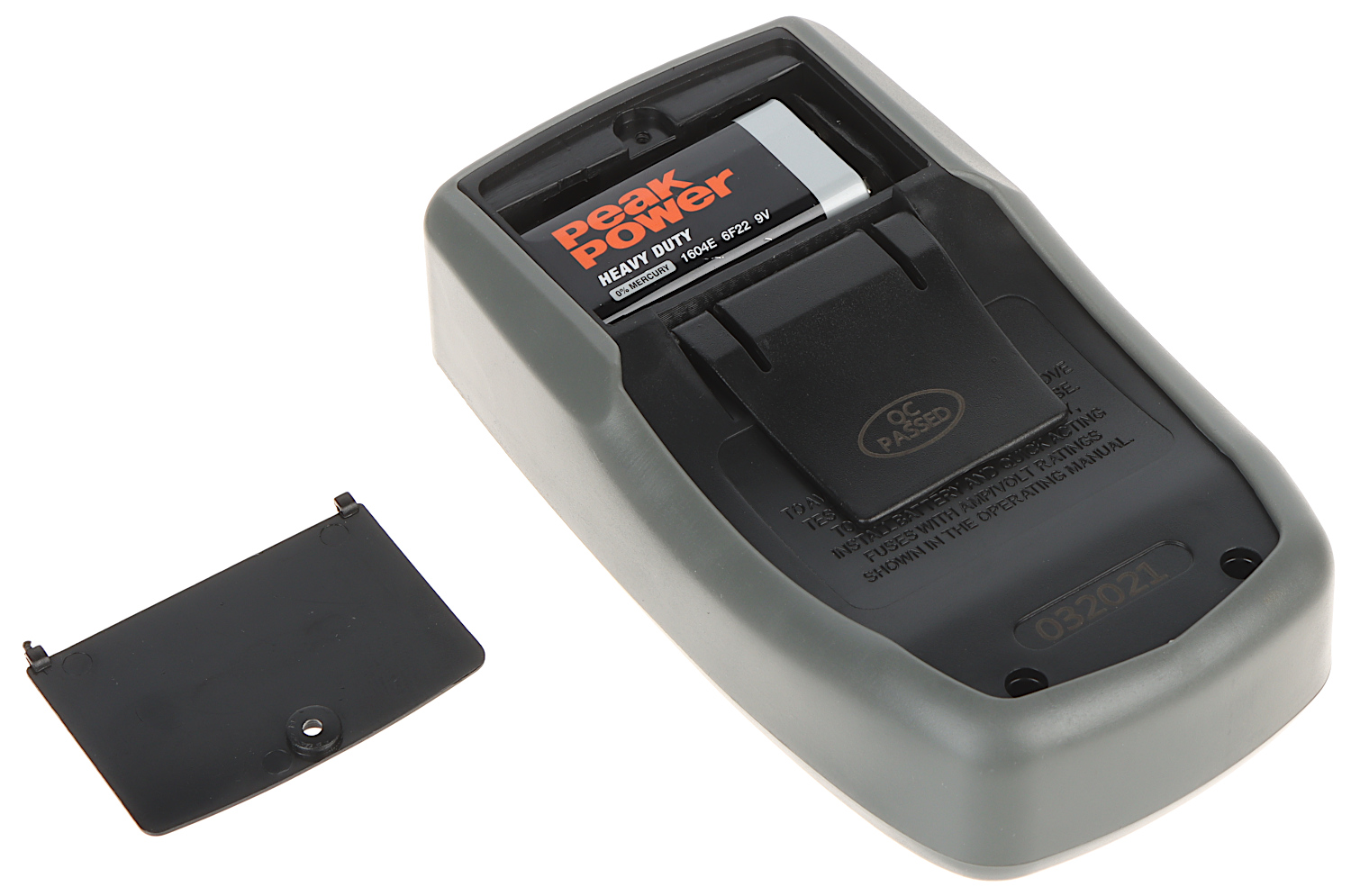

| Power supply: | 9V, type 6F22 battery - included |
| Weight: | 0.17 kg |
| Dimensions: | 134 x 77 x 36 mm |
| Manufacturer / Brand: | REBEL Tools |
| Guarantee: | 2 years |
Brand:
Rebel
