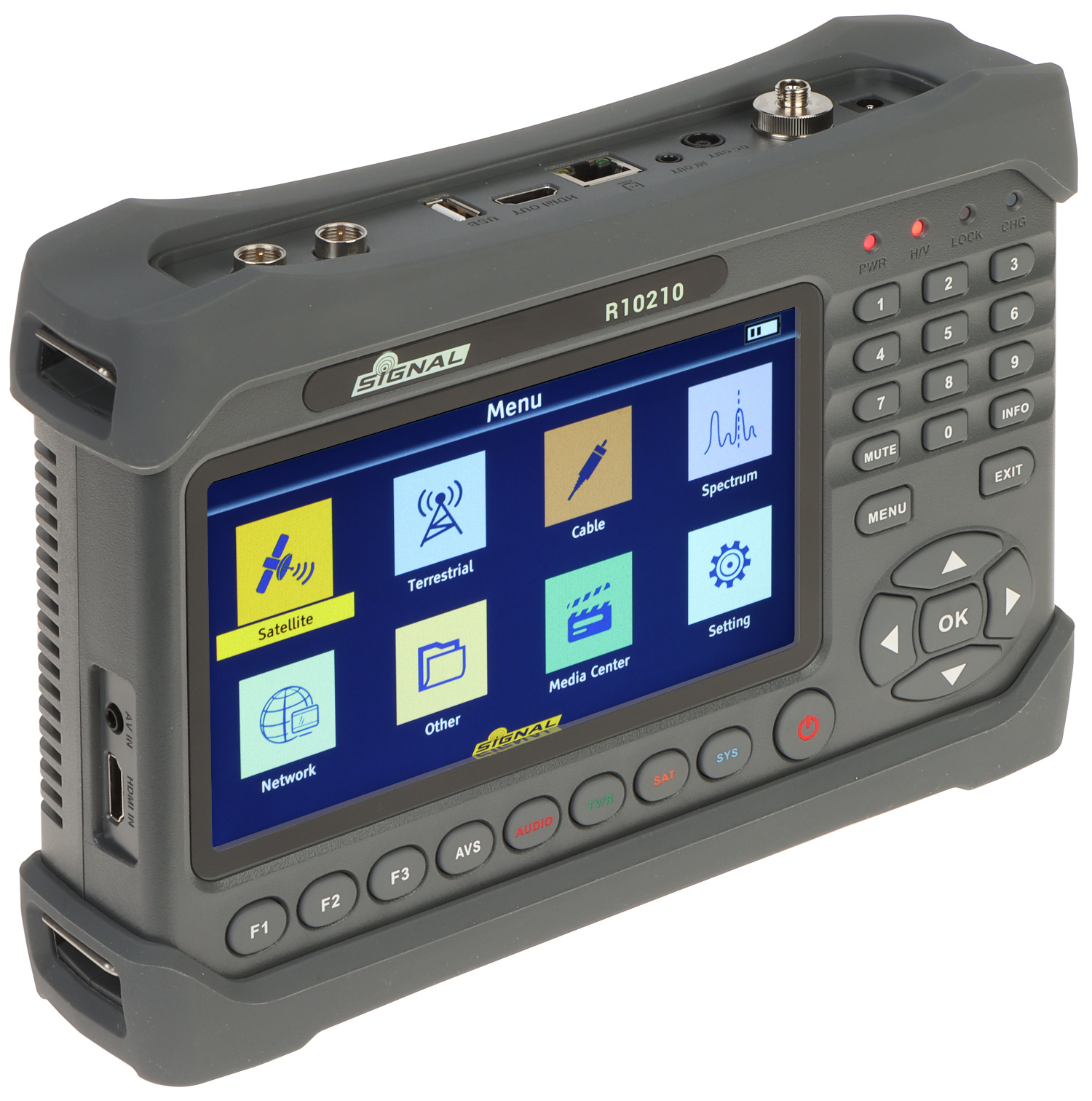

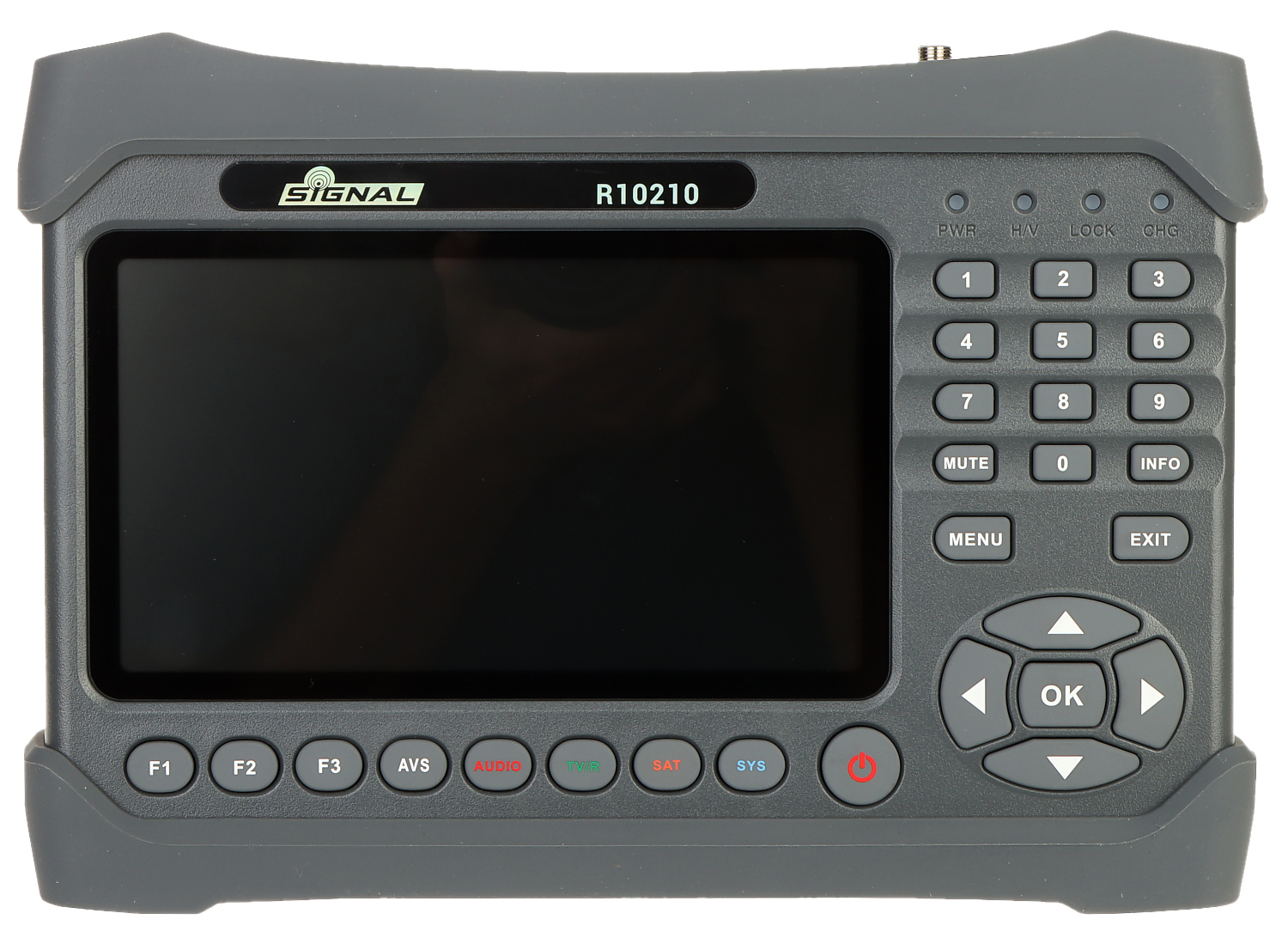

UNIVERSAL METER ST-6986 DVB-T/T2 DVB-S/S2 DVB-C SIGNAL
Войдите в учётную запись, чтобы мы могли сообщить вам об ответе
Frequency range: 48 MHz ... 862 MHz @ DVB-T / DVB-T2 / DVB-C, 950 MHz ... 2150 MHz @ DVB-S / DVB-S2 ; Signal level: -20 ... +80 dBm @ DVB-S / DVB-S2, -20 ... +80 dBm @ DVB-T / DVB-T2 / DVB-C ;

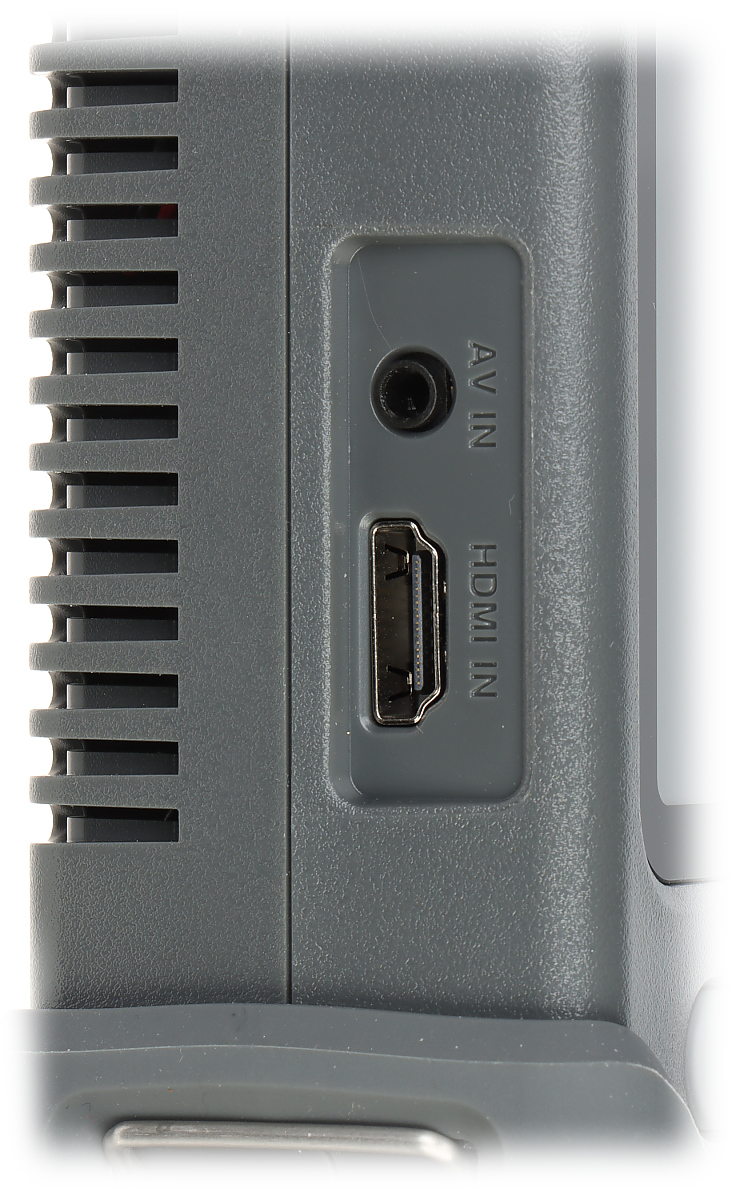

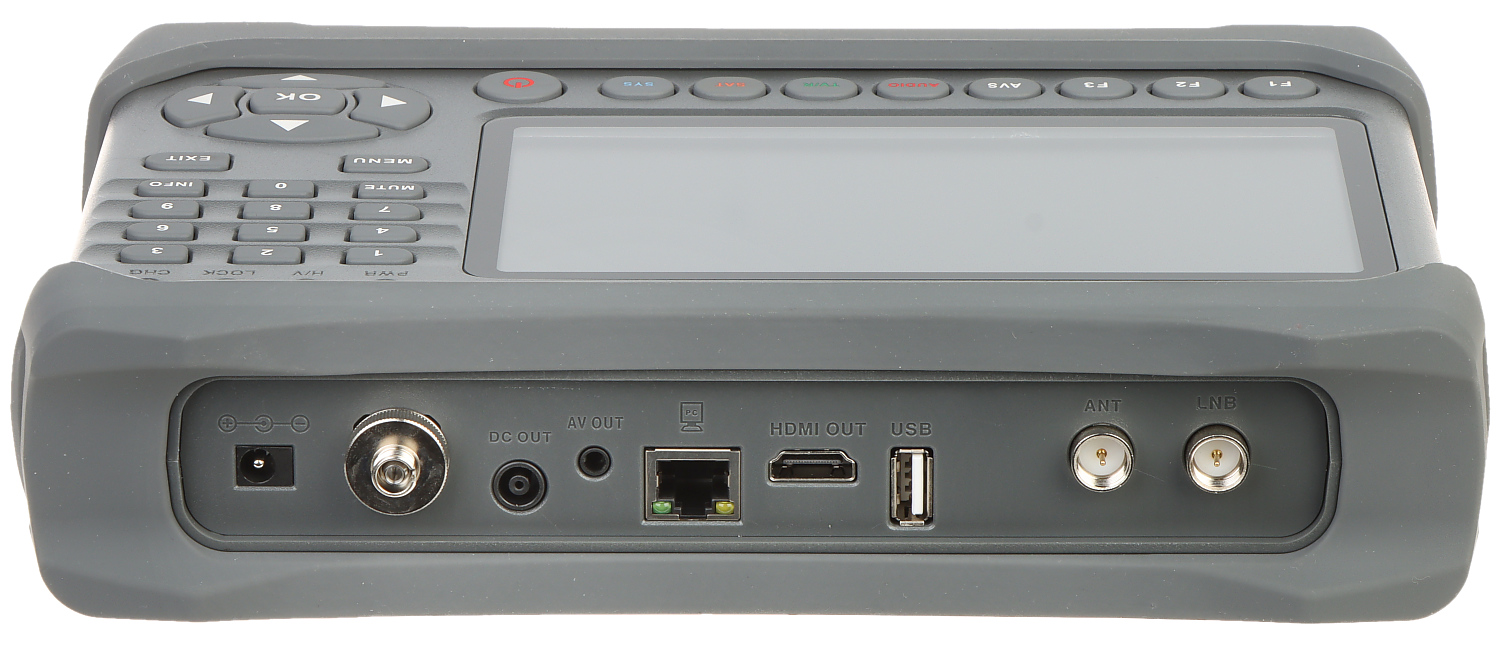

| Output and input: | |
| Frequency range: | |
| Signal level: | |
| LNB power supply: | 13 / 18 V, max. 400 mA |
| Switching between bandwidths: | 0 / 22 kHz |
| Antenna powering: | 5 / 12 / 24 V @ 100 mA |

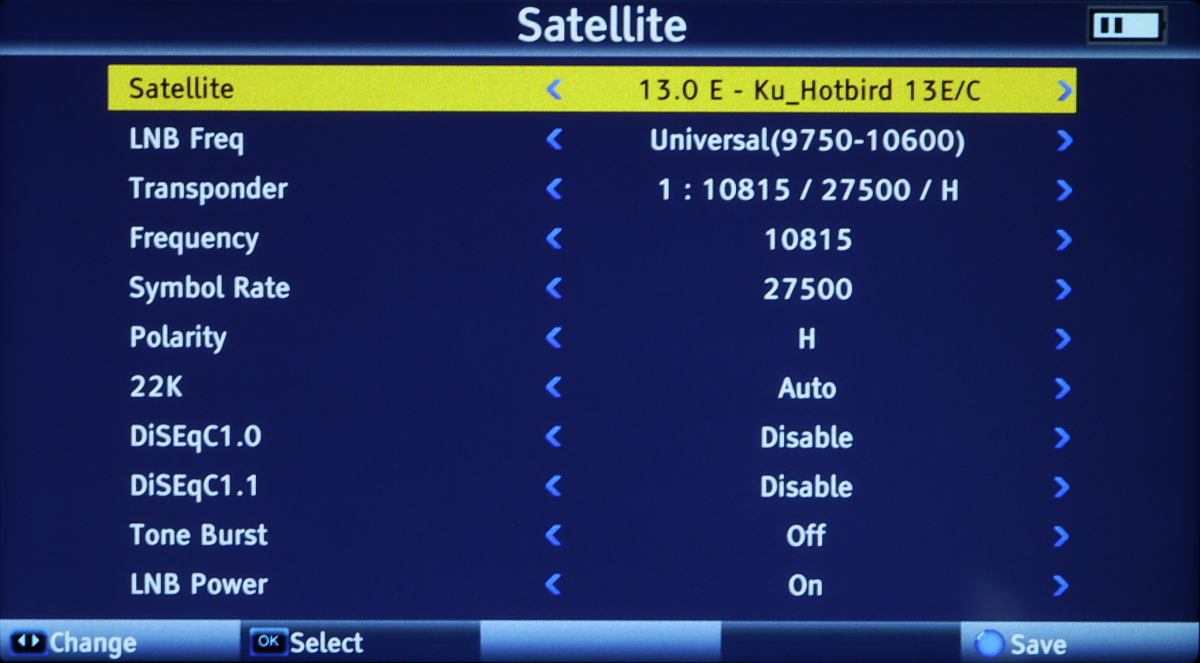

| DiSEqC: | 1.0, 1.1,1.2, 0/22 kHz Tone, Unicable (dSCR), Wideband systems support |
| Modulation: | QPSK / 8PSK / 16APSK @ DVB-S / DVB-S2 QPSK / 16-QAM / 64-QAM / 256-QAM @ DVB-T / DVB-T2 / DVB-C |
| Video signal test: |  |
| Programming and firmware upgrade: | via USB port |

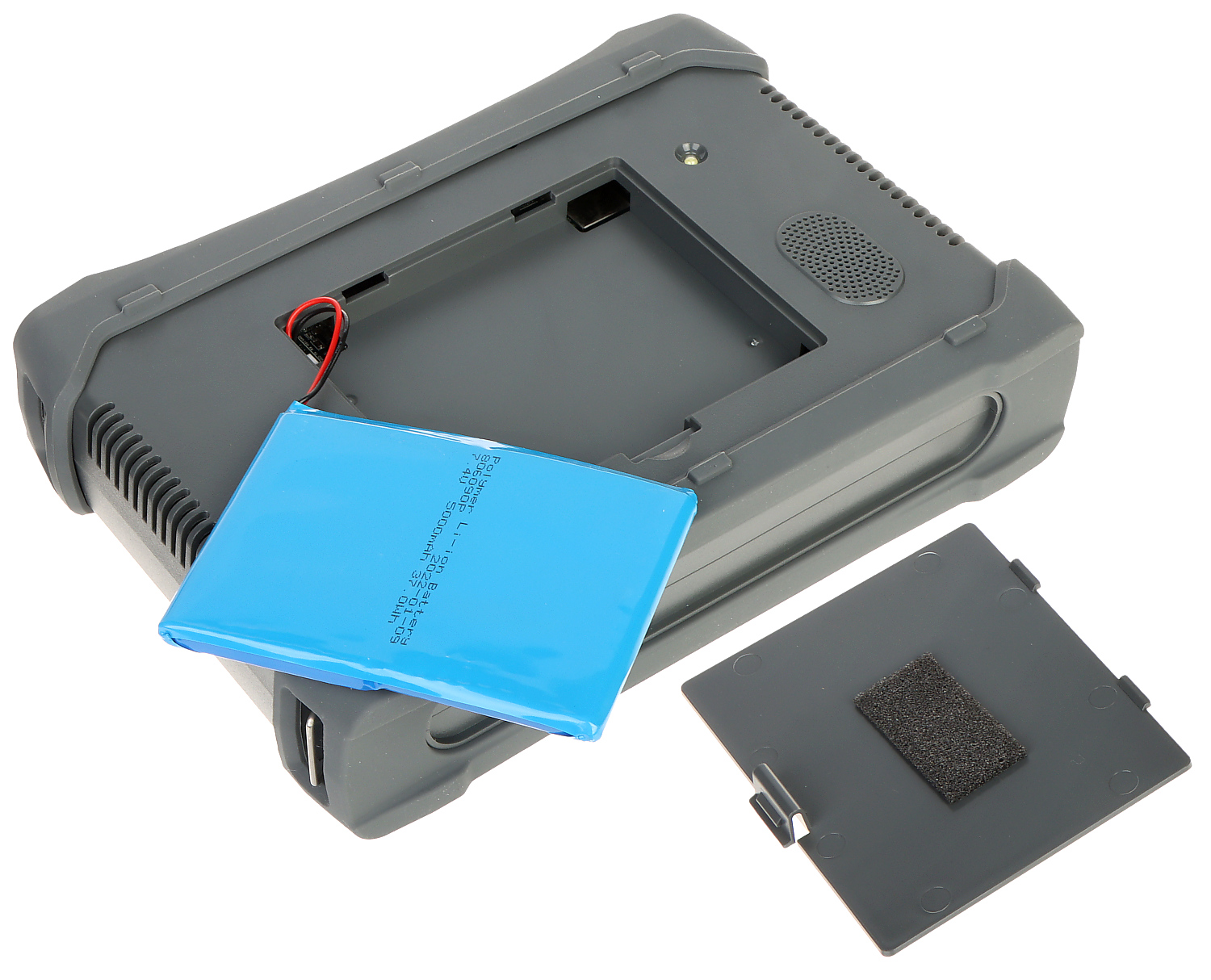

| Battery power supply: | Li-Ion battery 7.4 V / 5000 mAh |
| Power supply: | 12 V / 1.5 A (power adapter included) |
| Power consumption: | ≤ 10 W |
| Main features: | |
| Weight: | 1.17 kg |
| Dimensions: | 259 x 181 x 59 mm |
| Supported languages: | Polish, English, Czech, Danish, French, Greek, Spanish, Dutch, German, Slovenian, Portuguese, Russian, Turkish, Hungarian, Italian |
| Manufacturer / Brand: | SIGNAL |
| Guarantee: | 2 years |
Brand:
Signal
