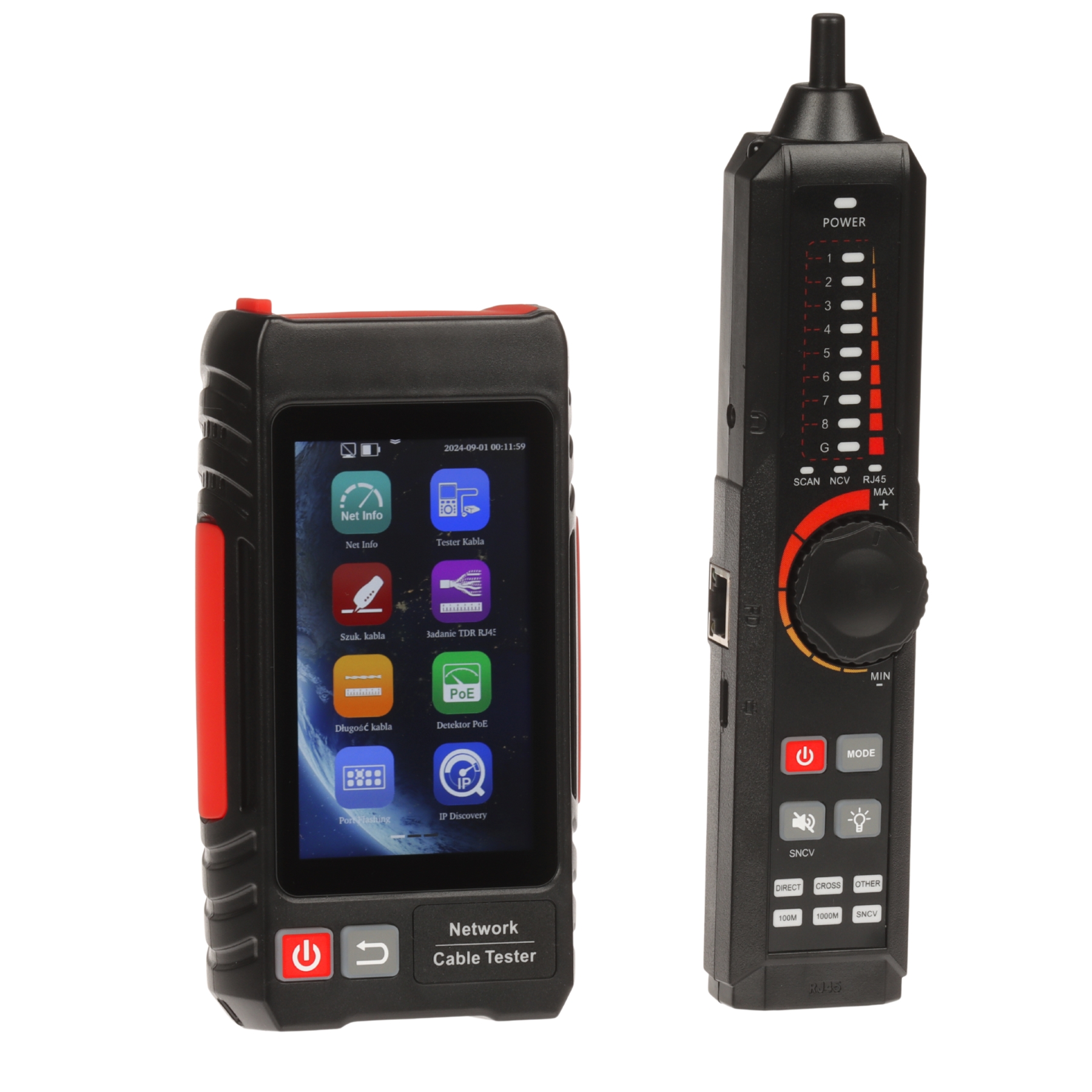

CS-NT64A
18 шт.

Минимальное количество для товара "CABLES TESTER CS-NT64A" 1.

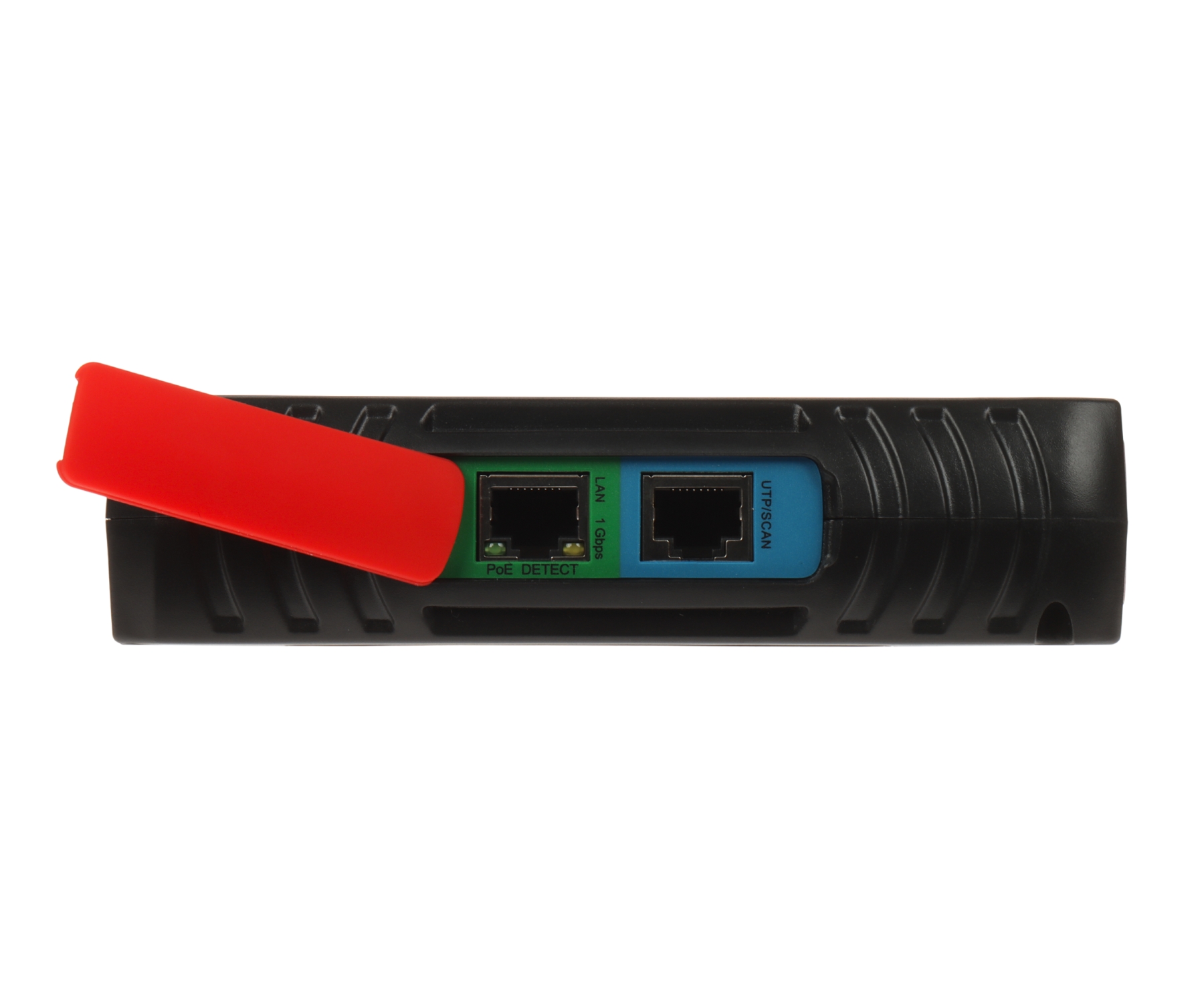

Tested cables: STP RJ45 (8P8C), RJ11 (6P4C), Coaxial cable ;

Tested cables: STP / UTP RJ45 (8P8C), RJ11 (6P4C), Coaxial cable

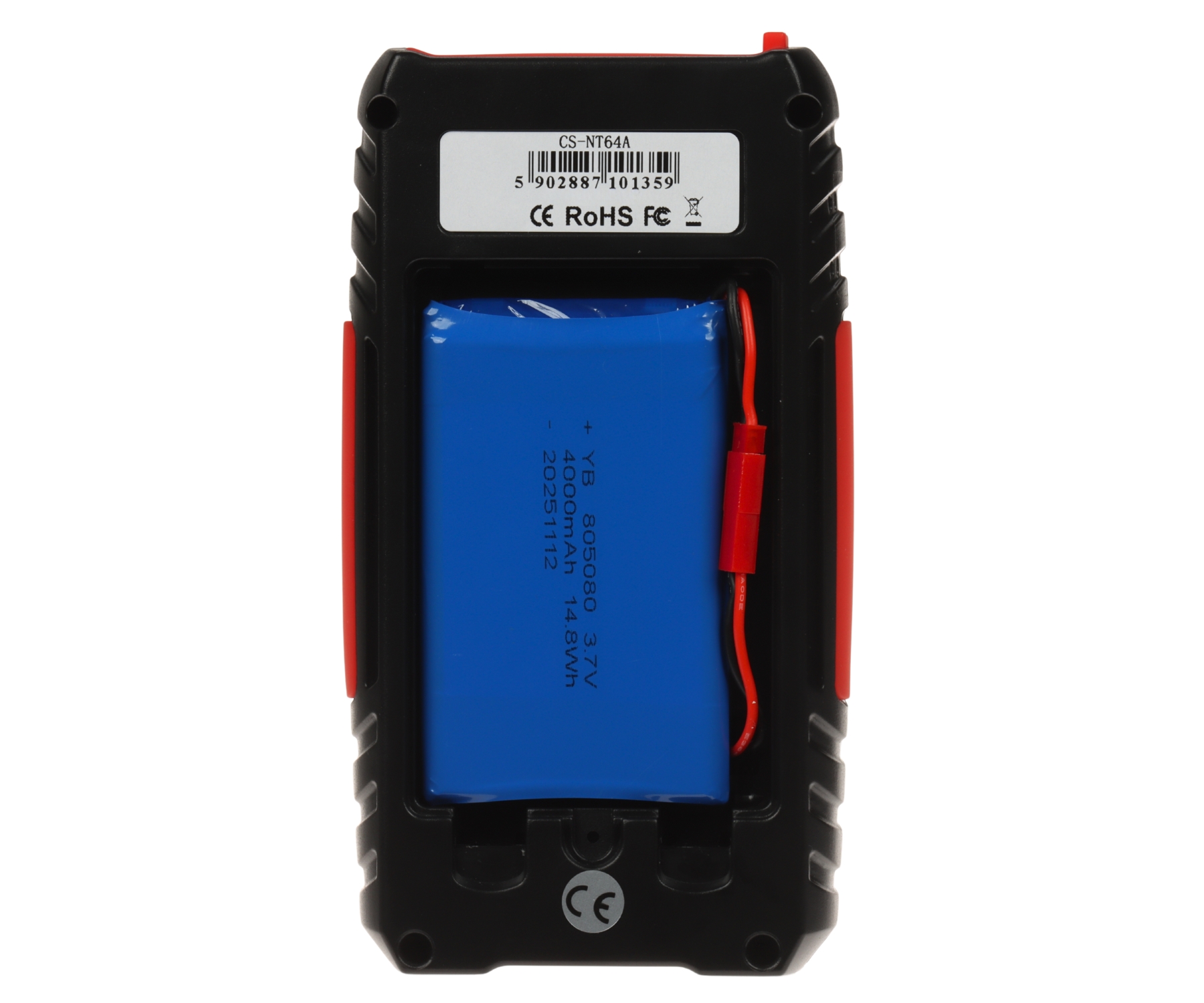

Power supply: Cables tester : Li-Ion battery 3.7 V / 4000 mAh

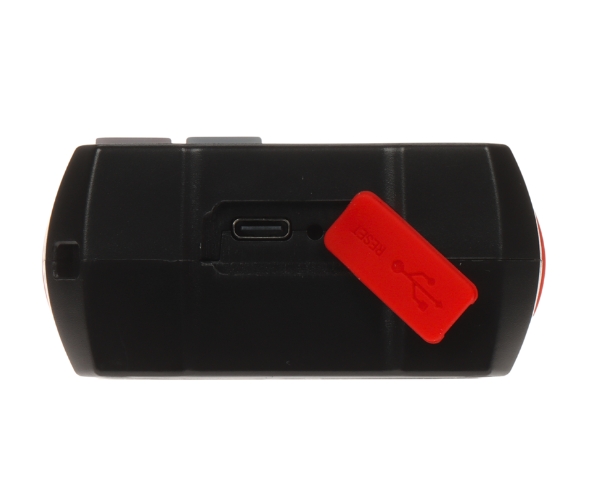

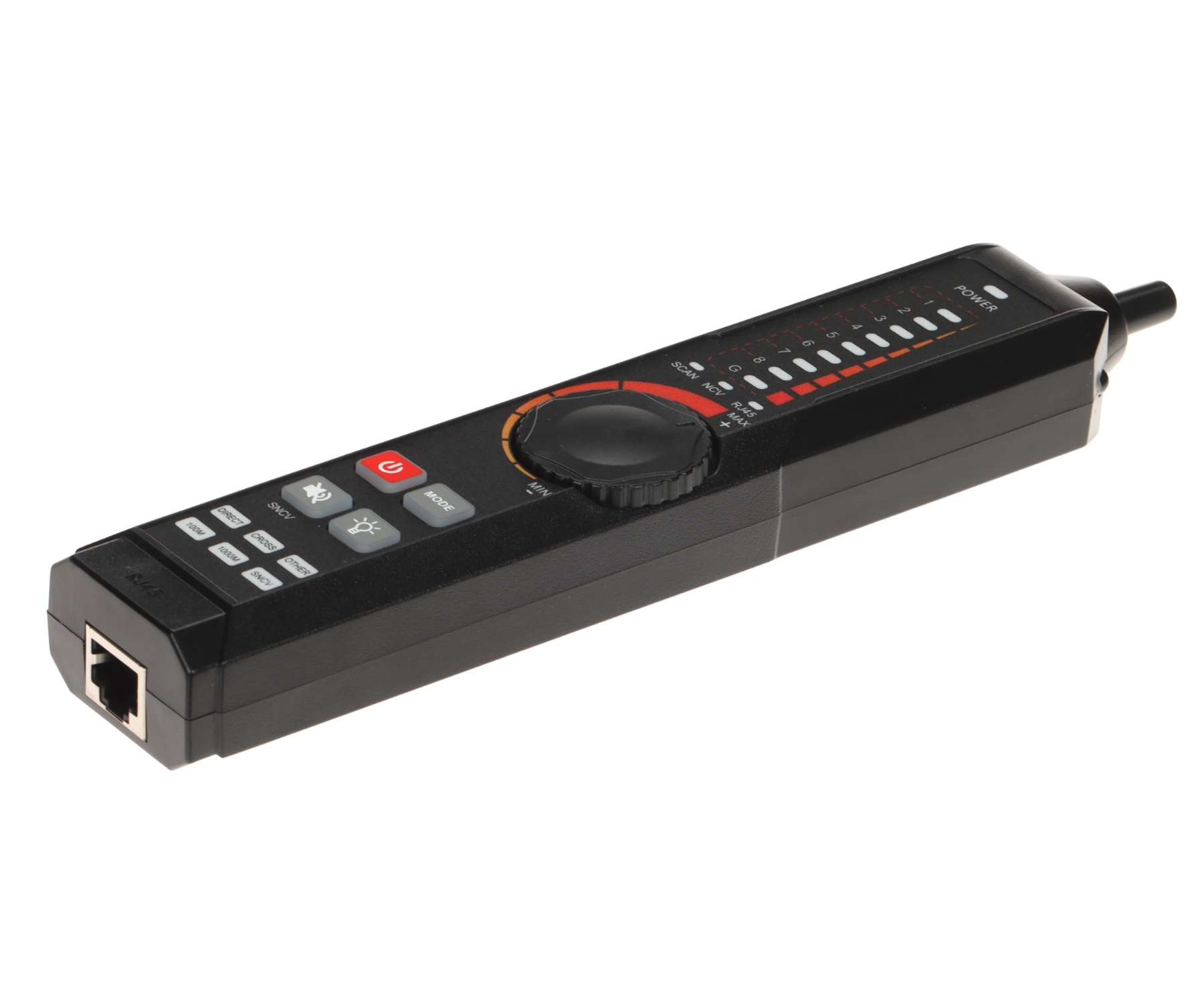

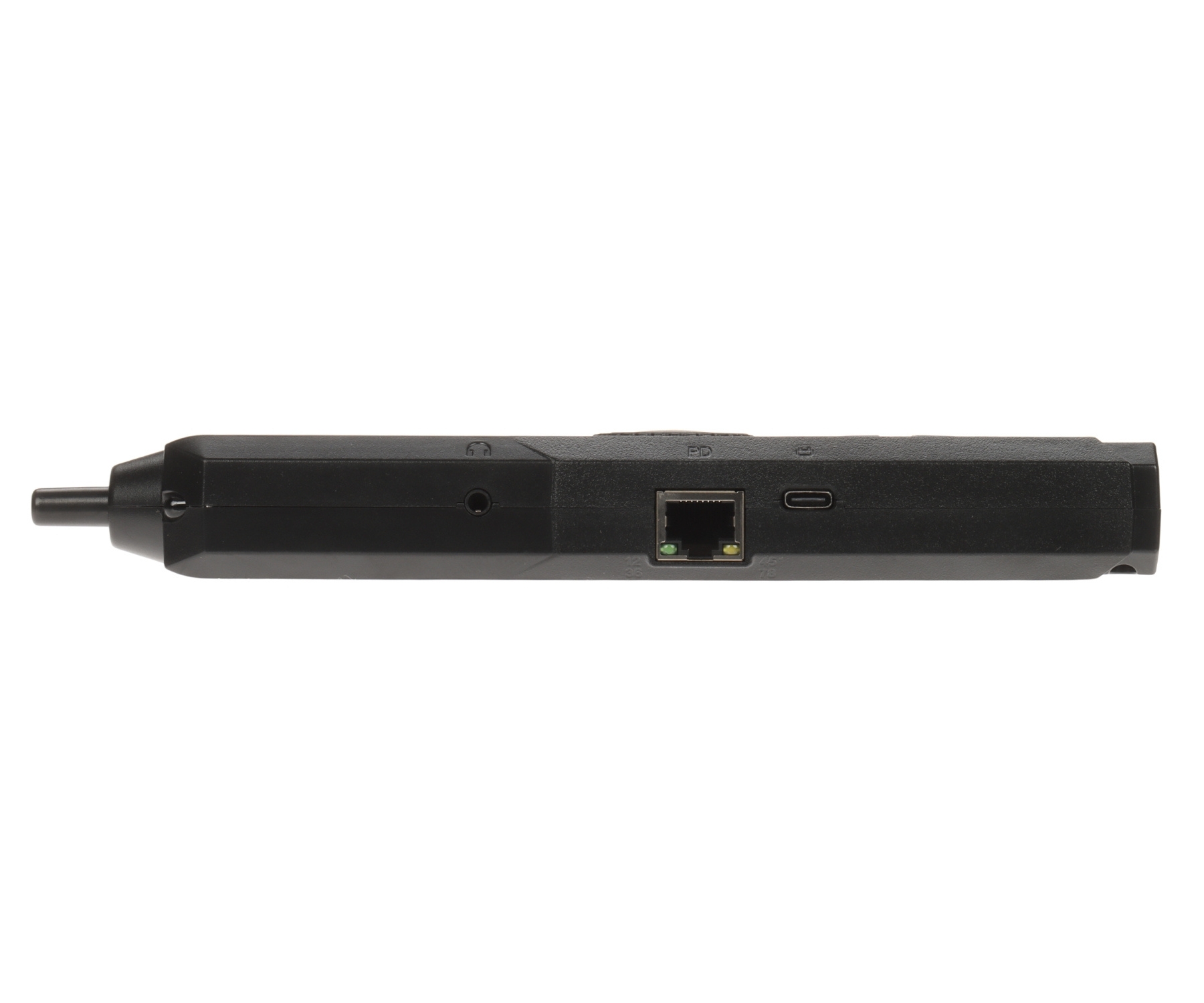

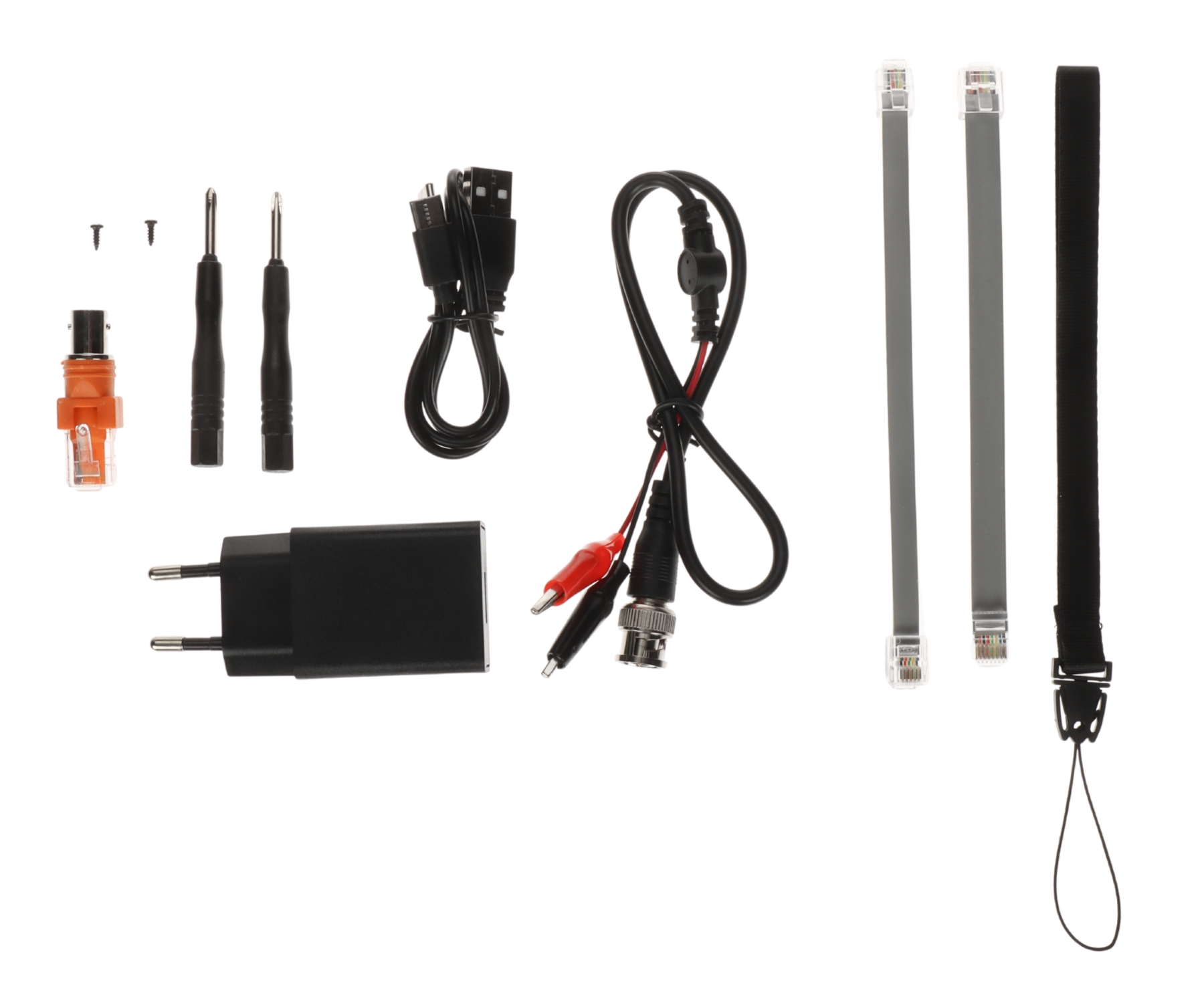

Probe : Li-Ion battery 3.7 V / 2000 mAh, 2x USB-C / USB-A cable included
Backup time: 6 h - Cables tester
12 h - Probe
Main features:

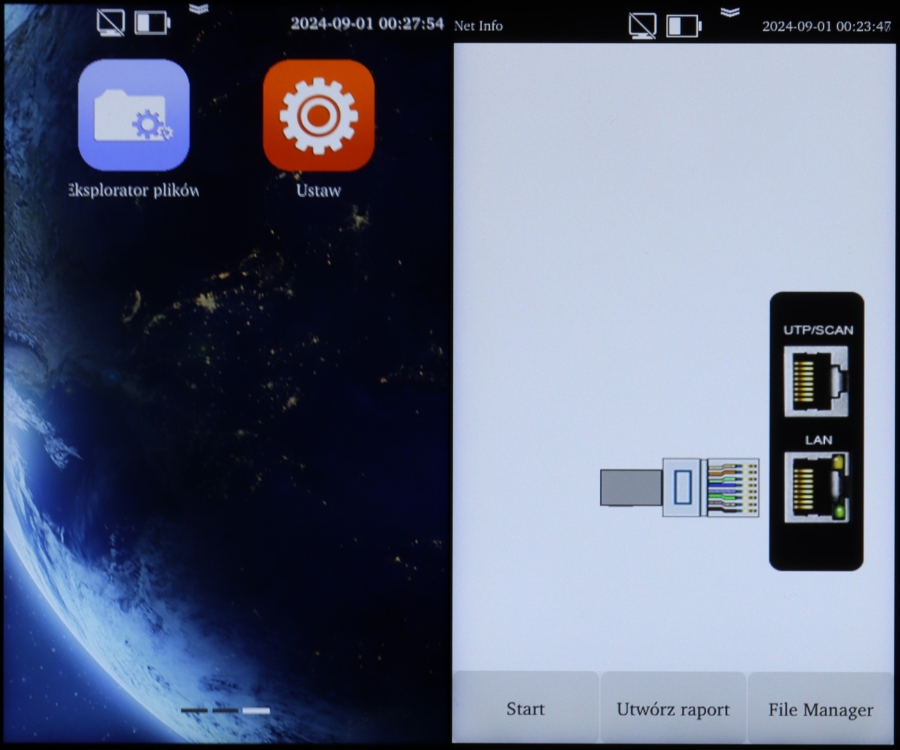

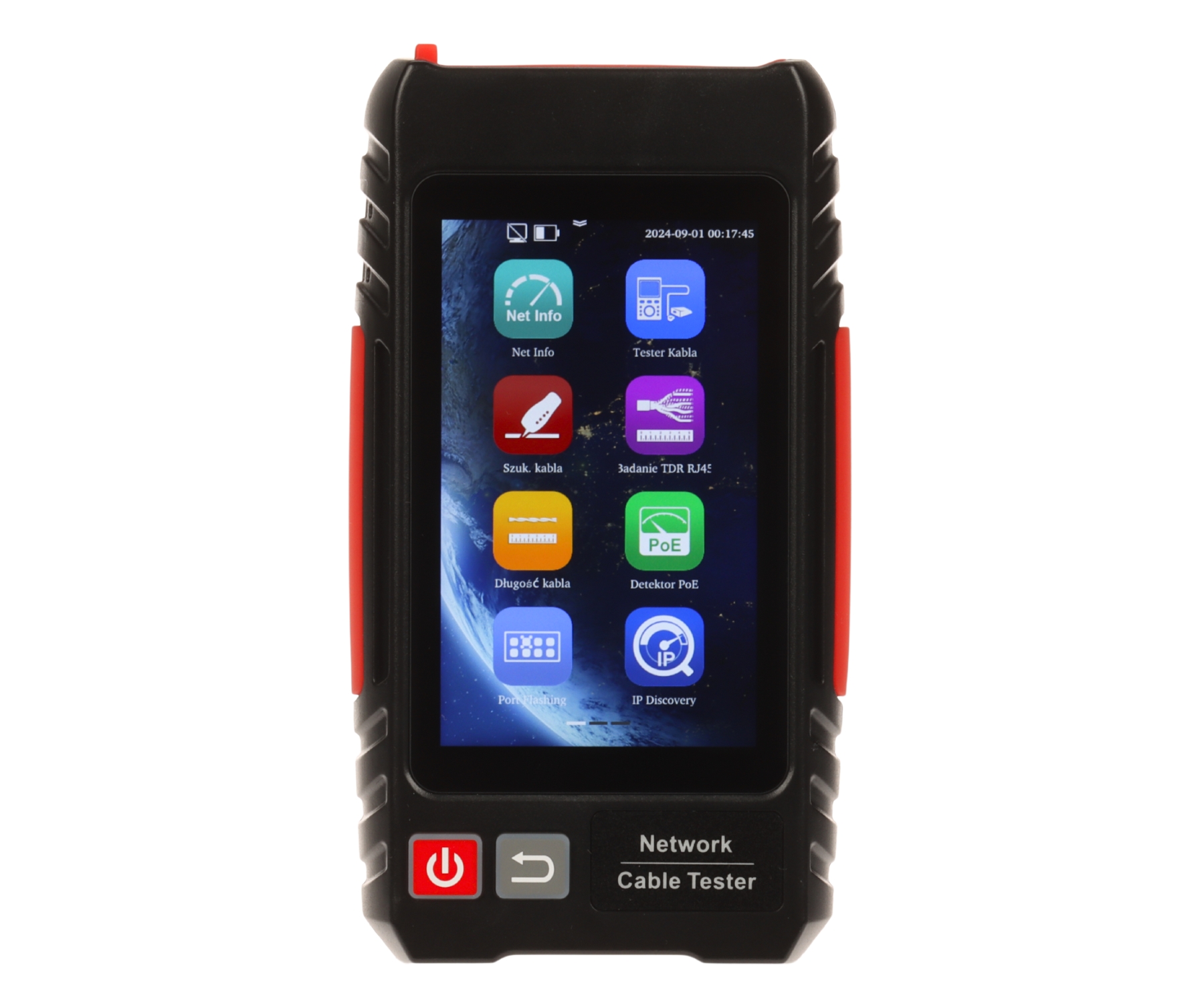

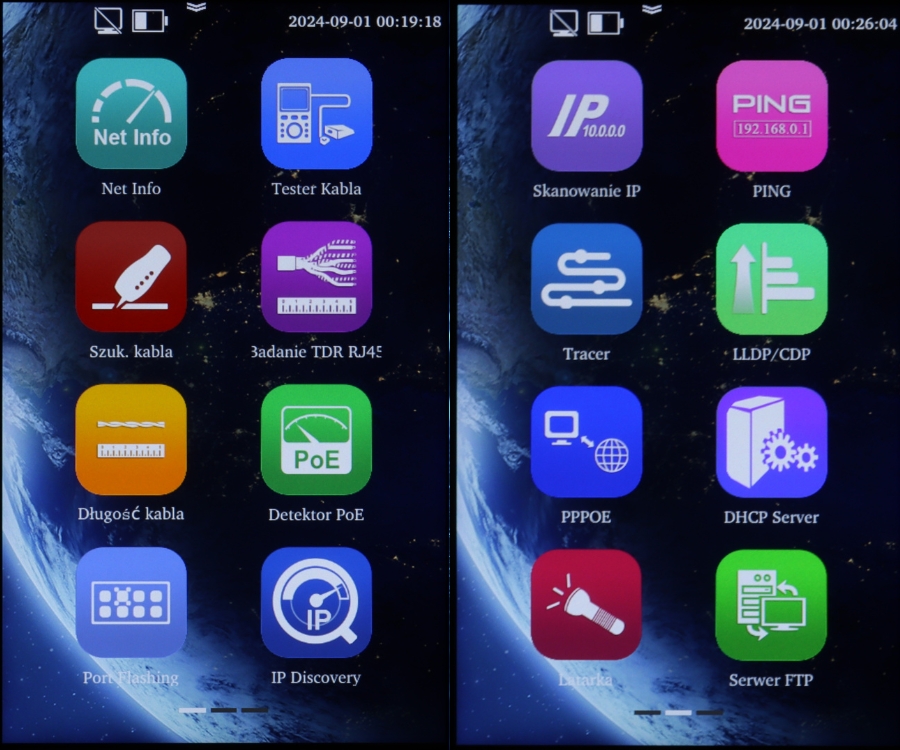

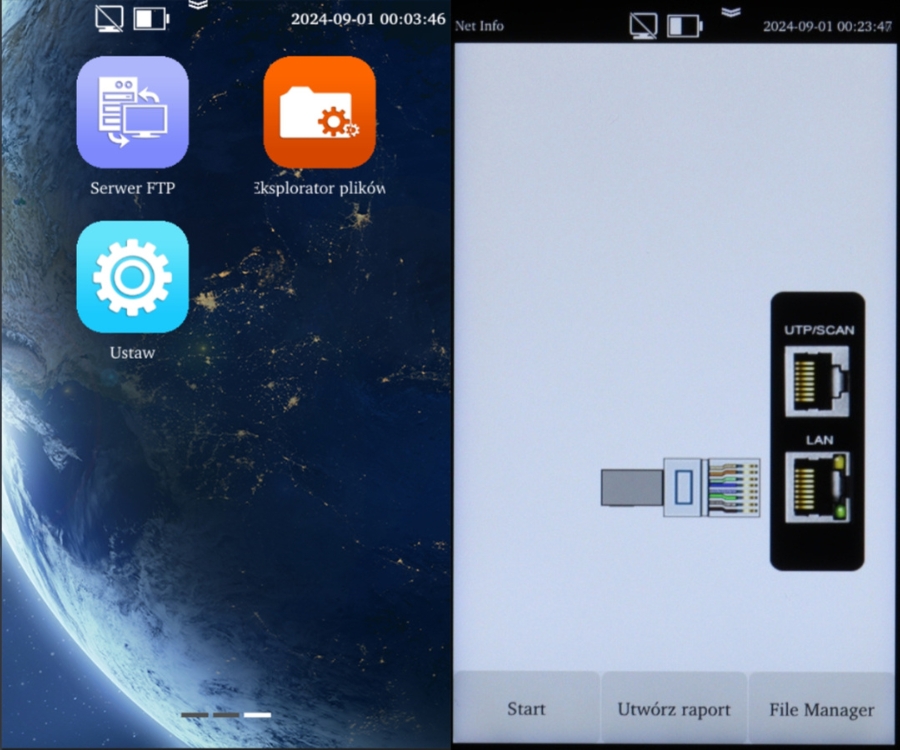

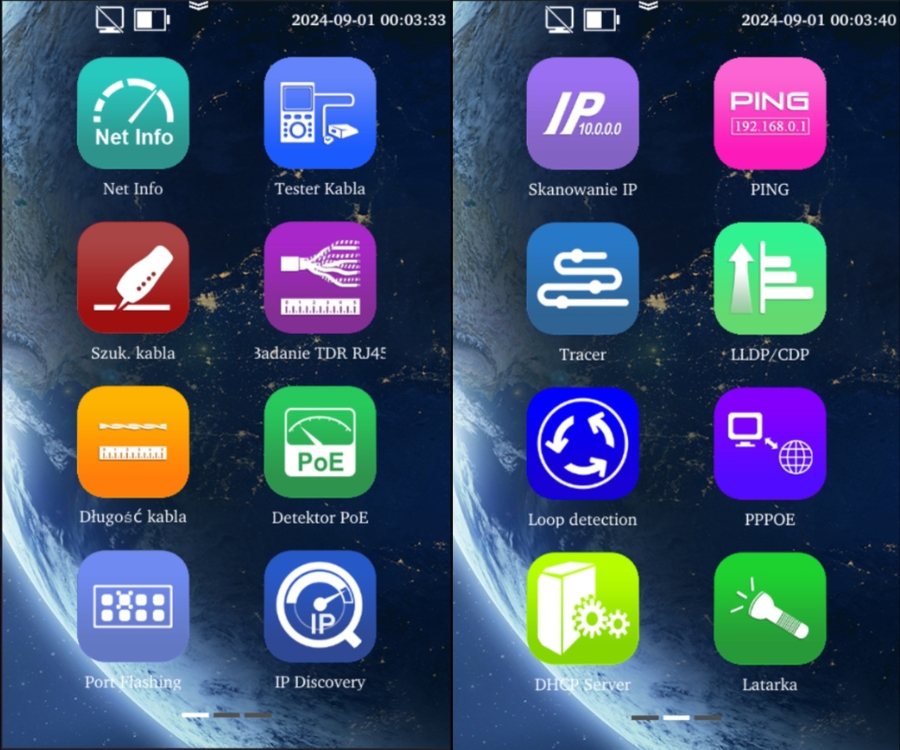

  • 4 " touch screen - 800 x 480 px

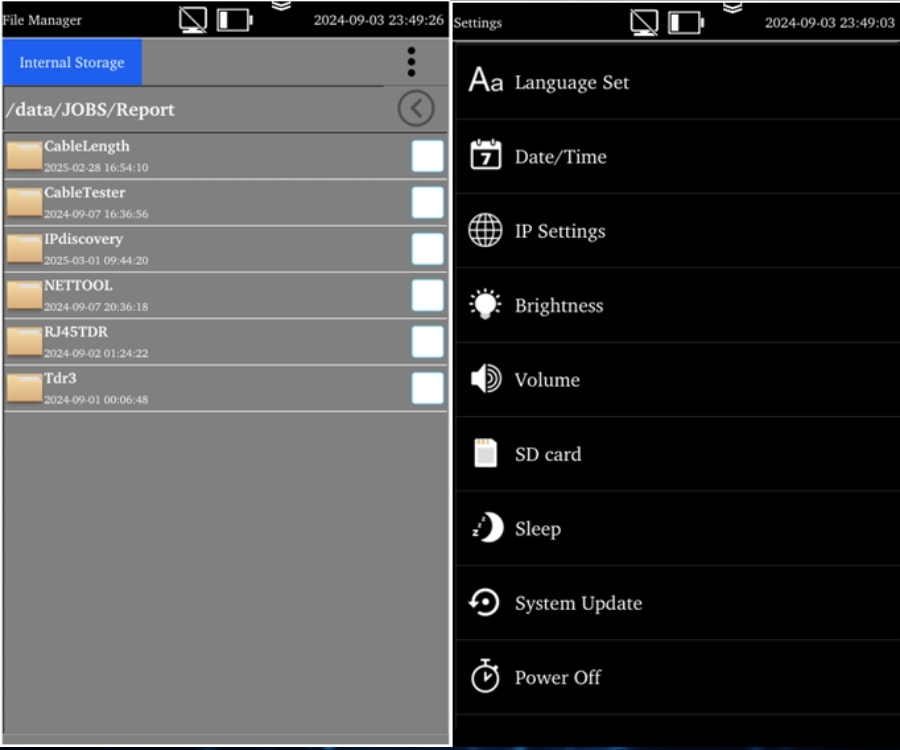

  • Generate reports to PDF file with export capability

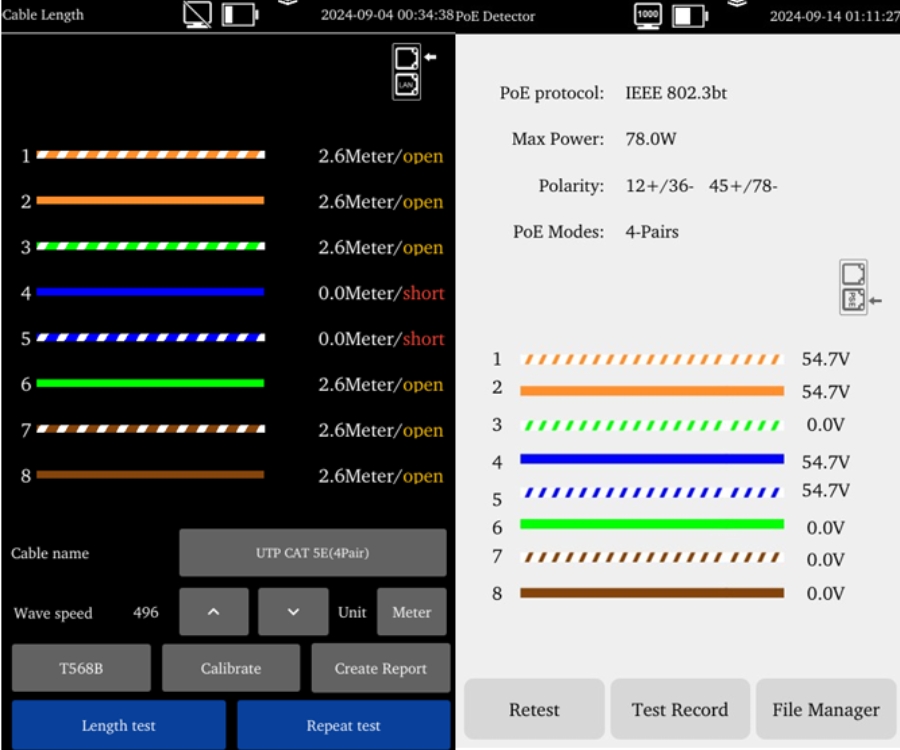

  • Cable length measurement
  • Cable test and cable tracer : Cable type, UTP cable's sequence and type test, the fault of RJ45 connector

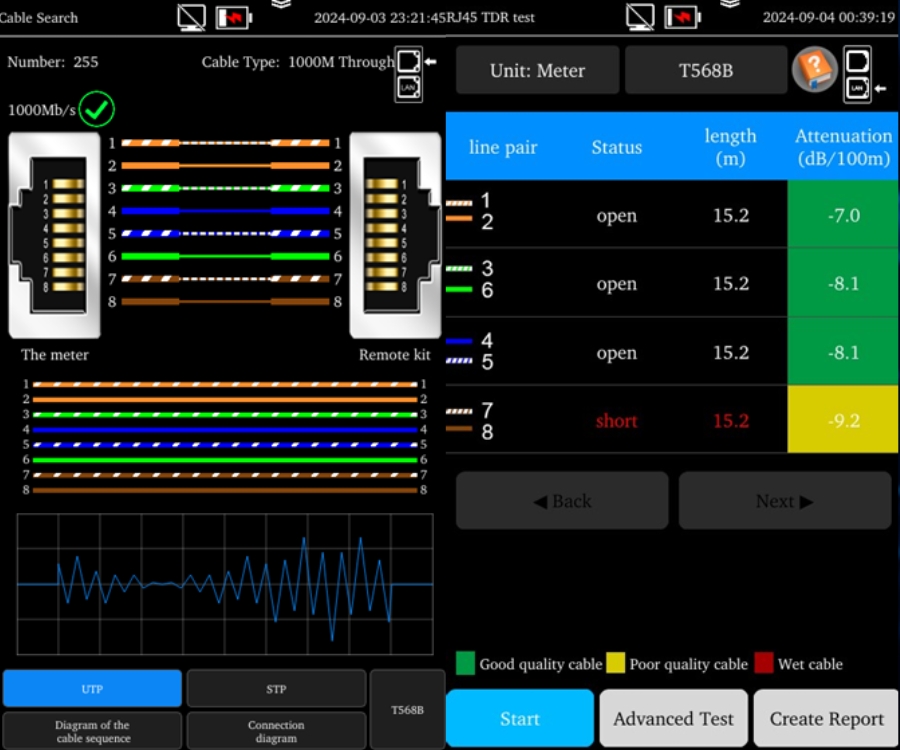

  • Test TDR - RJ45 : pair condition, length, attenuation, reflection coefficient, impedance - Length of the cable max. 180 m
  • Detection of the connected port in switch
  • Port speed detection - 1 Gbps / 100 Mbps

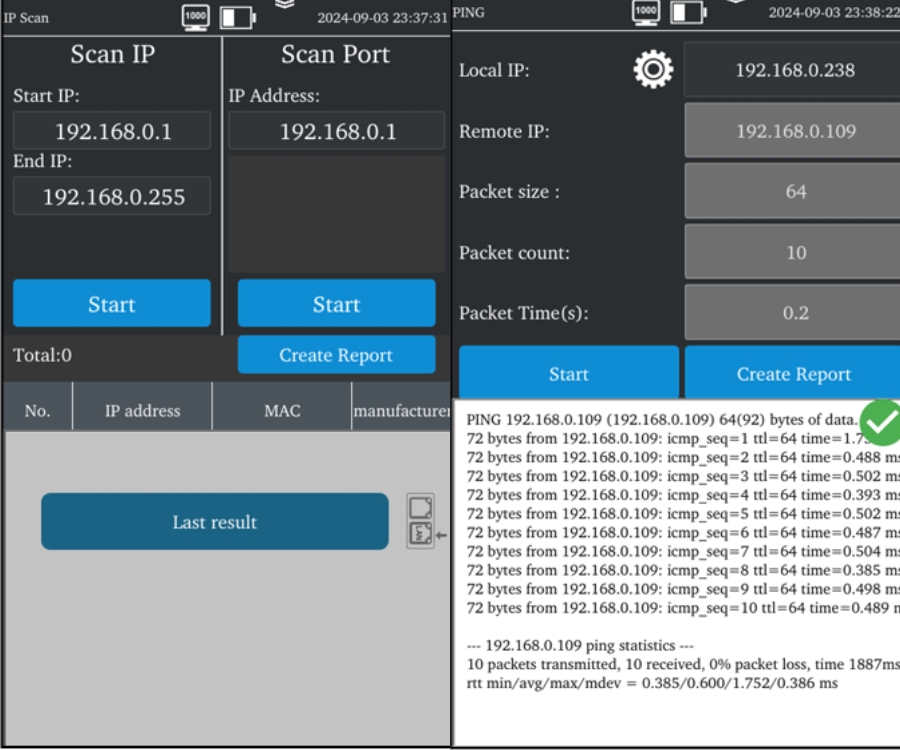

  • Test PING : correct operation of the IP camera's Ethernet port, correct IP address

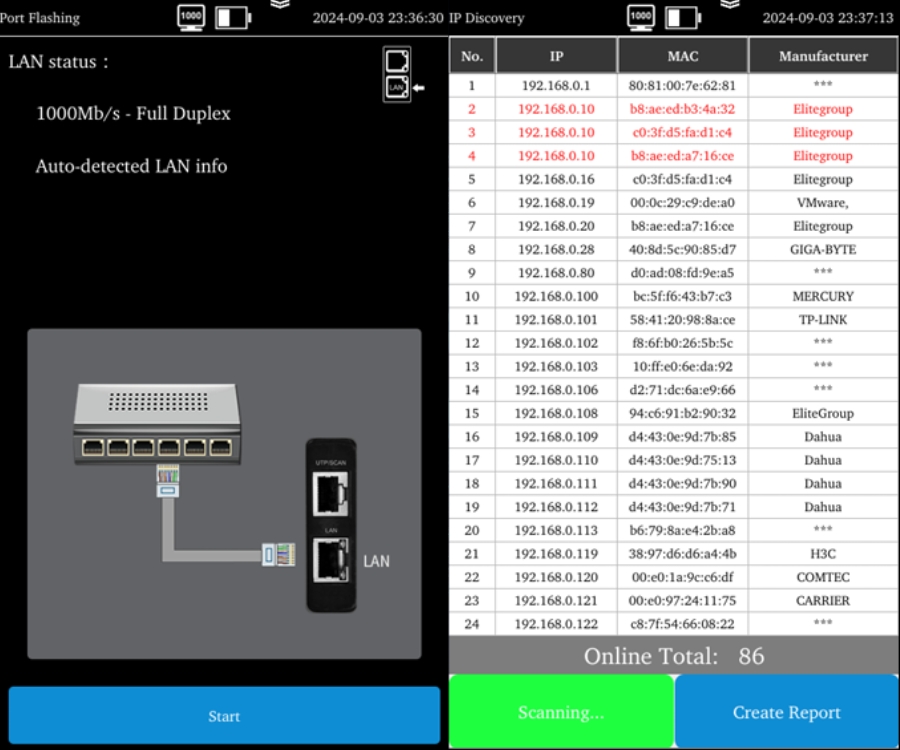

  • IP Scan
  • Identification the wire in the group of wires
  • Telephone line condition detection
  • Test PoE - detection of IEEE802.3bt/at/af and non-standard protocols, voltage/pin/polarization measurement, real-time power

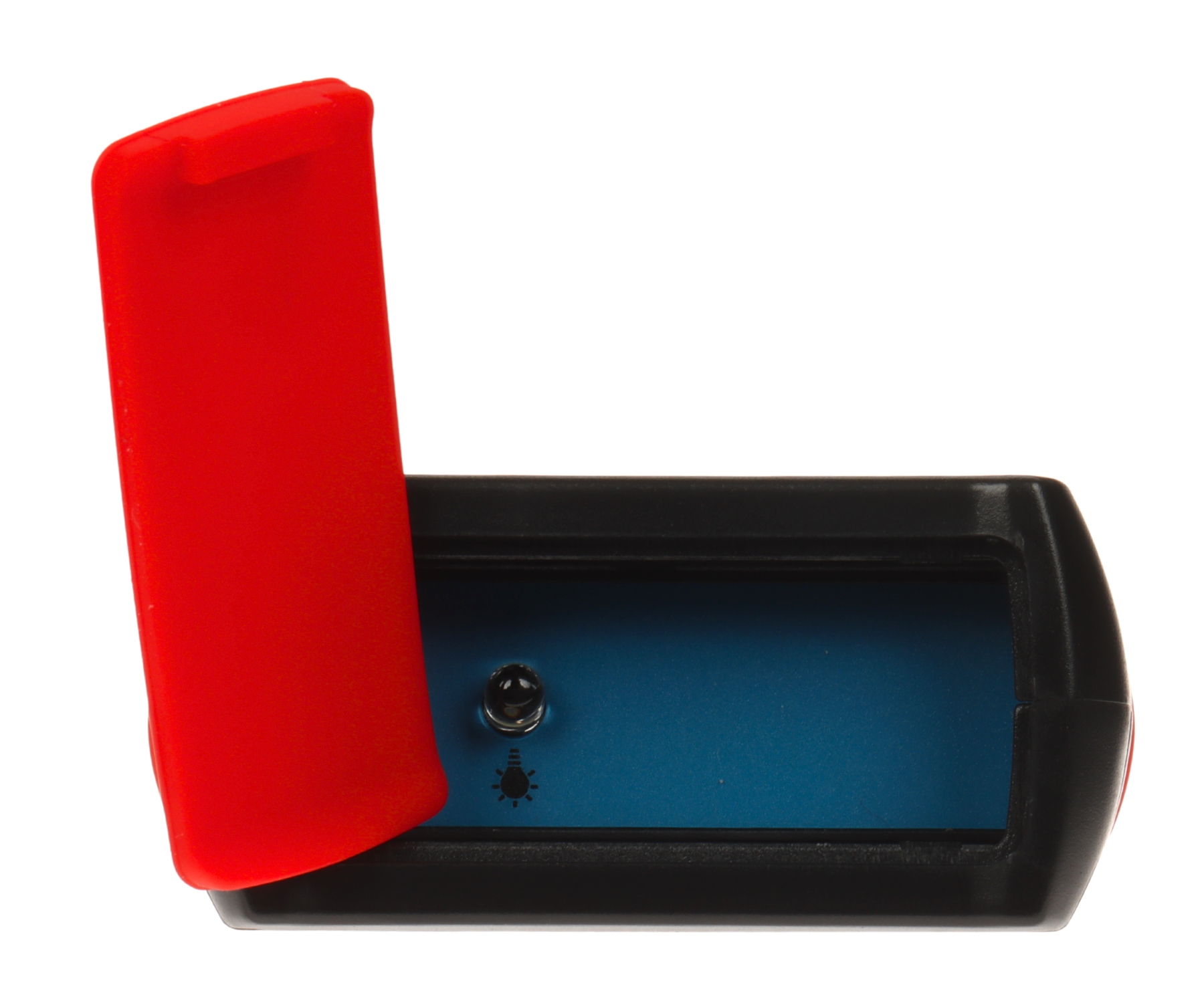

  • Flashlight built-in
  • Automatic power-off : 1  ... 30 minutes (cable tester), 10  ... 90 minutes (Probe)
  • Operation temp: -10 °C ... 50 °C
    Weight: 0.285 kg - Cables tester
    0.14 kg - Probe
    Dimensions: 152  x 82  x 37 mm - Cables tester
    210  x 41  x 28 mm - Probe
    Guarantee: 2 years
    Brand:
    Delta Tester
