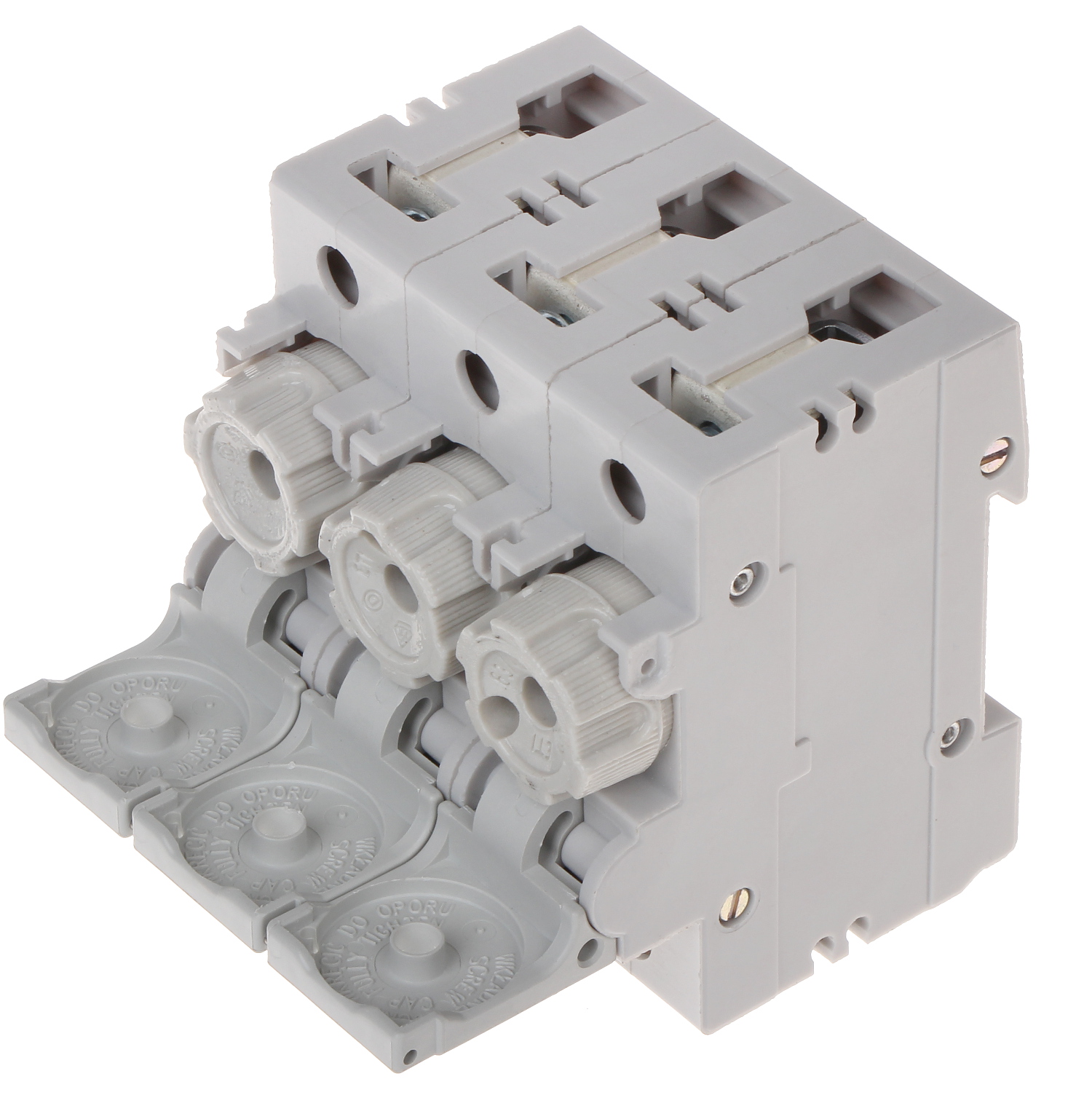

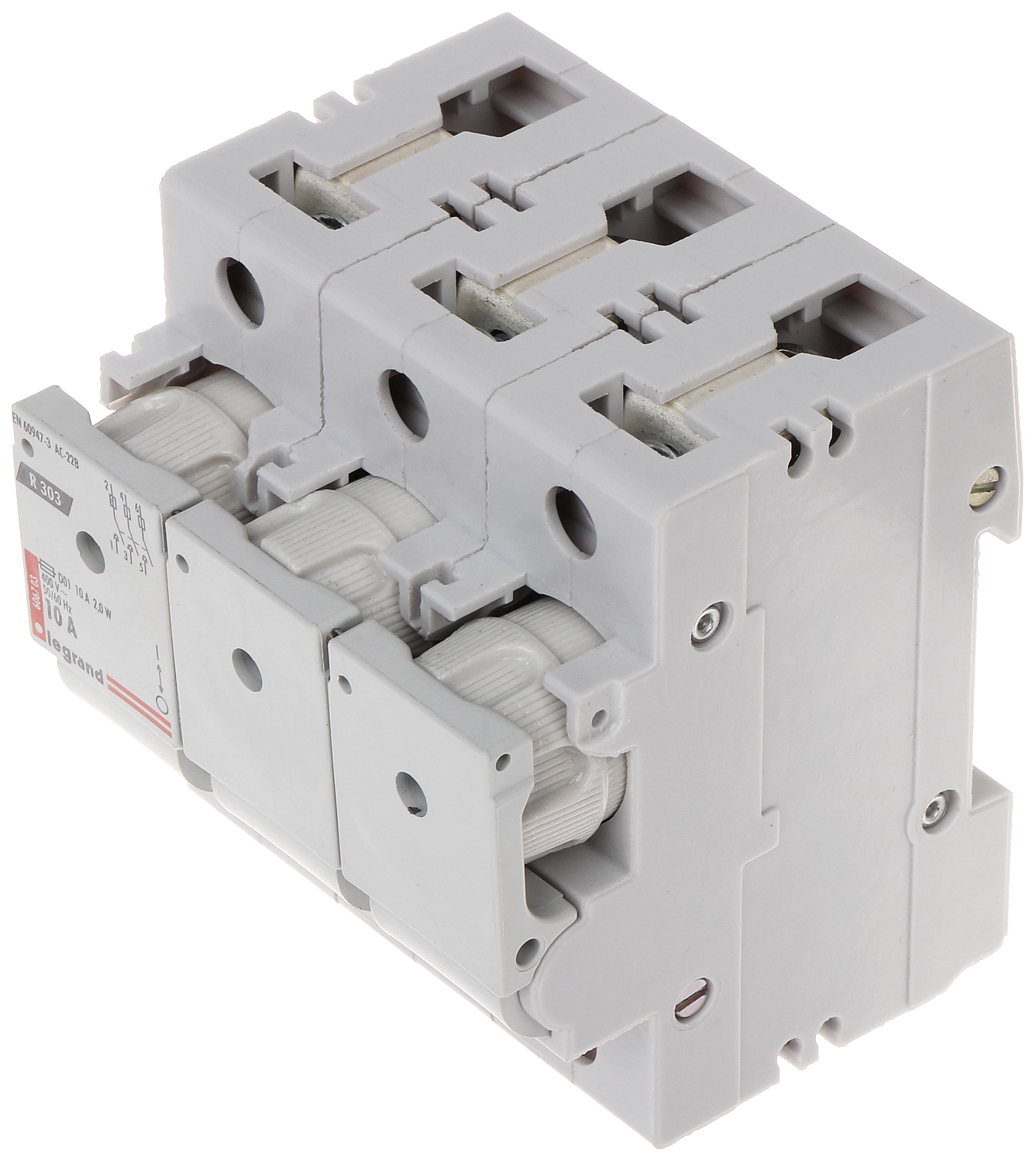

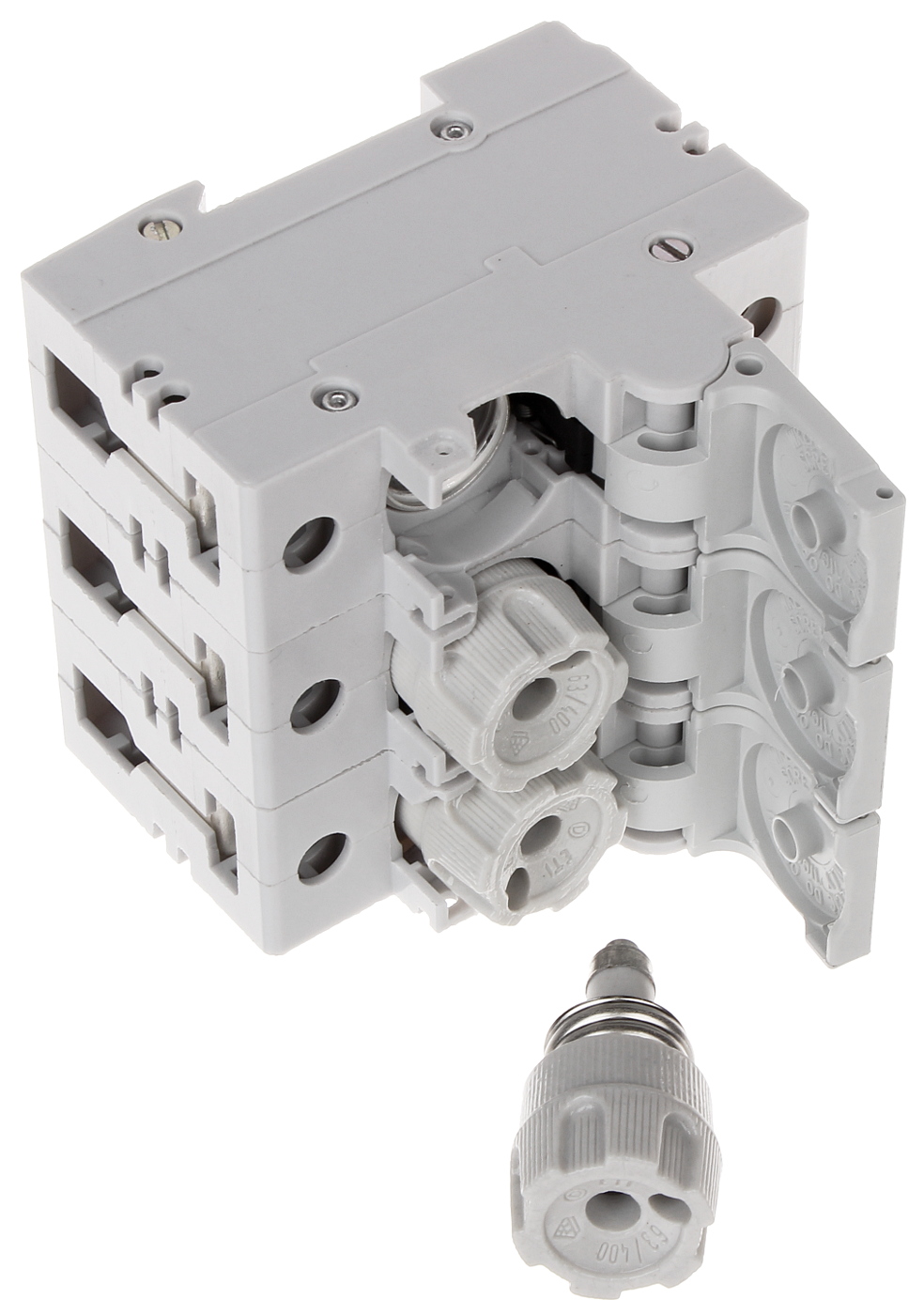

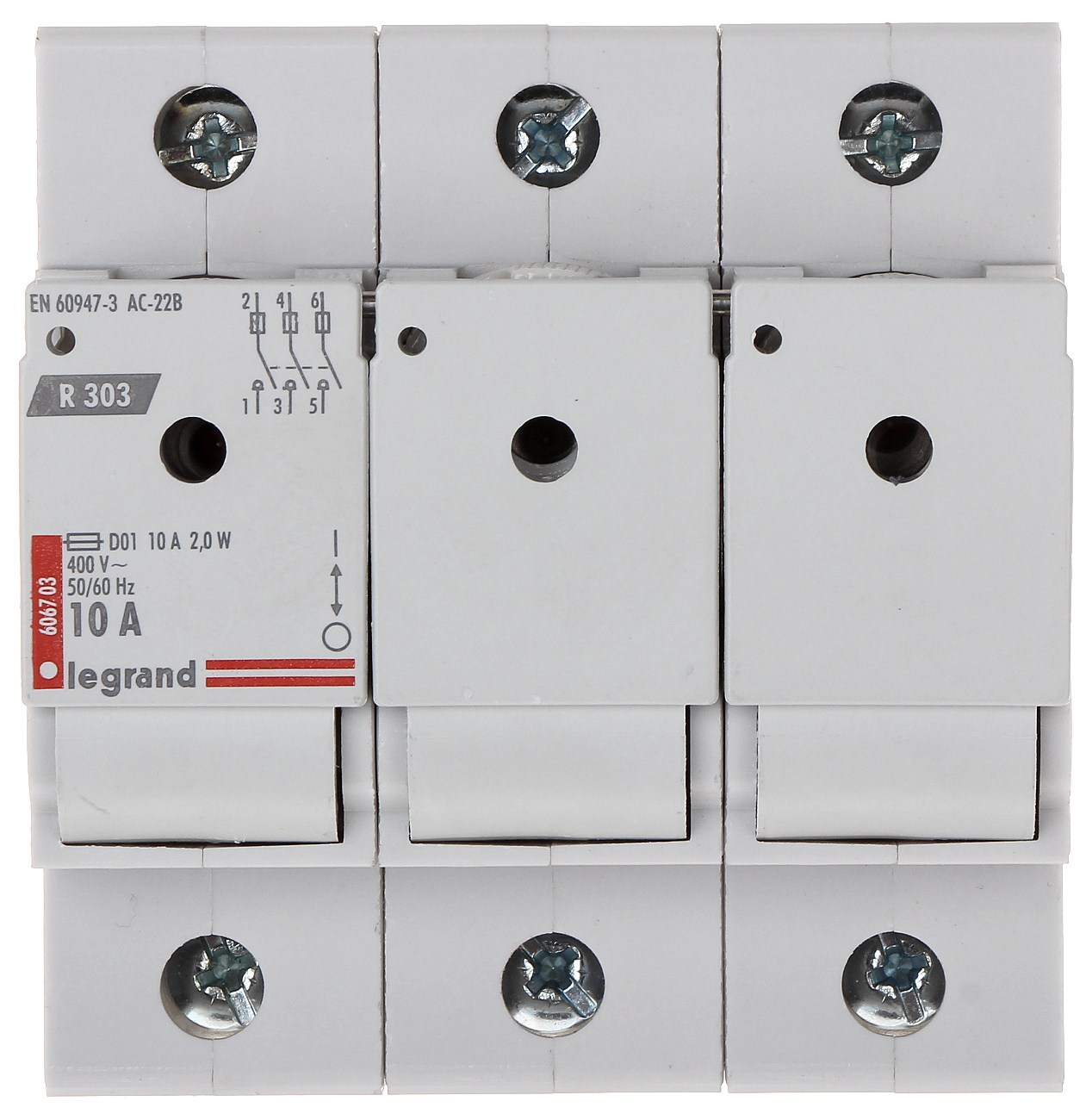

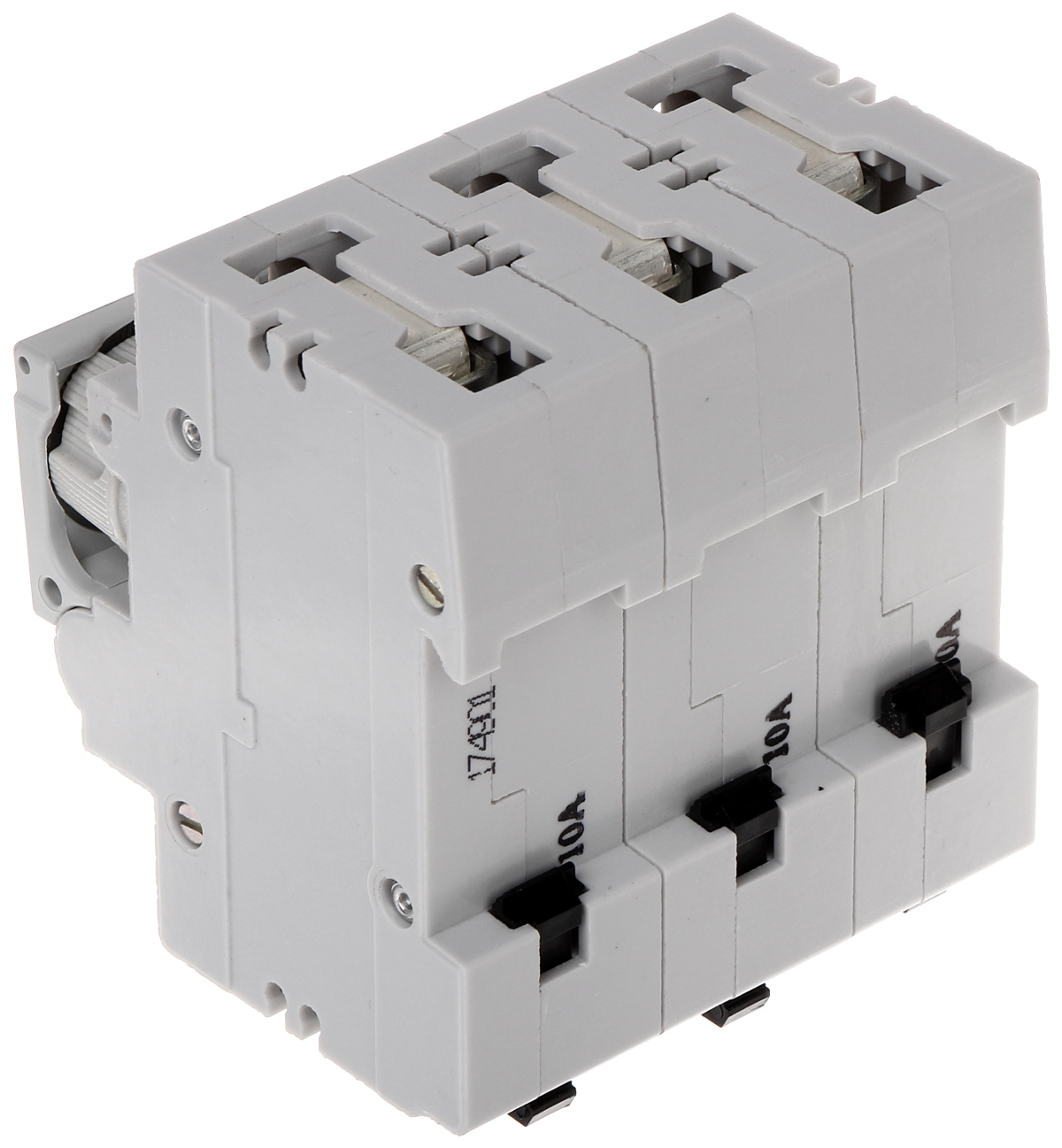

SWITCH DISCONNECTOR WITH FUSE LE-606703 THREE-PHASE 10 A D01 LEGRAND
Войдите в учётную запись, чтобы мы могли сообщить вам об ответе
Device type: Three-phase ; Rated current: 10 A ; Number of poles: 3 ; Fusing characteristics: gL/gG ; Type (size): D01 ; Housing: TH-35 rail mounting ;
| Device type: | Three-phase |
| Rated current: | 10 A |
| Number of poles: | 3 |
| Rated voltage: | 400 V AC |
| Rated insulation voltage: | 500 V |
| Rated impulse withstand voltage: | 6000 V |

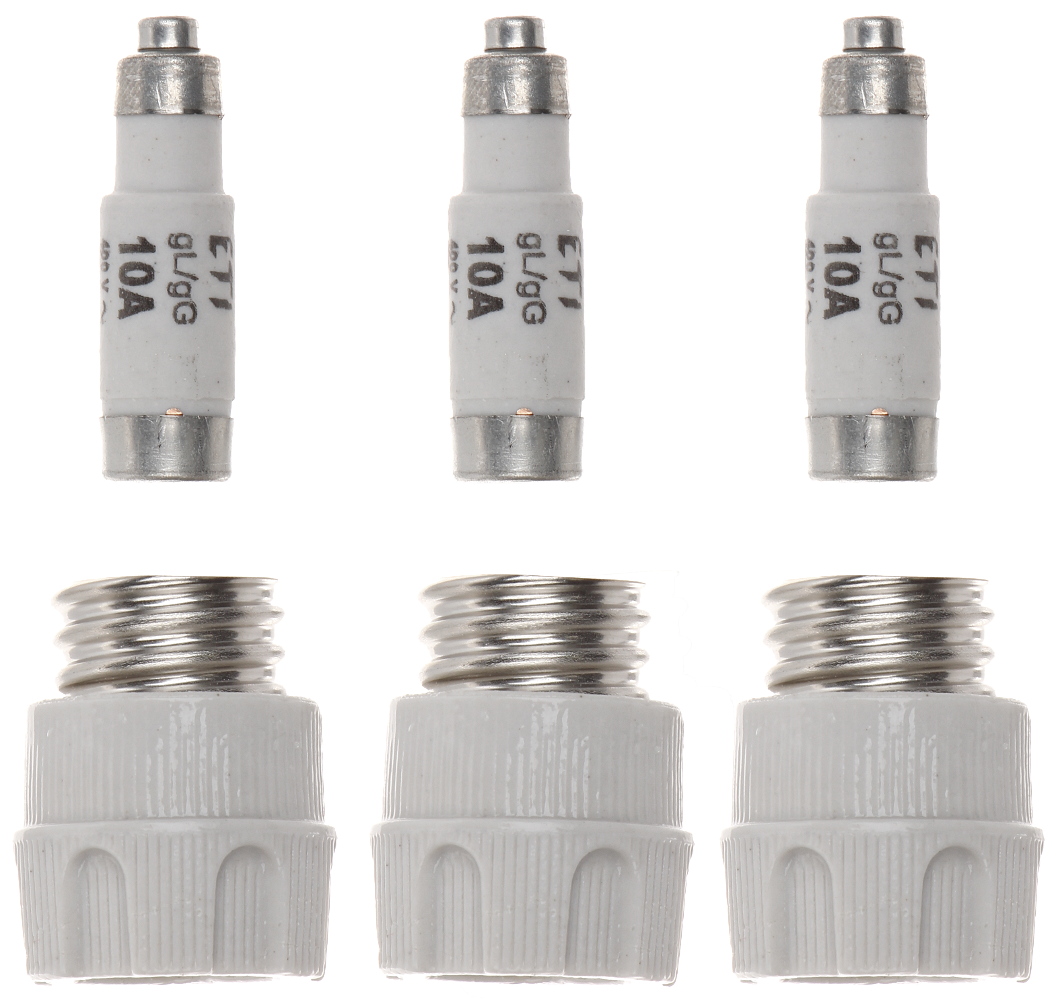

| Fusing characteristics: | gL/gG |
| Type (size): | D01 |
| Breaking capacity: | 50000 A AC |

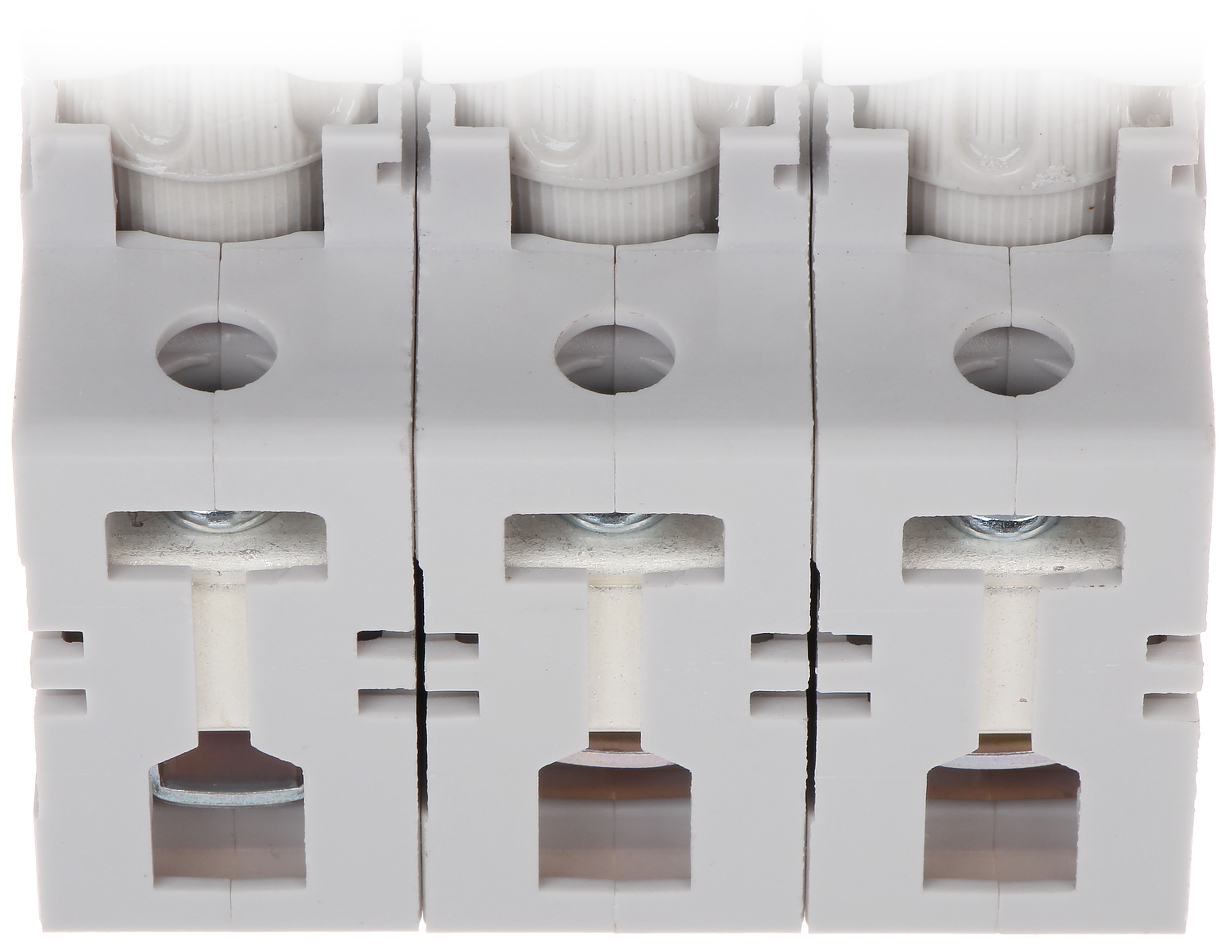

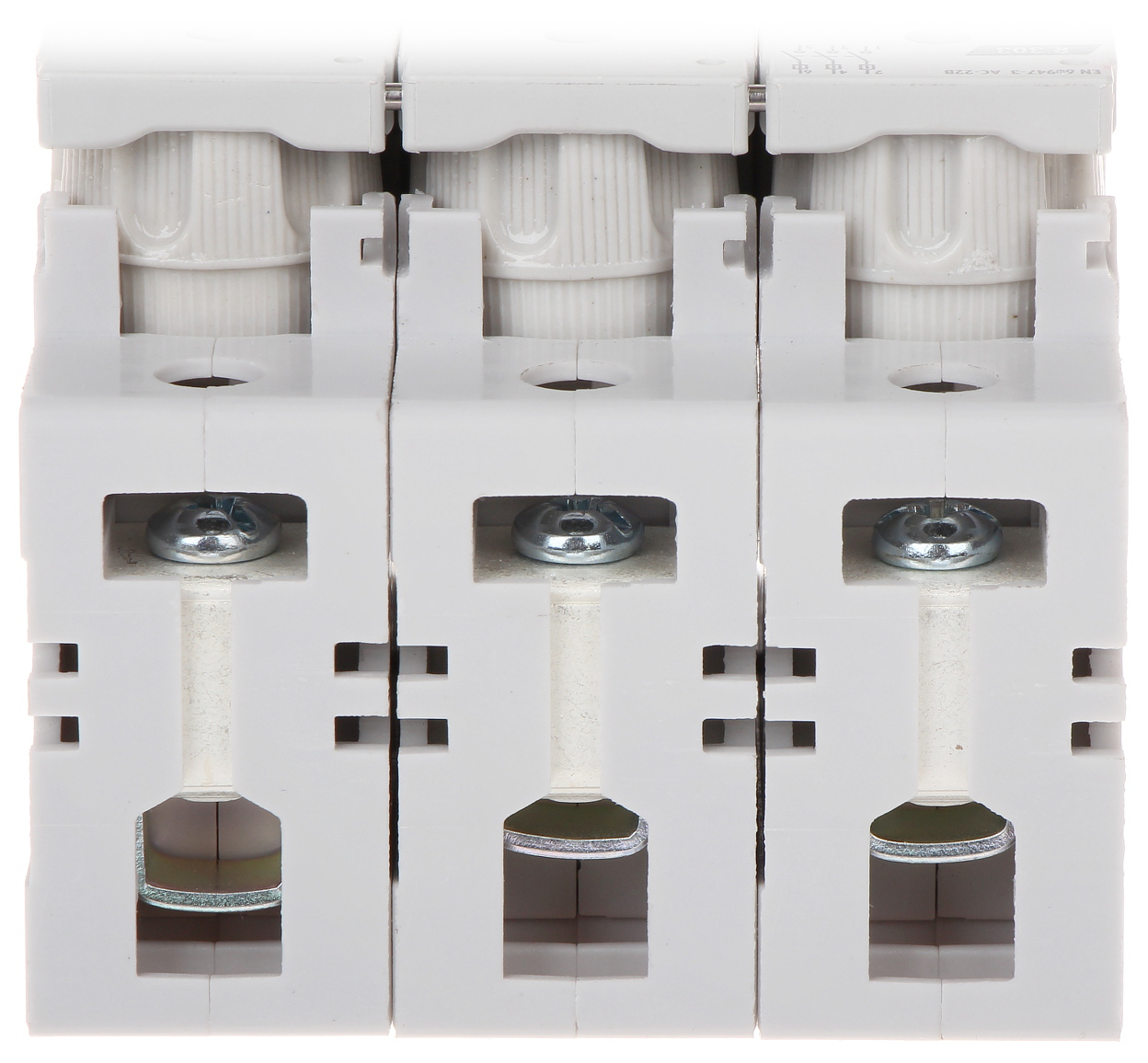

| Connectors type: | cable terminals |
| Wire gauge: | 2.5 ... 25 mm² |
| Environment class: | II |
| Housing: | Plastic, TH-35 rail mounting |
| Width in 17.5 mm modules: | 4.5 |
| Operation temp: | -26 °C ... 60 °C |
| Weight: | 0.51 kg |
| Dimensions: | 83 x 70.3 x 79.5 mm |
| Manufacturer / Brand: | LEGRAND |
| Guarantee: | 2 years |
Brand:
Legrand
