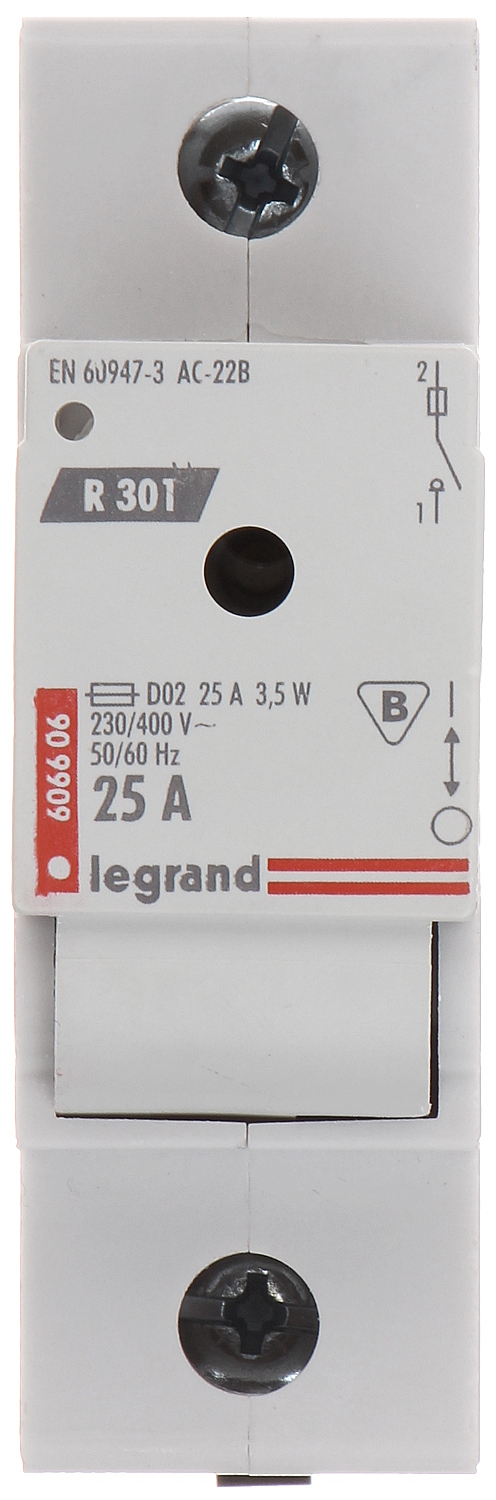

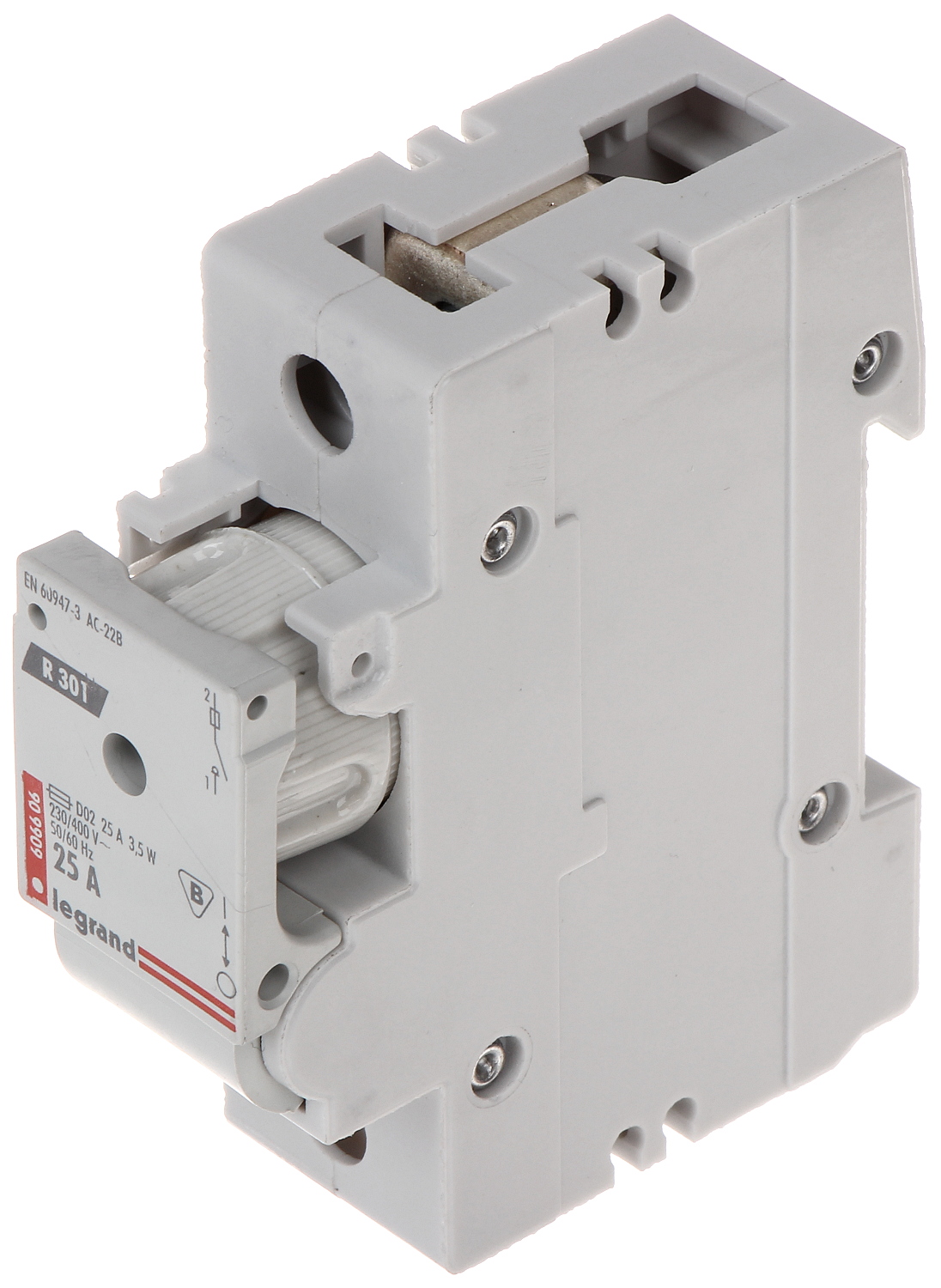

SWITCH DISCONNECTOR WITH FUSE LE-606606 ONE-PHASE 25 A D02 LEGRAND
Войдите в учётную запись, чтобы мы могли сообщить вам об ответе
Device type: One-phase ; Rated current: 25 A ; Number of poles: 1 ; Fusing characteristics: gL/gG ; Type (size): D02 ; Housing: TH-35 rail mounting ;
| Device type: | One-phase |
| Rated current: | 25 A |
| Number of poles: | 1 |
| Rated voltage: | 230 / 400 V AC |
| Rated insulation voltage: | 500 V |
| Rated impulse withstand voltage: | 6000 V |
| Fusing characteristics: | gL/gG |
| Type (size): | D02 |
| Breaking capacity: | 50000 A AC |
| Connectors type: | cable terminals |
| Wire gauge: | 2.5 ... 25 mm² |
| Environment class: | II |
| Housing: | Plastic, TH-35 rail mounting |
| Width in 17.5 mm modules: | 1.5 |
| Operation temp: | -26 °C ... 60 °C |
| Weight: | 0.172 kg |
| Dimensions: | 83 x 70.3 x 26.5 mm |
| Manufacturer / Brand: | LEGRAND |
| Guarantee: | 2 years |
Brand:
Legrand
