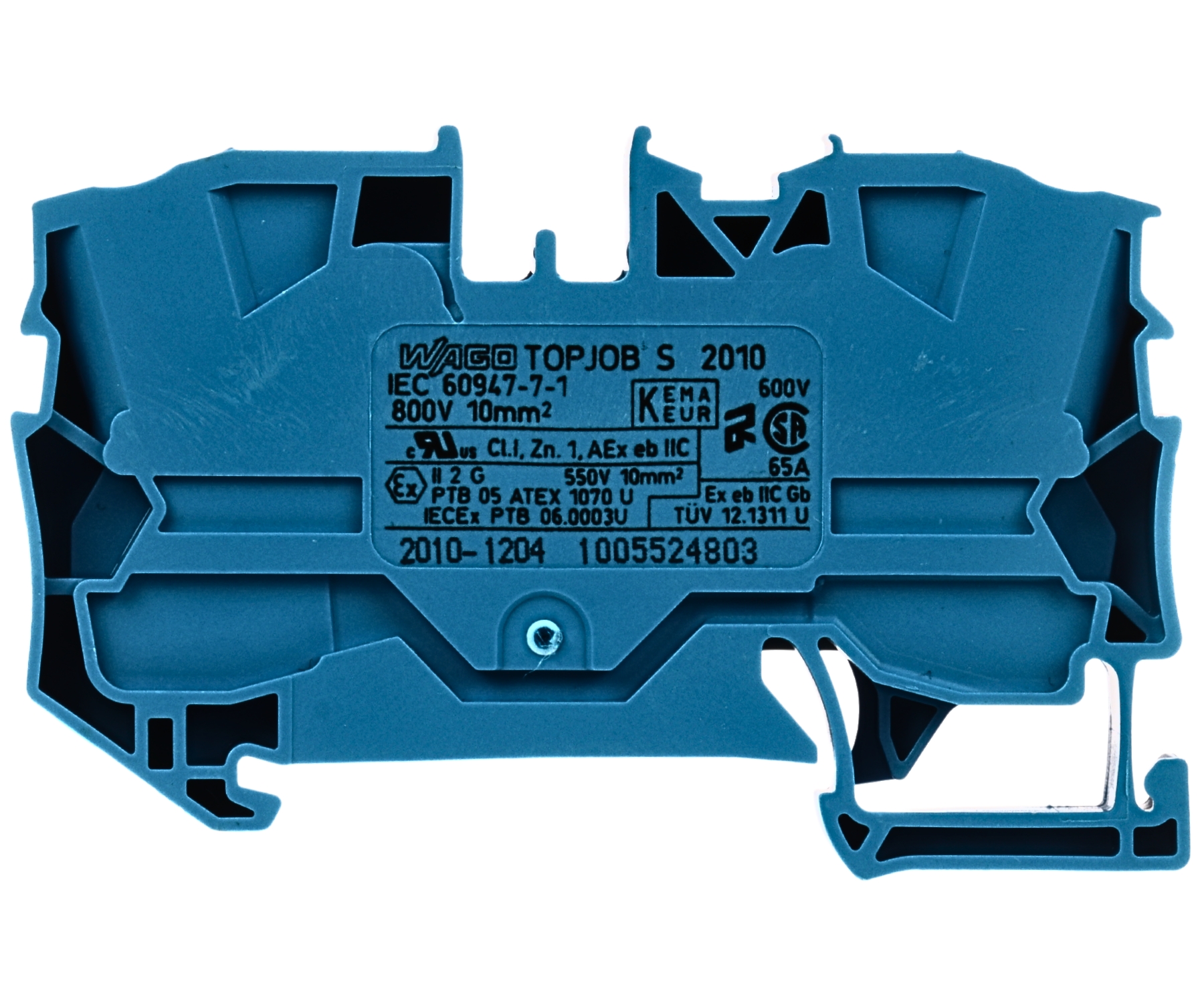

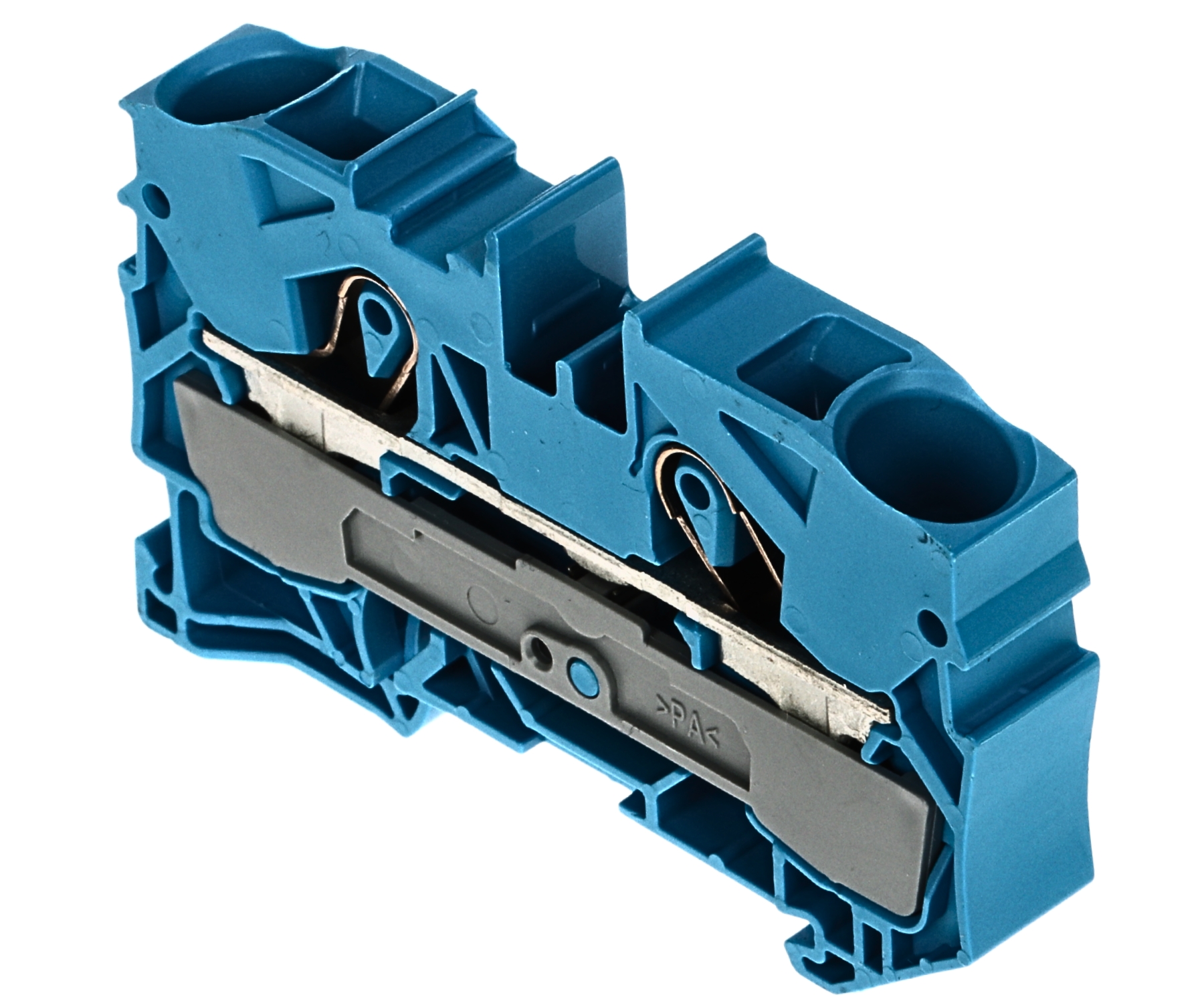

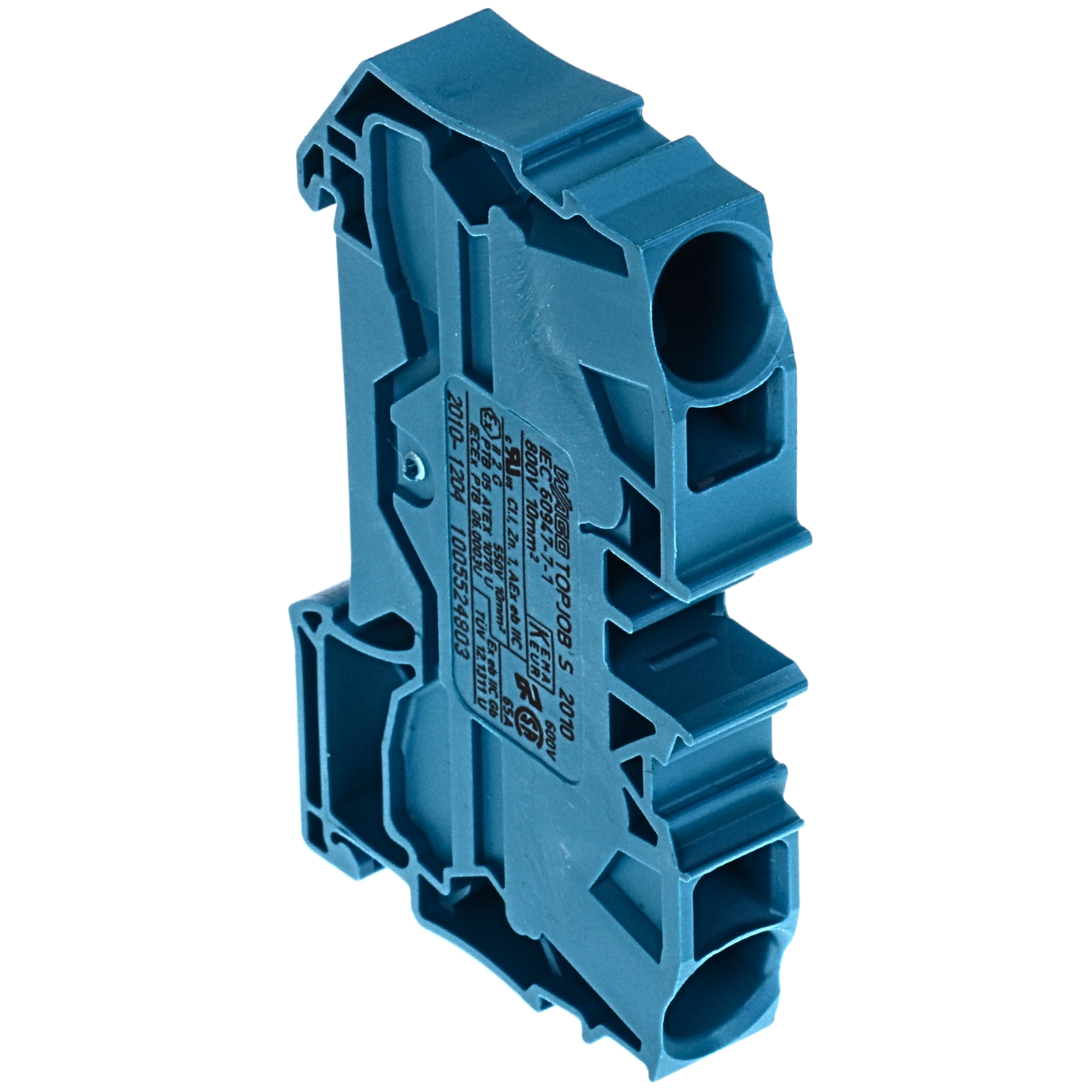

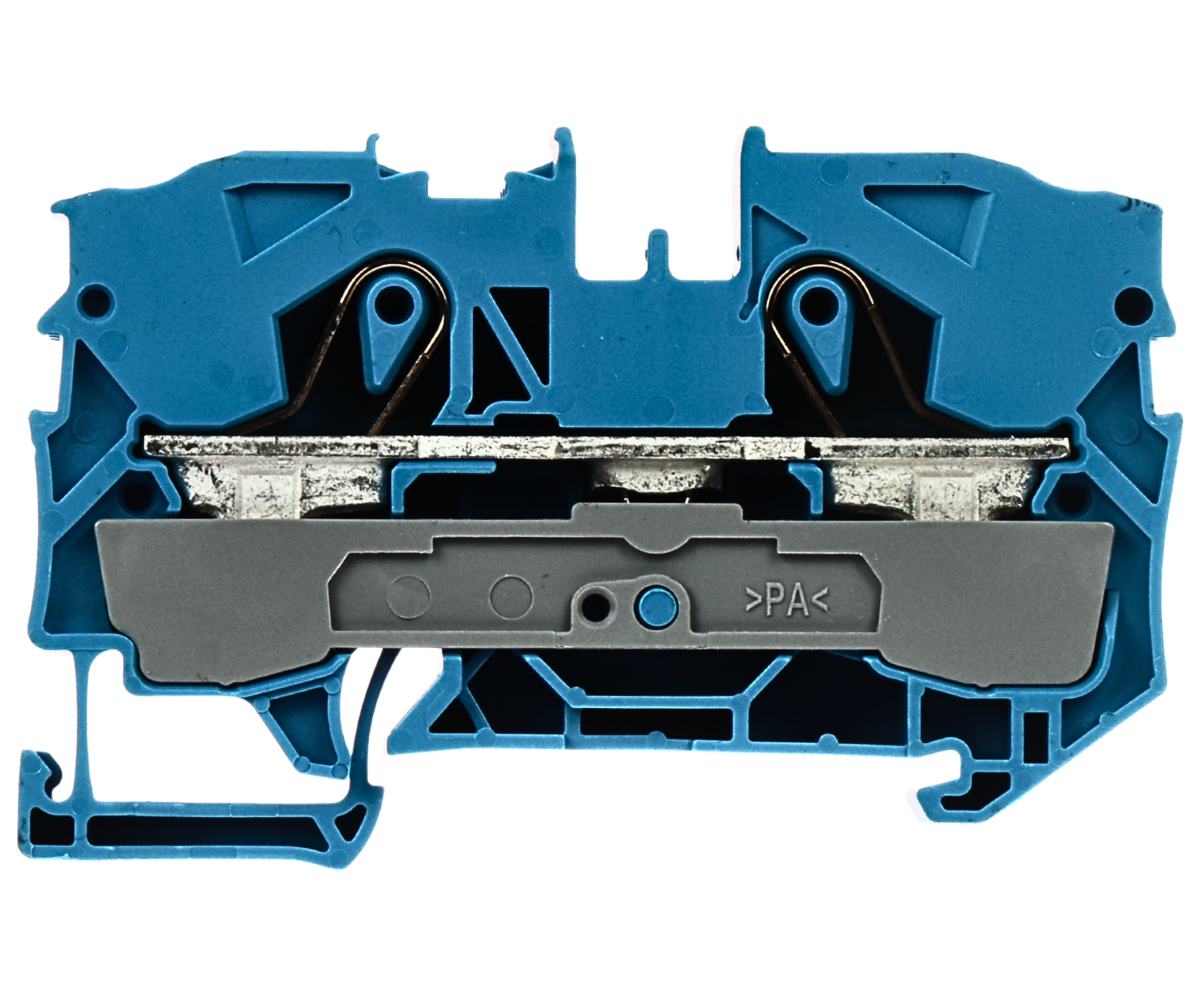

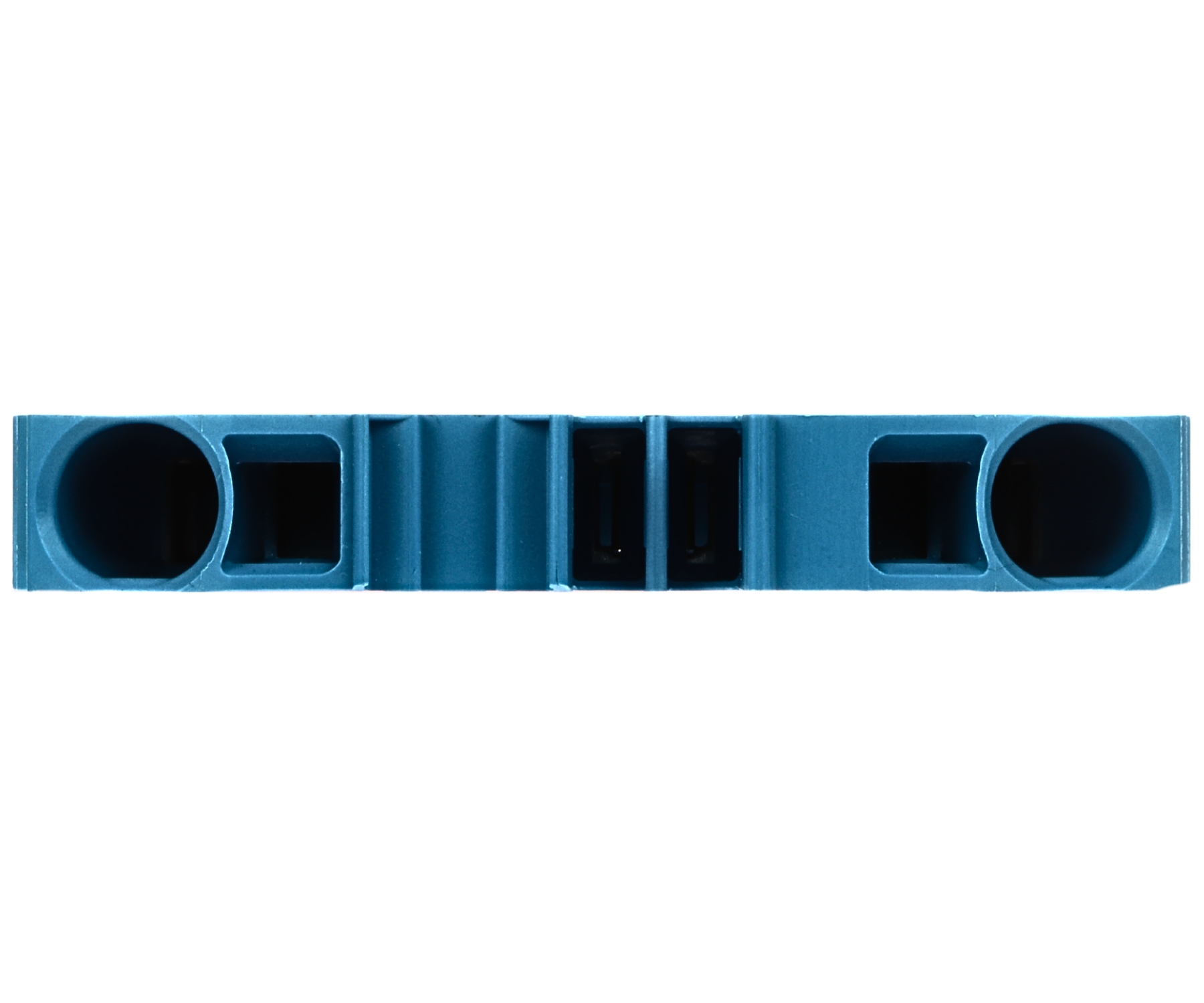

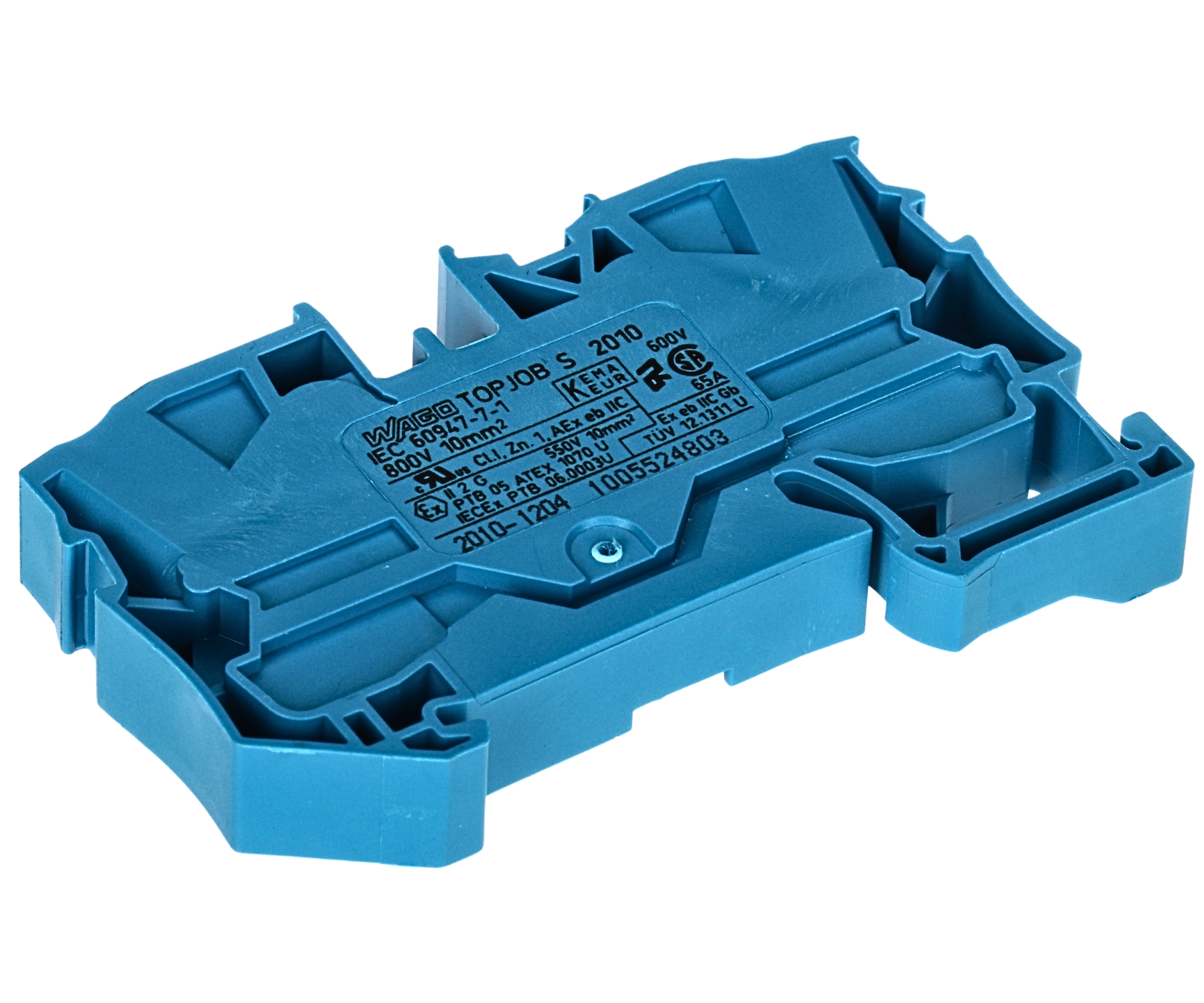

THROUGH-TYPE RAIL CONNECTOR WAGO-2010-1204 DIN TS-35 WAGO
Войдите в учётную запись, чтобы мы могли сообщить вам об ответе
Rated current: 57 A ; Rated voltage: 800 V ; Number of terminal pairs: 1 ; Number of terminals: 2 x 10 mm² ; Color: Blue ; Dimensions: 67.8 x 43.5 x 10 mm ;
| Application: | Modular Distribution Cabinets |
| Rated current: | 57 A |
| Rated voltage: | 800 V |
| Number of terminal pairs: | 1 |
| Number of terminals: | 2 x 10 mm² - automatic spring terminals 2 x Automatic spring-loaded clamp for WAGO comb connectors |
| Material: | Plastic + Metal |
| Color: | Blue |
| Weight: | 0.018 kg |

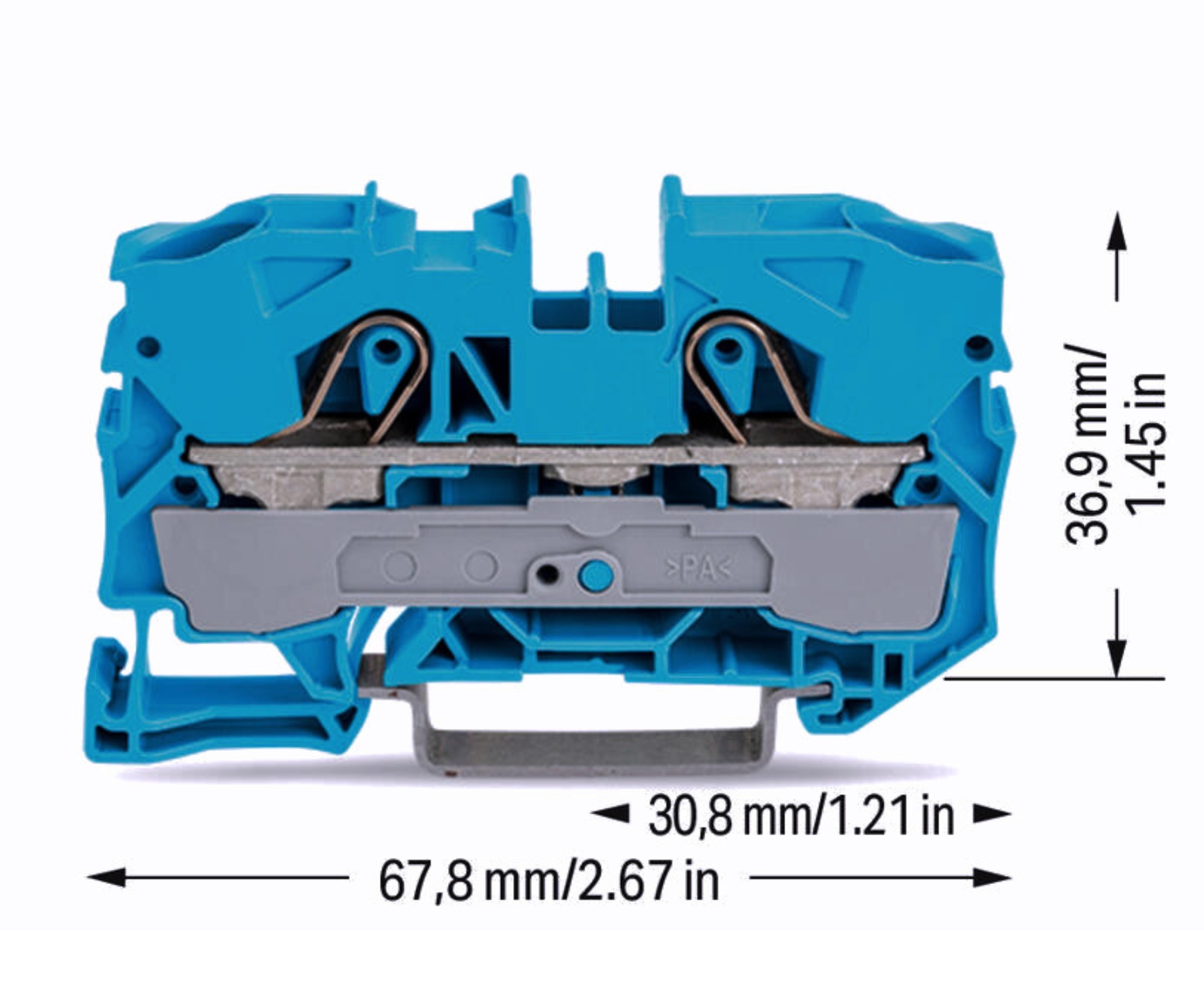

| Dimensions: | 67.8 x 43.5 x 10 mm |
| Manufacturer / Brand: | WAGO |
| Guarantee: | 2 years |
Brand:
Wago
