MODULAR CONTACTOR KMC-20-11 20 A 230 V AC IDEAL
Войдите в учётную запись, чтобы мы могли сообщить вам об ответе
Device type: Contactor - NO/NC, One-phase ; Nominal load current: 20 A @ AC7A / AC1, 7 A @ AC7B ; Rated load voltage: 230 V AC ; Number of NO/NC contacts: 1 / 1 ; Category of use: AC1, AC7A, AC7B ; Connectors type: screw terminals ; Housing: DIN, TH-35 rail mounting ;
| Device type: | Contactor - NO/NC, One-phase |
| Nominal load current: | |
| Rated load voltage: | 230 V AC |
| Control voltage: | 230 V AC |
| Nominal power: | |
| Number of NO/NC contacts: | 1 / 1 |
| Category of use: | AC1, AC7A, AC7B |
| Connectors type: | screw terminals |
| Main features: | |
| Housing: | Plastic, DIN, TH-35 rail mounting |
| "Index of Protection": | IP20 |
| Width in 17.5 mm modules: | 1 |
| Weight: | 0.13 kg |

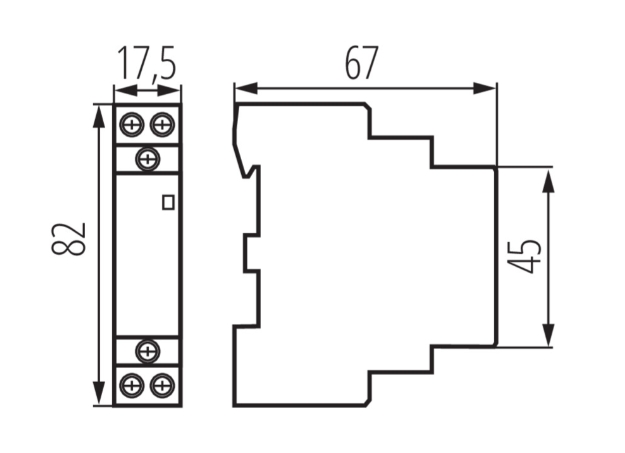

| Dimensions: | 67 x 82 x 17.5 mm |
| Manufacturer / Brand: | IDEAL |
| Guarantee: | 5 years |
Brand:
Ideal
