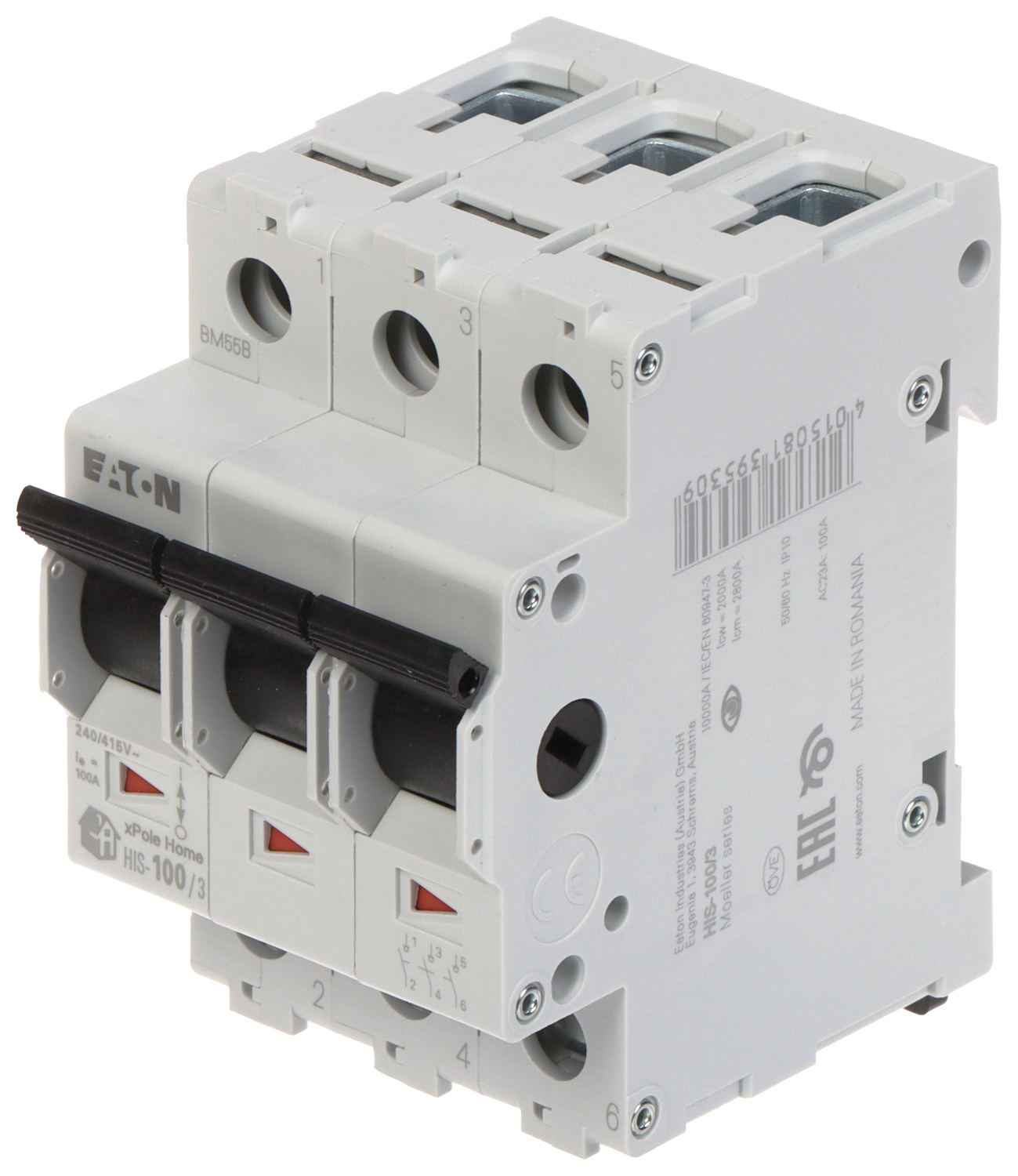

Изолирующий выключатель His-100/3, трехфазный, 100 А, Eaton.

€22.08
(Включая налог 21%)
HIS-100/3
5 шт.
+ −

Минимальное количество для товара "Изолирующий выключатель His-100/3, трехфазный, 100 А, Eaton." 1.


Device type: Isolating switch, Three-phase ; Rated current: 100 A ; Number of poles: 3 ; Category of use: AC23A ; Connectors type: screw terminals ; Housing: DIN, TS-35 rail mounting ;
Device type: Isolating switch, Three-phase
Rated current: 100 A
Rated voltage:
  • 240 V AC, 50/60 Hz
  • 415 V AC, 50/60 Hz
  • Rated short time withstand current: 2000 A
    Number of poles: 3
    Category of use: AC23A
    Connectors type: screw terminals
    Main features:
  • Can be connected with using the supply busbars fork-type or prong-type
  • Contact position indicator
  • Possibility of sealing
  • Housing: Plastic, DIN, TS-35 rail mounting
    Width in 17.5 mm modules: 3
    Weight: 0.307 kg
    Dimensions: 84  x 76  x 52.5 mm
    Manufacturer / Brand: EATON
    Guarantee: 2 years
    Brand:
    Eaton
