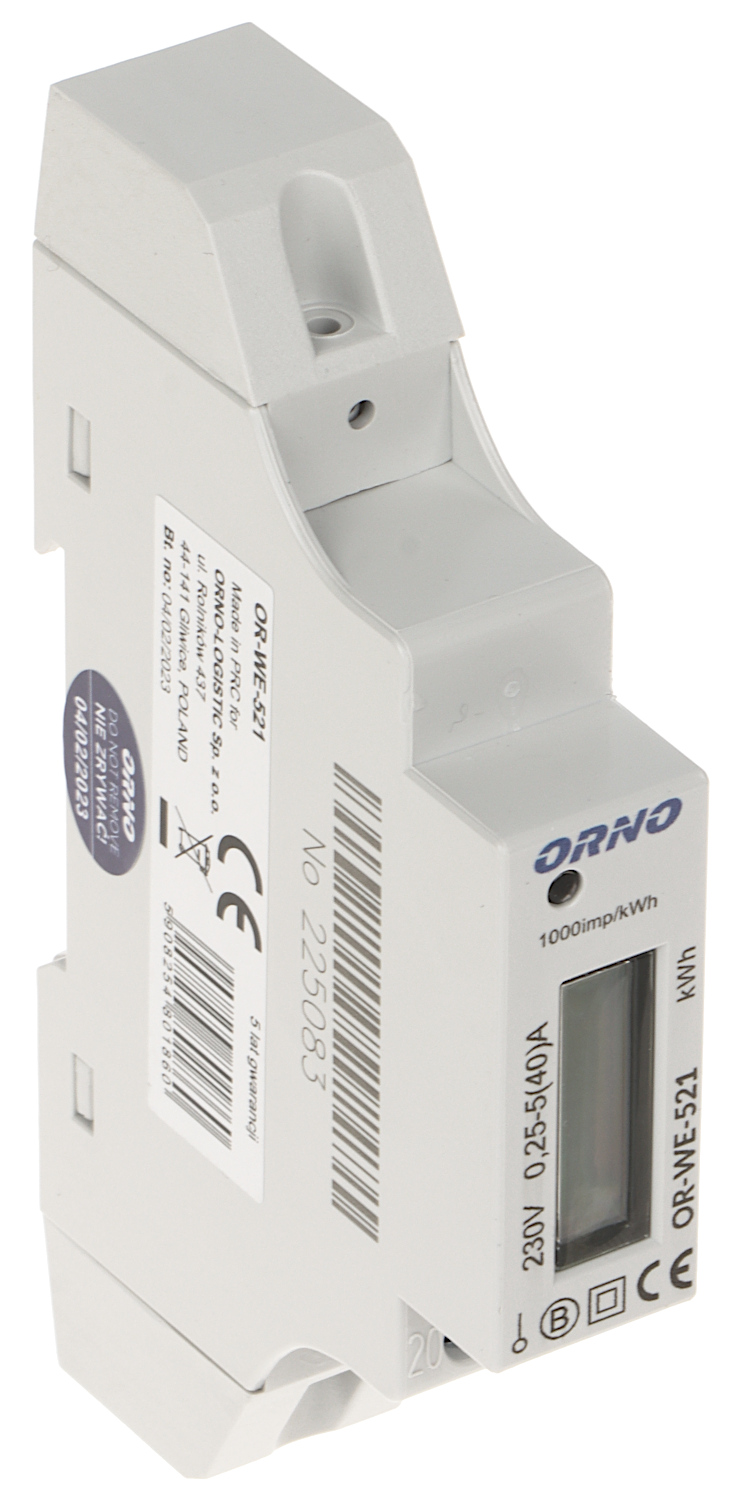

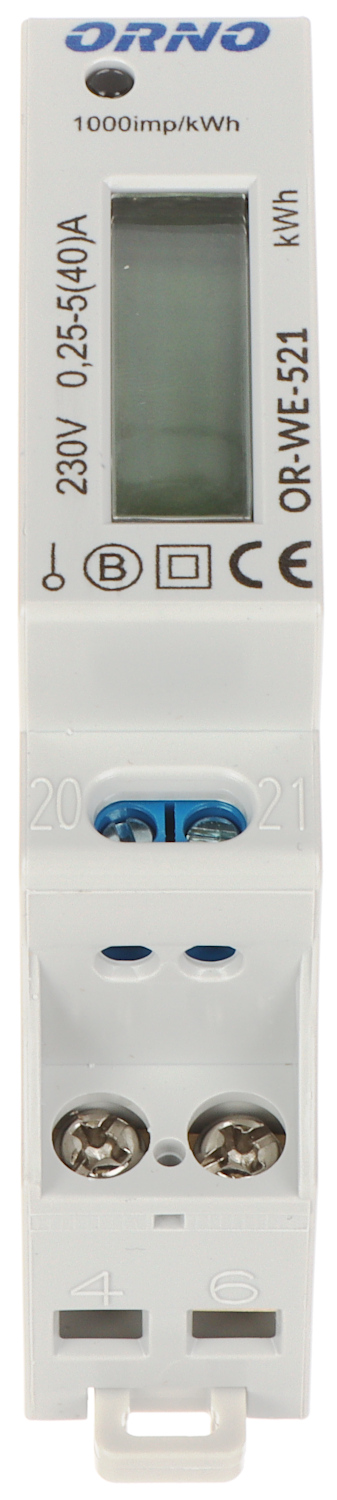

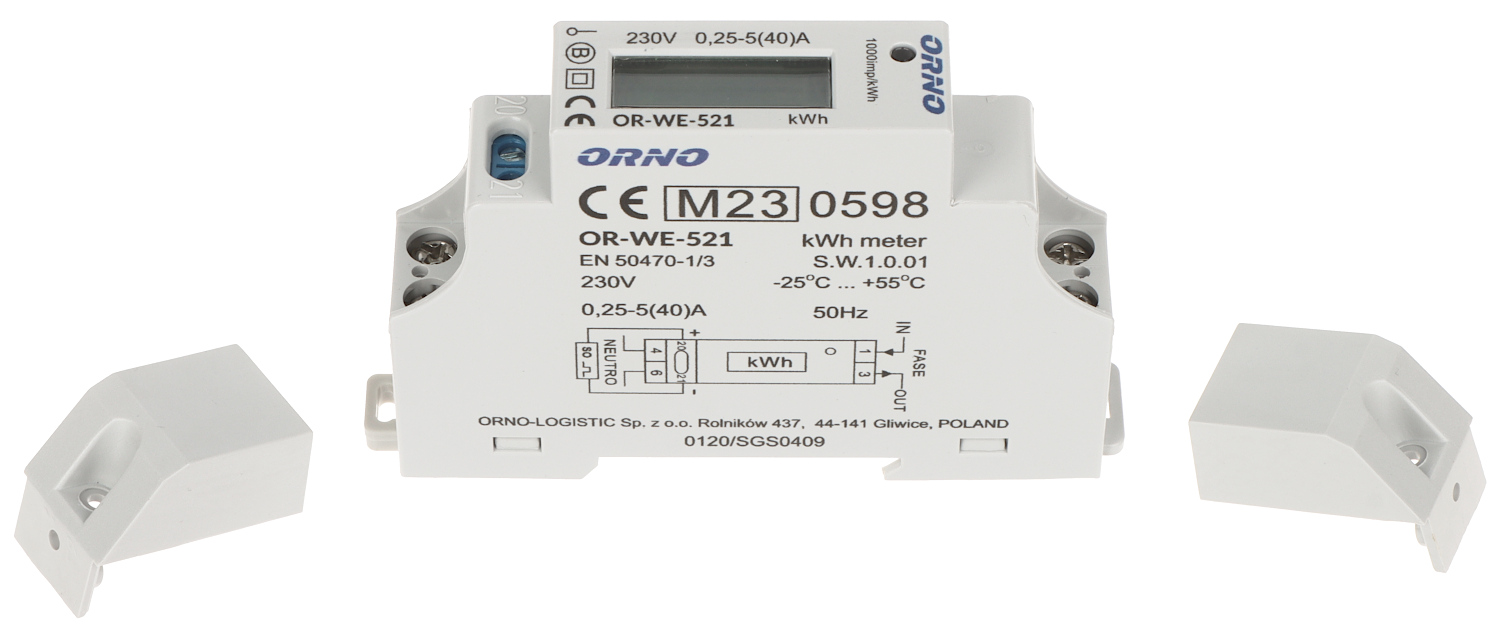

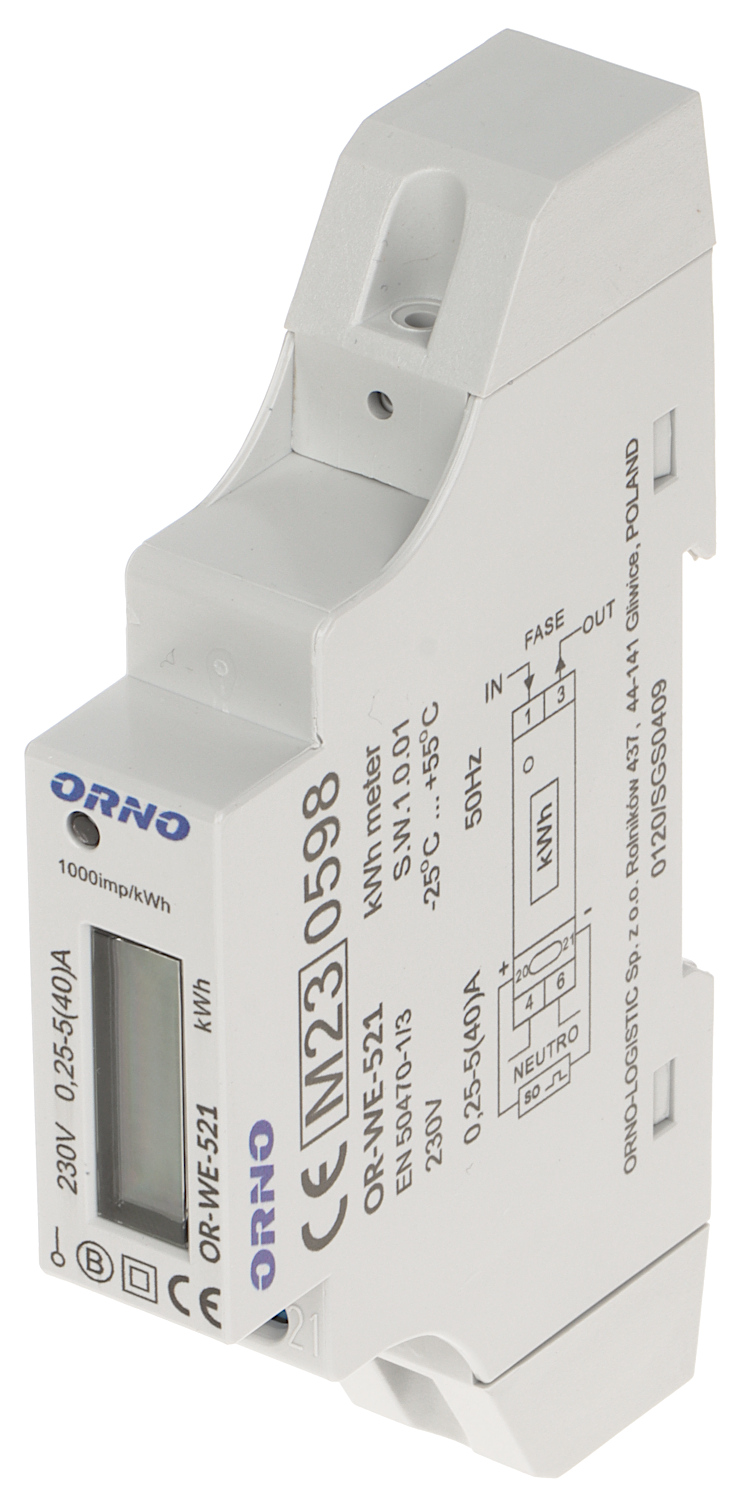

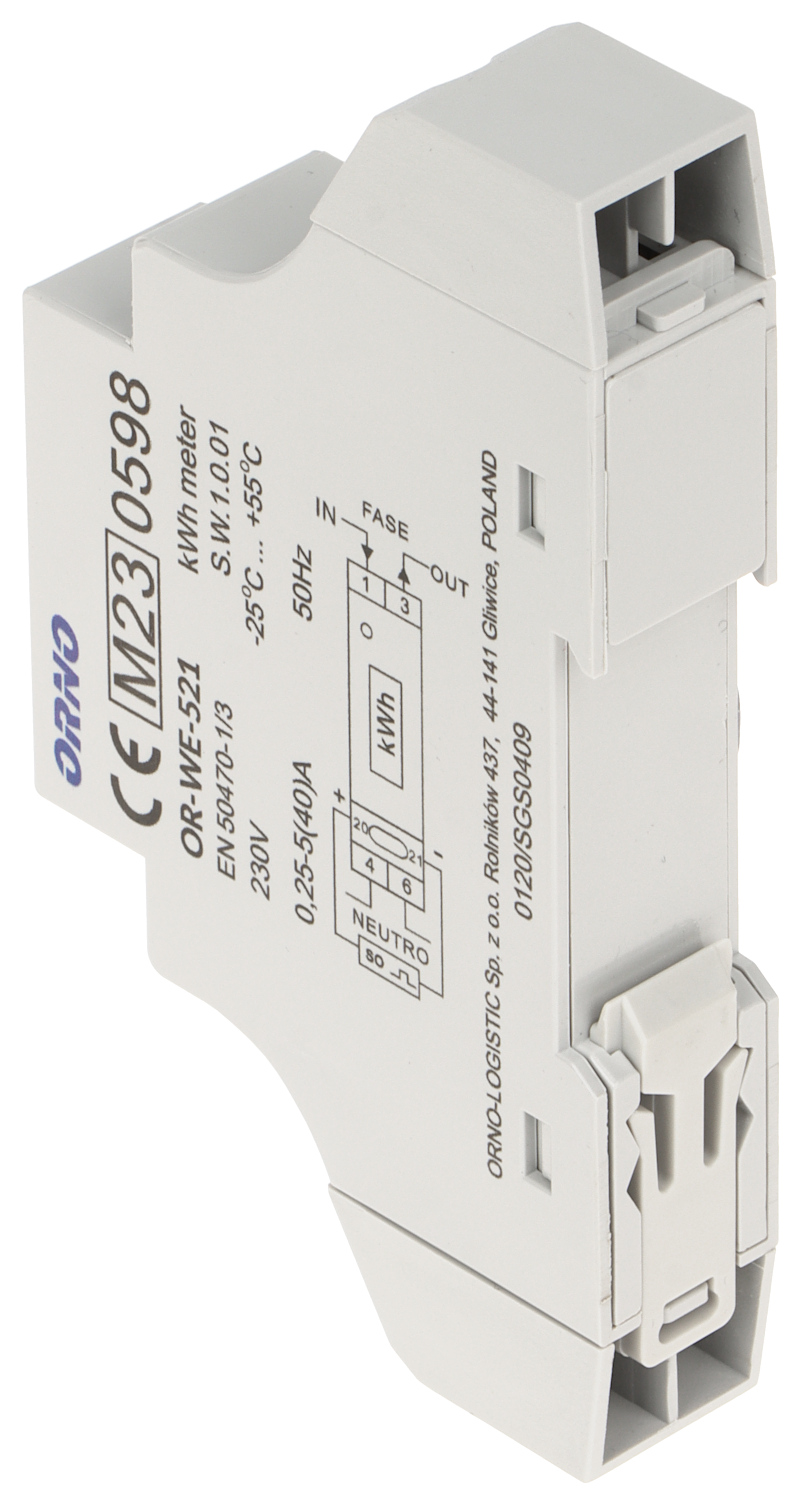

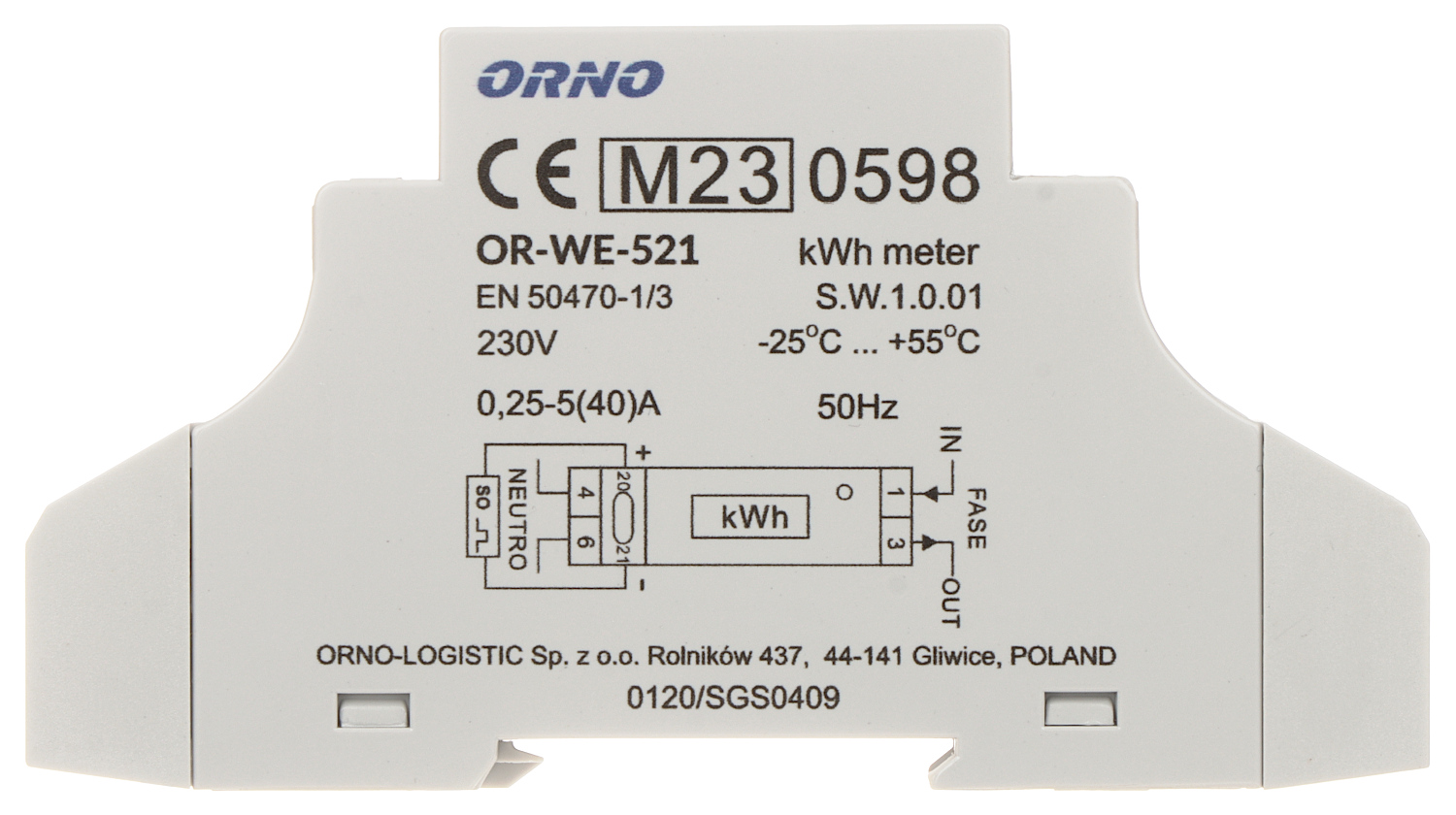

ELECTRIC ENERGY METER OR-WE-521 ONE-PHASE ORNO
Войдите в учётную запись, чтобы мы могли сообщить вам об ответе
Device type: Electric Energy Meter, One-phase ; Rated voltage: 230 V AC, 50 Hz ; Measurement unit: kWh ; LCD display: 5+2 digits ; Measuring accuracy: 0.001 kWh ; Impulse frequency: 1000 imp/kWh ; Connectors type: screw terminals ; Housing: DIN, TS-35 rail mounting ;
| Device type: | Electric Energy Meter, One-phase |
| Rated voltage: | 230 V AC, 50 Hz |
| Measurement unit: | kWh |
| Current: | 5 A - Base current 40 A - Max. current |
| LCD display: | 5+2 digits ( 00000.00 kWh ) |
| Measuring accuracy: | 0.001 kWh |
| Impulse frequency: | 1000 imp/kWh |
| RS-485 ports: |  |
| Connectors type: | screw terminals max. 6 mm² |
| Main features: | |
| Housing: | Plastic, DIN, TS-35 rail mounting |
| "Index of Protection": | IP51 |
| Operation temp: | -25 °C ... 55 °C |
| Width in 17.5 mm modules: | 1 |
| Weight: | 0.07 kg |
| Dimensions: | 60 x 110 x 17.5 mm |
| Manufacturer / Brand: | ORNO |
| Guarantee: | 5 years |
Brand:
ORNO
