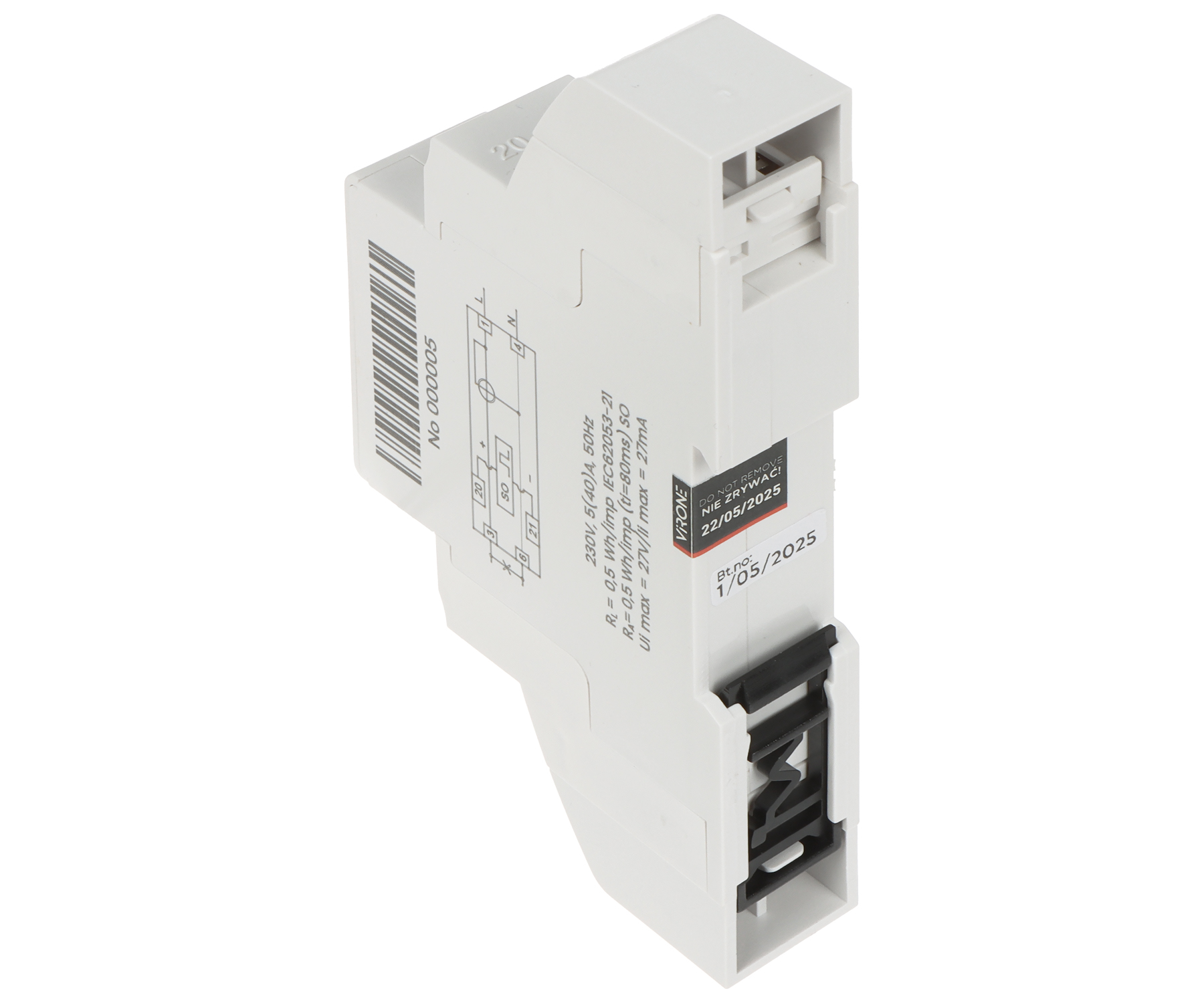

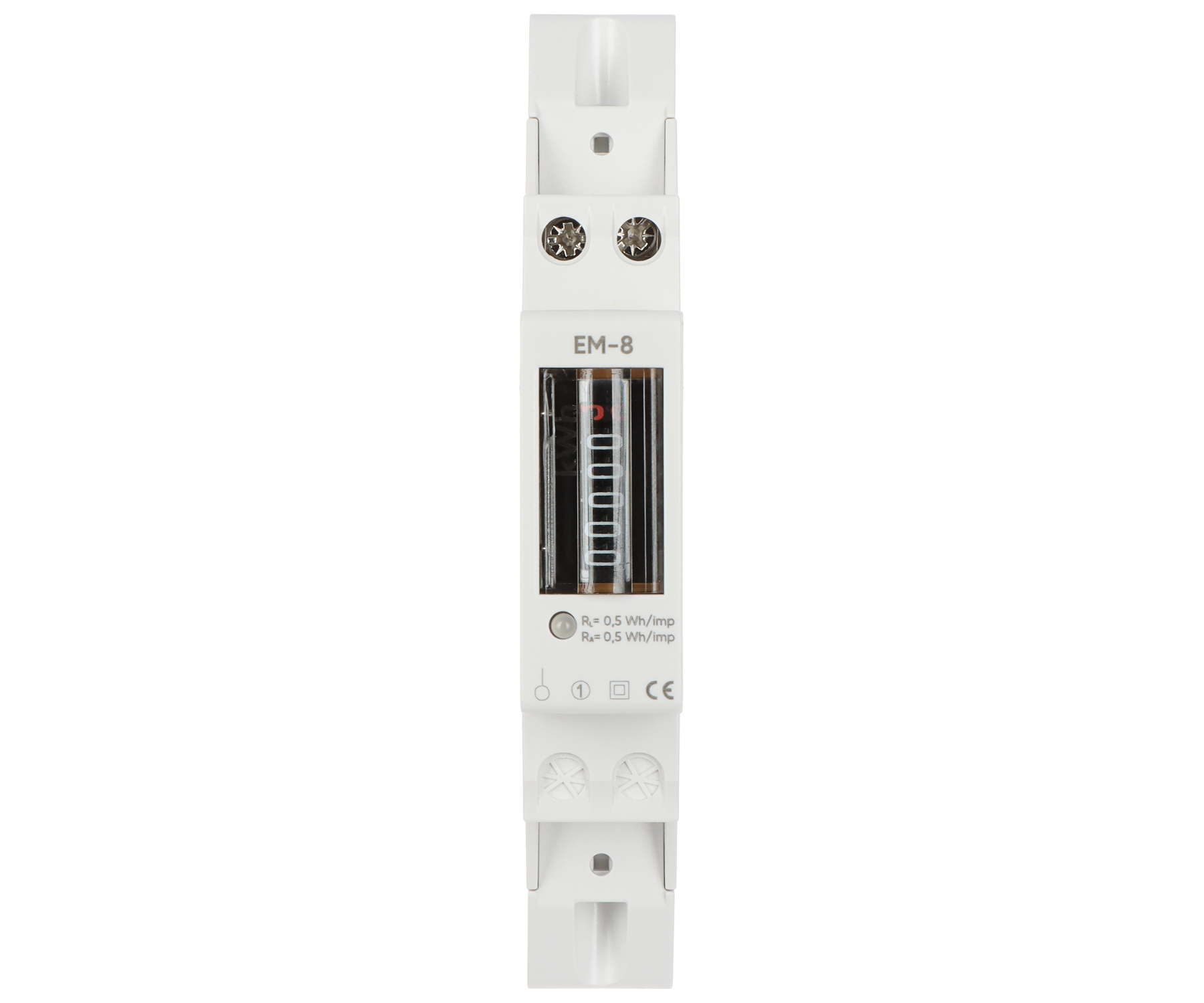

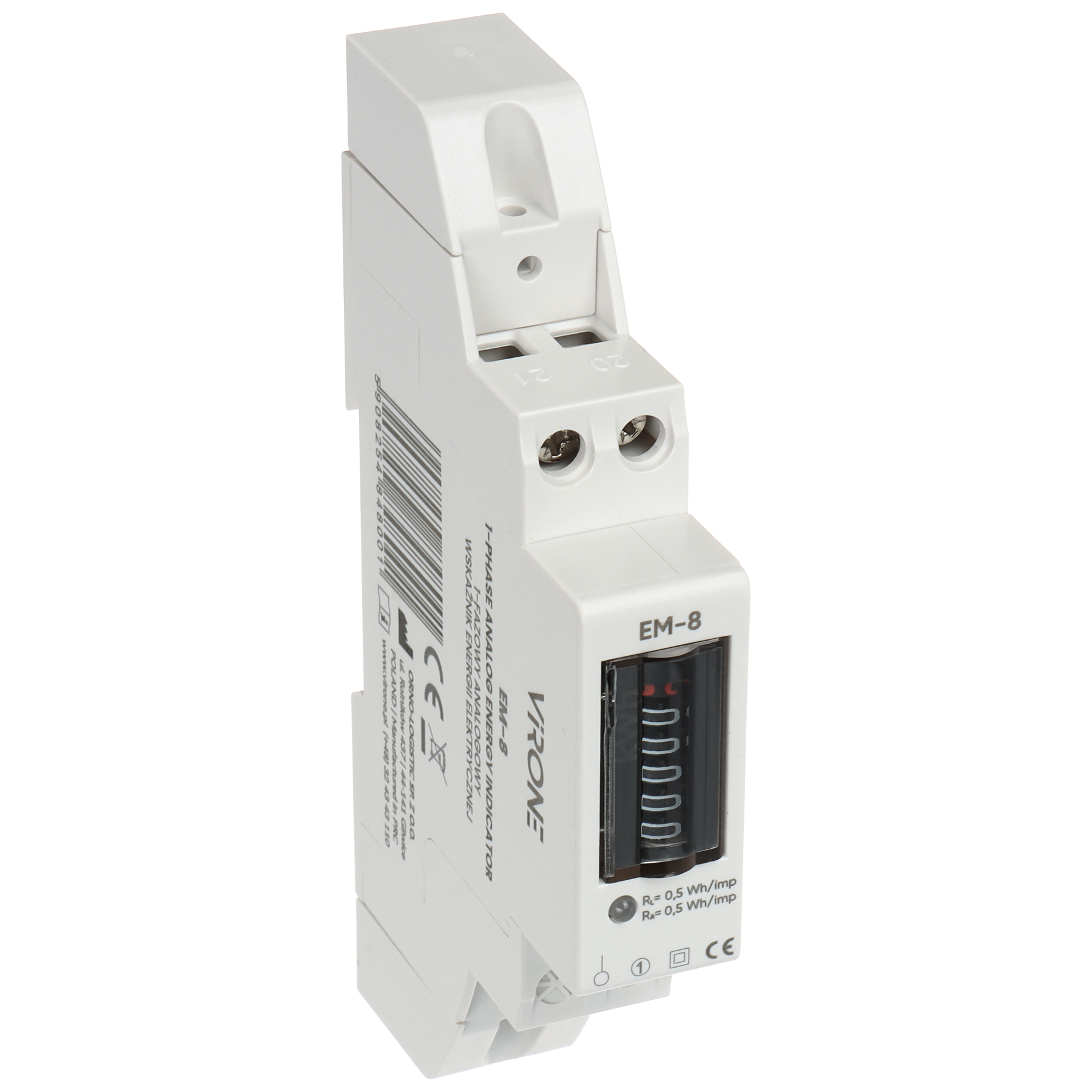

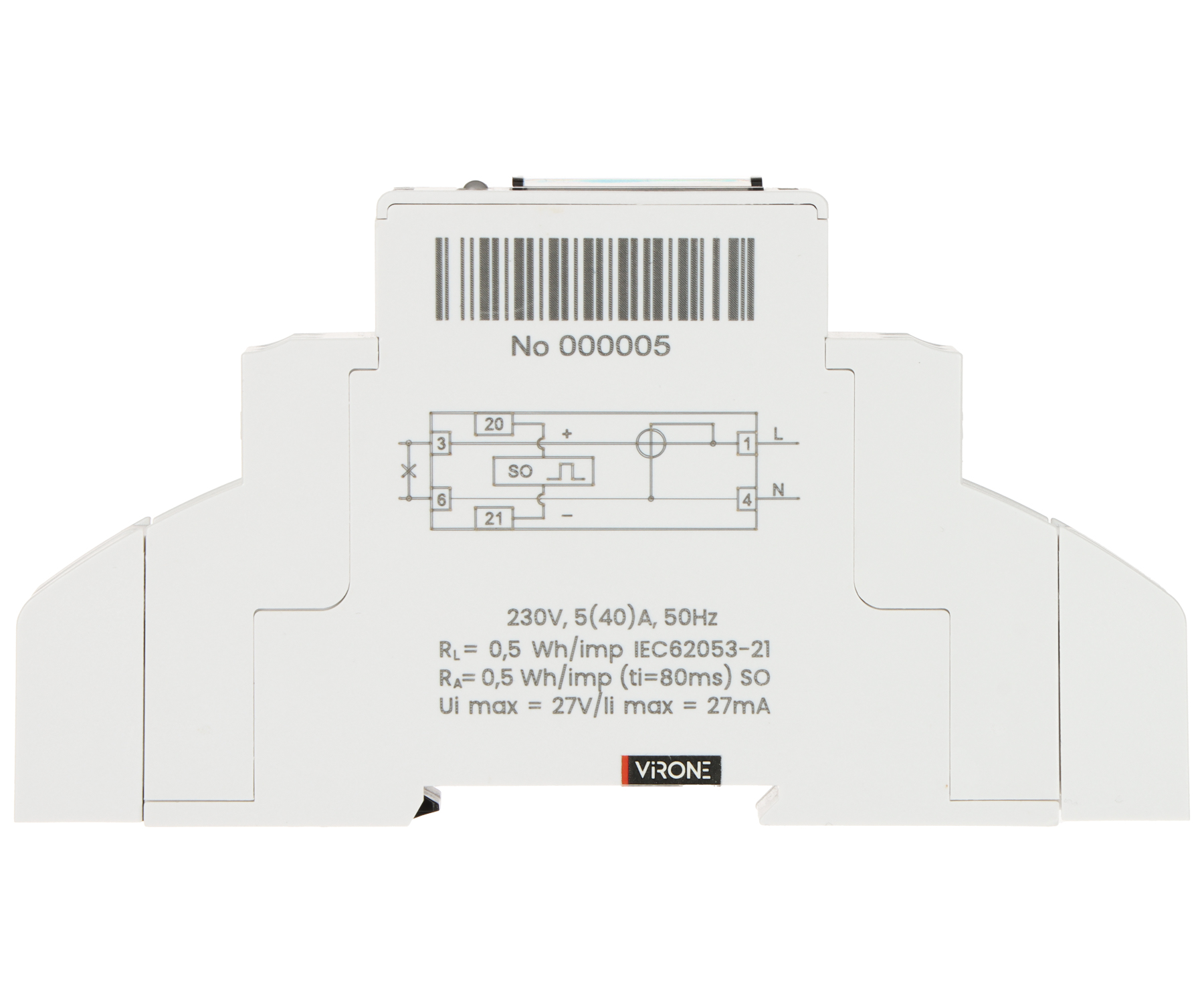

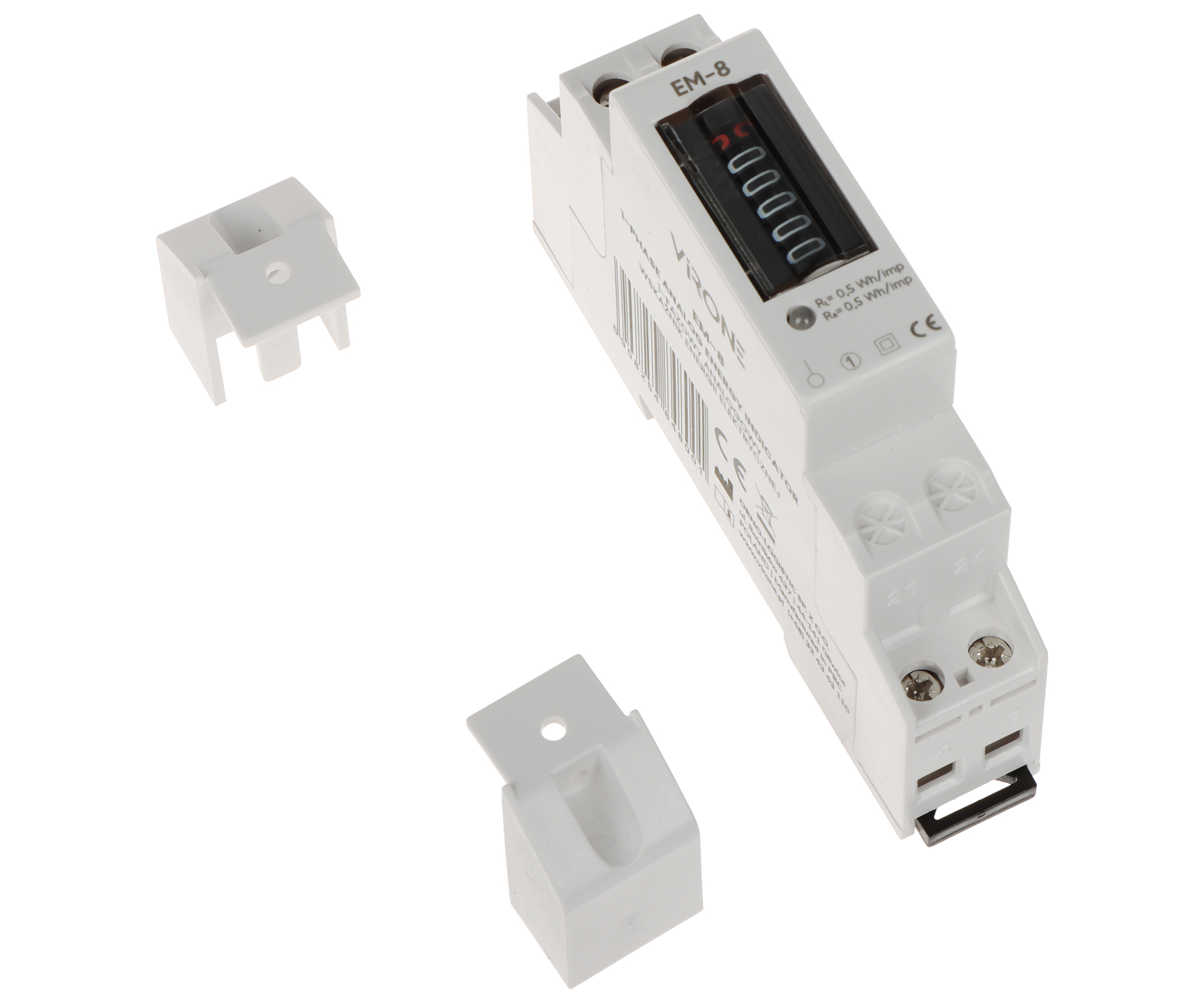

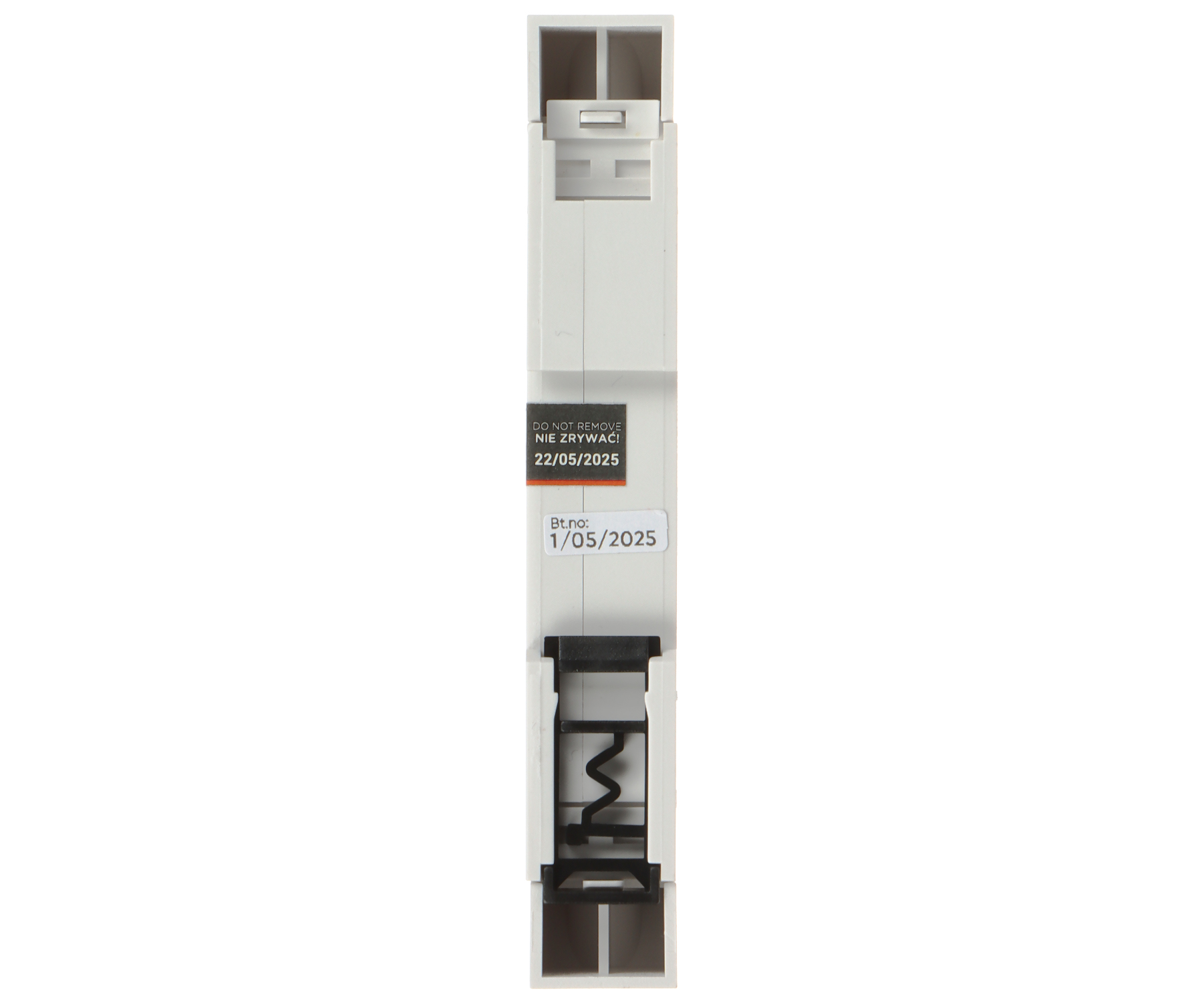

ELECTRIC ENERGY METER EM-8 ONE-PHASE, ANALOG Virone
Войдите в учётную запись, чтобы мы могли сообщить вам об ответе
Device type: Electric Energy Meter, One-phase, Analog ; Rated voltage: 230 V AC, 50 Hz ; Measurement unit: kWh ; LCD display: 5+1 digits ; Measuring accuracy: Class B ; Impulse frequency: 2000 imp/kWh ; Connectors type: screw terminals ; Housing: DIN, TS-35 rail mounting ;
| Device type: | Electric Energy Meter, One-phase, Analog |
| Rated voltage: | 230 V AC, 50 Hz |
| Measurement unit: | kWh |
| Current: | 5 A - Base current 40 A - Max. current |
| LCD display: | 5+1 digits ( 00000.0 kWh ) |
| Measuring accuracy: | Class B |
| Impulse frequency: | 2000 imp/kWh |
| RS-485 ports: |  |

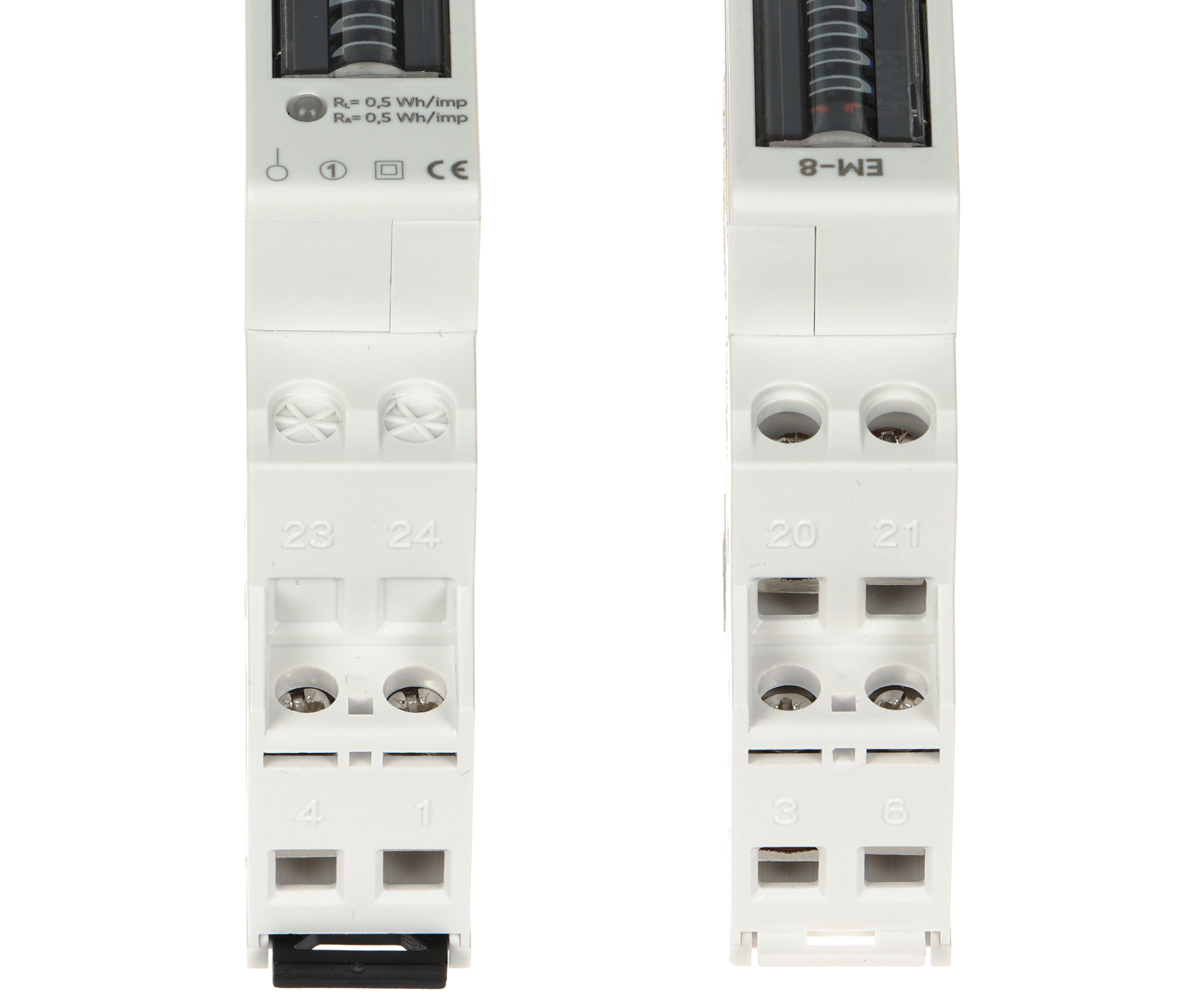

| Connectors type: | screw terminals |
| Main features: | |
| Housing: | Plastic, DIN, TS-35 rail mounting |
| "Index of Protection": | IP51 |
| Operation temp: | -25 °C ... 55 °C |
| Width in 17.5 mm modules: | 1 |
| Weight: | 0.085 kg |
| Dimensions: | 63 x 117 x 17.5 mm |
| Manufacturer / Brand: | Virone |
| Guarantee: | 5 years |
Brand:
Virone
