FLUSH-MOUNTING DISTRIBUTION CABINET 36-MODULAR LE-135363 Practibox S LEGRAND
Войдите в учётную запись, чтобы мы могли сообщить вам об ответе
Number of mounted modules: 12 x 3 rows ; Spacing between TH 35 rails: 150 mm ; "Index of Protection": IP40 ; IK rating: IK07 ; Dimensions: 535 x 328 x 105 mm, 520 x 306 x 72 mm - flush-mounting box ;
| Method of mounting: | Flush-mounted |
| Number of mounted modules: | 12 x 3 rows, 17.5 mm |
| Spacing between TH 35 rails: | 150 mm |
| Transparent door: |  |
| Main features: | |

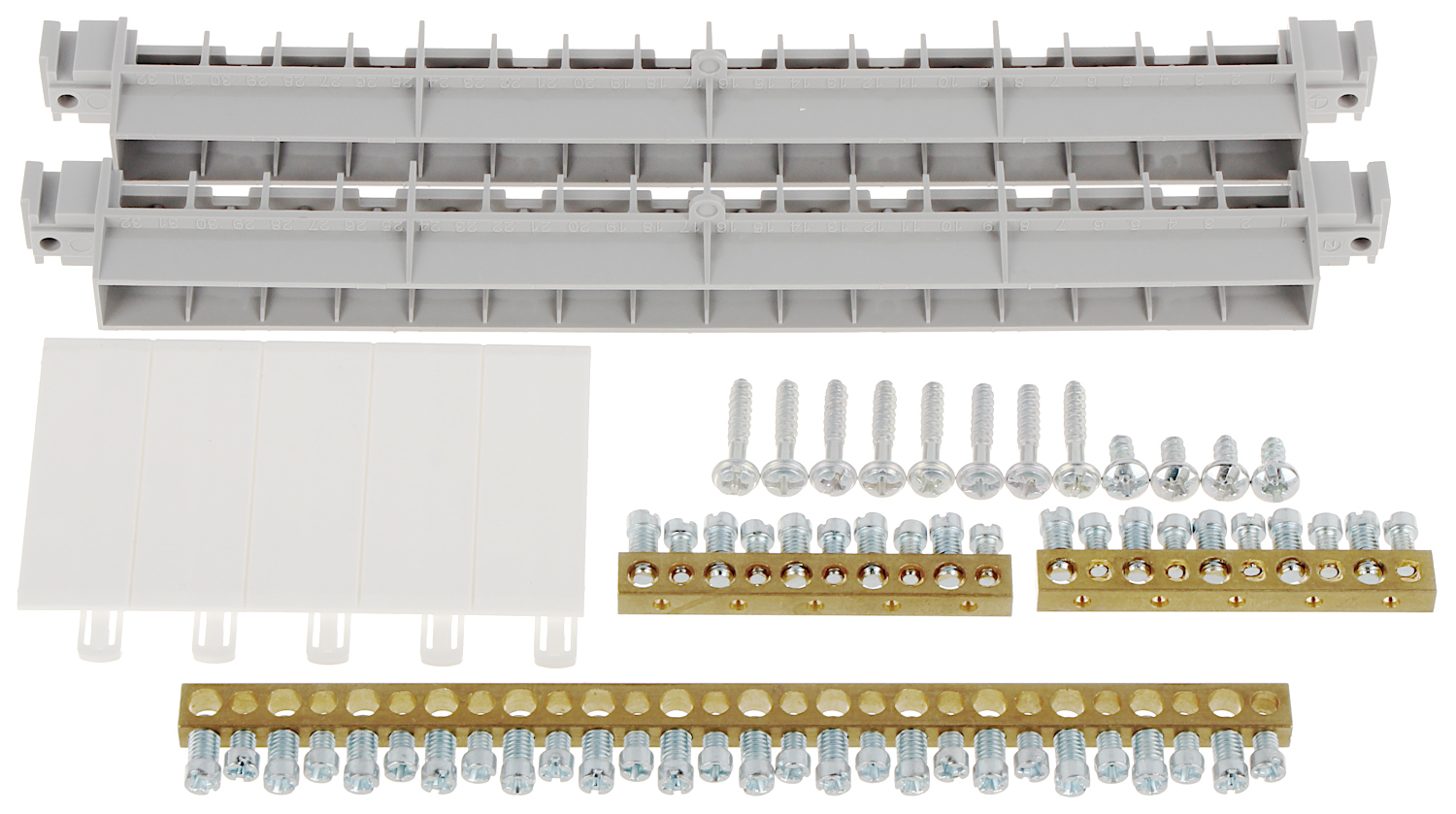

| Equipment: | 1 pcs : 14 x 16 mm² + 14 x 10 mm² , 2 pcs : 5 x 16 mm² + 5 x 10 mm² |
| Material: | Self-extinguishing |
| Color: | White |
| "Index of Protection": | IP40 |
| IK rating: | IK07 |
| Compliance with standards: | IEC/EN 60670-24, IEC/EN 62208, IEC/EN 61439-3 |
| Operation temp: | -10 °C ... 60 °C |
| Weight: | 1.91 kg |
| Dimensions: | 535 x 328 x 105 mm , 520 x 306 x 72 mm - flush-mounting box |
| Manufacturer / Brand: | LEGRAND |
| Guarantee: | 2 years |
Brand:
Legrand
