AUXILIARY CONTACT LE-406250 FOR THE LEGRAND DEVICES OF THE TX3, DX3, FR300, FRX300, FRX400 SERIES LEGRAND
Войдите в учётную запись, чтобы мы могли сообщить вам об ответе
Device type: Auxiliary contact ; Rated voltage: 230 V AC ; Number of pins: 1 ; Contact type: NO/NC ; Connectors type: screw terminals ; Relay maximal load: 250 V AC / 6 A ; Housing: Direct mounting on selected Legrand DIN TS-35 rail mounting units ;
| Device type: | Auxiliary contact |
| Rated voltage: | 230 V AC |
| Number of pins: | 1 |
| Contact type: | NO/NC |
| Connectors type: | screw terminals |
| Relay maximal load: | 250 V AC / 6 A |

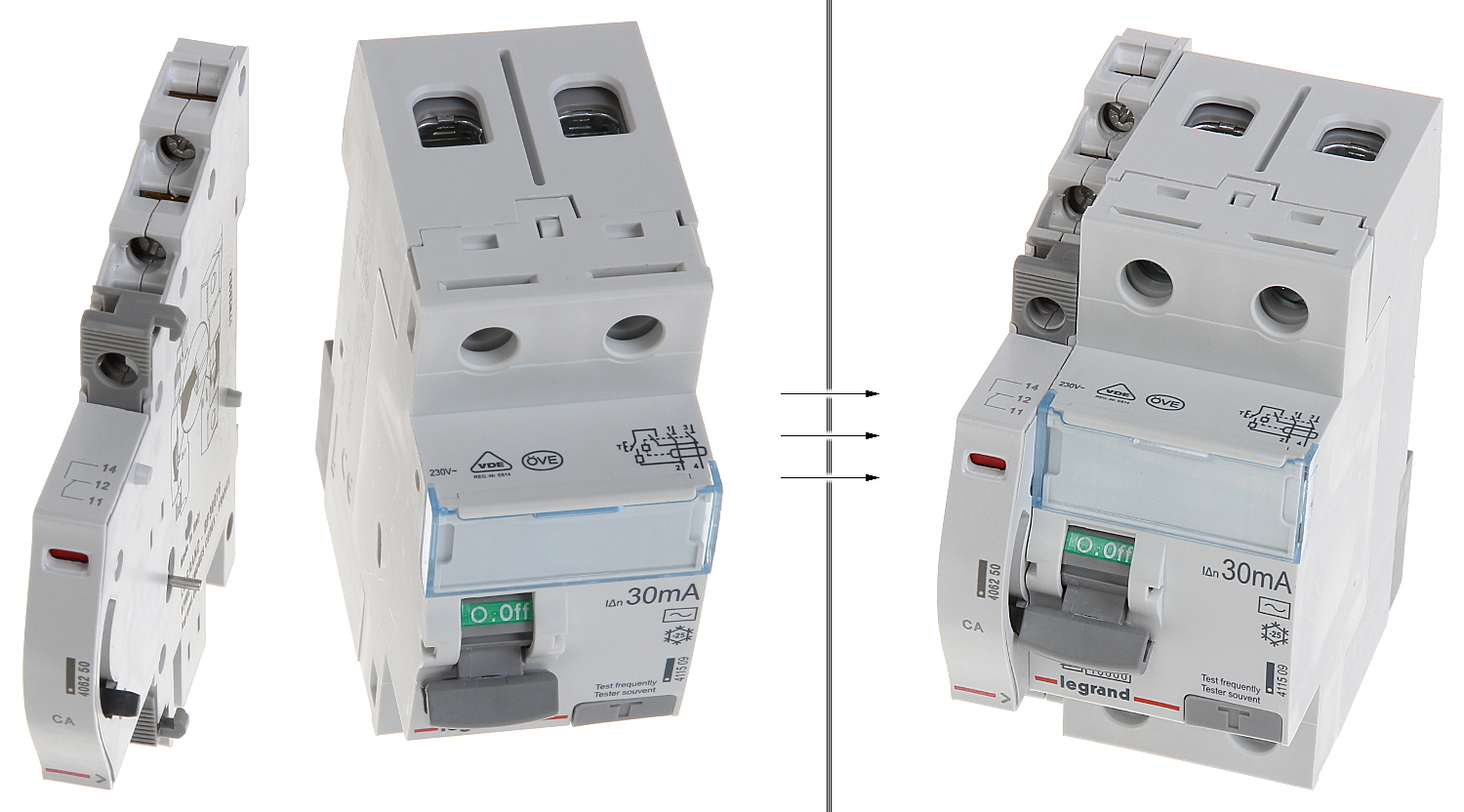

| Housing: | Plastic, Direct mounting on selected Legrand DIN TS-35 rail mounting units, on the left-hand side of the device |
| Width in 17.5 mm modules: | 0.5 |
| Weight: | 0.034 kg |
| Dimensions: | 9 x 85 x 78 mm |
| Manufacturer / Brand: | LEGRAND |
| Guarantee: | 2 years |
Brand:
Legrand
