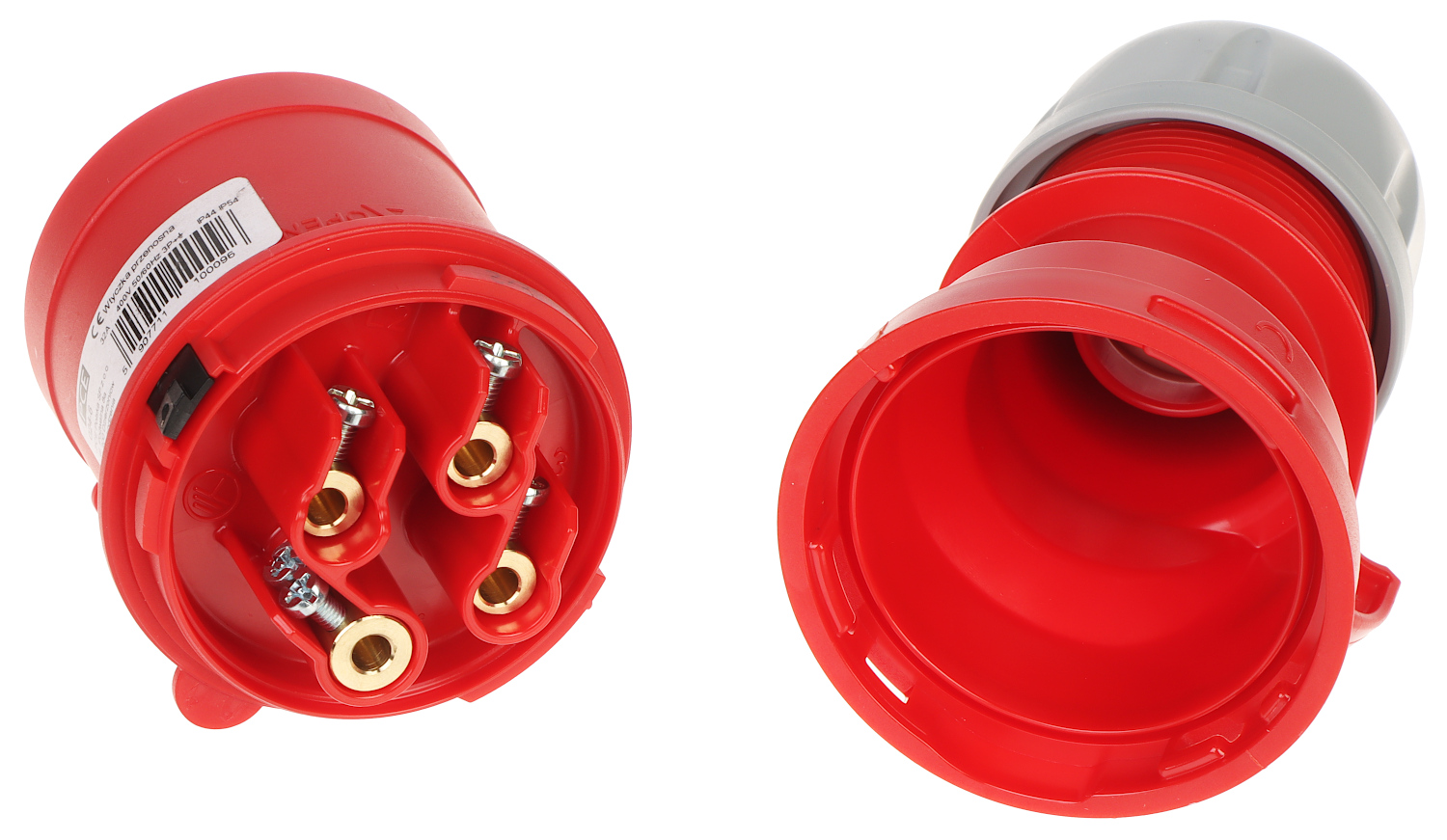

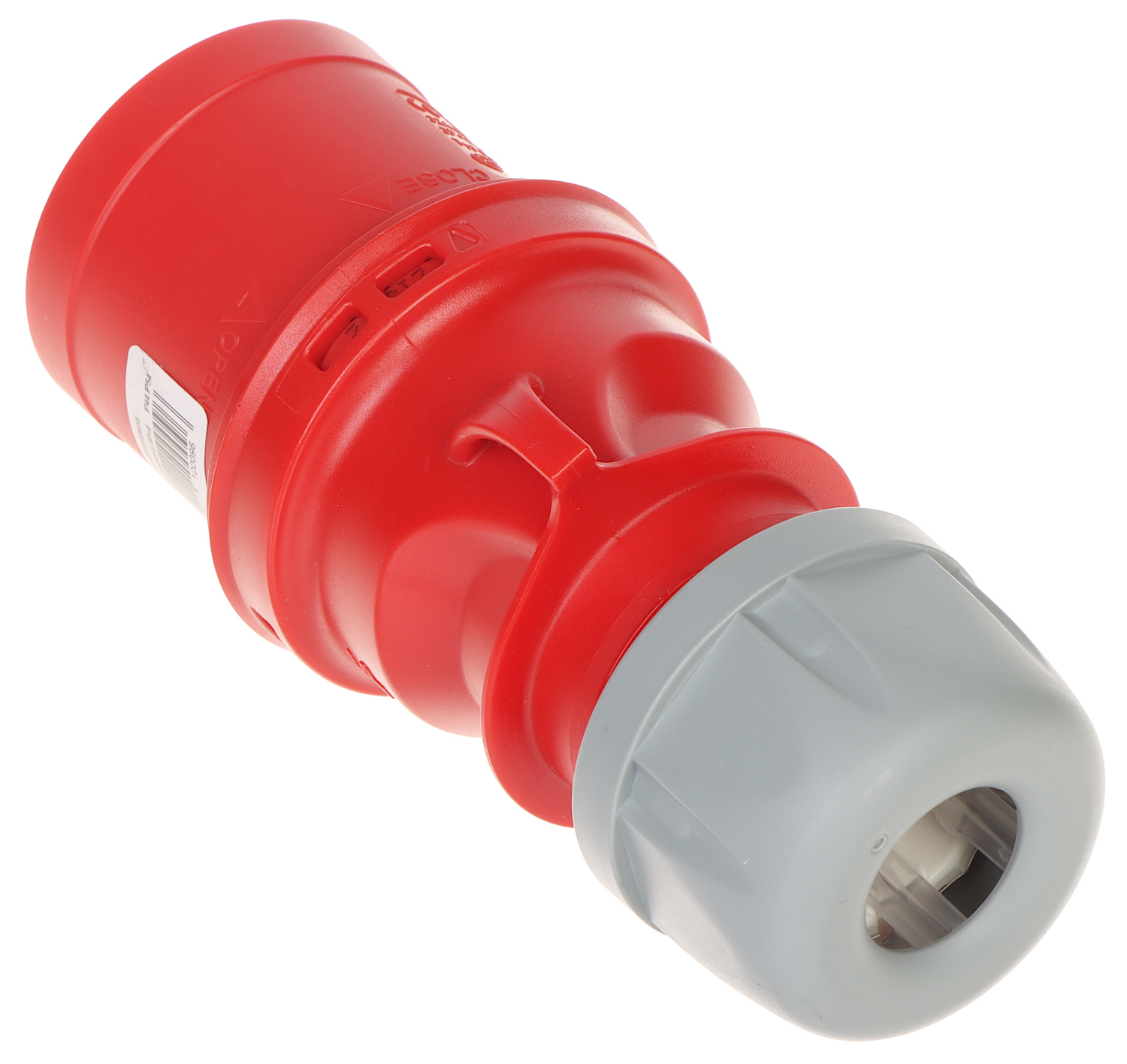

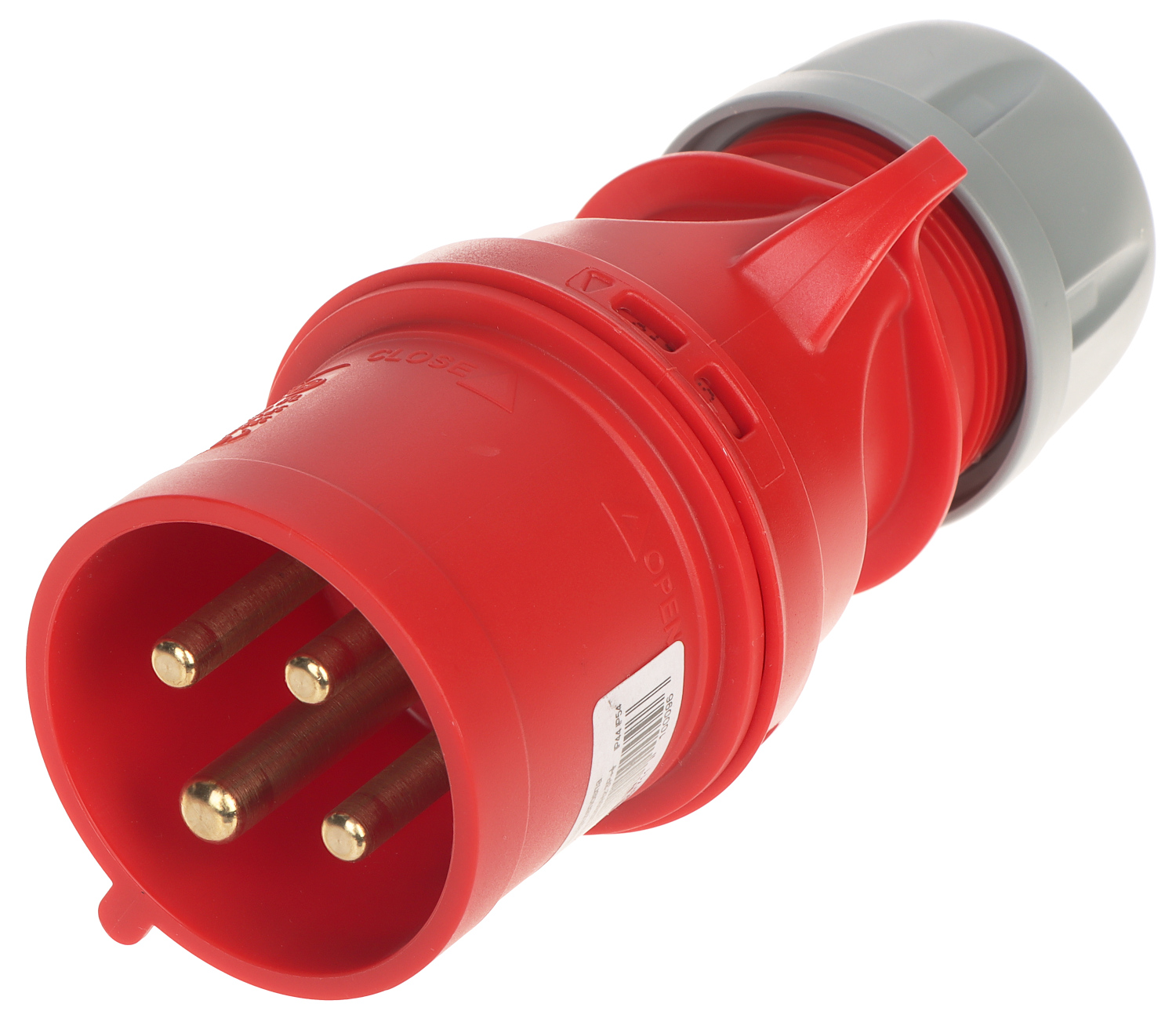

MOBILE PLUG PCE-0246 400 V 32 A 4P 6H IP44 / IP54
Войдите в учётную запись, чтобы мы могли сообщить вам об ответе
Rated voltage: 400 V / 50 ... 60 Hz ; Maximal current load: 32 A ; Number of poles: 4P ; Grounding: 6h ; Electrical cable: max. 4 x 6 mm² ; Cable terminals: screw terminals ; Plug type: CEE ; "Index of Protection": IP44 / IP54 ; Maximum wire insulation diameter: 20 mm ;
| Rated voltage: | 400 V / 50 ... 60 Hz |
| Maximal current load: | 32 A |
| Number of poles: | 4P |
| Grounding: | 6h |
| Electrical cable: | max. 4 x 6 mm² |

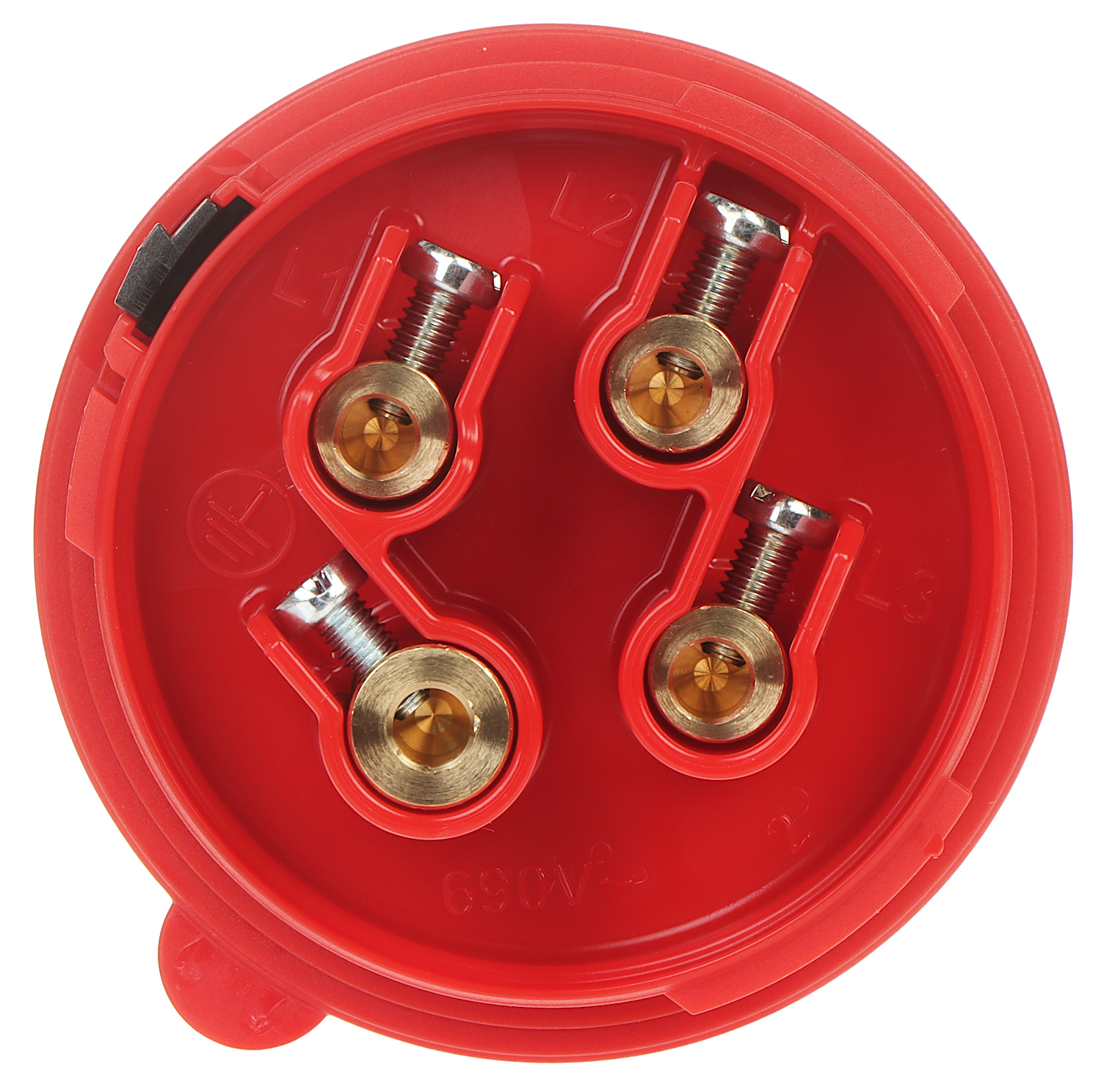

| Cable terminals: | screw terminals |
| Plug type: | CEE |
| "Index of Protection": | IP44 / IP54 |
| Contact material: | CuZn |
| Maximum wire insulation diameter: | 20 mm |
| Weight: | 0.2 kg |
| Dimensions: | 150 x 80 x 67 mm |
| Color: | Red |
| Manufacturer / Brand: | PCE |
| Guarantee: | 2 years |
Brand:
PCE
