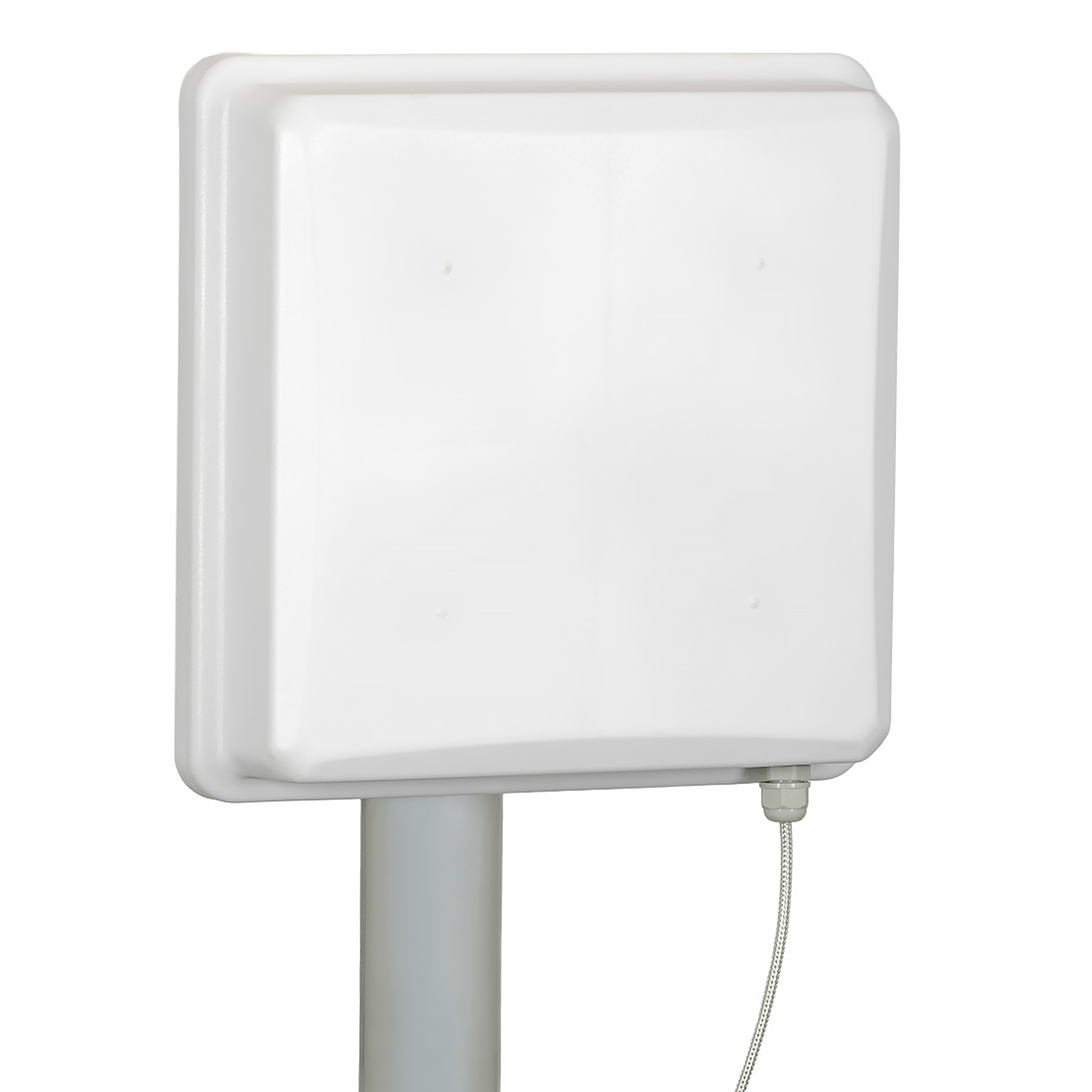

PANEL ANTENNA TD-LTE-KYZ4 GSM/GPRS LTE
Войдите в учётную запись, чтобы мы могли сообщить вам об ответе
Frequency range: 380 ... 698 MHz, 698 ... 960 MHz, 1710 ... 2700 MHz ; Connectors: N plug ; Gain : 3 dBi, 4 dBi, 7 dBi ; Main features: Length of the cable : 0.12 m, Very easy and quick assembly ; Dimensions: 249 x 71.5 x 61 mm ;
| Frequency range: | 380 ... 698 MHz , 698 ... 960 MHz , 1710 ... 2700 MHz GSM / DCS / UMTS / WLAN / LTE |

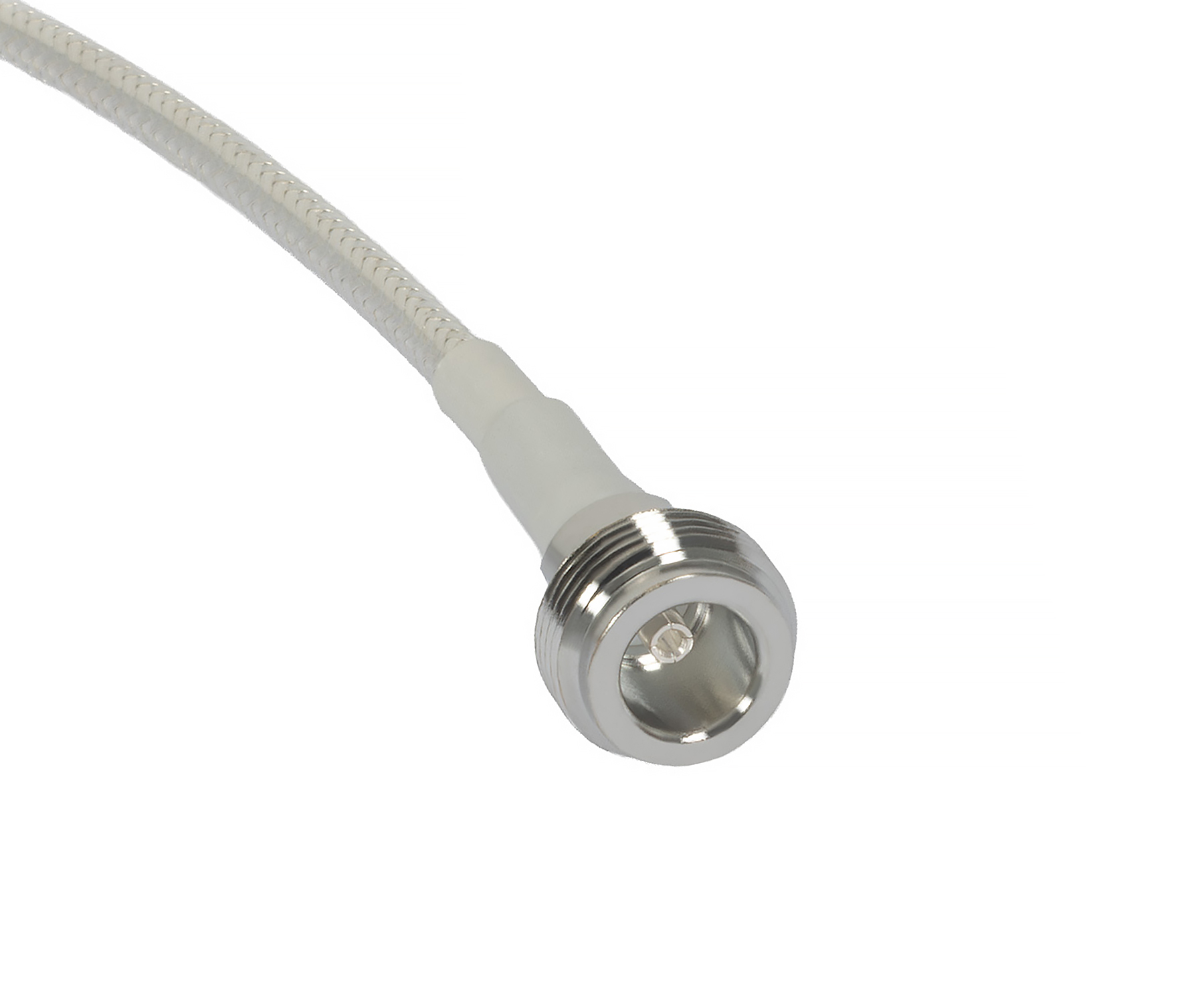

| Connectors: | N plug |
| Gain : | 3 dBi @ 380 ... 698 MHz , 4 dBi @ 698 ... 960 MHz , 7 dBi @ 1710 ... 2700 MHz |
| Impedance: | 50 Ω |
| Horizontal beam width (H): | 140 ° |
| Vertical beam width (V): | 110 ° |
| Polarization: | Vertical |
| VSWR: | ≤ 2.5 |
| Main features: | |
| Weight: | 1 kg |
| Dimensions: | 249 x 71.5 x 61 mm |
| Manufacturer / Brand: | TRANS-DATA |
| Guarantee: | 2 years |
Brand:
Trans-Data
