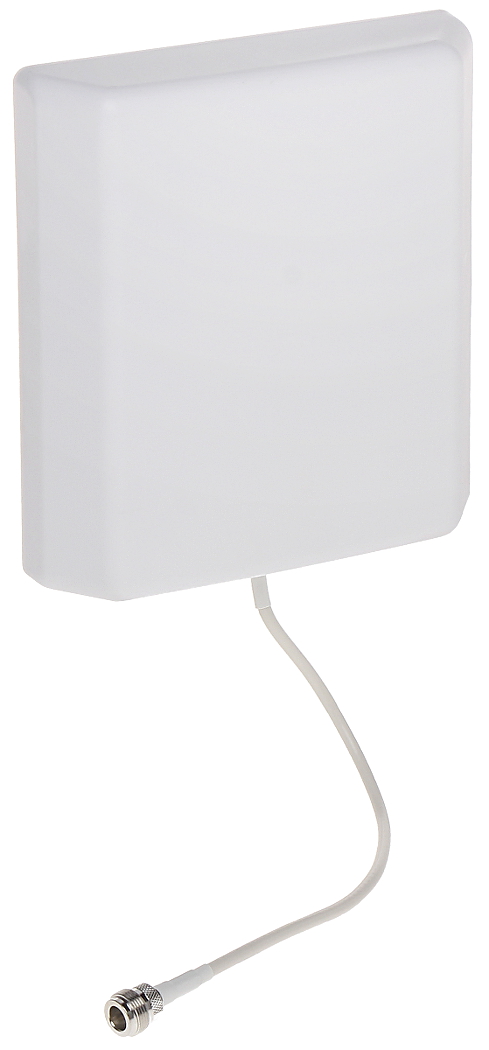

PANEL ANTENNA ATK-KPV/LTE-7/10 GSM/DCS/UMTS/WLAN/LTE
Войдите в учётную запись, чтобы мы могли сообщить вам об ответе
Frequency range: 698 MHz ... 960 MHz, 1700 MHz ... 2700 MHz ; Gain : 9 dBi @ 698 MHz ... 960 MHz, 10 dBi @ 1700 MHz ... 2700 MHz ; Connectors: N socket ; Main features: Length of the cable - 0.3 m, Very easy and quick assembly ; Dimensions: 210 x 180 x 44 mm ;
| Frequency range: | |
| Gain : | |

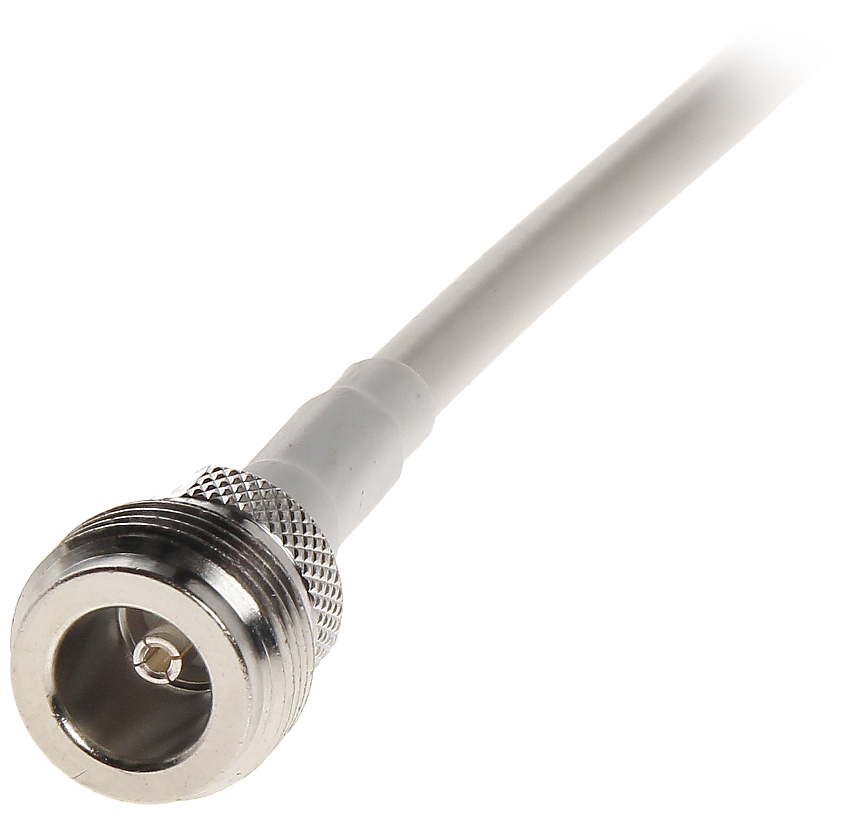

| Connectors: | N socket |
| Impedance: | 50 Ω |
| Horizontal beam width (H): | 60 ° ... 70 ° |
| Vertical beam width (V): | 45 ° ... 55 ° |
| Polarization: | Vertical |
| VSWR: | < 1.5 |
| Main features: | |
| Weight: | 0.3 kg |
| Dimensions: | 210 x 180 x 44 mm |
| Manufacturer / Brand: | Trans Data |
| Guarantee: | 2 years |
Brand:
Trans-Data
