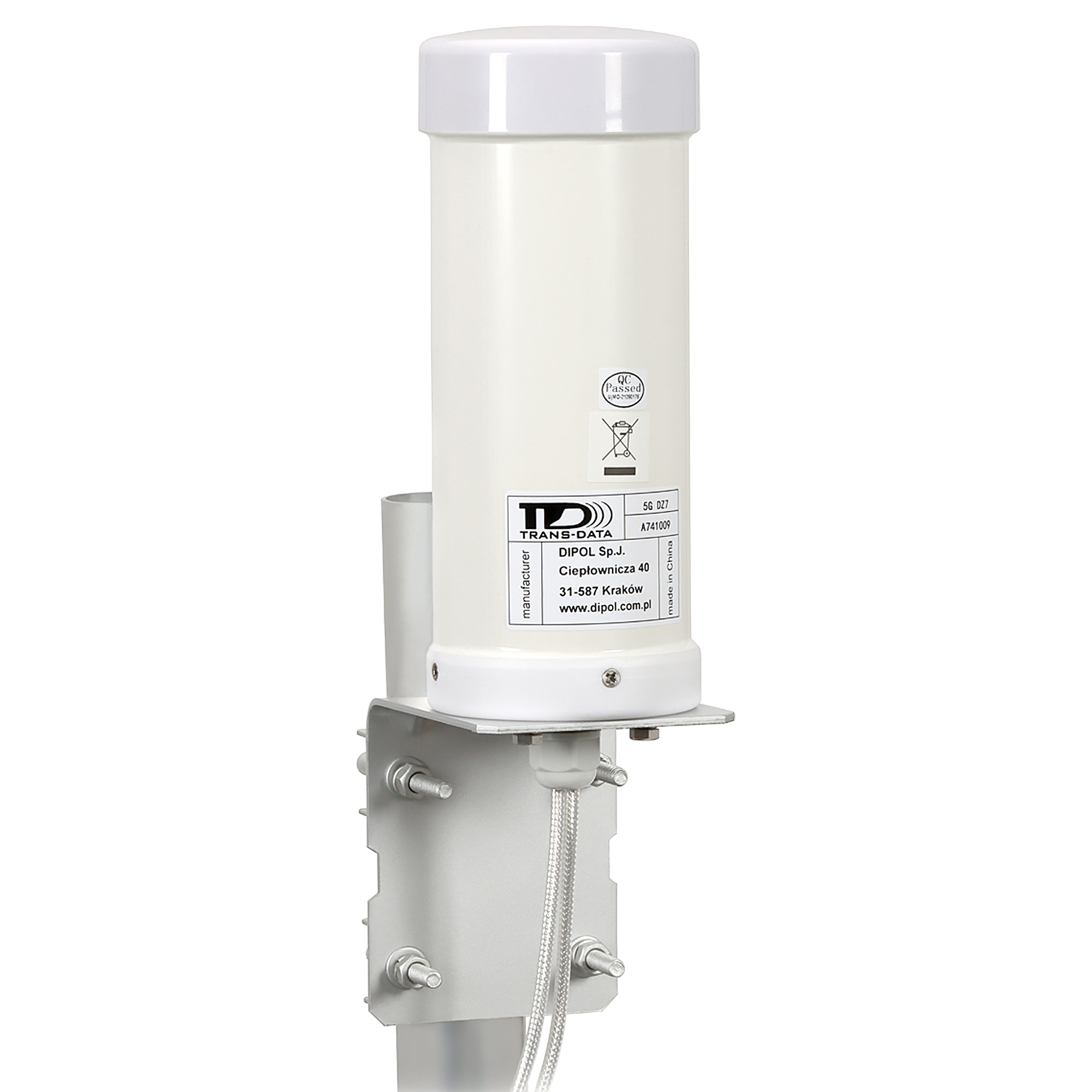

OMNIDIRECTIONAL ANTENNA TD-5G-DZ7 GSM/GPRS LTE 5G
Войдите в учётную запись, чтобы мы могли сообщить вам об ответе
Frequency range: 617 ... 960 MHz, 1710 ... 2700 MHz, 3300 ... 4200 MHz ; Connectors: 2 x SMA plug ; Gain : 3 ... 5 dBi ; Main features: Length of the cable : 2 x 0.35 m, Very easy and quick assembly ; Dimensions: Ø 82 x 200 mm ;
| Frequency range: | 617 ... 960 MHz , 1710 ... 2700 MHz , 3300 ... 4200 MHz GSM / DCS / UMTS / WLAN / LTE / 5G |

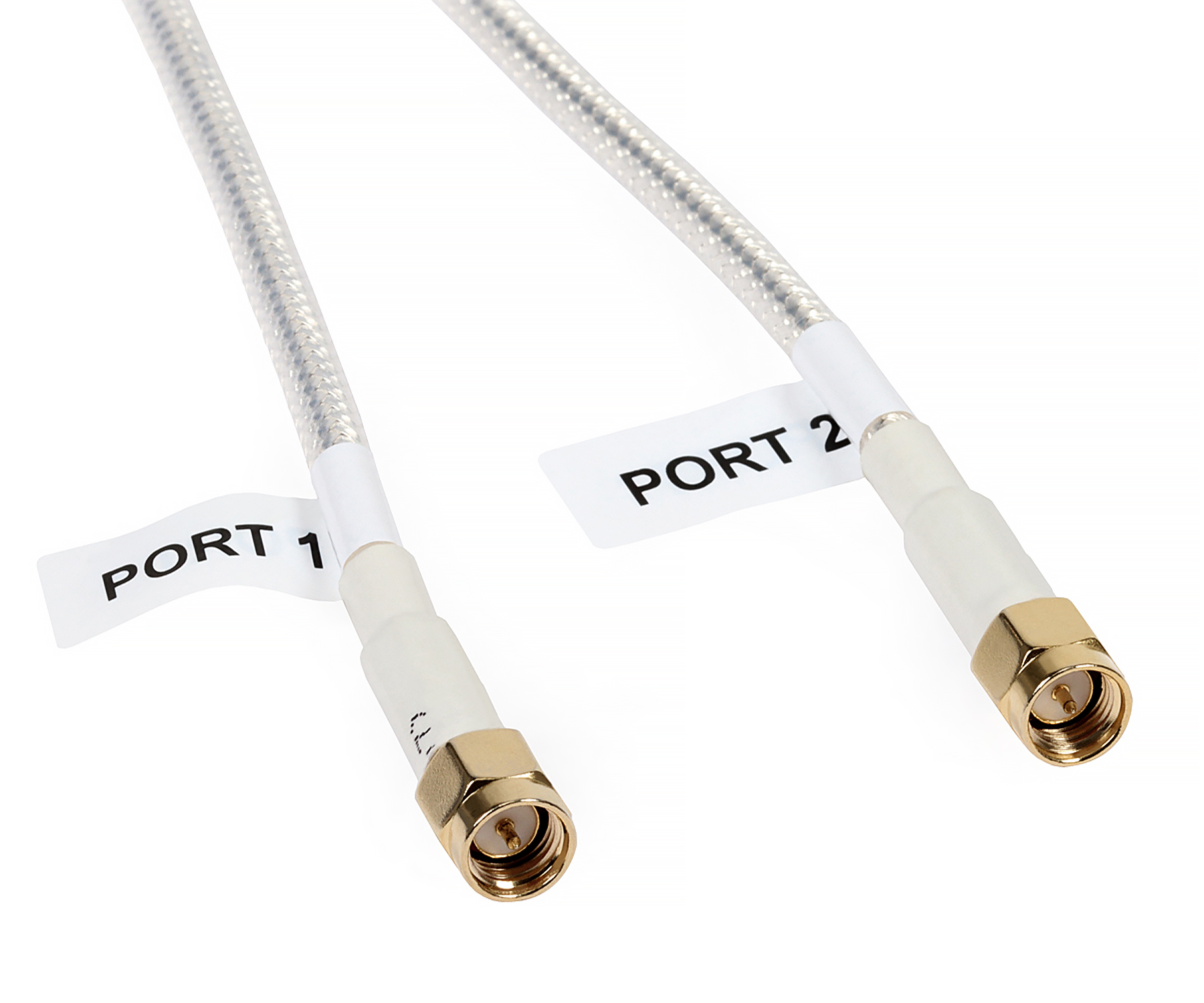

| Connectors: | 2 x SMA plug |
| Gain : | 3 ... 5 dBi |
| Impedance: | 50 Ω |
| Horizontal beam width (H): | 360 ° |
| Vertical beam width (V): | 70 ° |
| Polarization: | vertical/horizontal |
| VSWR: | ≤ 2.5 |
| Main features: | |
| Weight: | 0.4 kg |
| Dimensions: | Ø 82 x 200 mm |
| Manufacturer / Brand: | TRANS-DATA |
| Guarantee: | 2 years |
Brand:
Trans-Data
