MIMO PANEL ANTENNA TD-LTE-KPZ-6/8 GSM/GPRS LTE
Войдите в учётную запись, чтобы мы могли сообщить вам об ответе

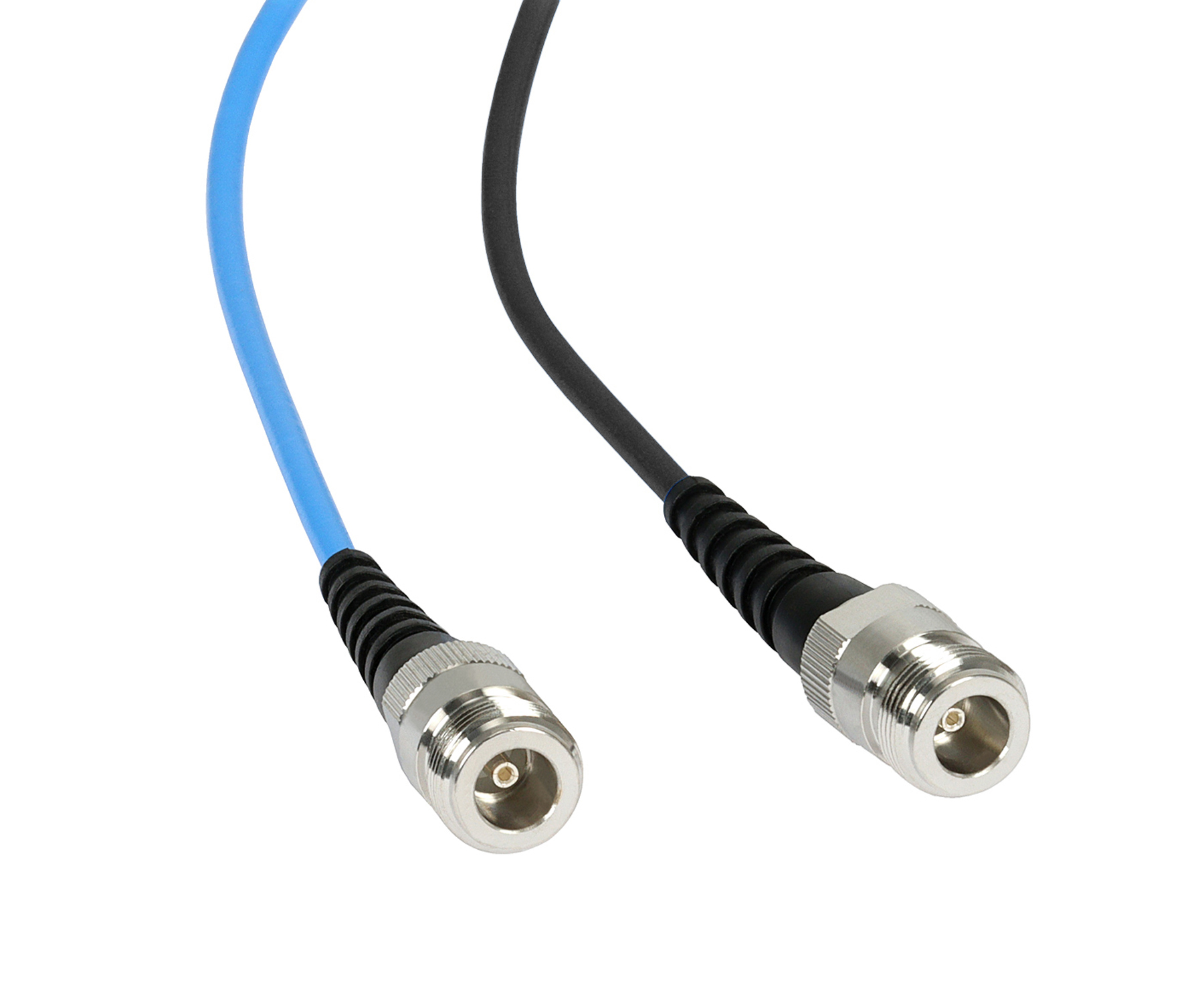

Frequency range: 806 ... 960 MHz, 1710 ... 2700 MHz ; Connectors: 2 x N socket ; Gain : 6 dBi @ 806 ... 960 MHz, 8 dBi @ 1710 ... 2700 MHz ; Main features: Length of the cable : 2 x 0.15 m, Very easy and quick assembly ; Dimensions: 290 x 170 x 50 mm ;
| Frequency range: | 806 ... 960 MHz , 1710 ... 2700 MHz GSM / DCS / UMTS / WLAN / LTE |
| Connectors: | 2 x N socket |
| Gain : | 6 dBi @ 806 ... 960 MHz , 8 dBi @ 1710 ... 2700 MHz |
| Impedance: | 50 Ω |
| Horizontal beam width (H): | 70 ° |
| Vertical beam width (V): | 60 ° |
| Polarization: | Vertical + Horizontal |
| VSWR: | ≤ 1.5 |
| Main features: | |
| Weight: | 0.7 kg |
| Dimensions: | 290 x 170 x 50 mm |
| Manufacturer / Brand: | TRANS-DATA |
| Guarantee: | 2 years |
Brand:
Trans-Data
