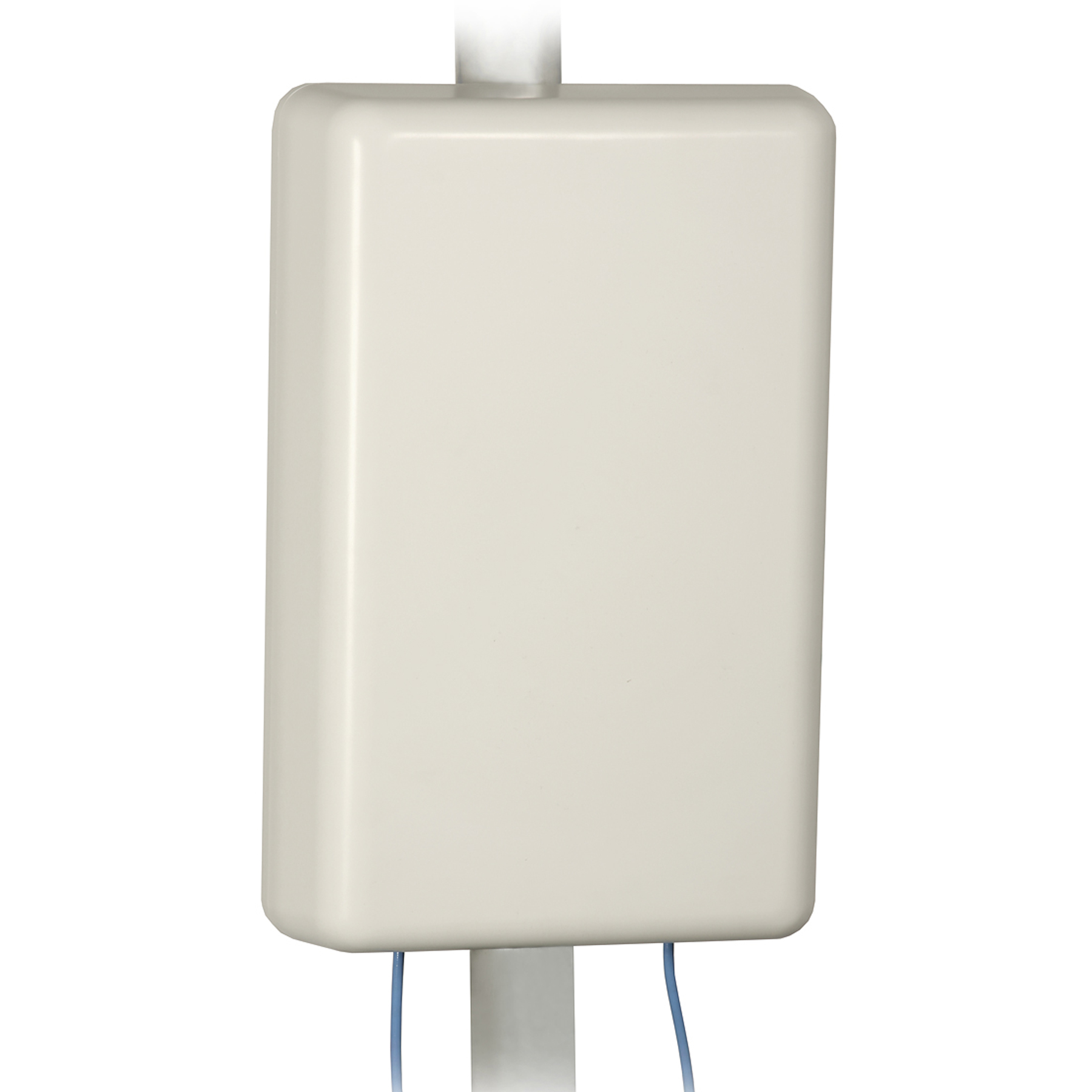

MIMO PANEL ANTENNA TD-5G-KPZ-7/7/7 GSM/GPRS LTE 5G
Войдите в учётную запись, чтобы мы могли сообщить вам об ответе
Frequency range: 698 ... 960 MHz, 1710 ... 2700 MHz, 3300 ... 3800 MHz ; Connectors: 2 x N socket ; Gain : 7 dBi @ 698 ... 960 MHz, 7 dBi @ 1710 ... 2700 MHz, 6.5 dBi @ 3300 ... 3800 MHz ; Main features: Length of the cable : 2 x 0.3 m, Very easy and quick assembly ; Dimensions: 320 x 210 x 73 mm ;
| Frequency range: | 698 ... 960 MHz , 1710 ... 2700 MHz , 3300 ... 3800 MHz GSM / DCS / UMTS / WLAN / LTE / 5G |

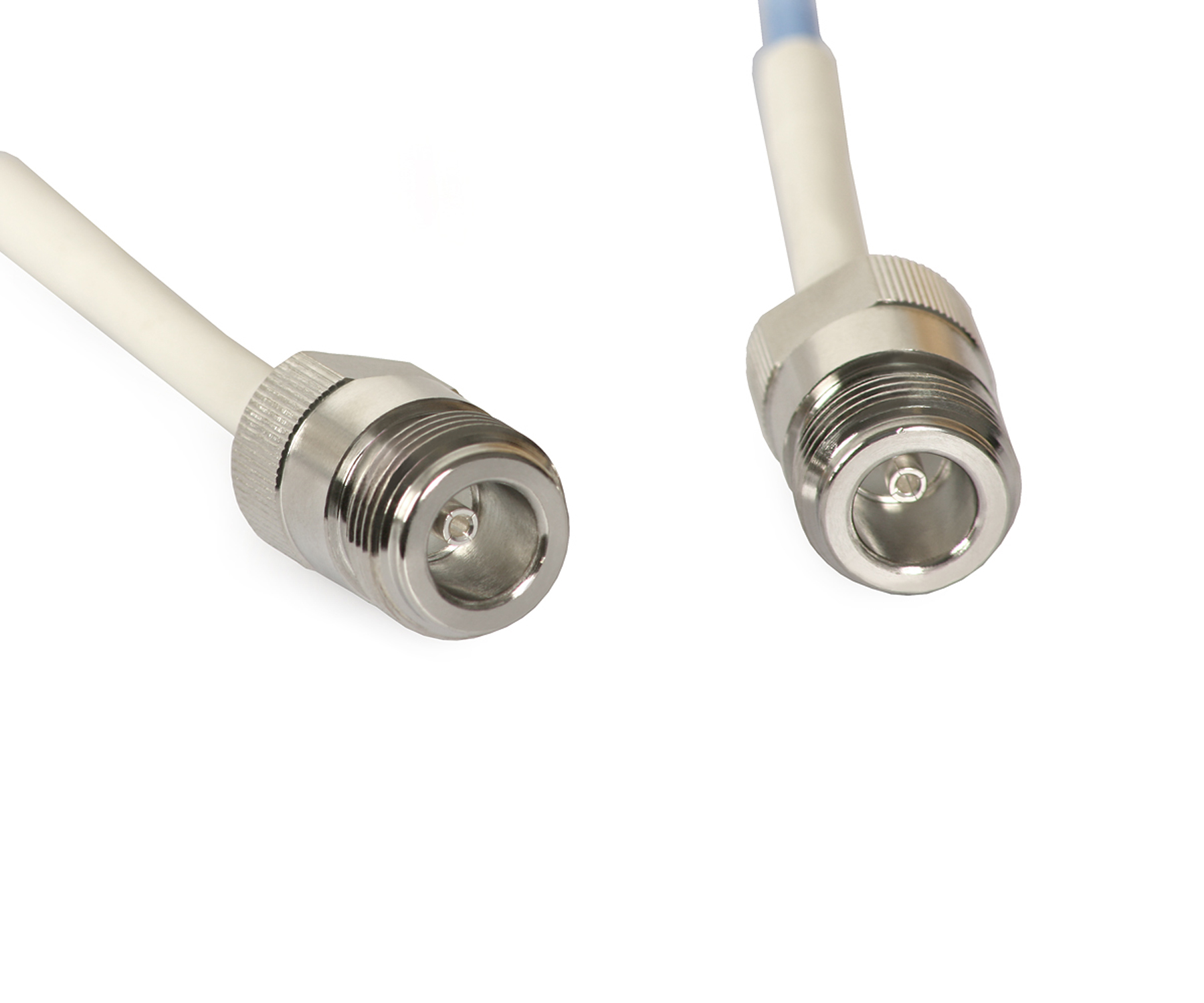

| Connectors: | 2 x N socket |
| Gain : | 7 dBi @ 698 ... 960 MHz , 7 dBi @ 1710 ... 2700 MHz , 6.5 dBi @ 3300 ... 3800 MHz |
| Impedance: | 50 Ω |
| Horizontal beam width (H): | 70 / 65 ° |
| Vertical beam width (V): | 65 / 70 ° |
| Polarization: | vertical/horizontal |
| VSWR: | ≤ 1.8 |
| Main features: | |
| Weight: | 1.4 kg |
| Dimensions: | 320 x 210 x 73 mm |
| Manufacturer / Brand: | TRANS-DATA |
| Guarantee: | 2 years |
Brand:
Trans-Data
