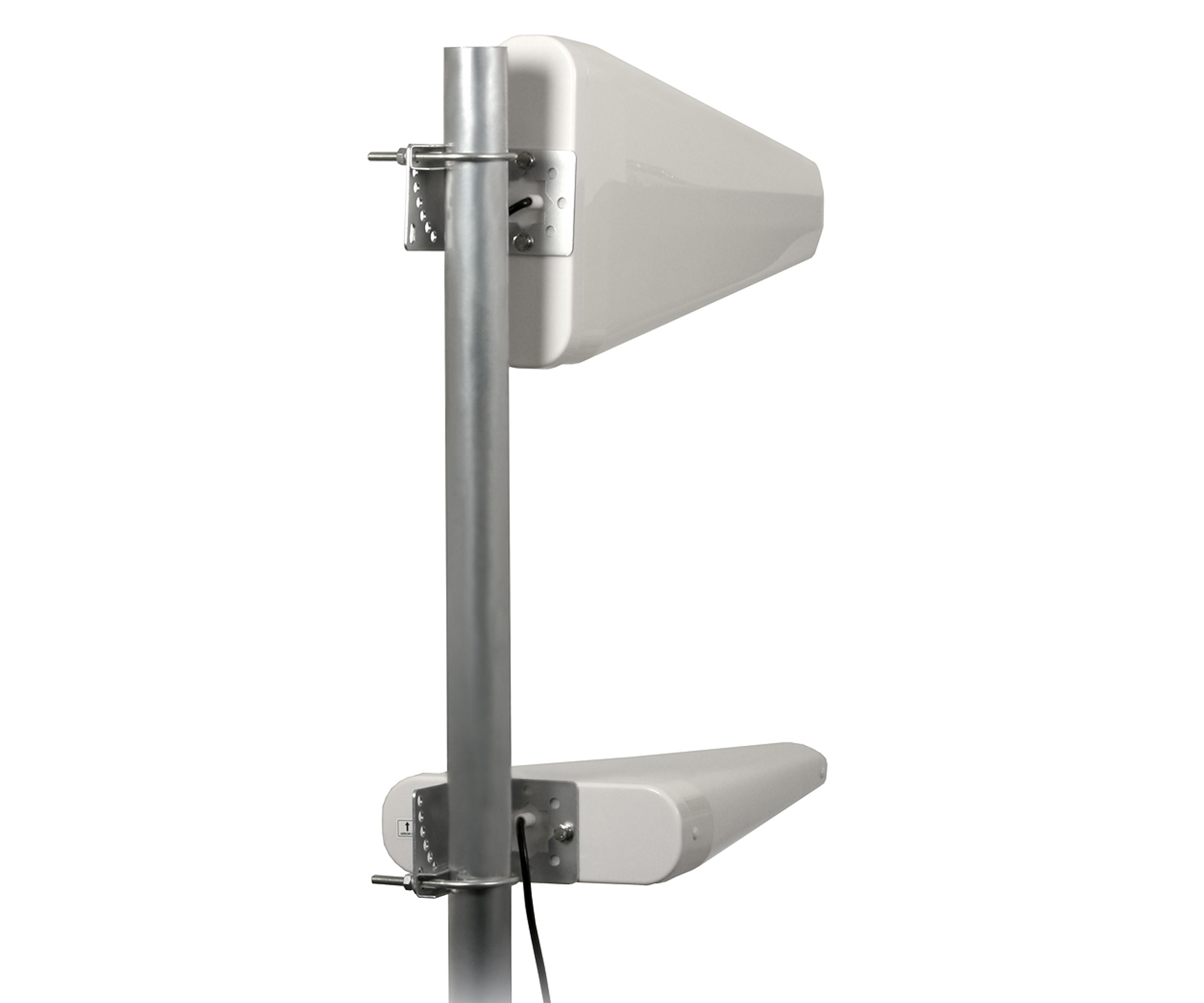

MIMO LOGARITHMIC ANTENNA TD-LTE-KYZ-10/10+5M+SMA GSM/GPRS LTE
Войдите в учётную запись, чтобы мы могли сообщить вам об ответе
Frequency range: 698 ... 960 MHz, 1700 ... 2700 MHz ; Connectors: 2 x SMA plug ; Gain : 9.5 ... 10 dBi ; Main features: Length of the cable : 2 x 5 m, Very easy and quick assembly ; Dimensions: 440 x 210 x 63 mm (each antenna module) ;
| Frequency range: | 698 ... 960 MHz , 1700 ... 2700 MHz GSM / DCS / UMTS / WLAN / LTE |

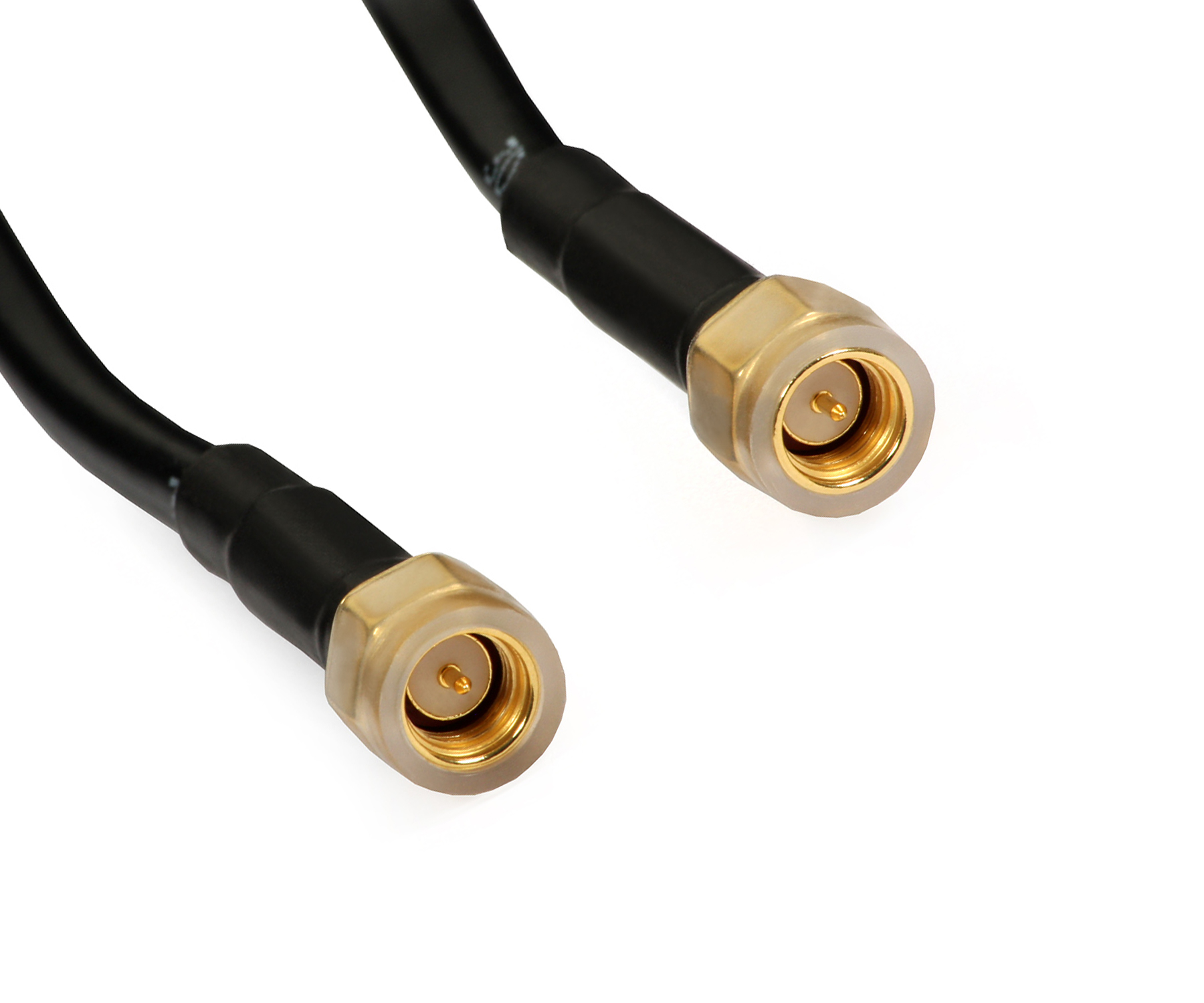

| Connectors: | 2 x SMA plug |
| Gain : | 9.5 ... 10 dBi |
| Impedance: | 50 Ω |
| Horizontal beam width (H): | 75 / 55 ° |
| Vertical beam width (V): | 55 / 75 ° |
| Polarization: | Vertical + Horizontal |
| VSWR: | ≤ 2 |
| Main features: | |
| Weight: | 2 x 1.4 kg |
| Dimensions: | 440 x 210 x 63 mm (each antenna module) |
| Manufacturer / Brand: | TRANS-DATA |
| Guarantee: | 2 years |
Brand:
Trans-Data
