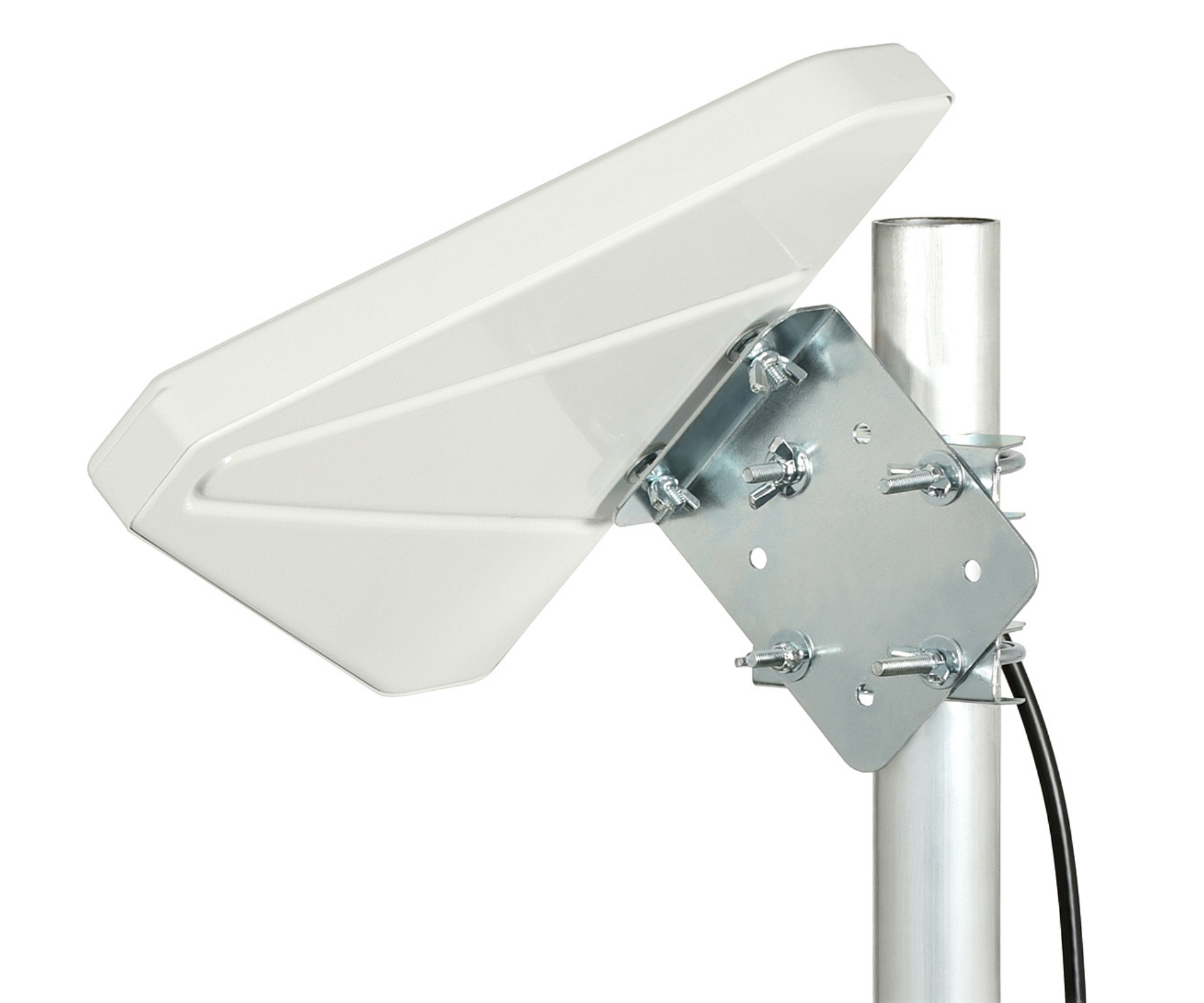

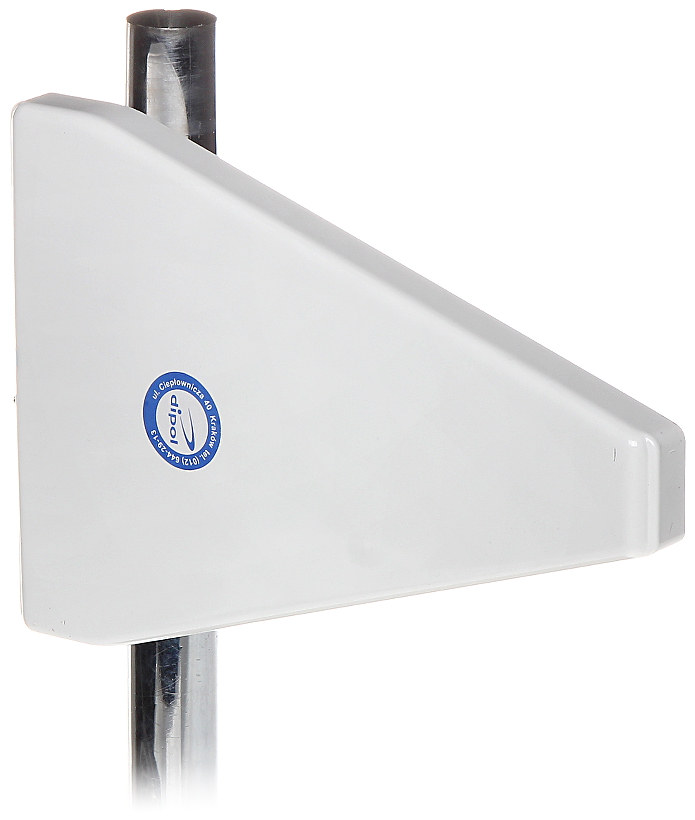

LOGARITHMIC ANTENNA ATK-ALP/LTE+SMA-KAT/10 GSM/DCS/UMTS/HSDPA
Войдите в учётную запись, чтобы мы могли сообщить вам об ответе

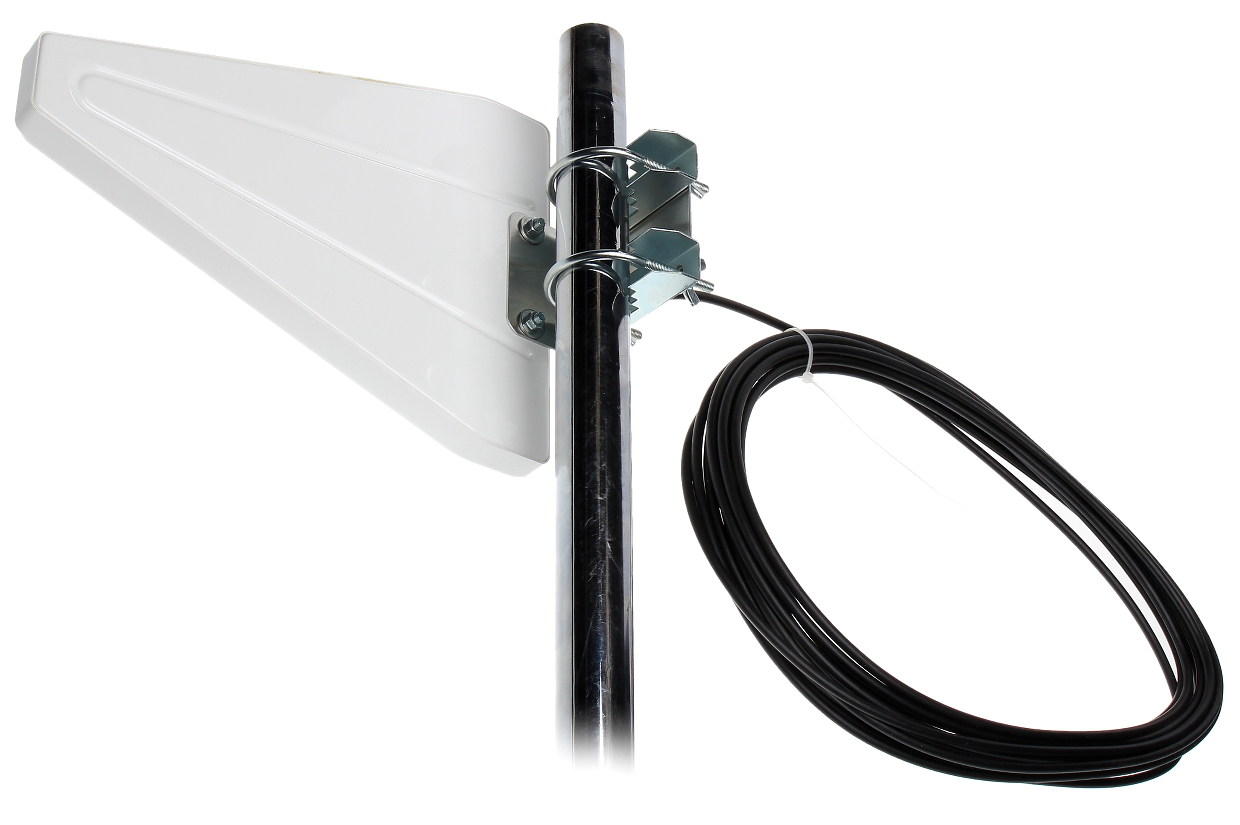

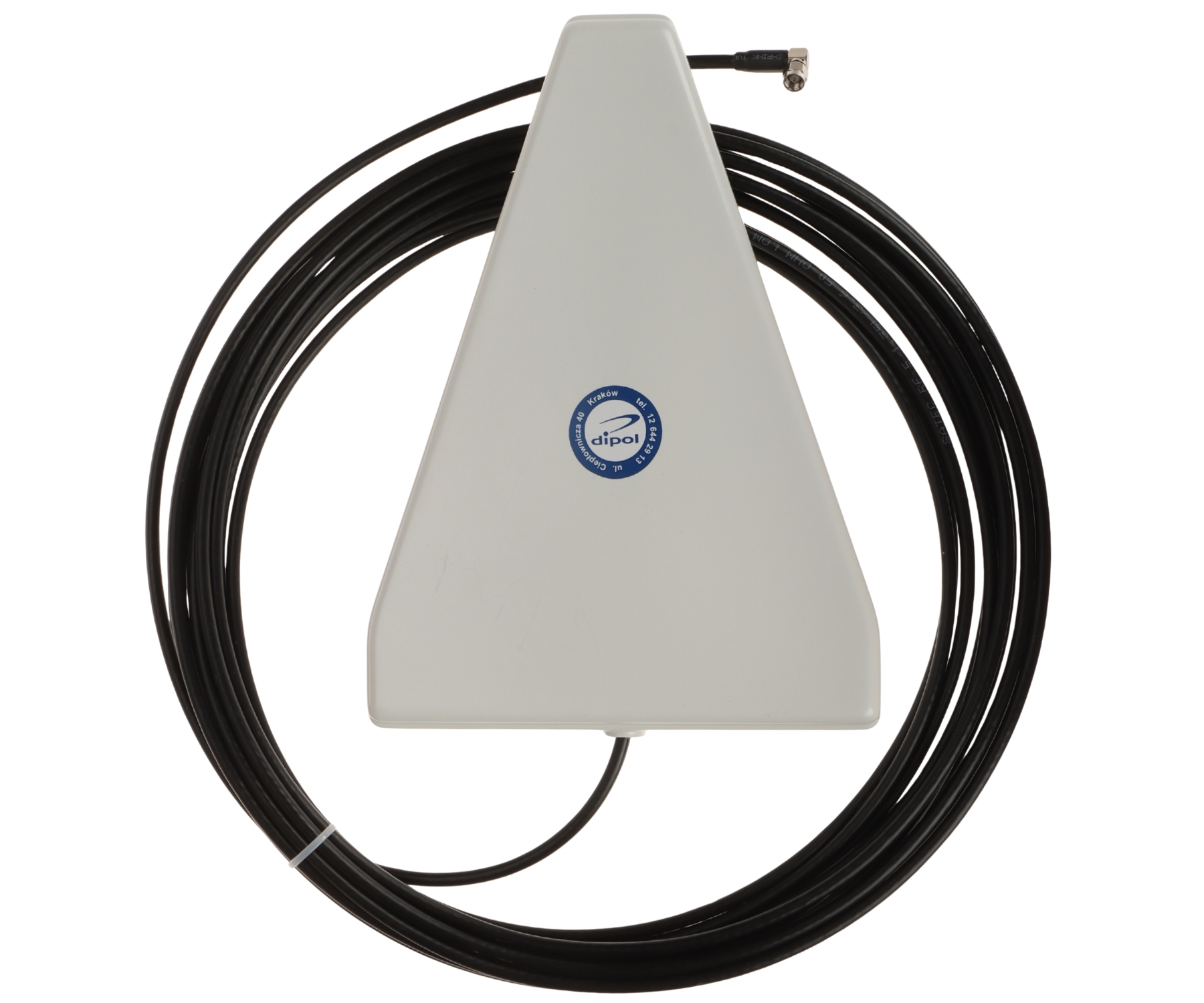

Frequency range: 800 ... 3000 MHz ; Connectors: SMA plug ; Gain : max. 9 dBi ; Main features: Length of the cable - 10 m, Very easy and quick assembly ; Dimensions: 260 x 180 x 25 mm ;
| Frequency range: | 800 ... 3000 MHz : GSM / DCS / UMTS / HSDPA / LTE |

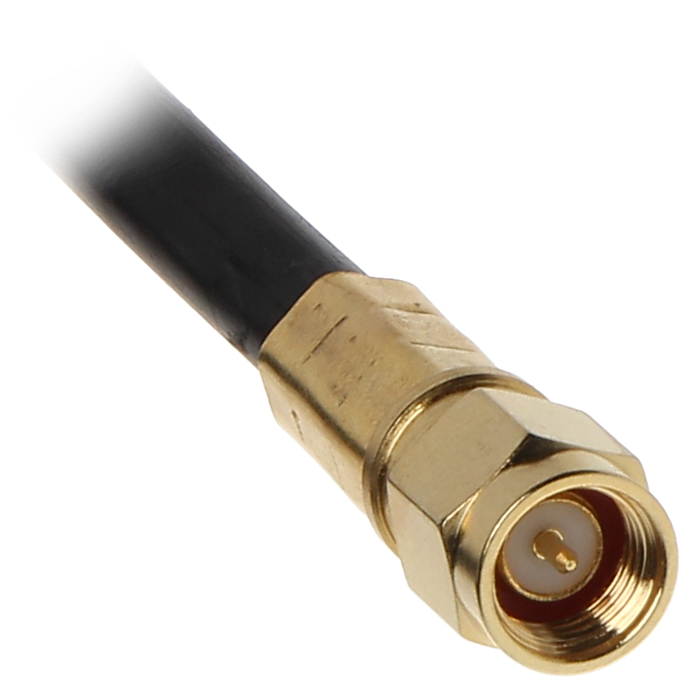

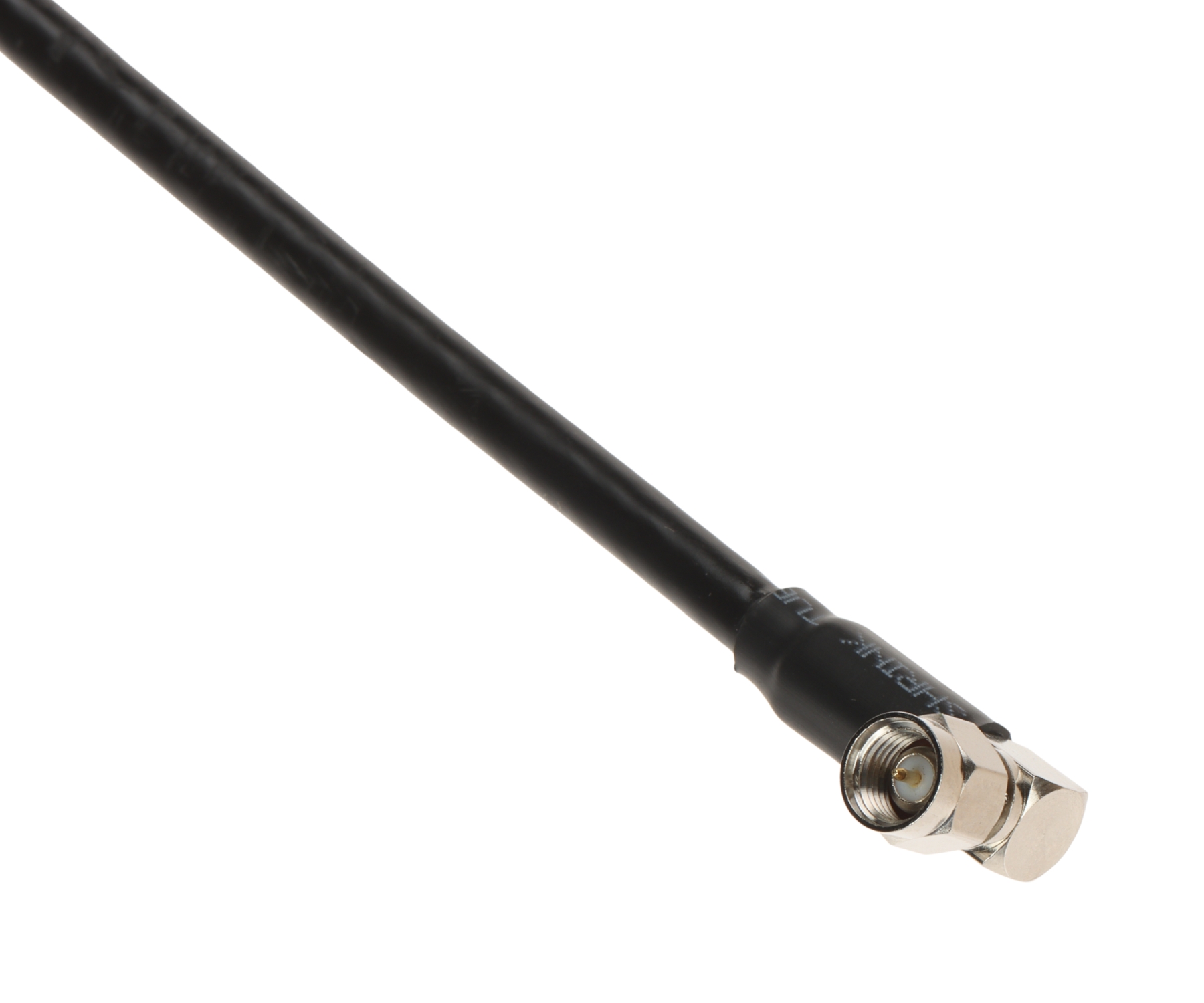

| Connectors: | SMA plug |

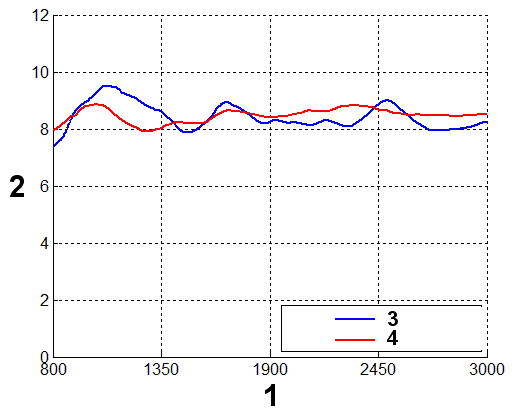

| Gain : | max. 9 dBi |
| Impedance: | 50 Ω |

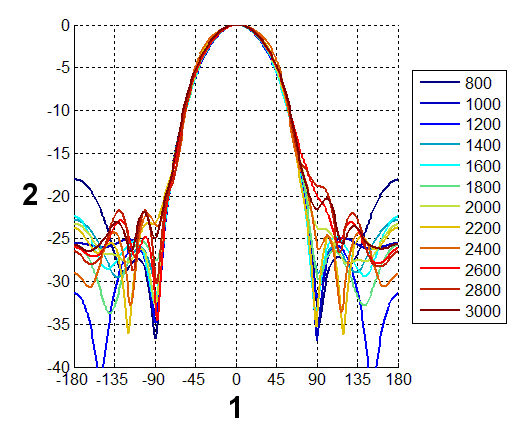

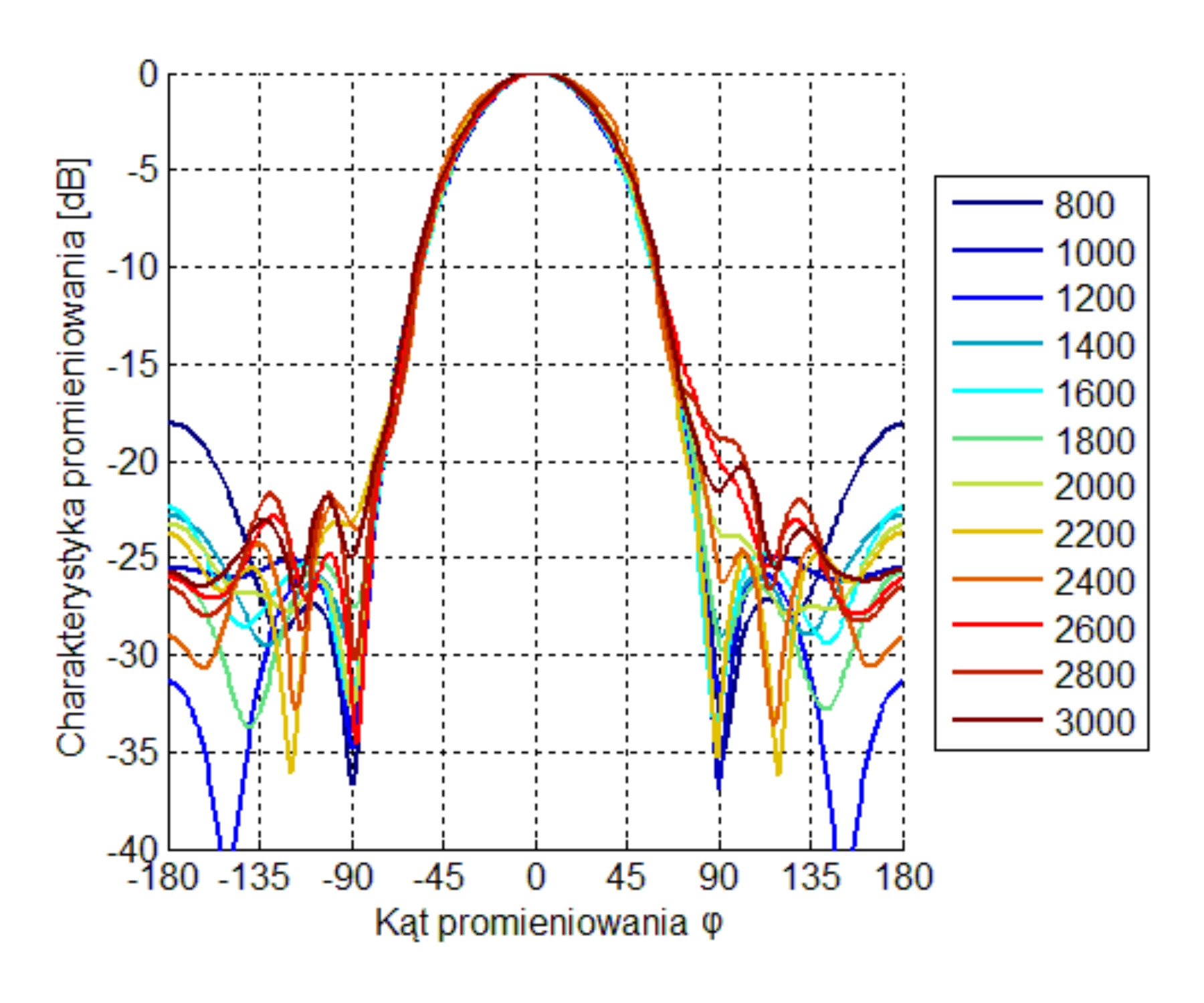

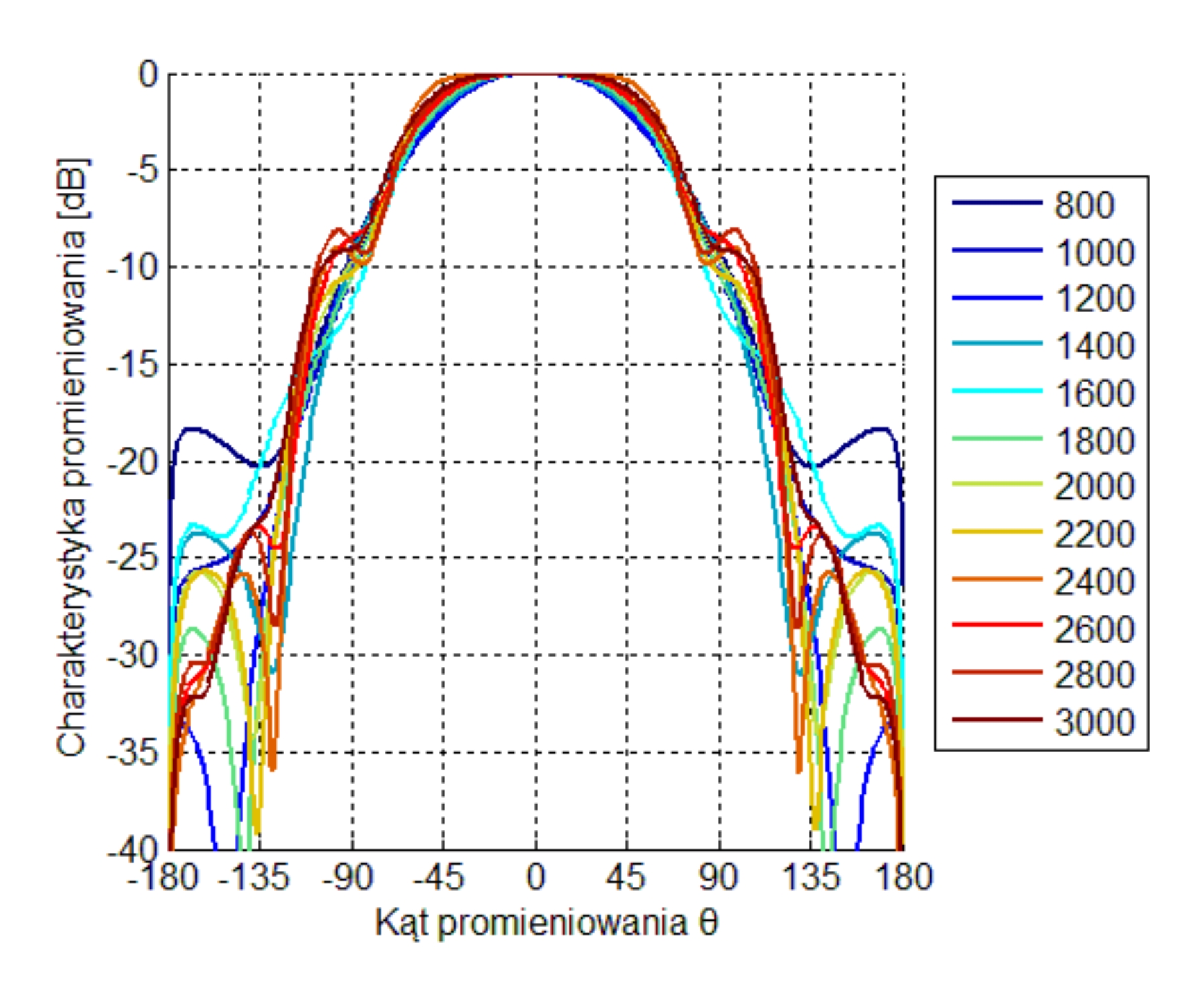

| Horizontal beam width (H): | 76 ° |

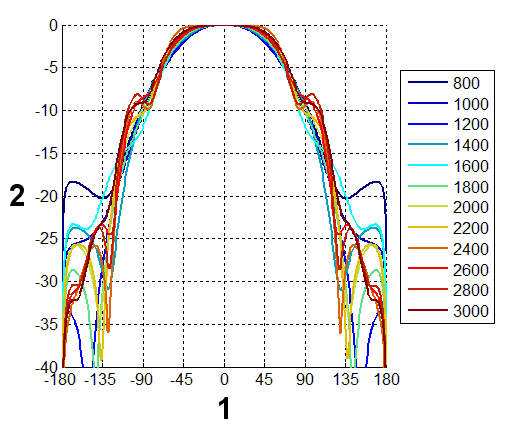

| Vertical beam width (V): | 66 ° |

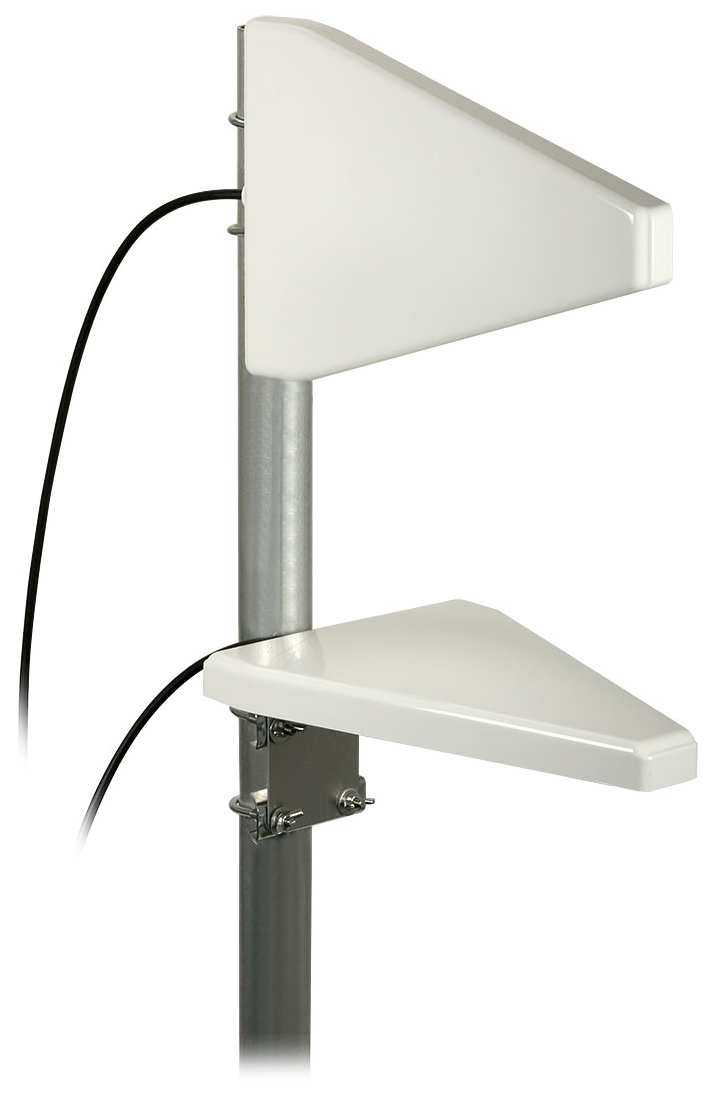

| Polarization: | vertical/horizontal |

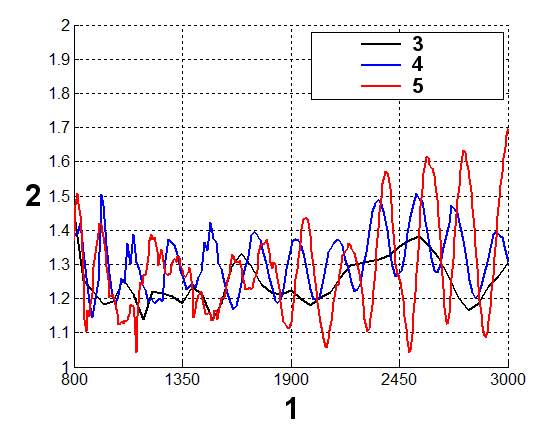

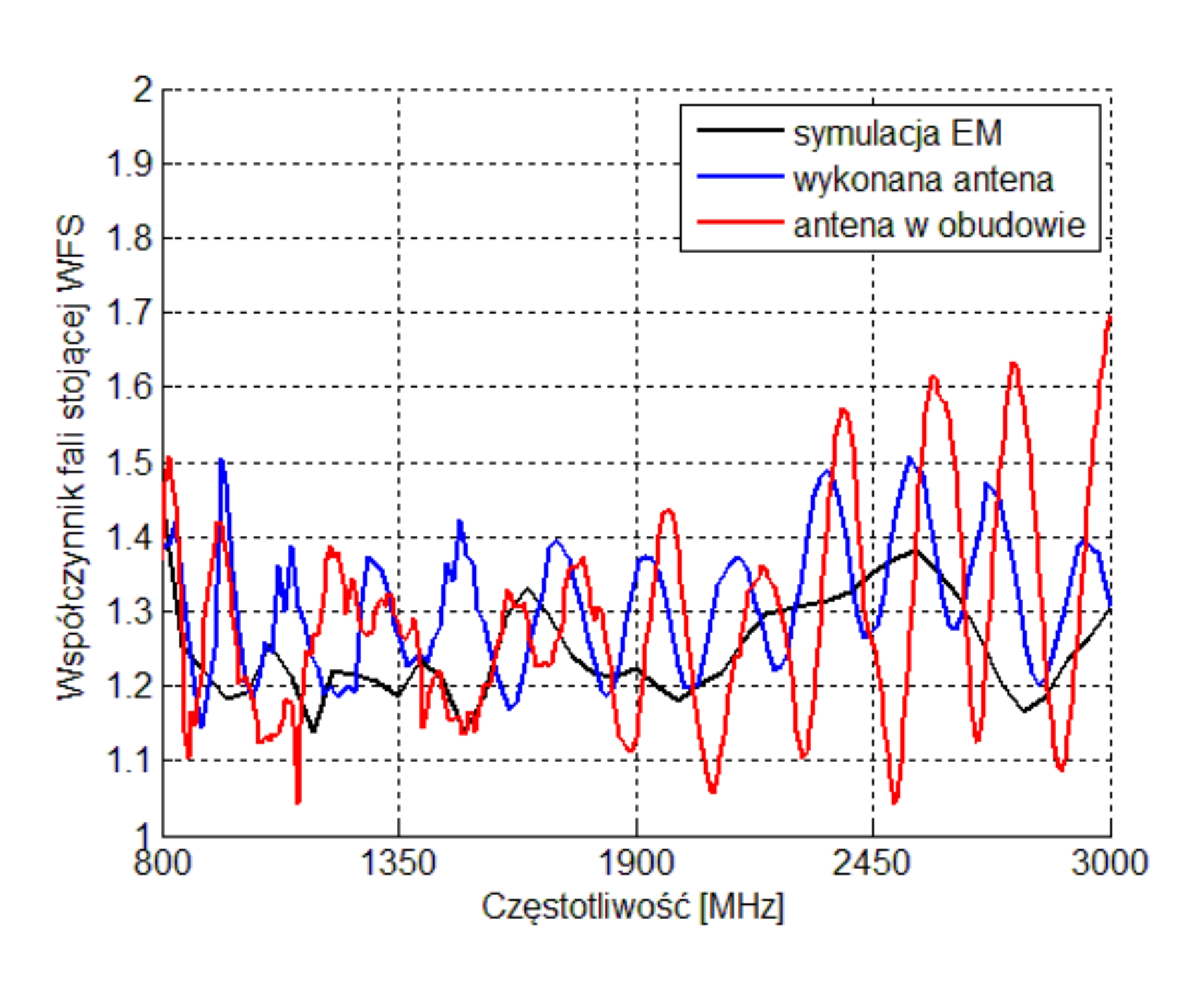

| VSWR: | < 1.7 |
| Main features: | |
| Weight: | 0.31 kg |
| Dimensions: | 260 x 180 x 25 mm |
| Guarantee: | 2 years |
Brand:
Trans-Data
