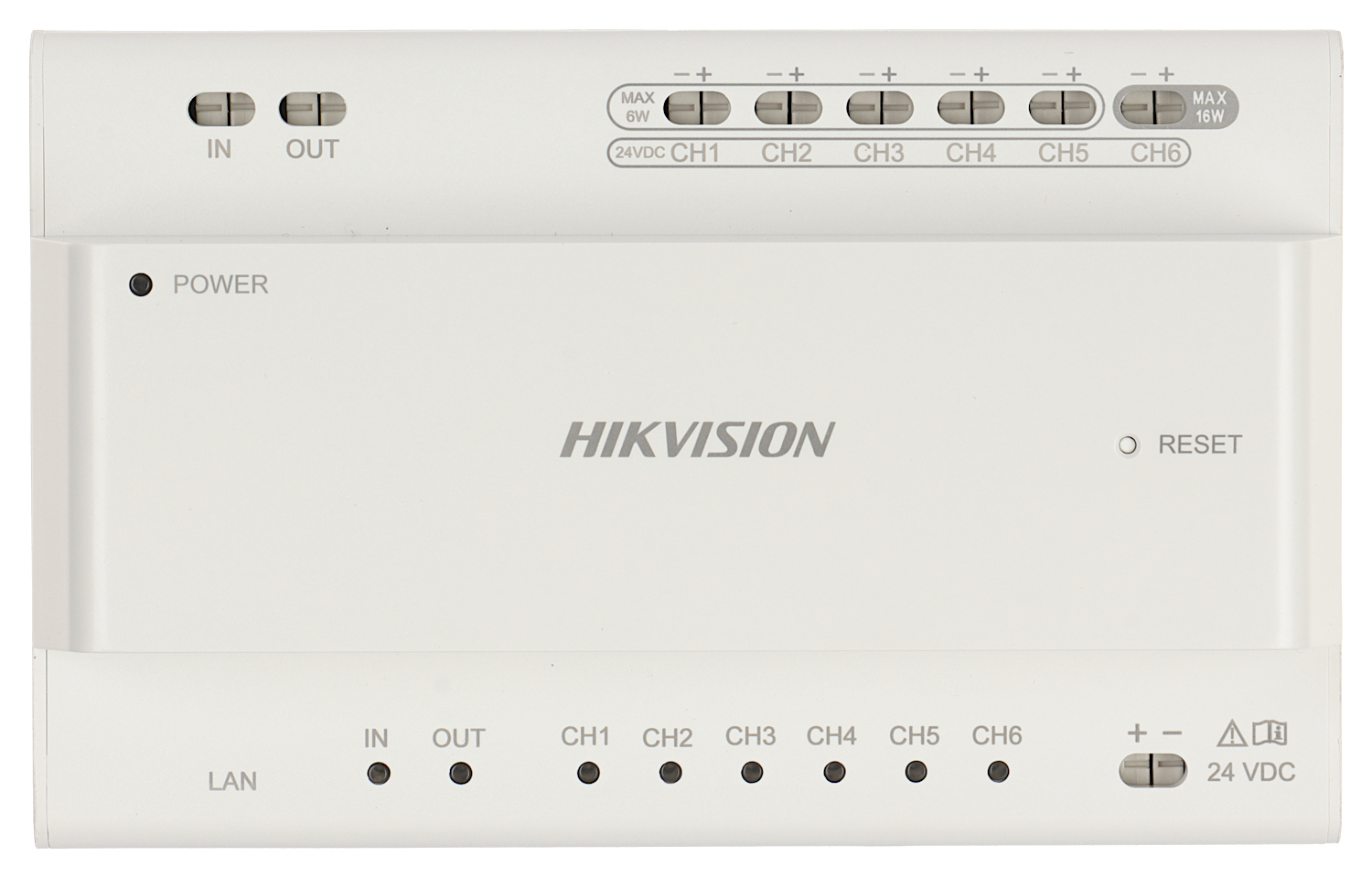

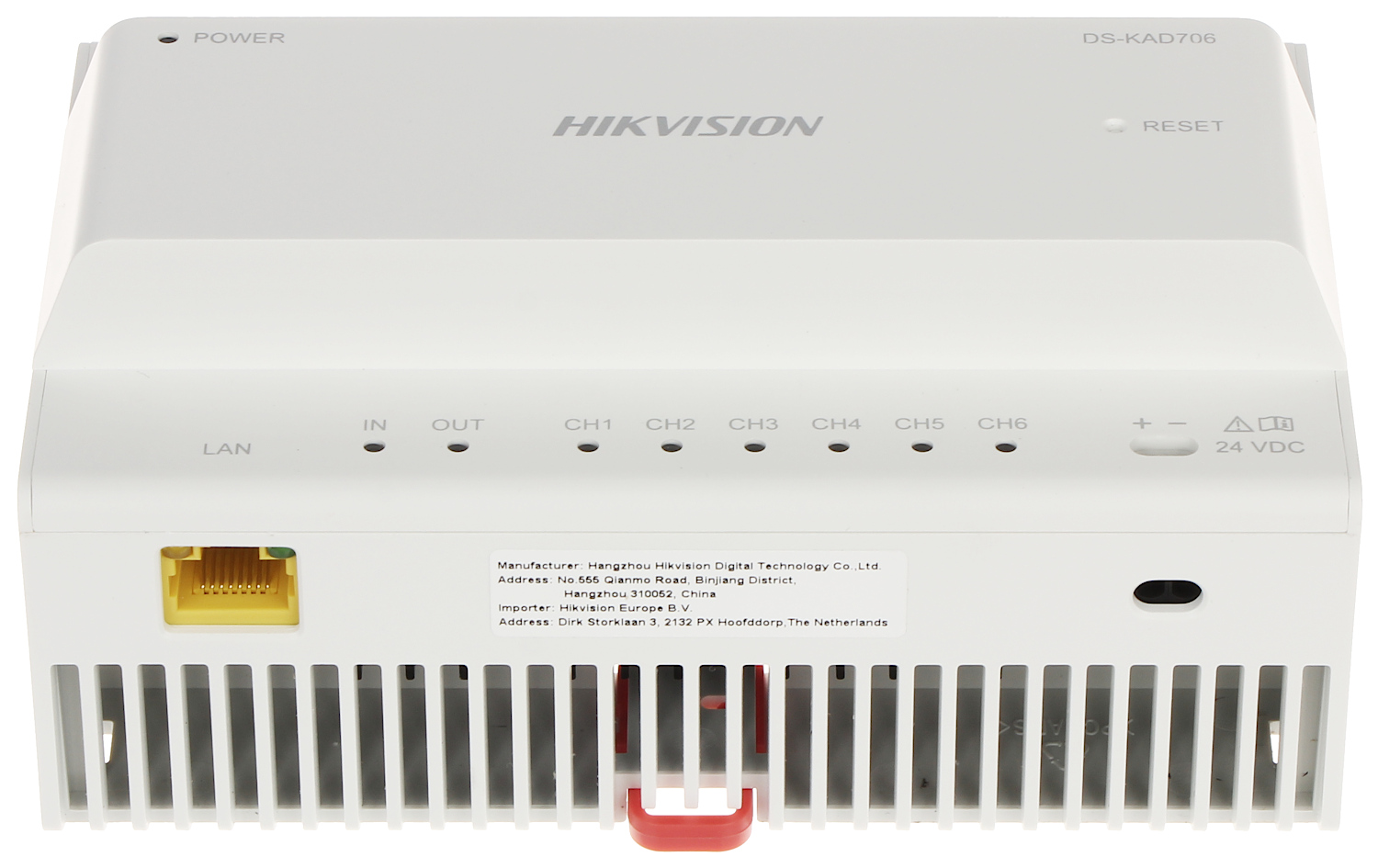

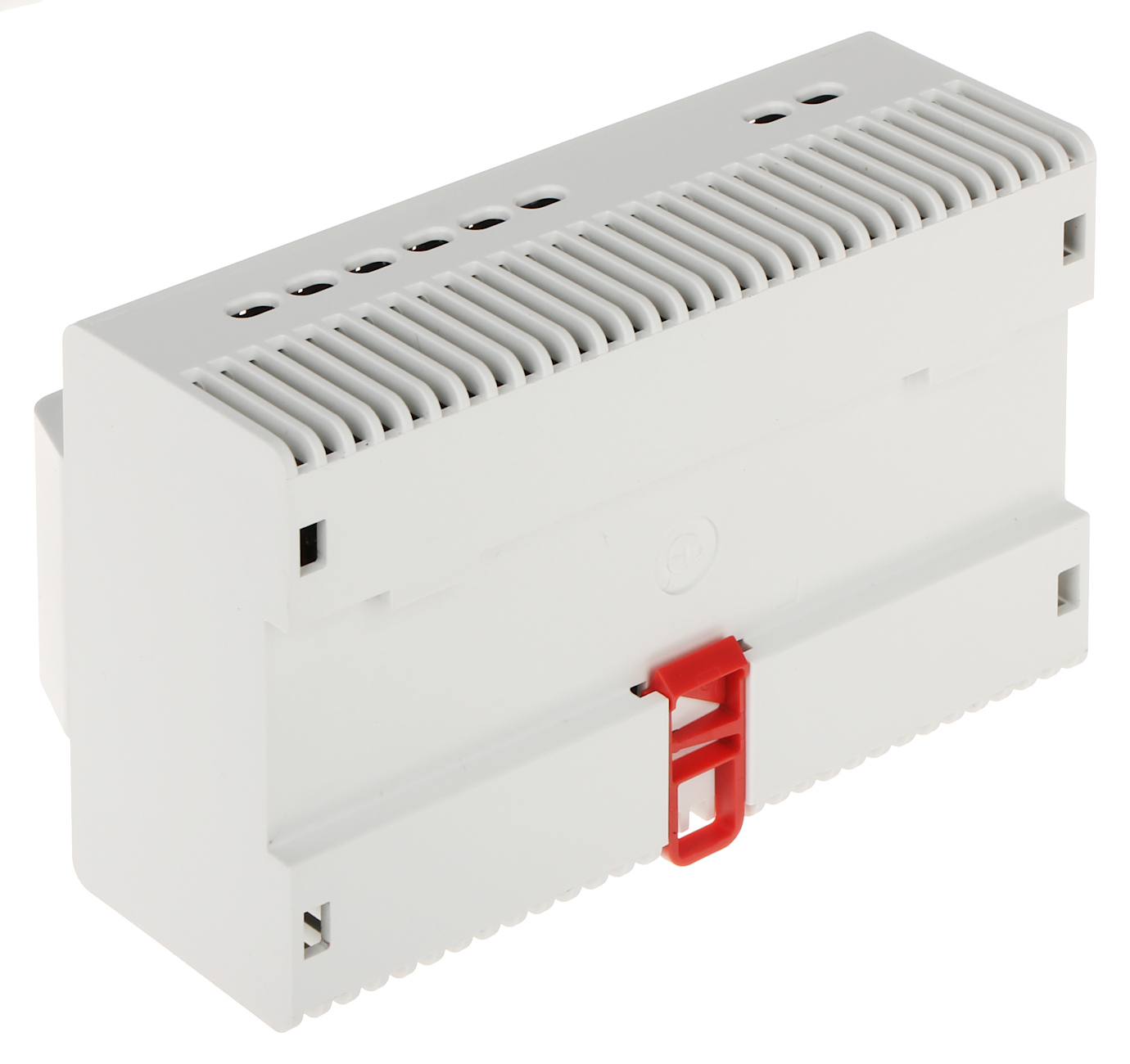

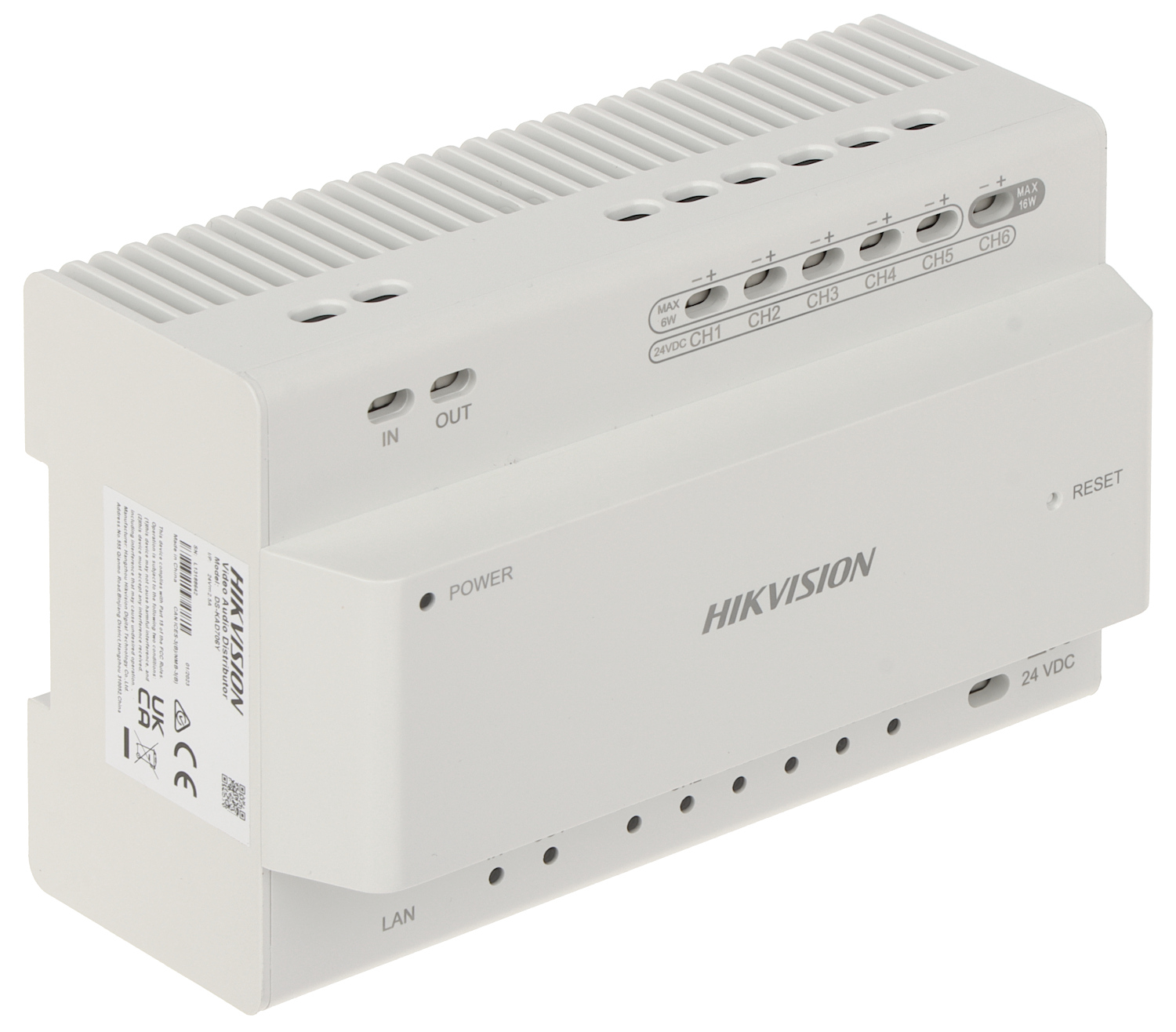

SWITCH DS-KAD706Y FOR HIKVISION 2-WIRE VIDEO DOORPHONE SYSTEMS
Войдите в учётную запись, чтобы мы могли сообщить вам об ответе

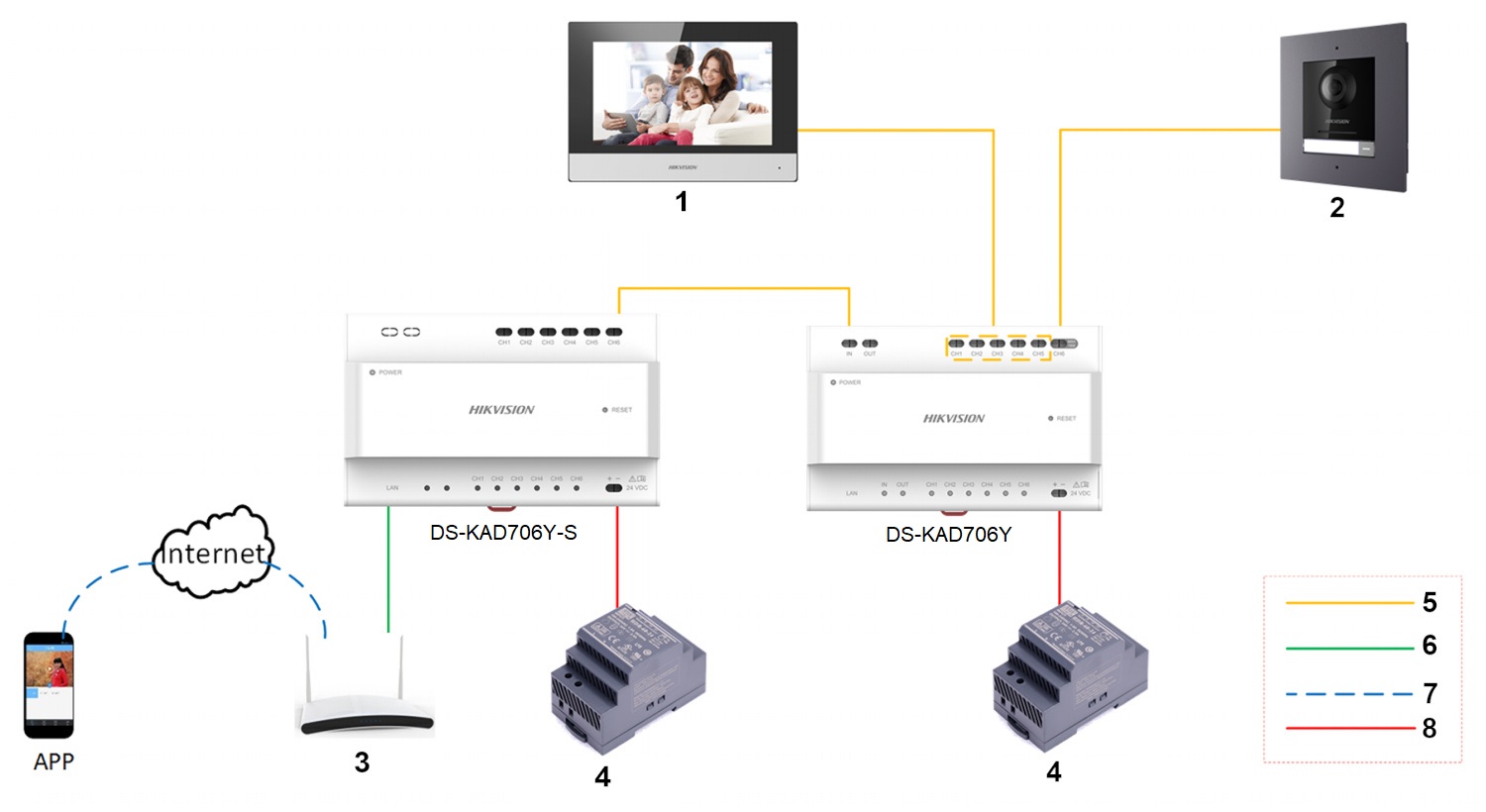

The device has 6 2-wire buses for connecting the monitors and external panels (power supply and signal transmission) and 1 Ethernet socket for connecting the LAN network; In addition, one of the ports is adapted to power an extensive gate station with a maximum power consumption of 16W;
| Number of ports: | 6 x HIKVISION 2-wire ( 1 x max. 16 W ) , 2 x HIKVISION 2-wire - Uplink 1 x RJ-45 |
| Compatibility: | HIKVISION 2-wire - Y series |
| Main features: | |
| Power supply: | 24 V DC |
| Power consumption: | < 6 W - CH1 ... CH5 < 16 W - CH6 |
| Housing: | Plastic |
| Operation temp: | -10 °C ... 55 °C |
| Weight: | 0.27 kg |
| Dimensions: | 144 x 90 x 66 mm |
| SAP Code: | 305303644 |
| Manufacturer / Brand: | Hikvision |
| Guarantee: | 3 years |
Brand:
Hikvision
