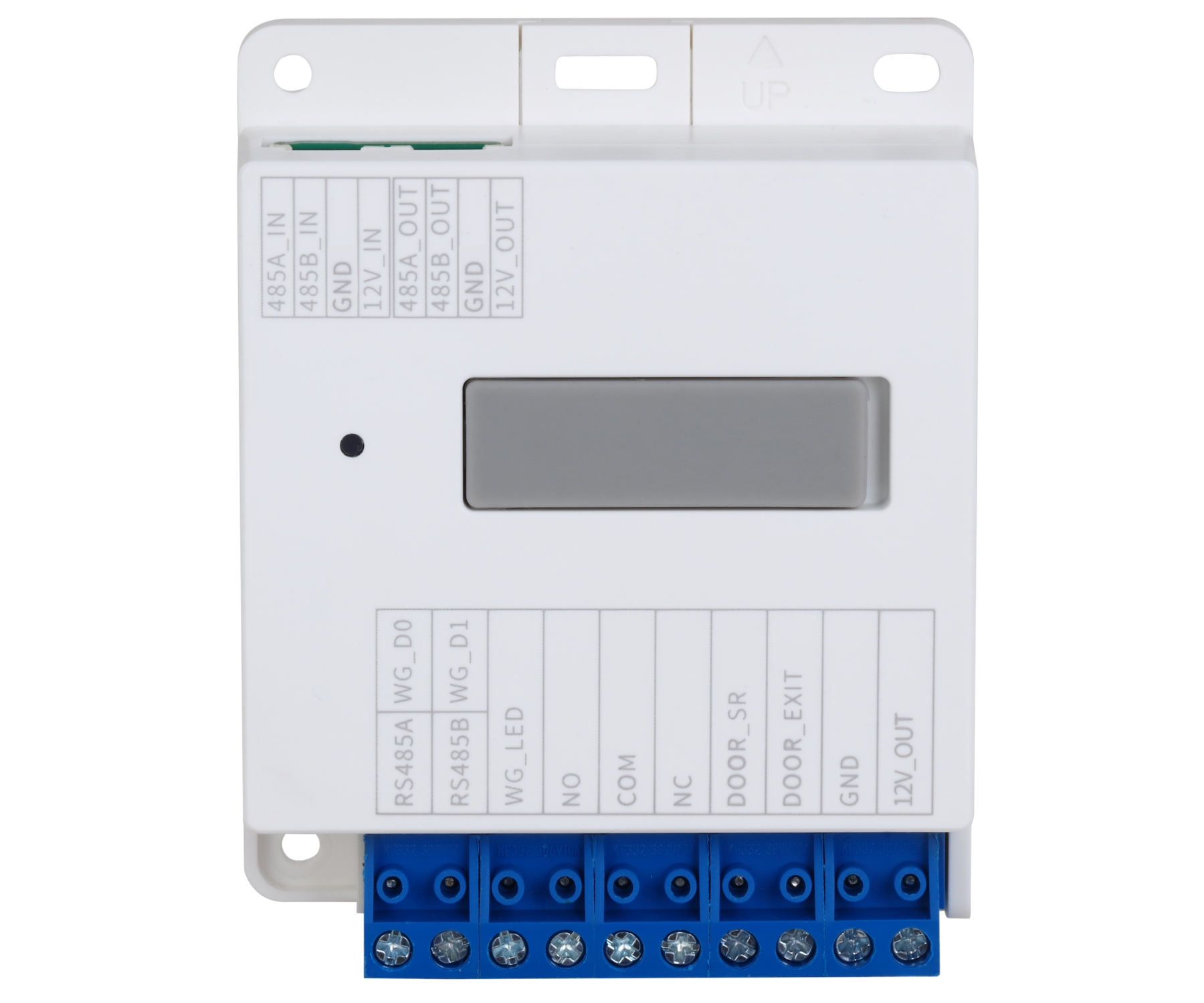

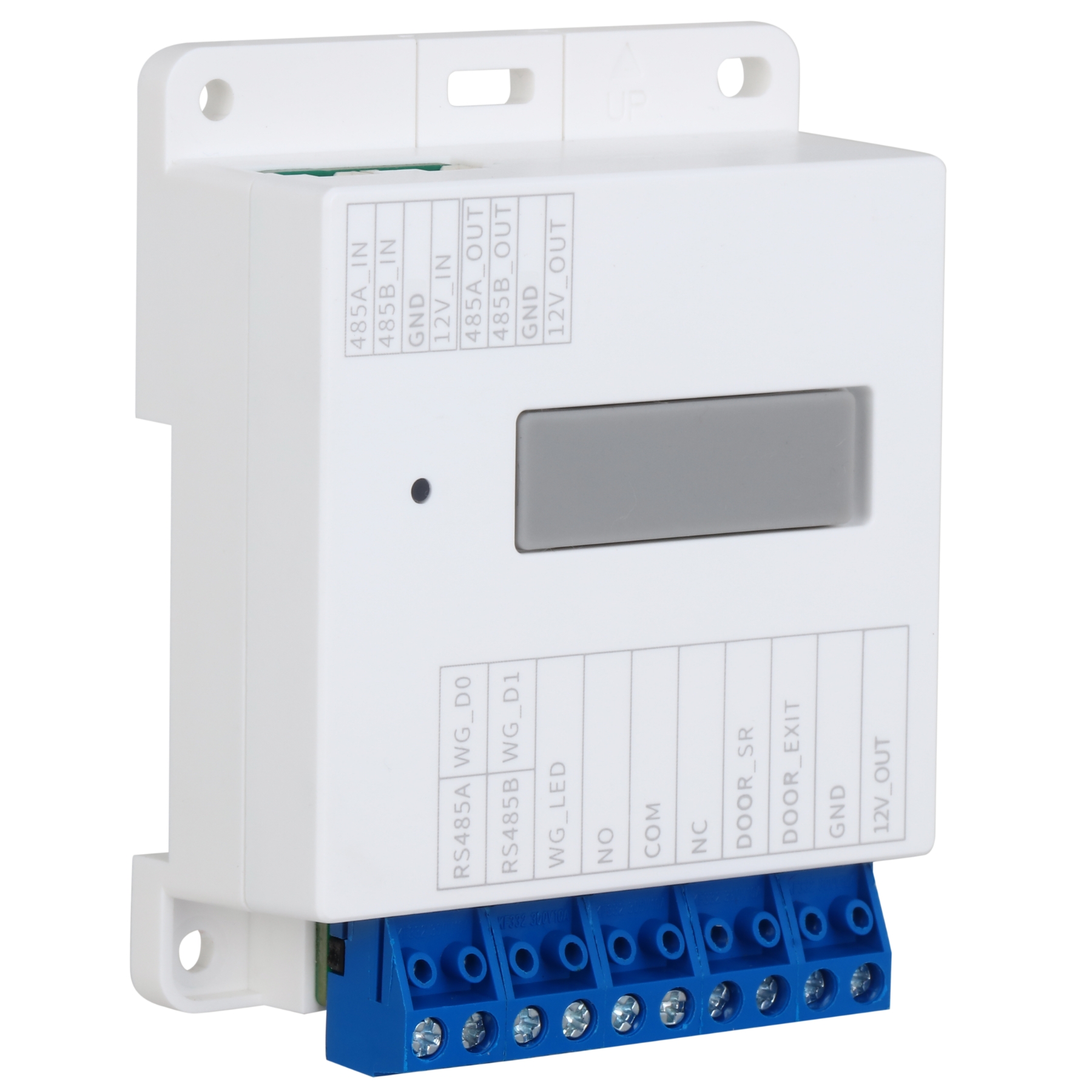

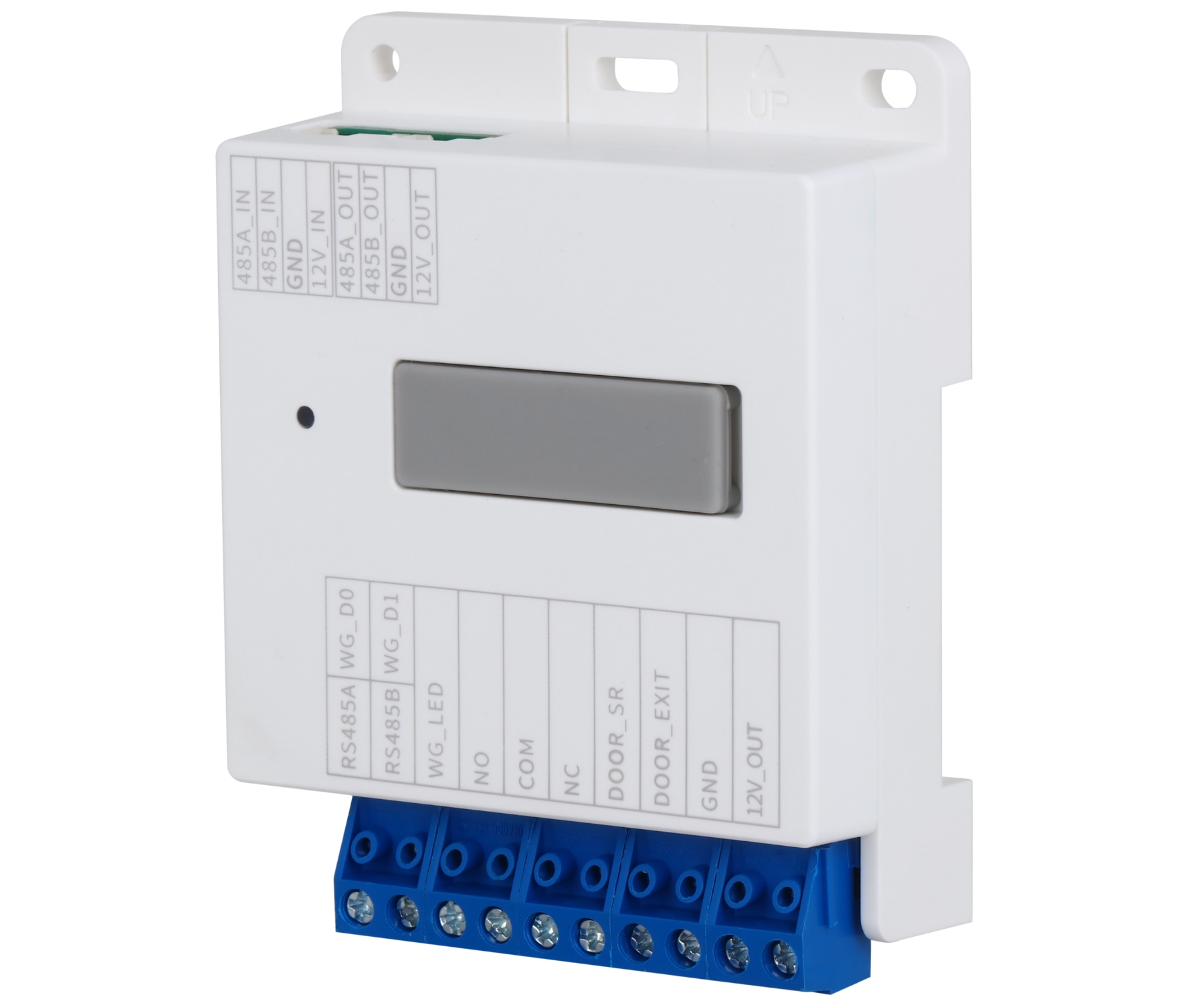

RELAY MODULE DEE111R DAHUA
Войдите в учётную запись, чтобы мы могли сообщить вам об ответе
Support: Cooperation with the DAHUA access control systems ; Outputs: 1 x Exit button, 1 x Reed switch , 1 x RS-485 / Wiegand, 1 x RS-485 ; Power supply: 12 V DC ;
| Support: | Cooperation with the DAHUA access control systems |
| Number of relay outputs: | 1 x |
| Outputs: | |
| Interface: | RS-485, Wiegand |
| Main features: | |
| Operation state indication: | 2 x Operation status LED indicator |
| Power supply: | 12 V DC / 1 A |
| Power consumption: | ≤ 0.4 W (Standby mode) ≤ 1.0 W (operation) |
| Operation temp: | 0 °C ... 40 °C |
| Weight: | 0.15 kg |

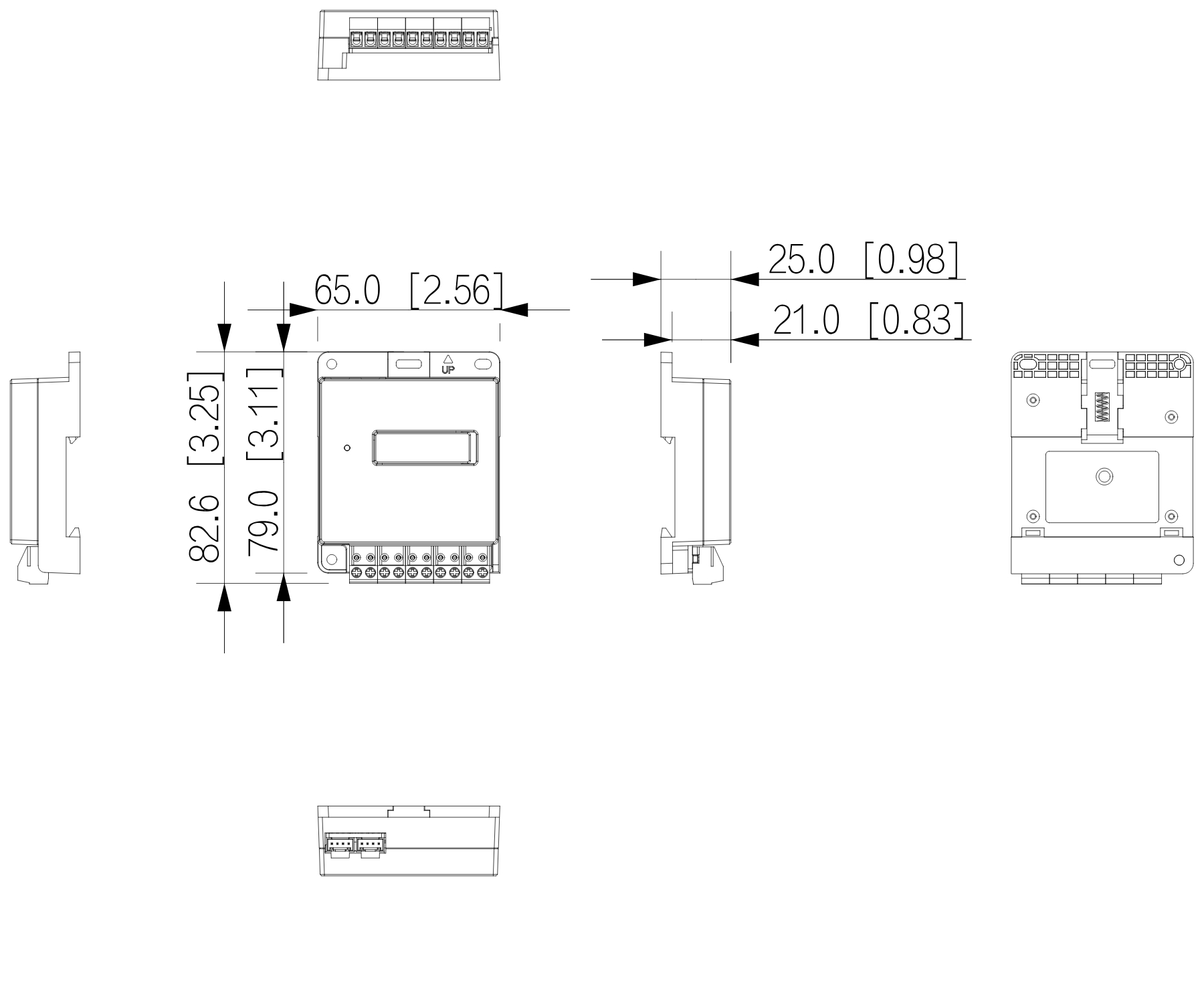

| Dimensions: | 65 x 83 x 25 mm |
| Manufacturer / Brand: | DAHUA |
| Guarantee: | 2 years |
Brand:
Dahua
