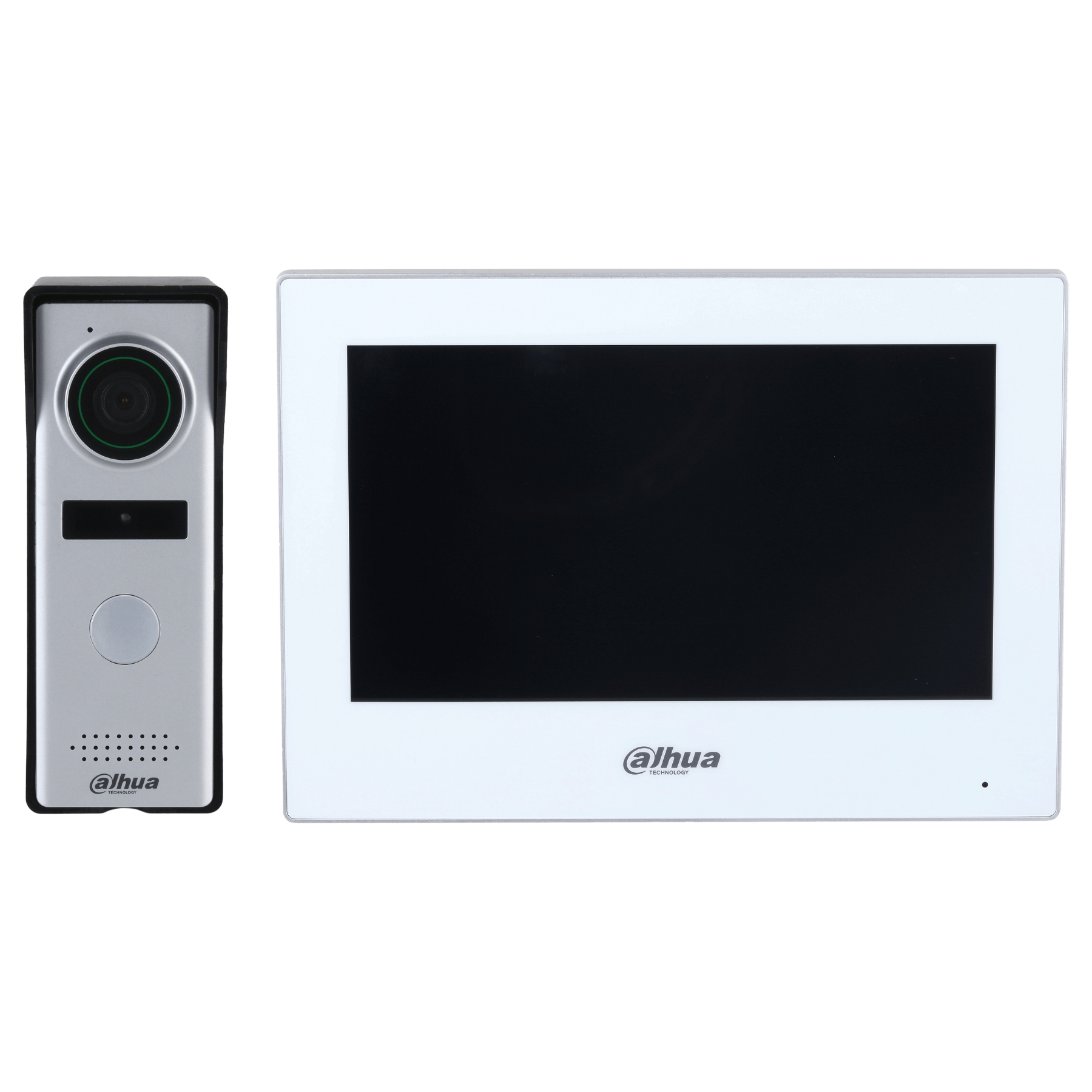

VIDEO DOORPHONE KIT KTH01 Wi-Fi / 4-Wire DAHUA
Войдите в учётную запись, чтобы мы могли сообщить вам об ответе

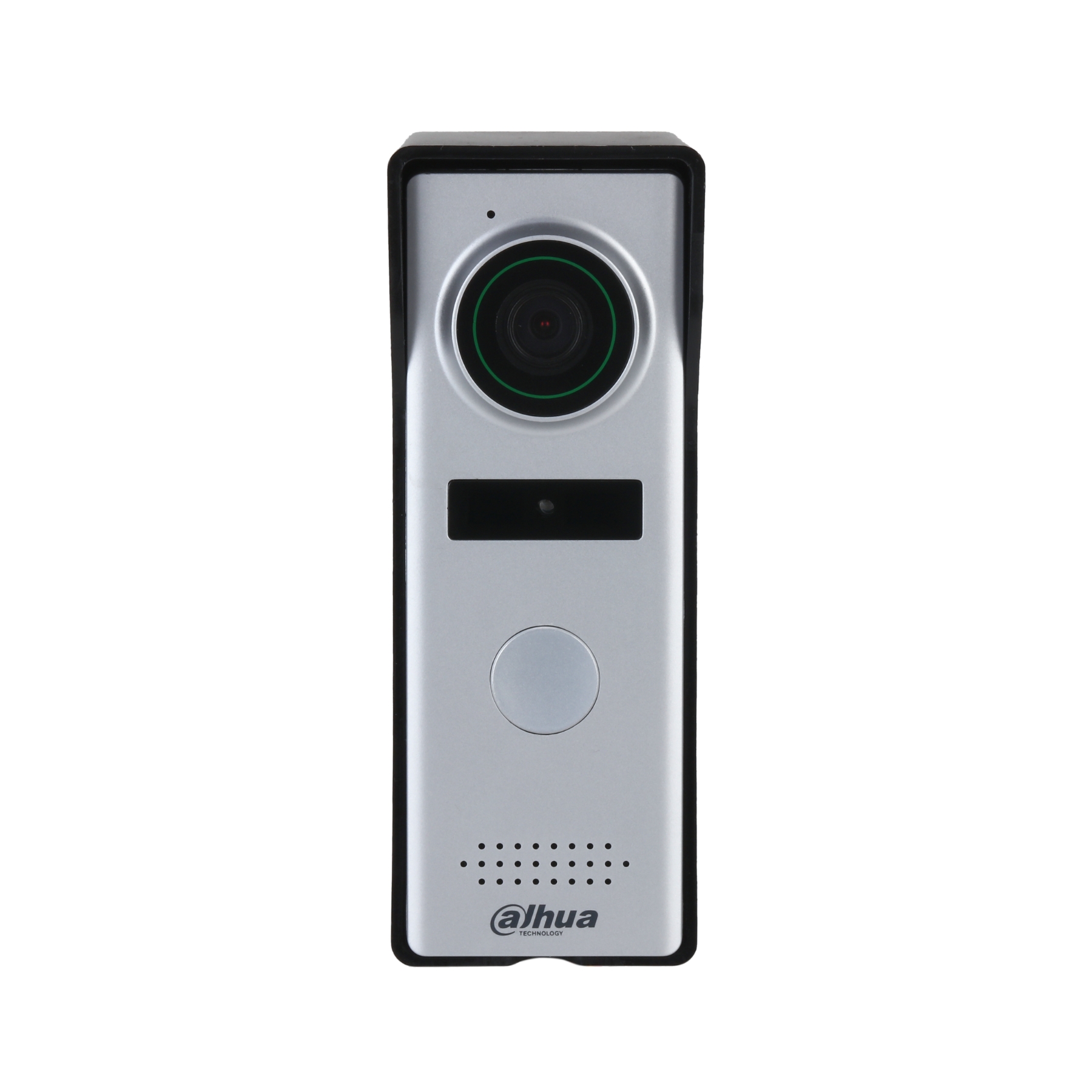

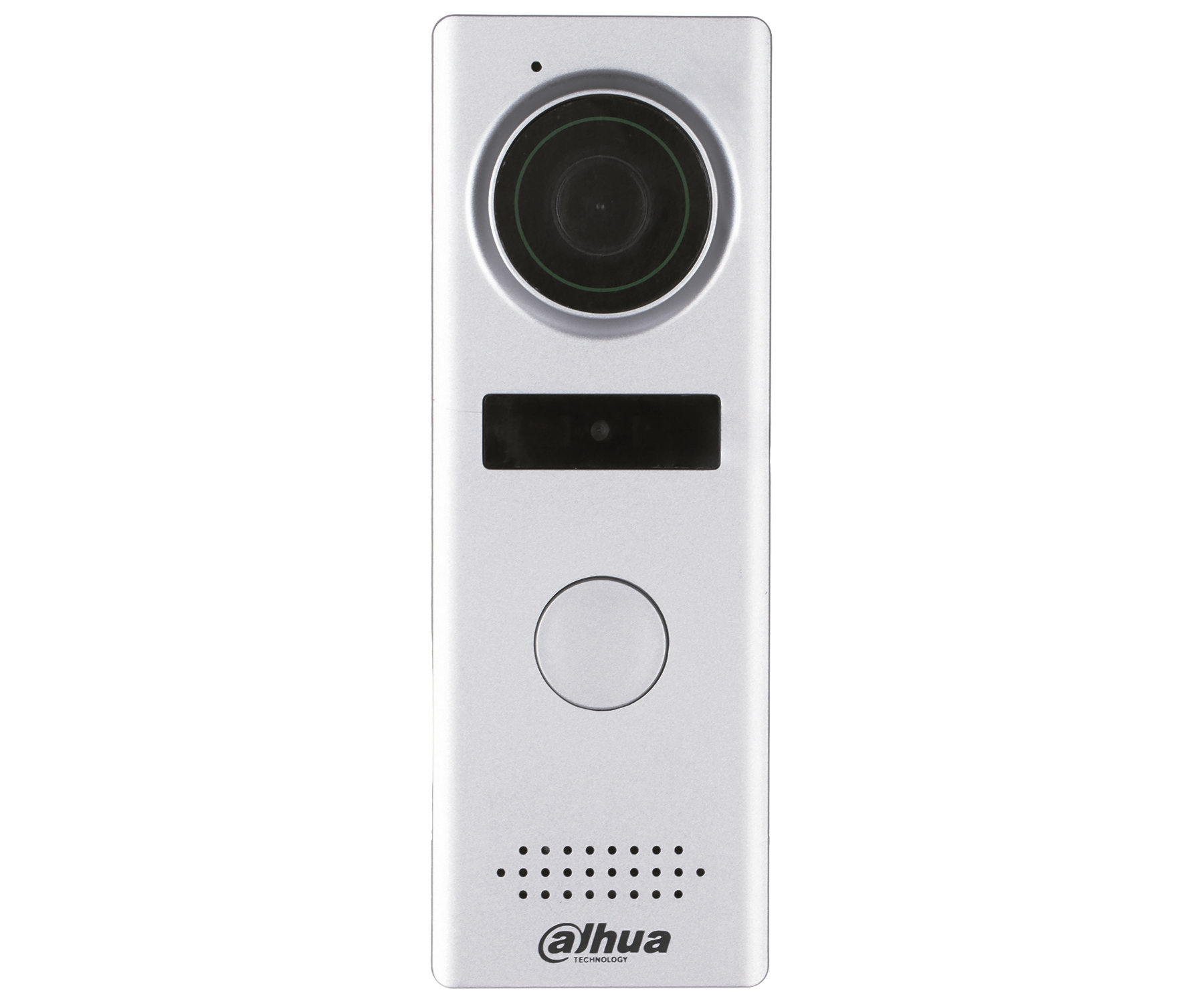

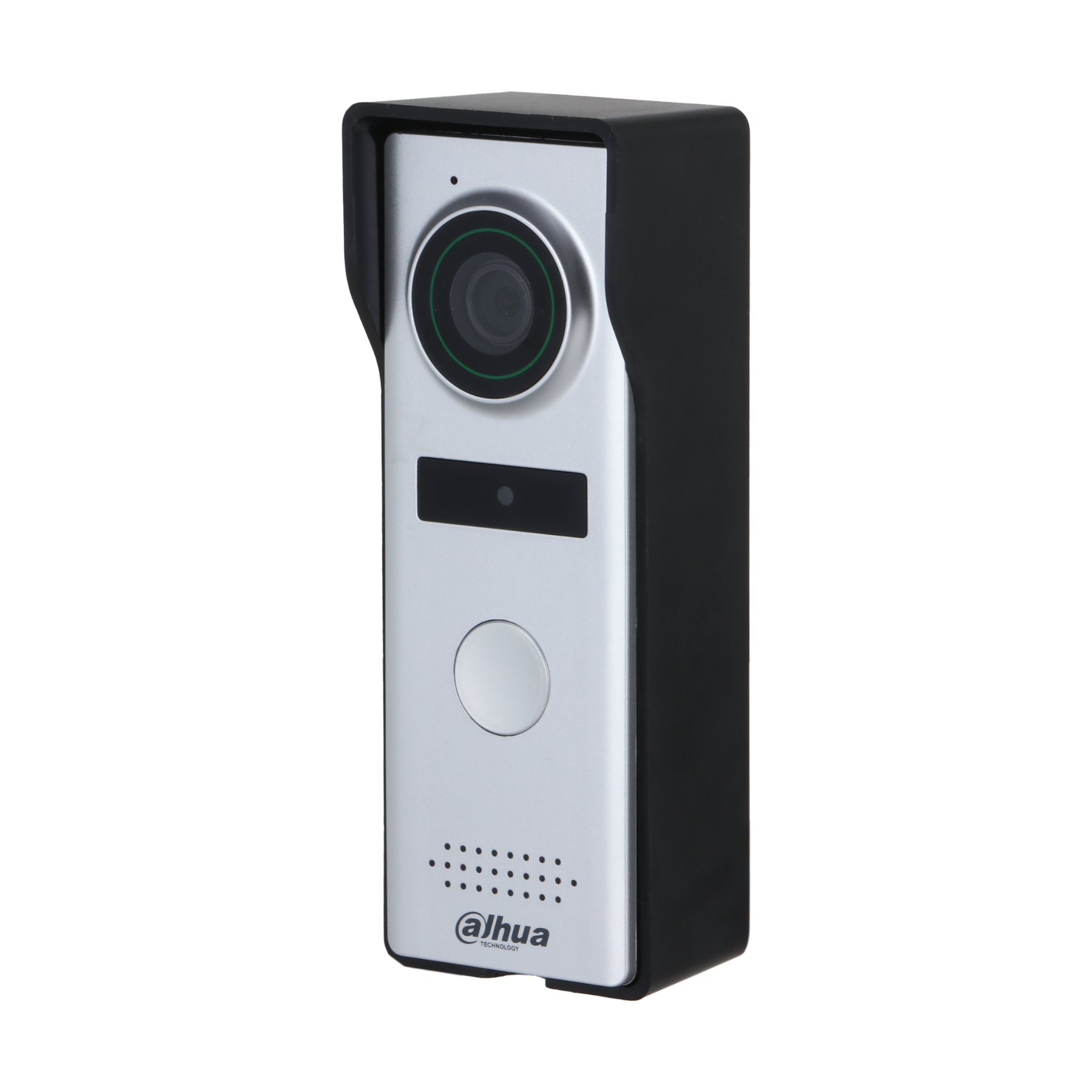

Video Doorphone is mounted in a surface-mounted housing; View angle: 70 ° ; IR illuminator; Main features: Possibility to connect an exit button and a reed switch to control the door status ; Power supply: From internal panel ; Shield: 7 " capacitive touch screen ; Memory card slot: Micro SD memory cards up to 64GB support (possible local recording) ; Main features: Built-in Wi-Fi module, RJ-45 port, RS-485 port, Power output : 12 V DC / 200 mA, The ability to automatically take and save photos if you do not answer to the bell button, IP cameras support ; Alarm inputs: 6 ; Alarm outputs: 1 ; Power supply: PoE (802.3af), 12 V DC ;
| Compatibility: | DAHUA |
| Sensor: | 1.3 Mpx CMOS |
| View angle: | 70 ° |
| proximity reader built-in: |  |
| LED illuminator: | |
| IR illuminator: |  |
| RS-485: | |
| Main features: | |
| Power supply: | From internal panel |
| Power consumption: | |
| Housing: | Plastic (PC + ABS) |
| Color: | Silver + Black |
| "Index of Protection": | IP66 - after additional sealing the housing connection with the mounting surface, e.g. with silicone |
| IK rating: | |
| Operation temp: | -30 °C ... 60 °C |
| Weight: | |

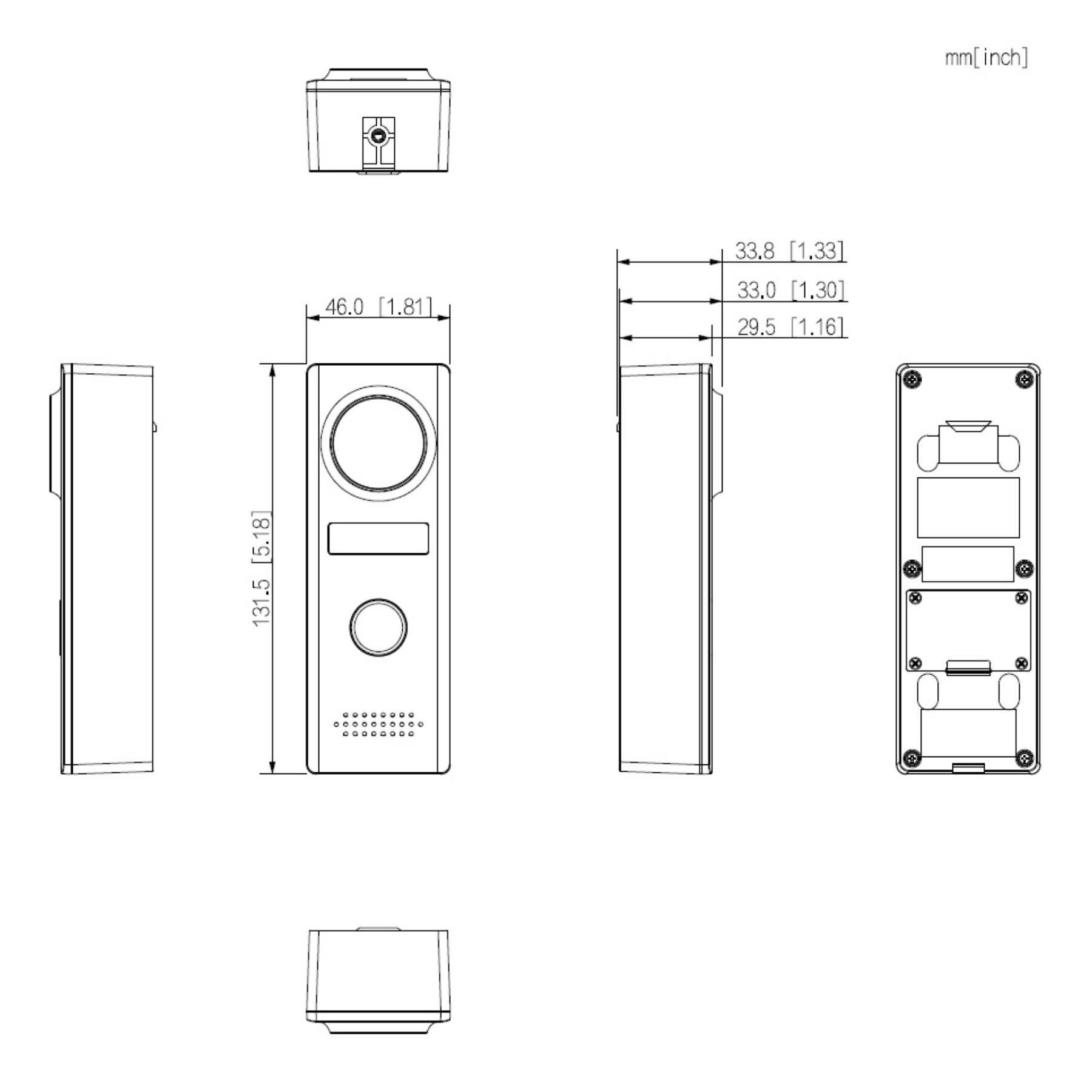

| Dimensions: |

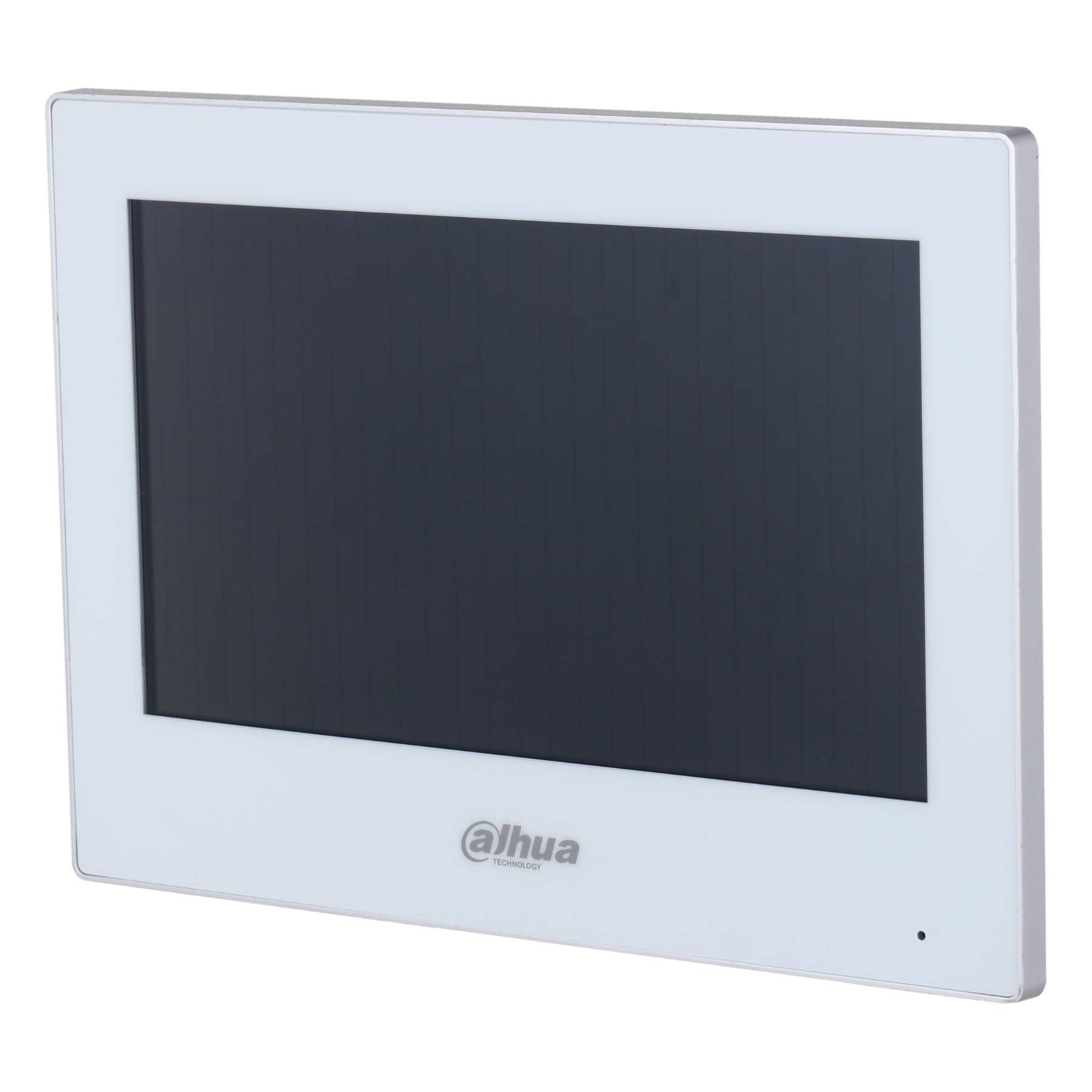

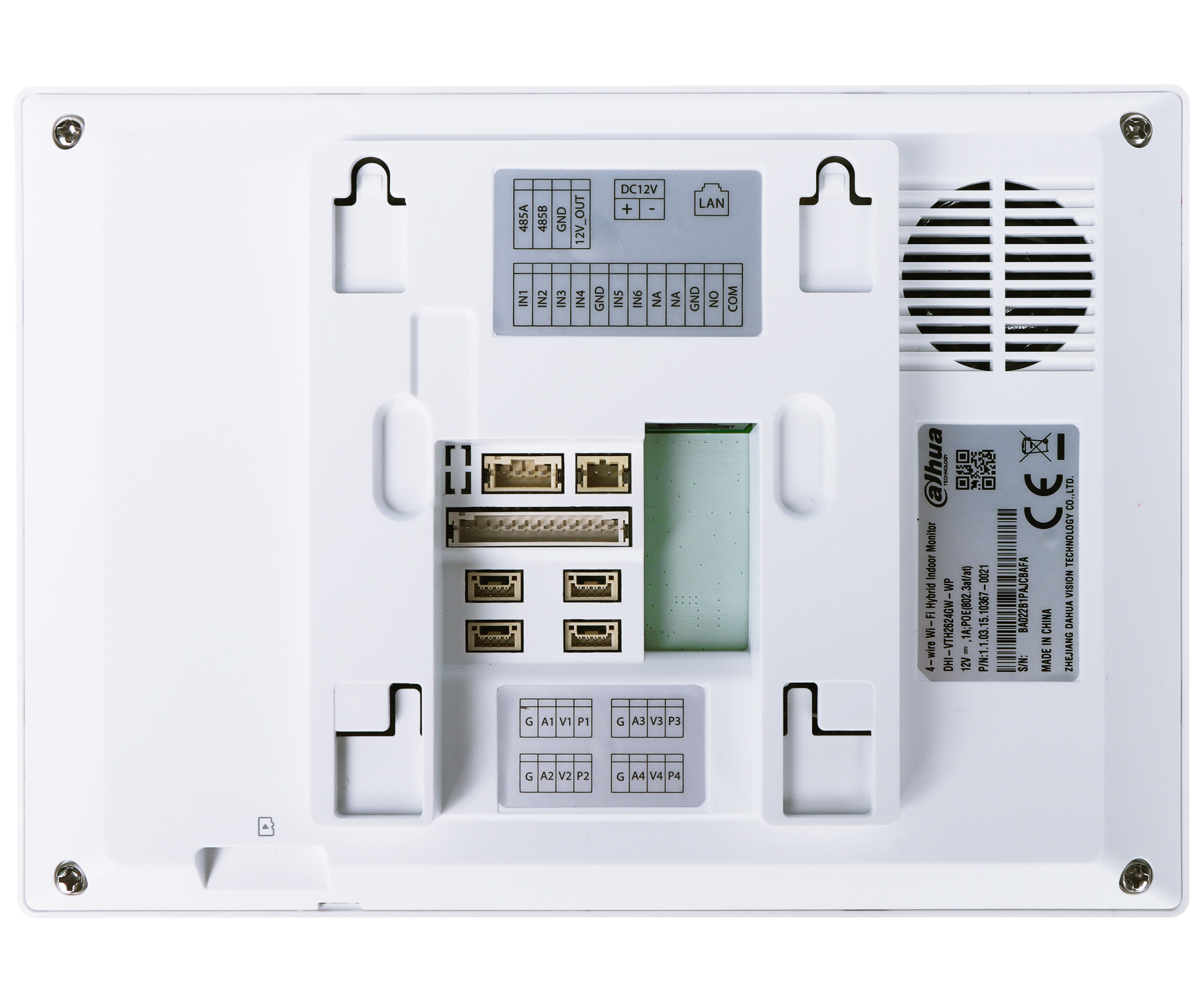

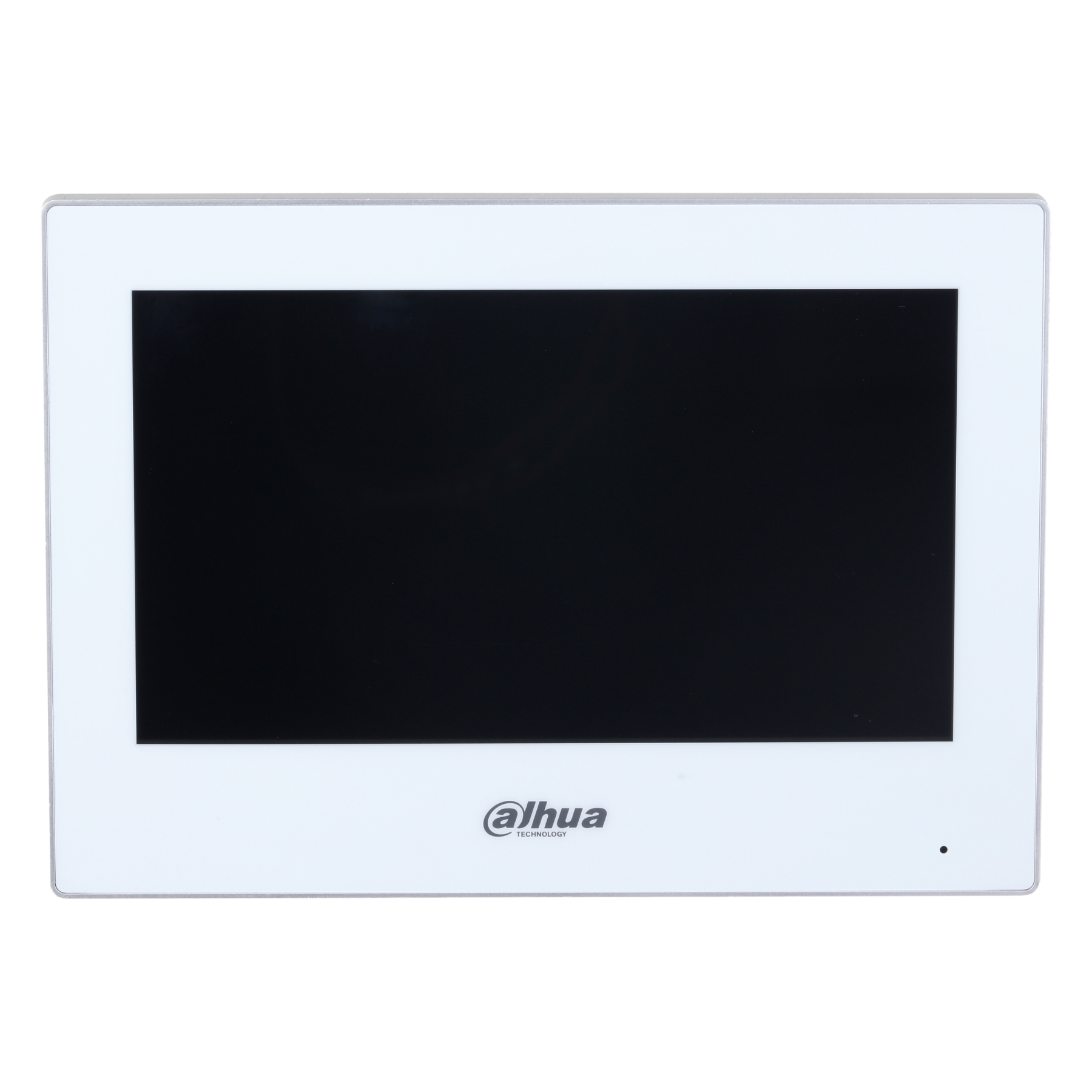

INDOOR PANEL:
| Compatibility: | DAHUA |
| Shield: | 7 " capacitive touch screen |
| Resolution: | 1024 x 600 |
| Internal memory: | |
| Memory card slot: | Micro SD memory cards up to 64GB support (possible local recording) |
| Main features: | |
| Controlling: | capacitive touch screen |
| Alarm inputs: | 6 |
| Alarm outputs: | 1 |
| Power supply: | |
| Power consumption: | |
| Operation temp: | -10 °C ... 55 °C |
| Color: | White |
| Weight: | 0.35 kg |

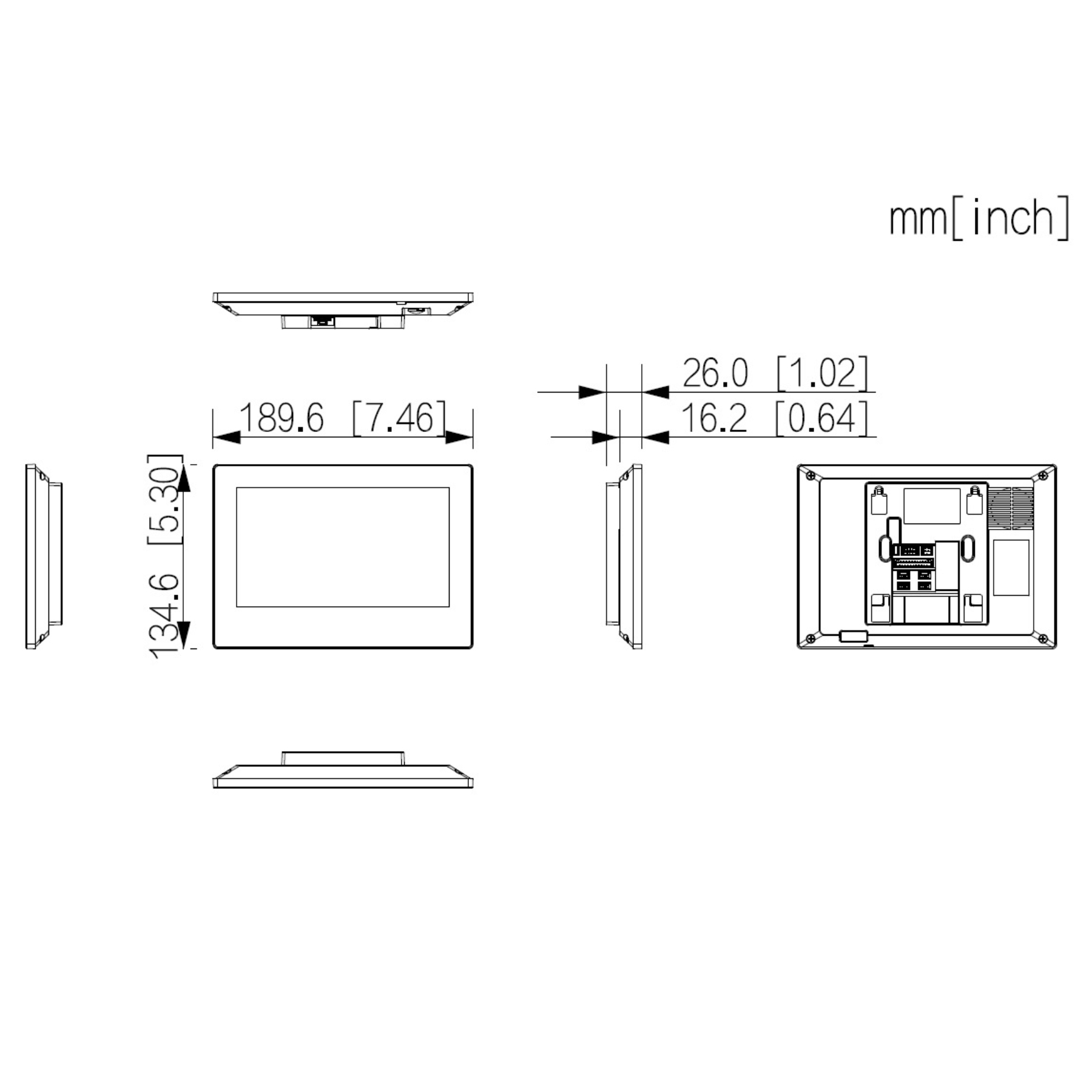

| Dimensions: | 190 x 135 x 26 mm |

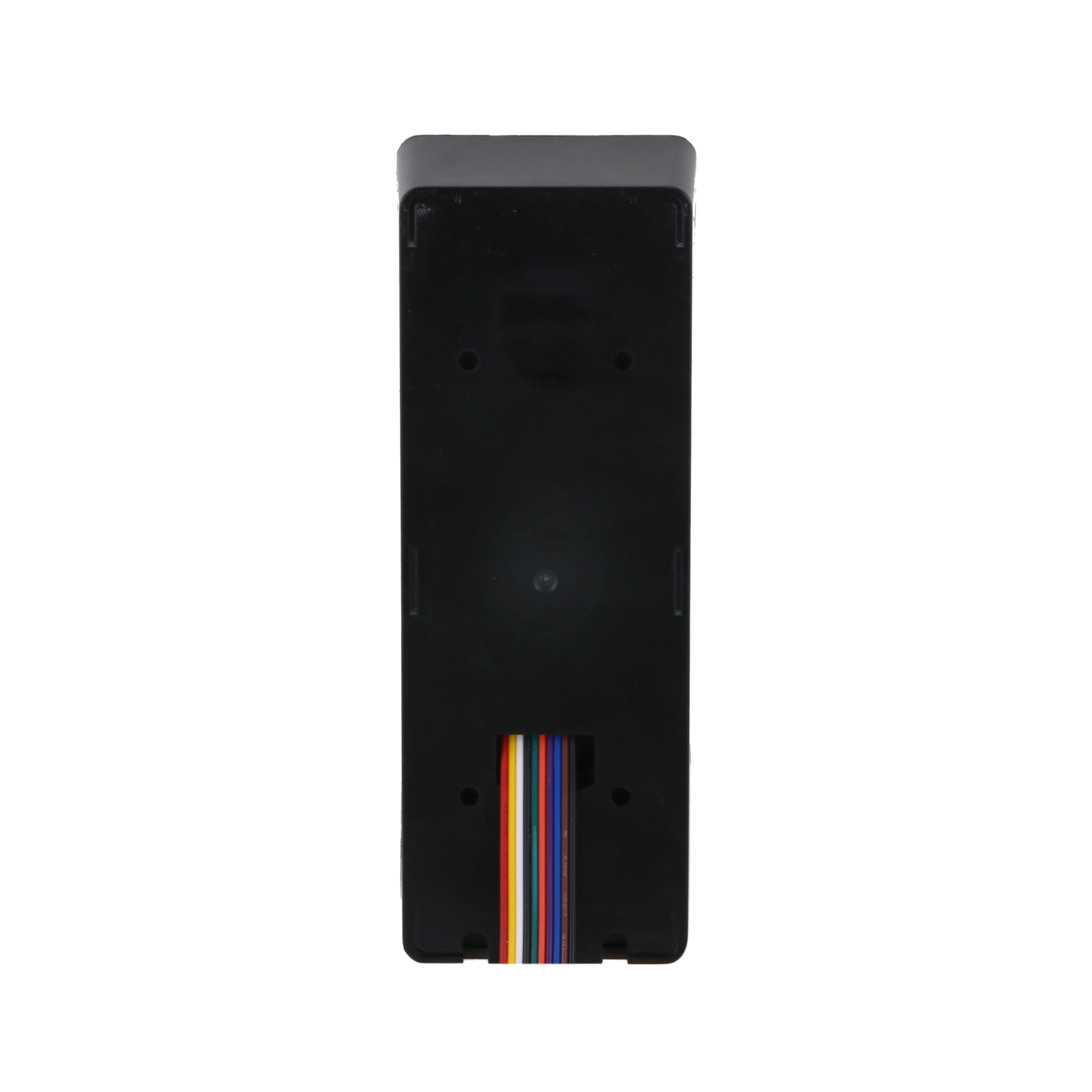

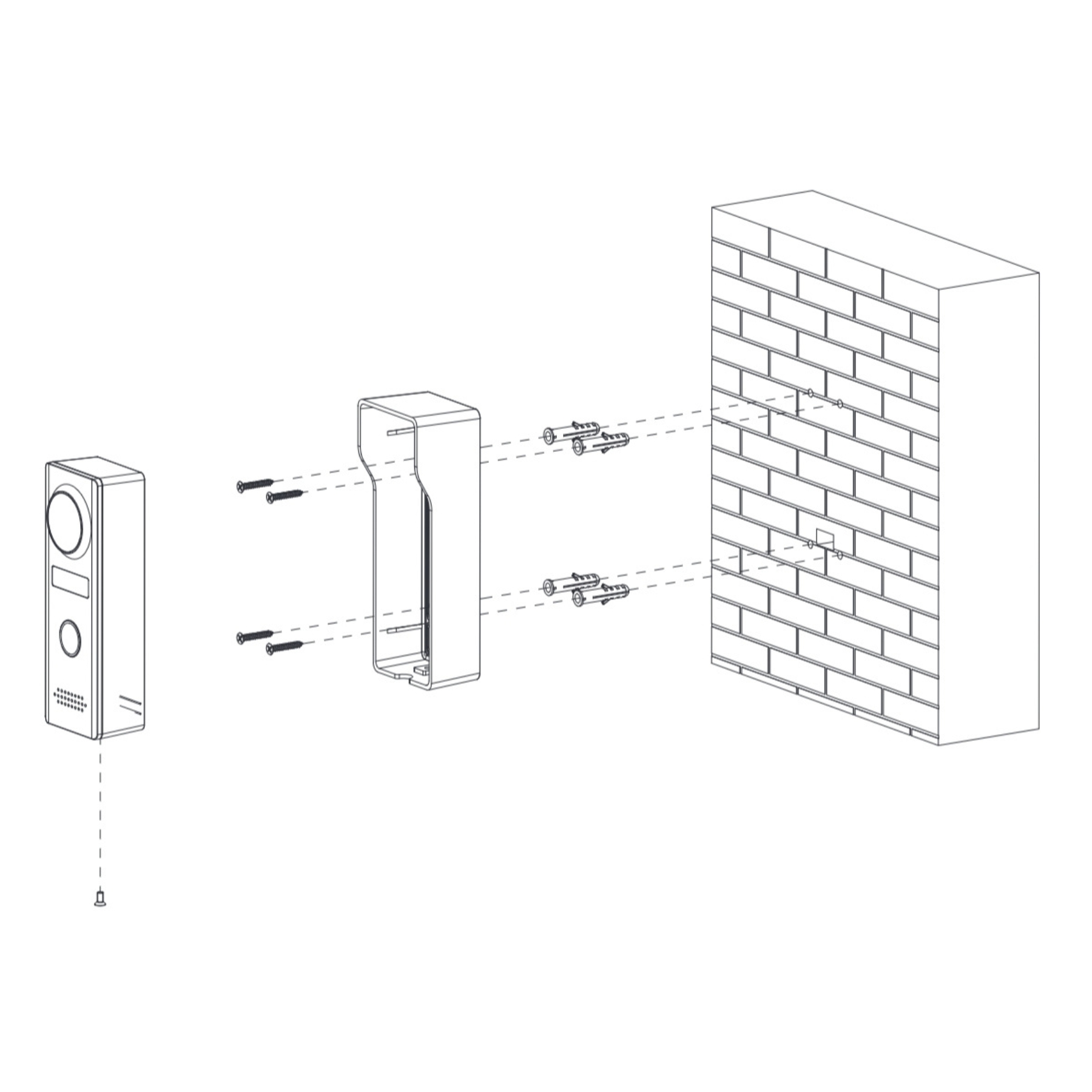

SURFACE HOUSING:
| Material: | Plastic |
| Color: | Black |
| Weight: | 0.05 kg |
| External dimensions: | 139 x 52 x 39 mm |
General information:
| Supported languages: | English |
| Manufacturer / Brand: | DAHUA |
| Guarantee: | 3 years |
Brand:
Dahua
