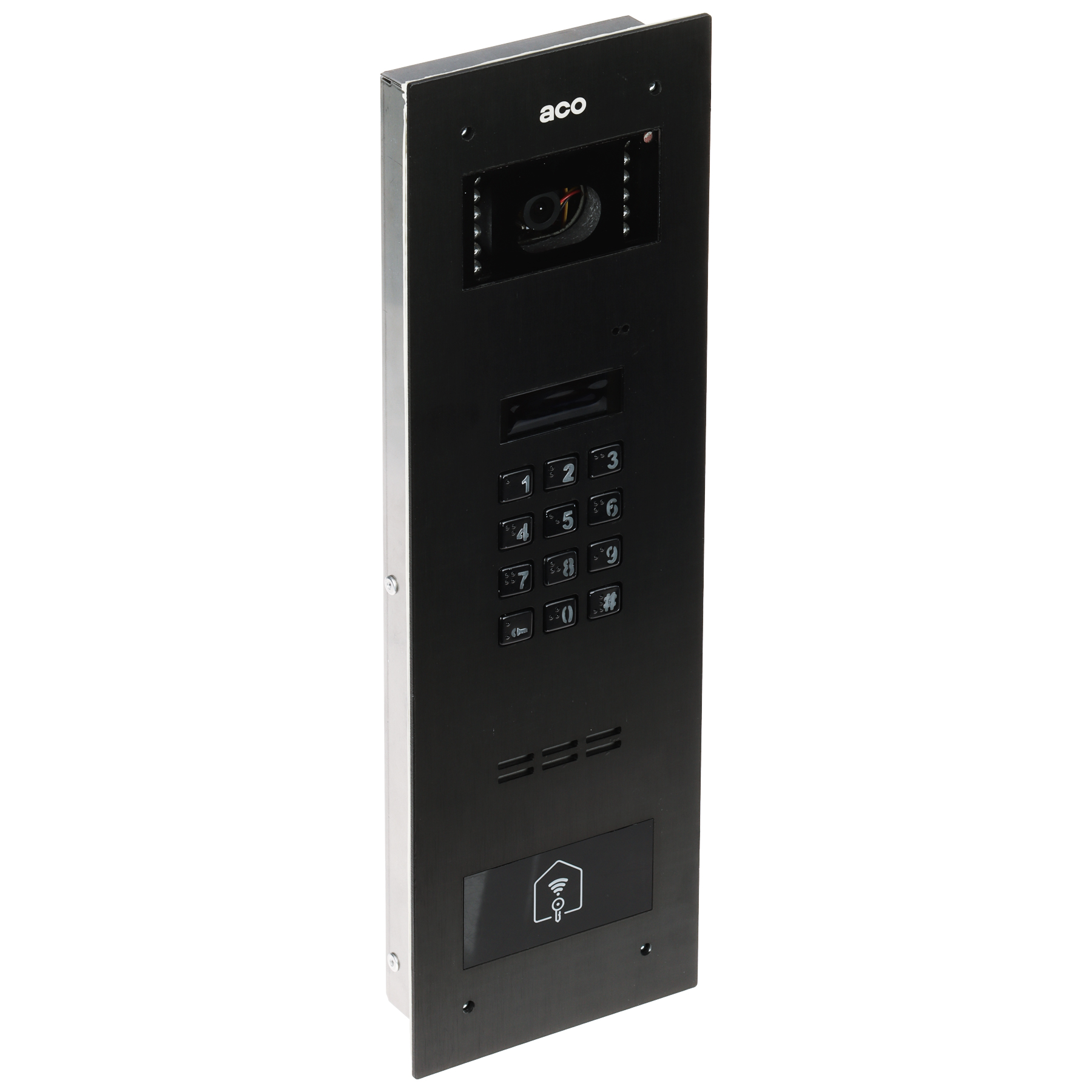

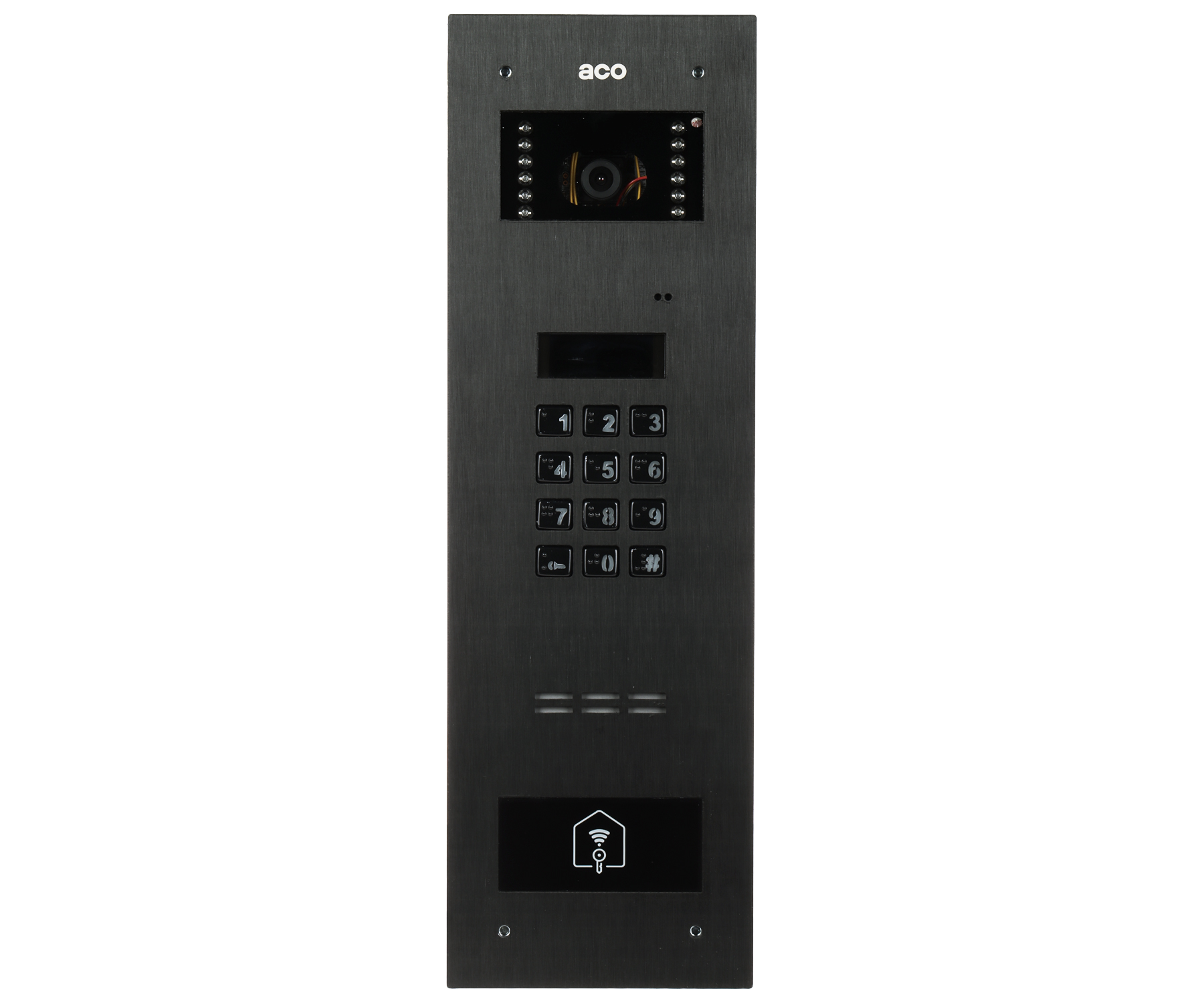

DIGITAL VIDEO DOORPHONE INSPIRO-6+(G2)-BK ACO

€466.72

(Включая налог 21%)

Задать вопрос

КОД: INSPIRO-6+(G2)-BK

Доступность: 1 шт.

Кол-во:

Минимальное количество для товара "DIGITAL VIDEO DOORPHONE INSPIRO-6+(G2)-BK ACO" 1.

Описание
Особенности

Compatibility: ACO CDNP, Inspiro, Familio P/PV ; IR illuminator; Operation mode: Master / Slave / Multimaster ; proximity reader built-in: Unique EM 125kHz ; The number of subscribers served: 1020 premises ; Display: LCD (heated) ; Power supply: 15 V DC / 300 mA ;

Compatibility:	ACO CDNP, Inspiro, Familio P/PV

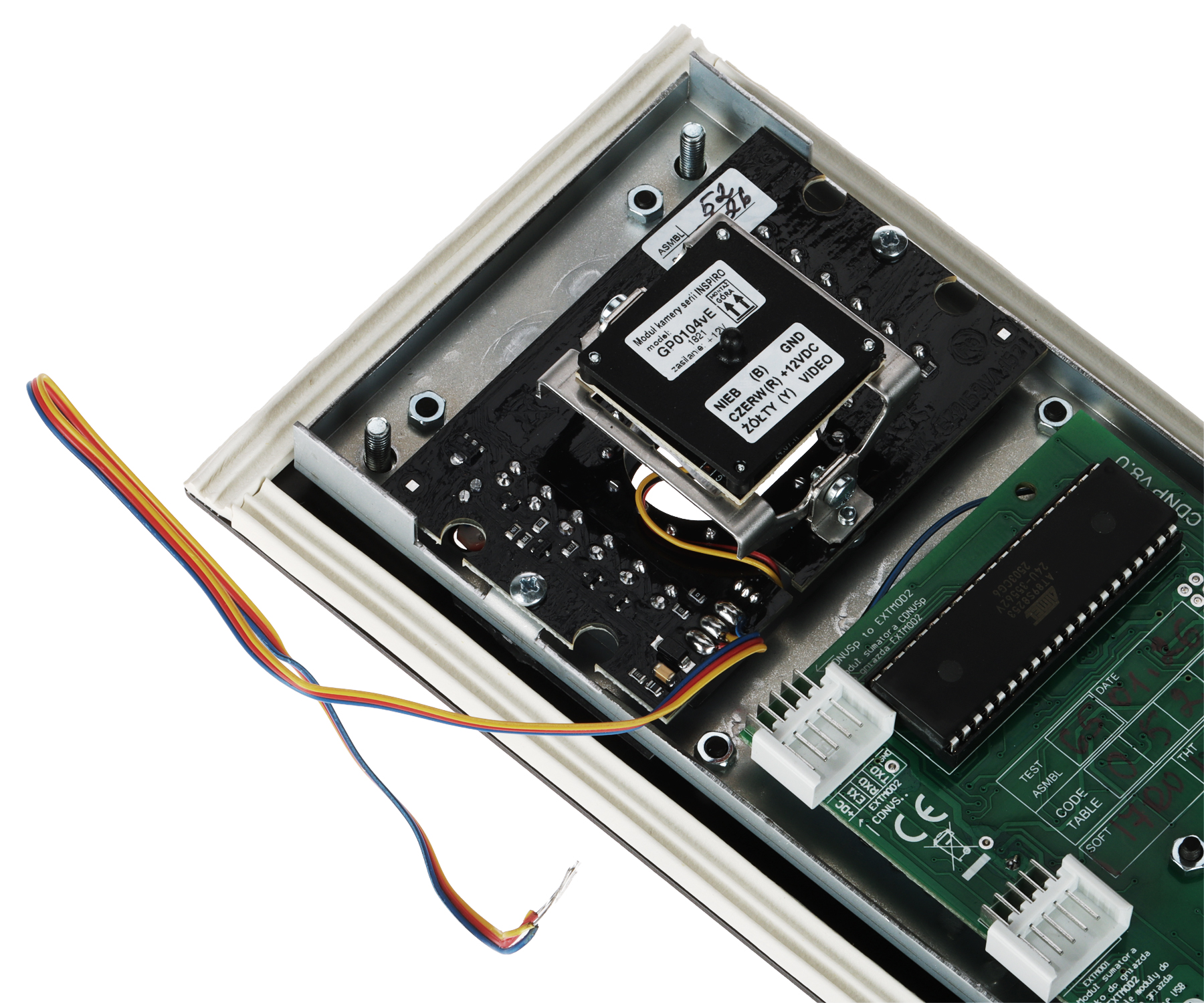

Lens:	2.8 mm
Camera resolution:	min. 600 TVL
LED illuminator:
IR illuminator:

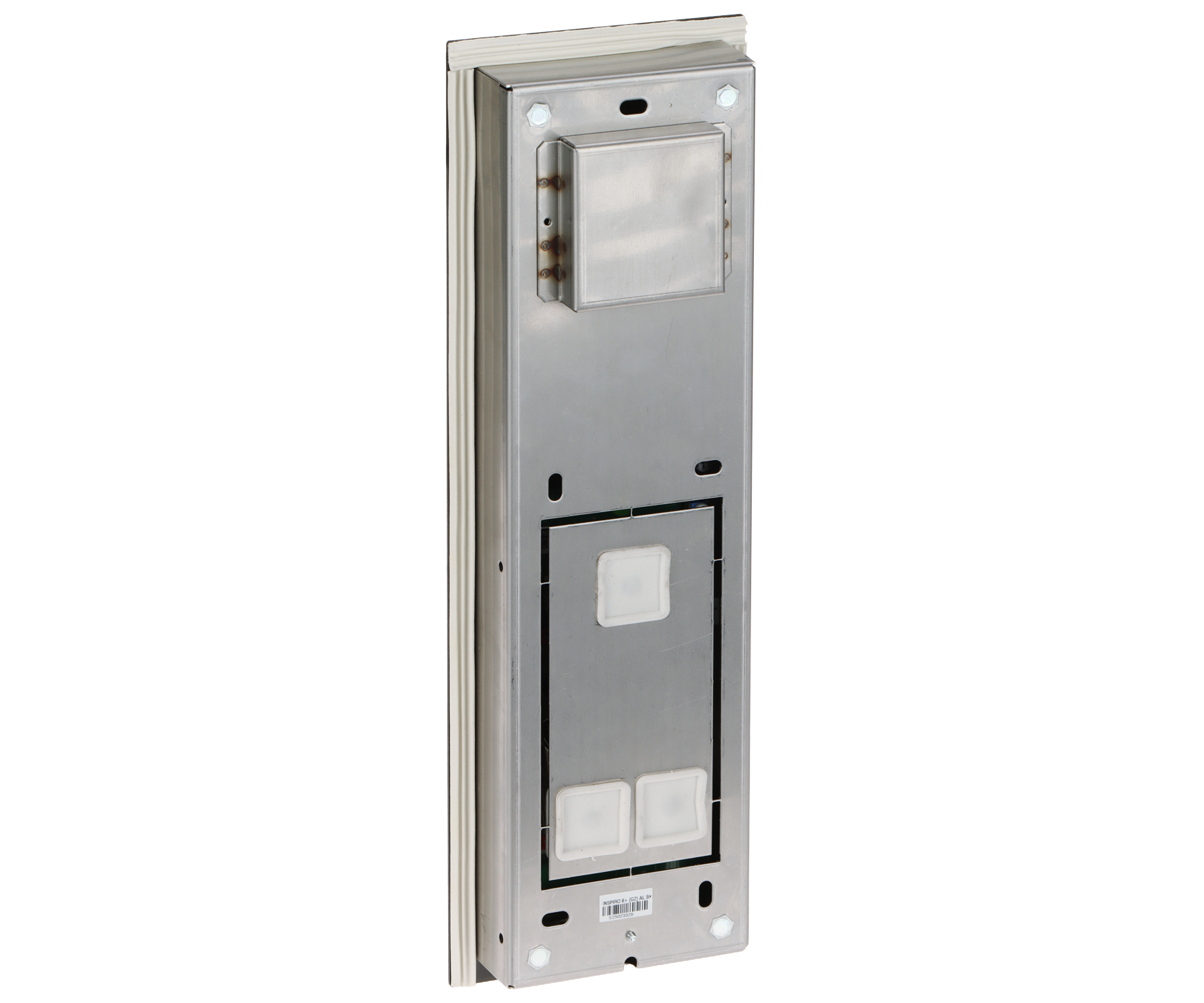

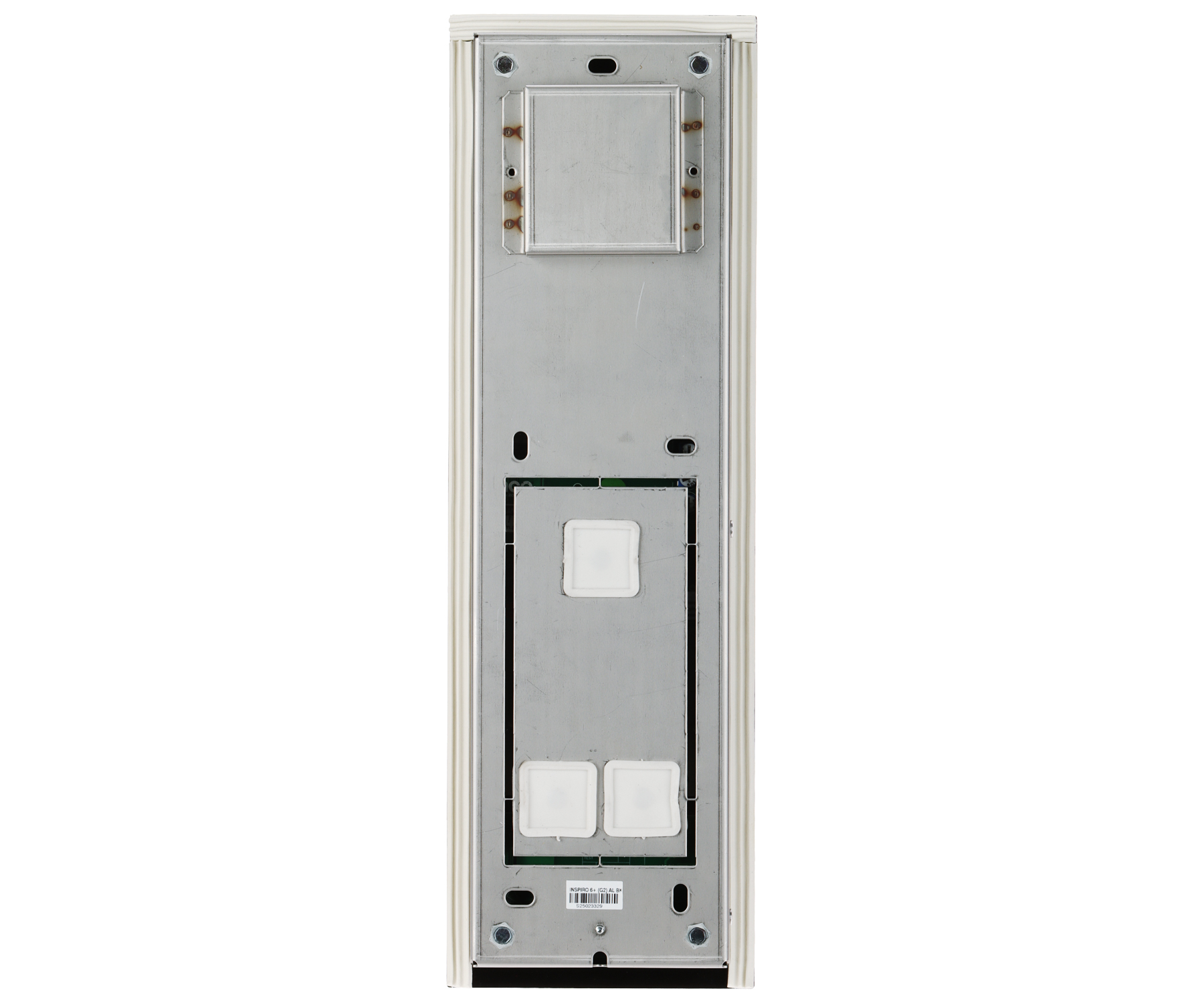

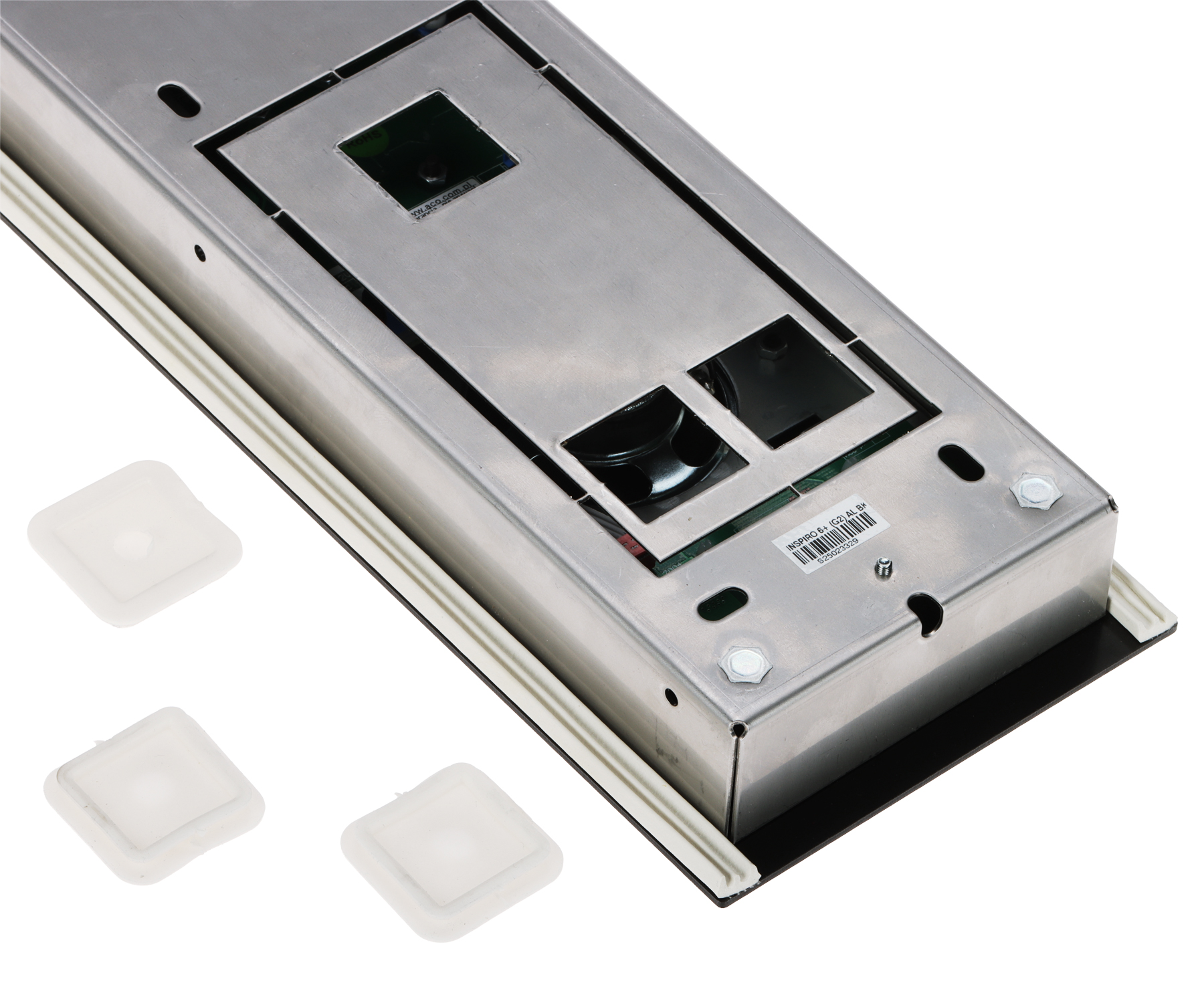

Method of mounting:	Can be flush or surface mounted depending on the frame selected
Operation mode:	Master / Slave / Multimaster
proximity reader built-in:	Unique EM 125kHz
The number of subscribers served:	1020 premises
Display:	LCD (heated)
Backlight:	White backlight

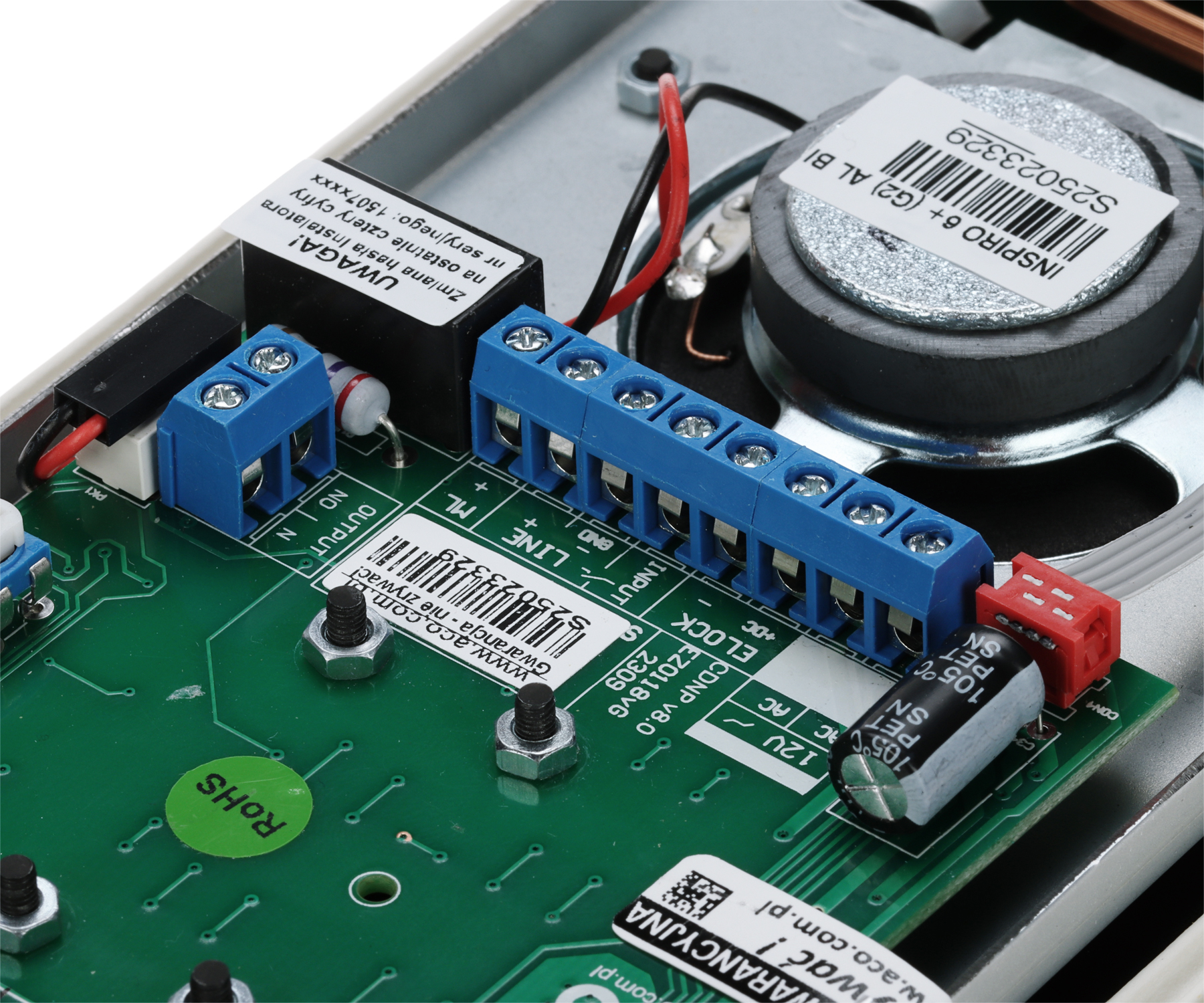

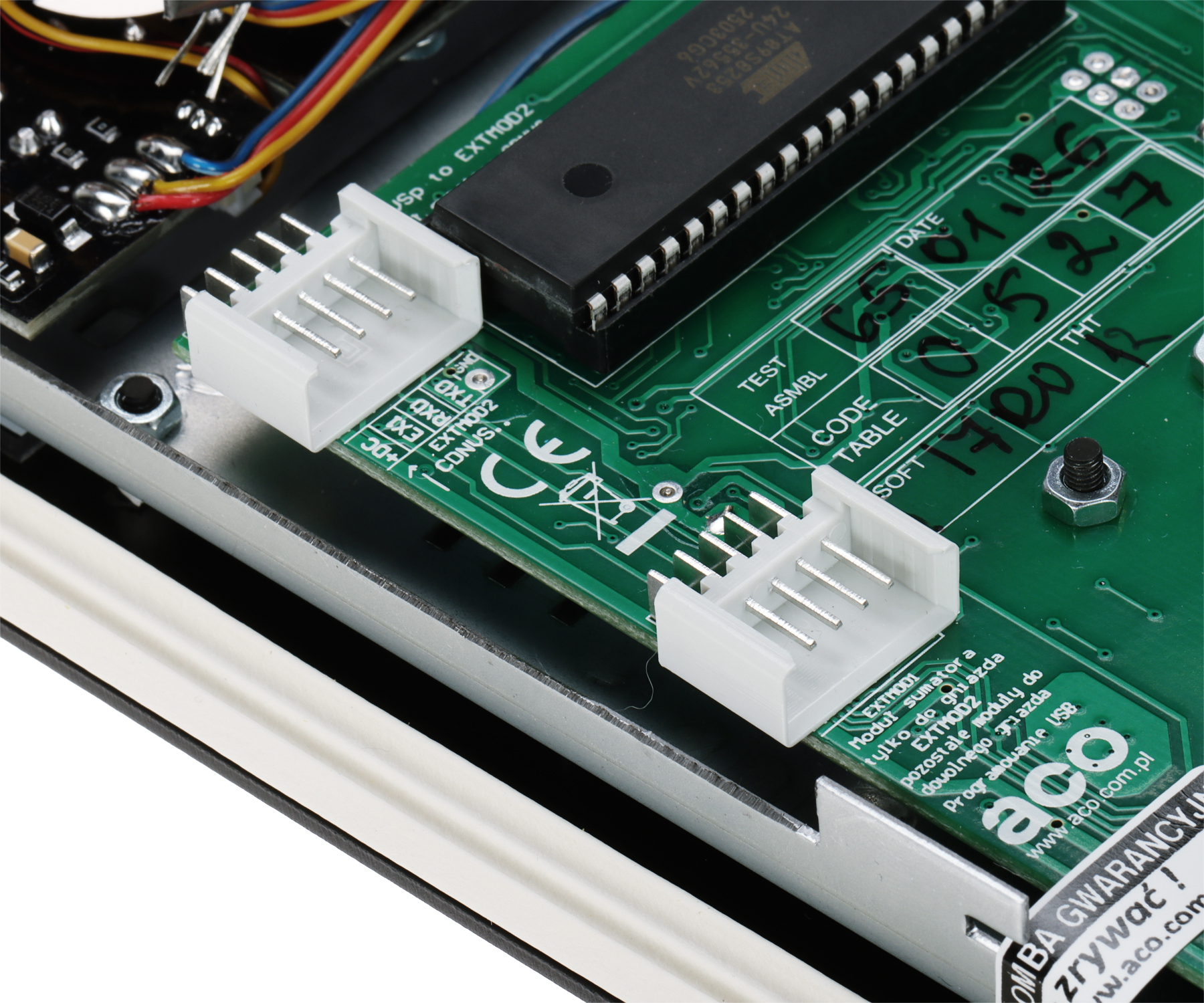

Inputs:	4 x screw connectors - Power connector DC 1 x screw connection "INPUT" - External open button NO 1 x screw connection - connection of audio signal from preceding panel 2 x „EXTMOD” socket
Outputs:	2 x screw connectors „ELOCK” - Connection of a traditional, reversible electric door strike or CDN-PK relay module 2 x screw connectors - Audio 2 x screw connectors - connection of a second relay output
Line length:	1000 m (max)
Installation type:	Digital: twisted pair UTP cat. 5e or 6

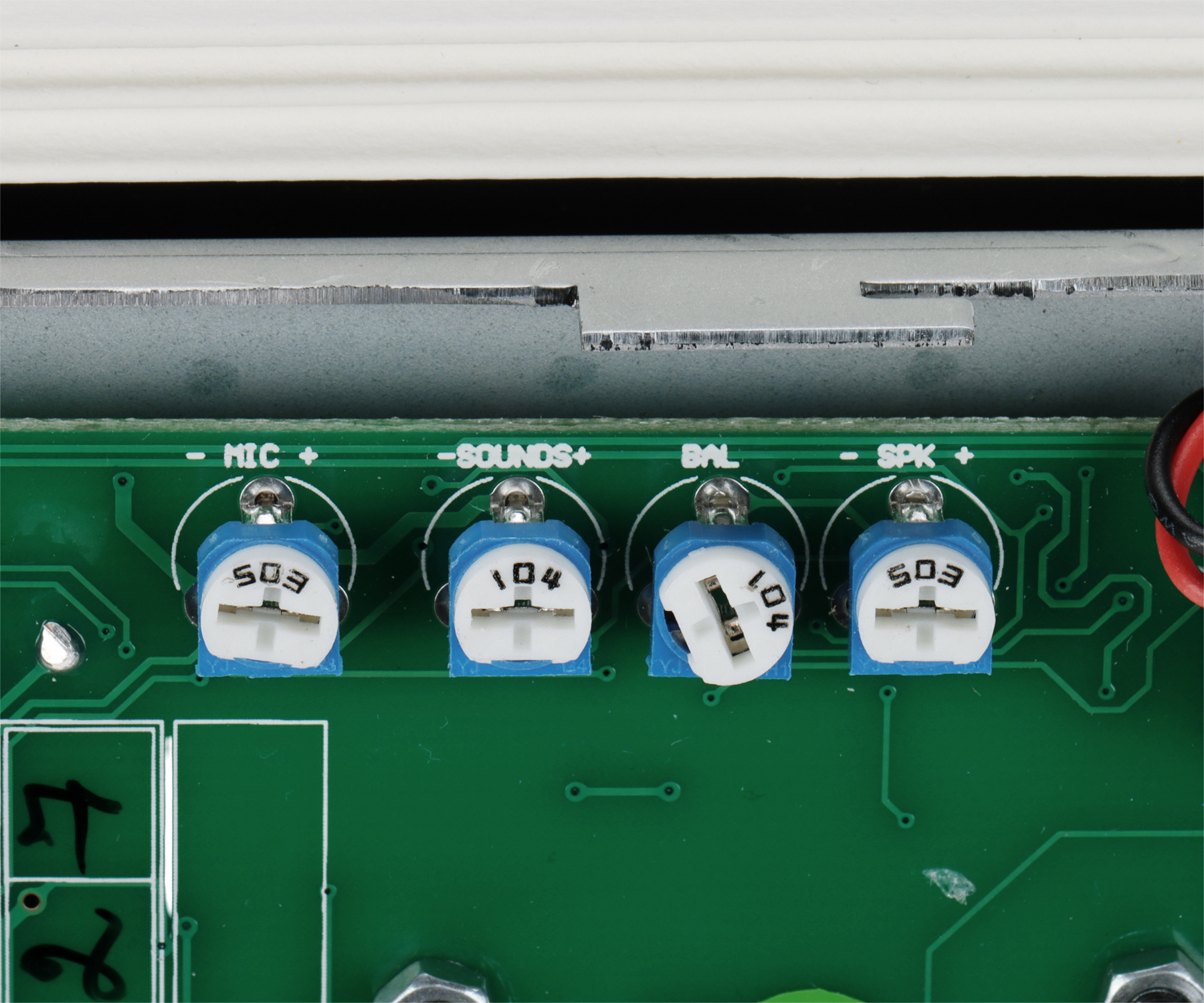

Main features:	Cipher lock function Acoustic and visual signalling of panel functions Opening the door without answering the call The control panel can operate either as a Master or as a Slave Adjust volume, noise reduction, and microphone sensitivity with configuration potentiometers (accessible by removing the case) Support for 1020 4-digit tenant codes Support for up to 6144 keyfobs Acoustic information in the premises about the opening of the door Support for multiple expansion modules to increase system functionality Adding and deleting proximity keyfobs with the "master" keyfob (separately for each premise) and with the "super master" keyfob (in all premises) Ability to connect multiple active receivers under the same number Porter function Corridor opening function Call forwarding for extension numbers Control of external devices, e.g. entrance gate, barrier, lighting, roller shutters
Power supply:	15 V DC / 300 mA
Power consumption:	~ 1.32 W (Standby mode)
Housing:	Aluminum - powder painted
Operation temp:	-20 °C ... 50 °C
Weight:	0.416 kg
Dimensions:	205 x 90 x 30 mm
Manufacturer / Brand:	ACO
Guarantee:	2 years
