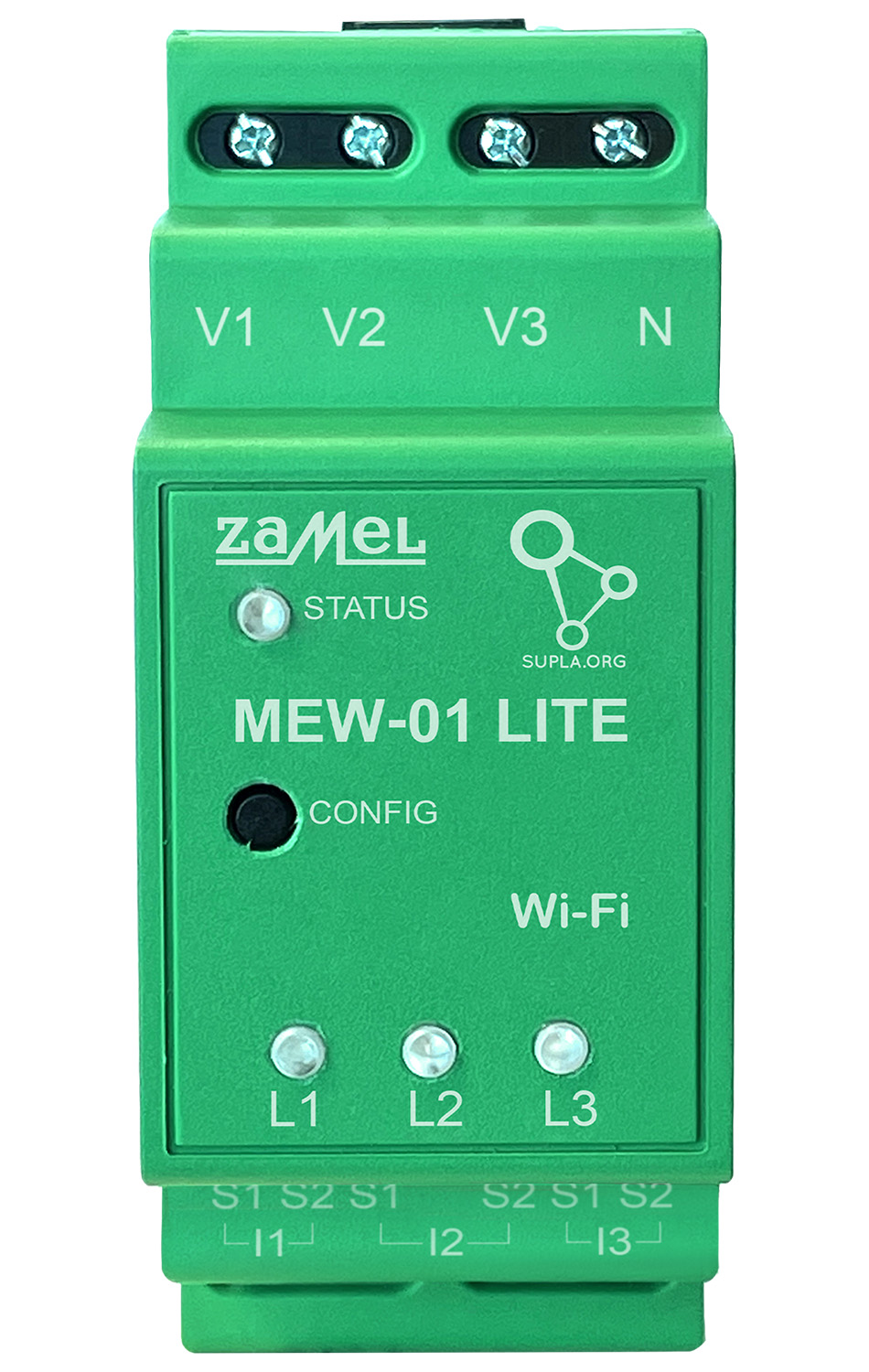

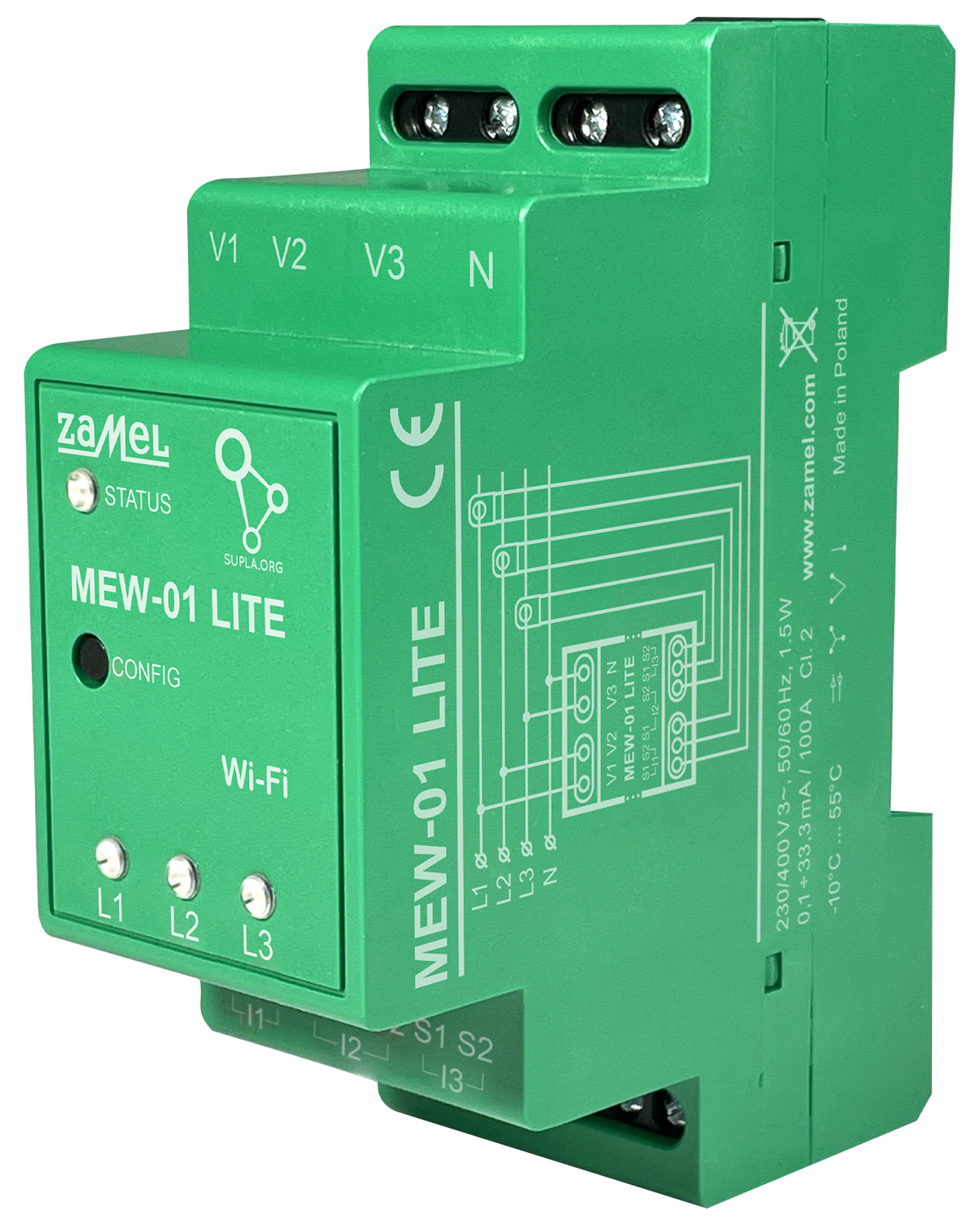

ELECTRIC ENERGY MONITOR MEW-01/LITE SUPLA THREE-PHASE ZAMEL
Войдите в учётную запись, чтобы мы могли сообщить вам об ответе
Device type: Electric Energy Monitor, Three-phase ; Wireless: Wi-Fi, 2.4 GHz - IEEE 802.11 b/g/n ; Rated voltage: 3 x 230 V / 400 V AC, 50 / 60 Hz ; Measurement unit: kWh ; Connectors type: screw terminals ; Housing: DIN, TS-35 rail mounting ;
| Support: | SUPLA |
| Device type: | Electric Energy Monitor, Three-phase |
| Wireless: | Wi-Fi, 2.4 GHz - IEEE 802.11 b/g/n |
| Rated voltage: | 3 x 230 V / 400 V AC, 50 / 60 Hz |
| Voltage tolerance: | -20 % ... 15 % |
| Measurement unit: | kWh |

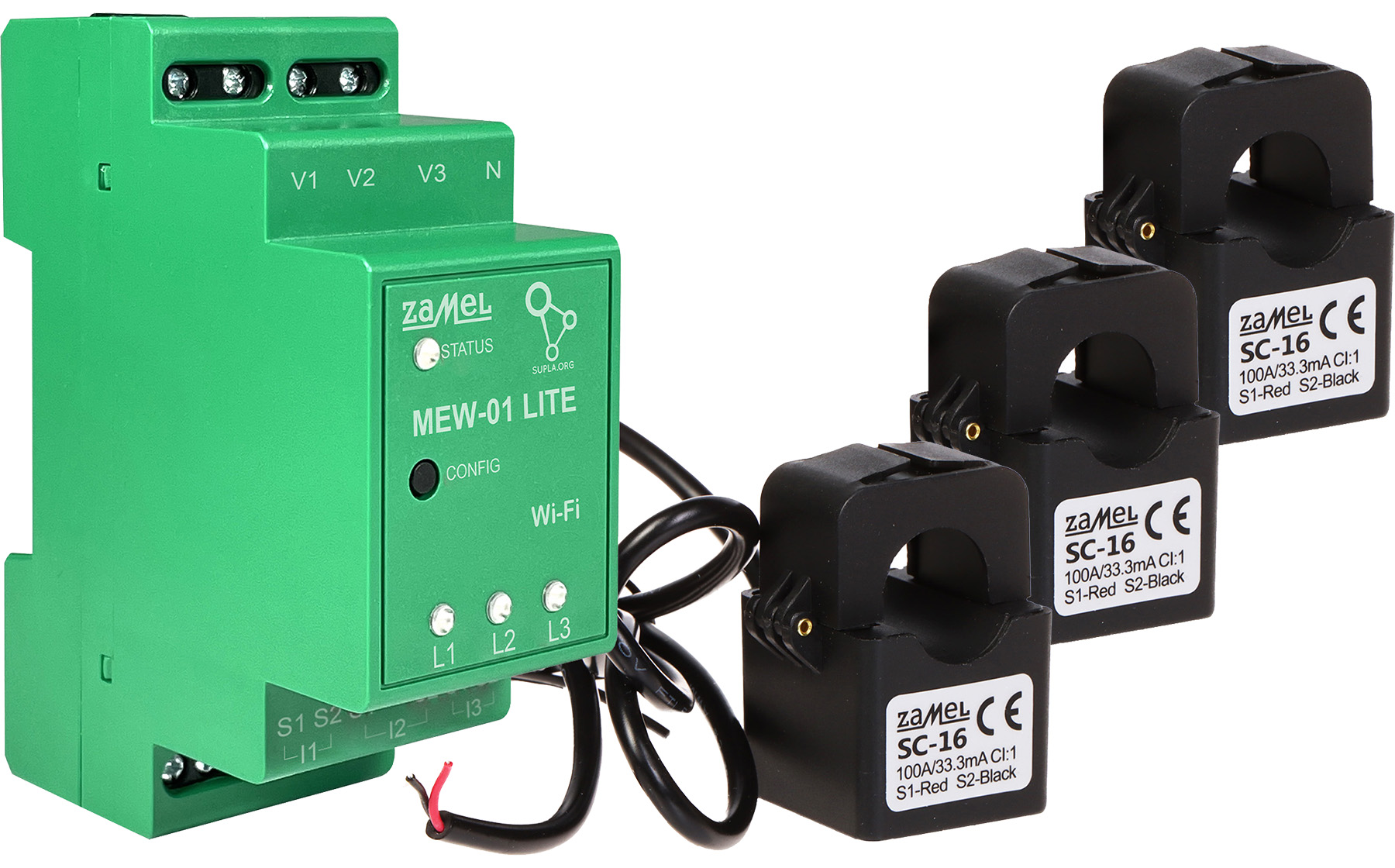

| Measurement method: | Semi-indirect measurement using an current transformer - 3 pcs |
| Current: | 100 A - Max. current |
| LCD display: |  |
| RS-485 ports: | |
| Connectors type: | screw terminals max. 2.5 mm² |

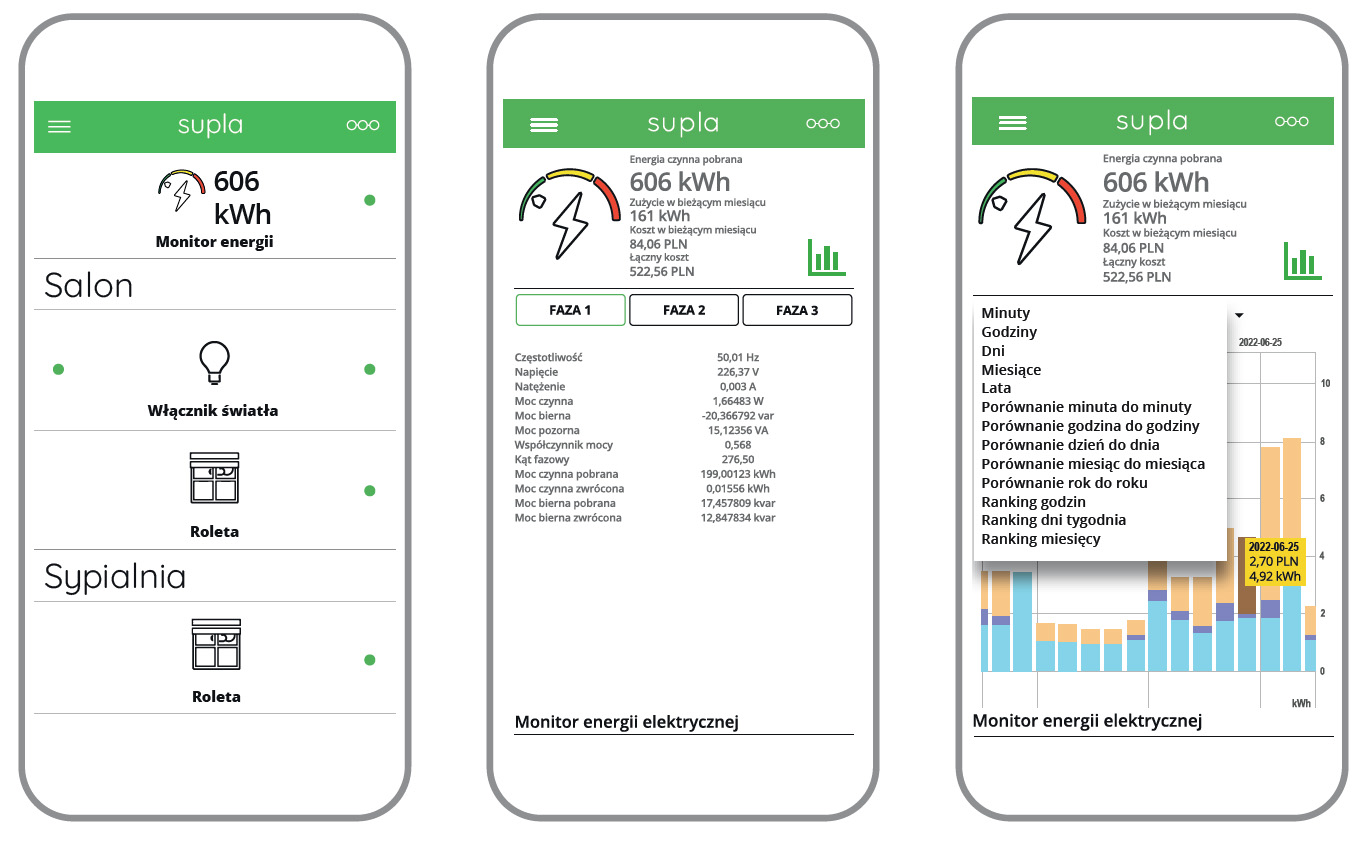

| Mobile phones support: | The SUPLA free application on Android The SUPLA free application on iOS |
| Measured parameters: | |
| Main features: | |
| Housing: | Plastic, DIN, TS-35 rail mounting |
| "Index of Protection": | IP20 |
| Operation temp: | -10 °C ... 55 °C |
| Width in 17.5 mm modules: | 2 |
| Weight: | 0.091 kg |
| Dimensions: | 90 x 62 x 35 mm |
| Manufacturer / Brand: | ZAMEL |
| Guarantee: | 2 years |
Brand:
Zamel
