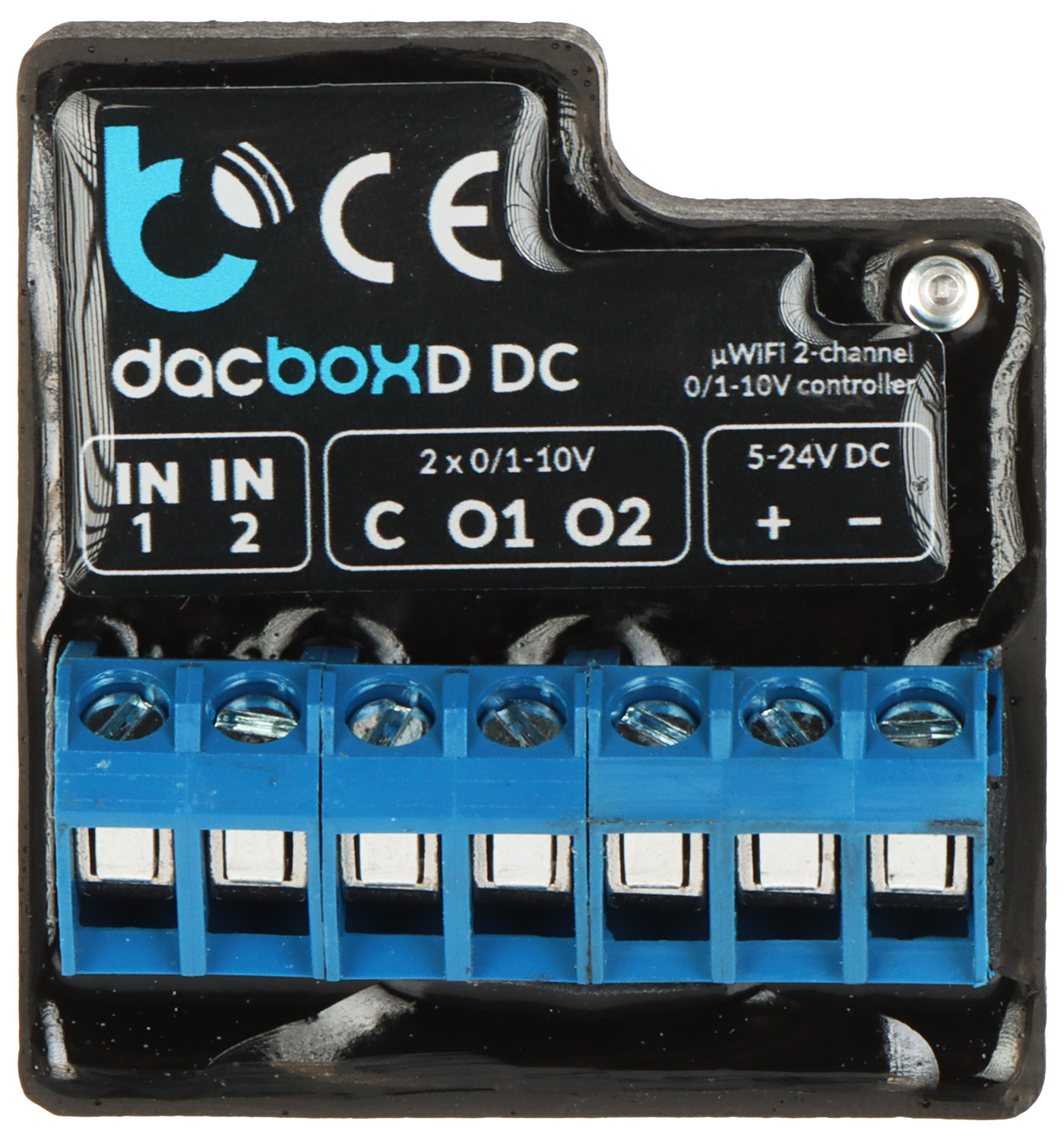

TWO-CHANNEL SMART CONTROLLER DACBOXD-DC Wi-Fi, 5 ... 24 V DC
Войдите в учётную запись, чтобы мы могли сообщить вам об ответе
Application: Dimmer, Speed and power regulator, Controller - 2 Channels, 0...10 V, 1...10 V, 0...5 V voltage setter ; Rated voltage: 5 ... 24 V DC ; Maximal total load: 20 mA / Channel (controlling) ; Number of inputs: 2 ; Number of outputs: 2 ; Connector type: screw terminals ; Wireless: Wi-Fi, 2.4 GHz - IEEE 802.11 g/n ; Main features: Local control by physical button, schedule, timer, sunrise and sunset mode, remote access, voice control, μWiFi technology support ;
| Application: | |
| Rated voltage: | 5 ... 24 V DC |
| Maximal total load: | 20 mA / Channel (controlling) |
| Total maximal current: |  |
| Number of inputs: | 2 - 5 ... 24 V DC logical, configurable (controlling) |
| Number of outputs: | 2 - Voltage control : 0 ... 10 V / 1 ... 10 V / 0 ... 5 V |
| Connector type: | screw terminals |
| Wireless: | Wi-Fi, 2.4 GHz - IEEE 802.11 g/n |
| Mobile phones support: | |
| Main features: | |
| Housing: | |
| "Index of Protection": | IP20 |
| Color: | Black |
| Operation temp: | -20 °C ... 50 °C |
| Weight: | 0.028 kg |
| Dimensions: | 41 x 39 x 20 mm |
| Manufacturer / Brand: | BleBox |
| Guarantee: | 2 years |
Brand:
Blebox
