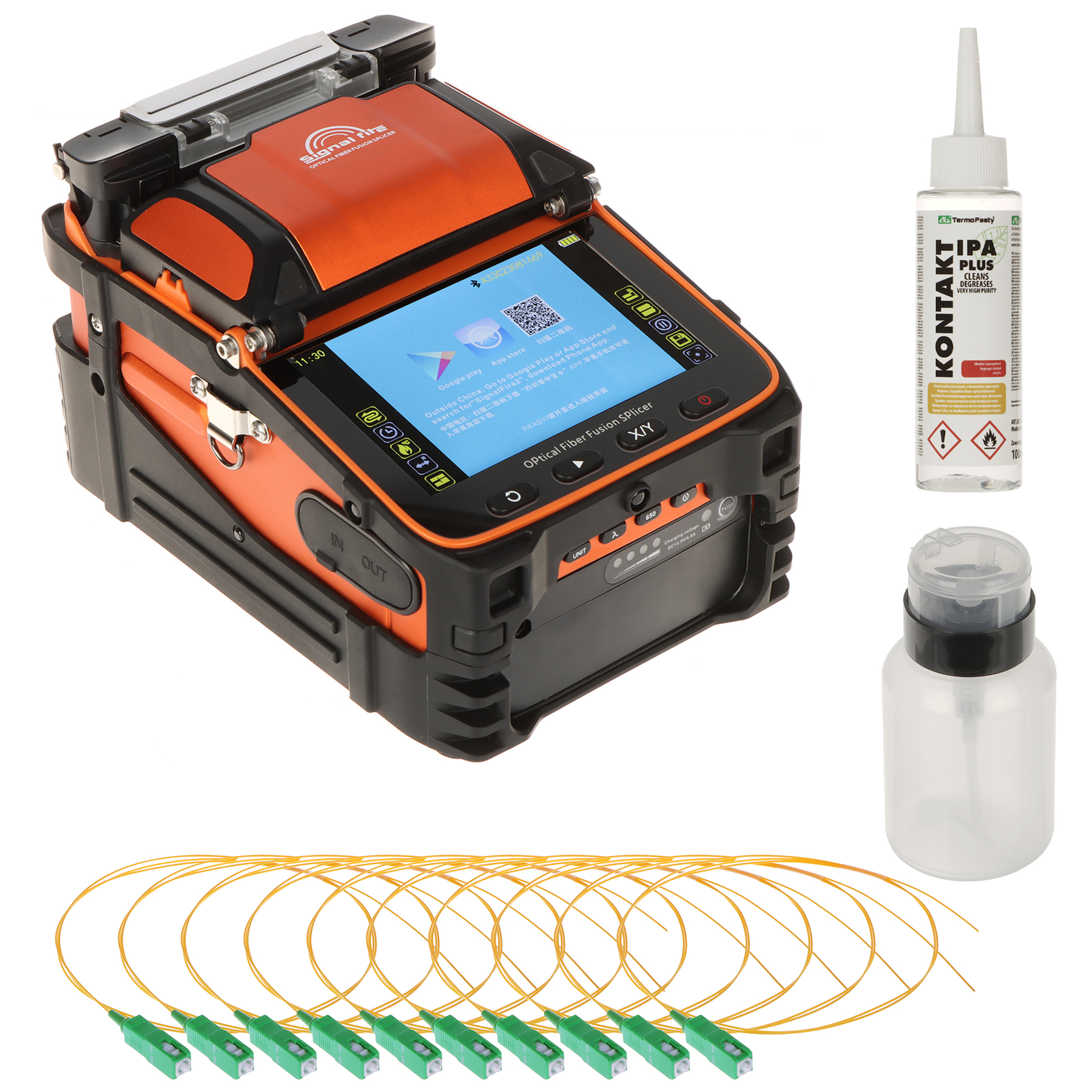

PROMOTIONAL SET AI-9/KIT Signal Fire BOTTLE 100 ml AG TERMOPASTY [CLONE]
Войдите в учётную запись, чтобы мы могли сообщить вам об ответе

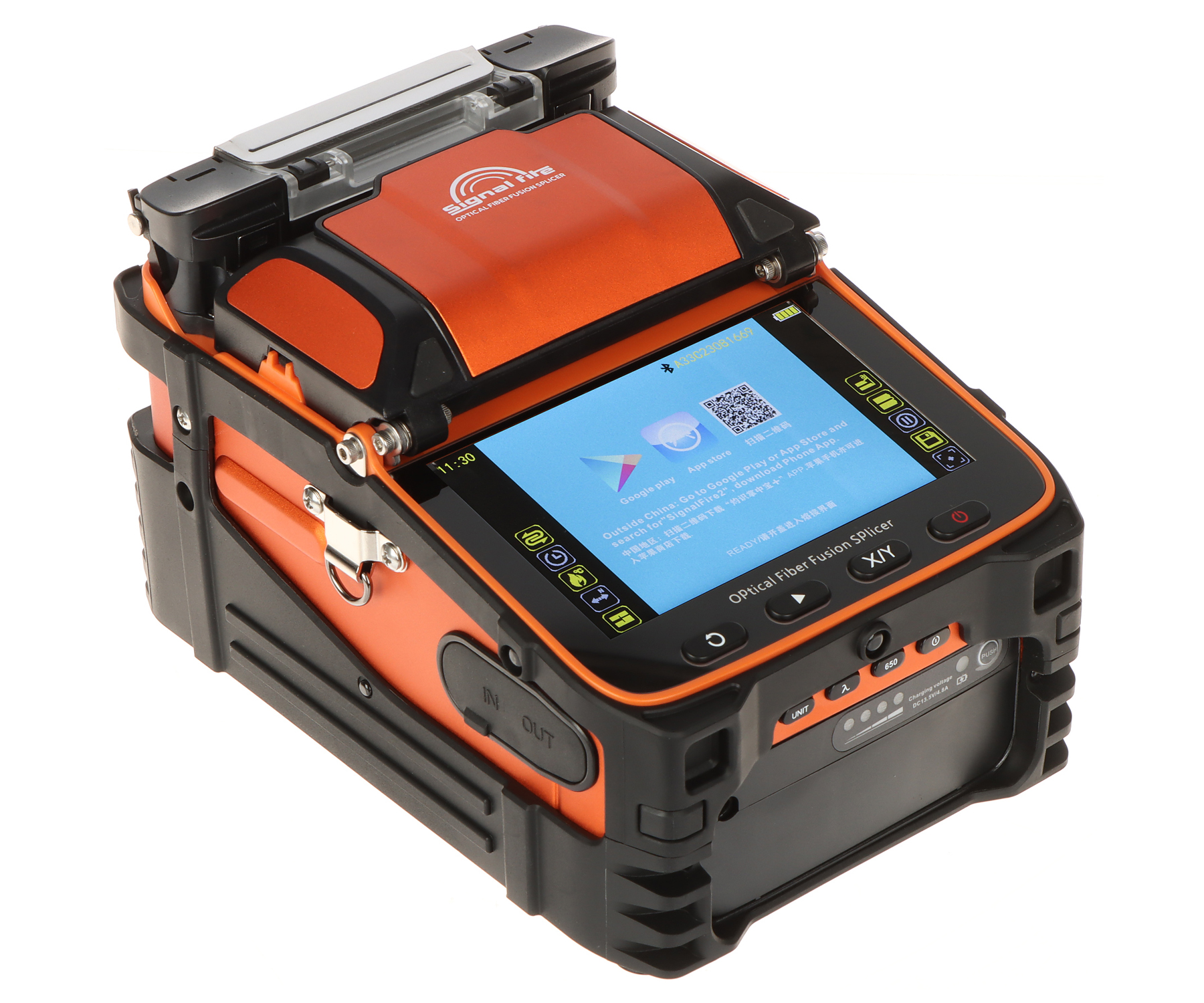

Promotional set with AI-9 optical fiber fusion splicer; Fiber optic type: Single-Mode (SM) - G.652, G.657, Multi-Mode (MM) - G.651, DS/NZDS ; Fiber cleaver knife: External (included) ; Visual Fault Locator of fiber cable (VFL): 650 nm ; Optical Power Meter (OPM): Measurement range : -50 ... +30 dBm ; Display: 5 " TFT LCD ; MENU access: Bluetooth 4.2, Signalfire2 application ; Power supply: 13.5 V DC ; Package: Bottle 100 ml ; Capacity: 250 ml ; Connector type: SC/APC ; Fiber optic type: 9 / 125 µm : G.657A1 ; Length: 1 m ;

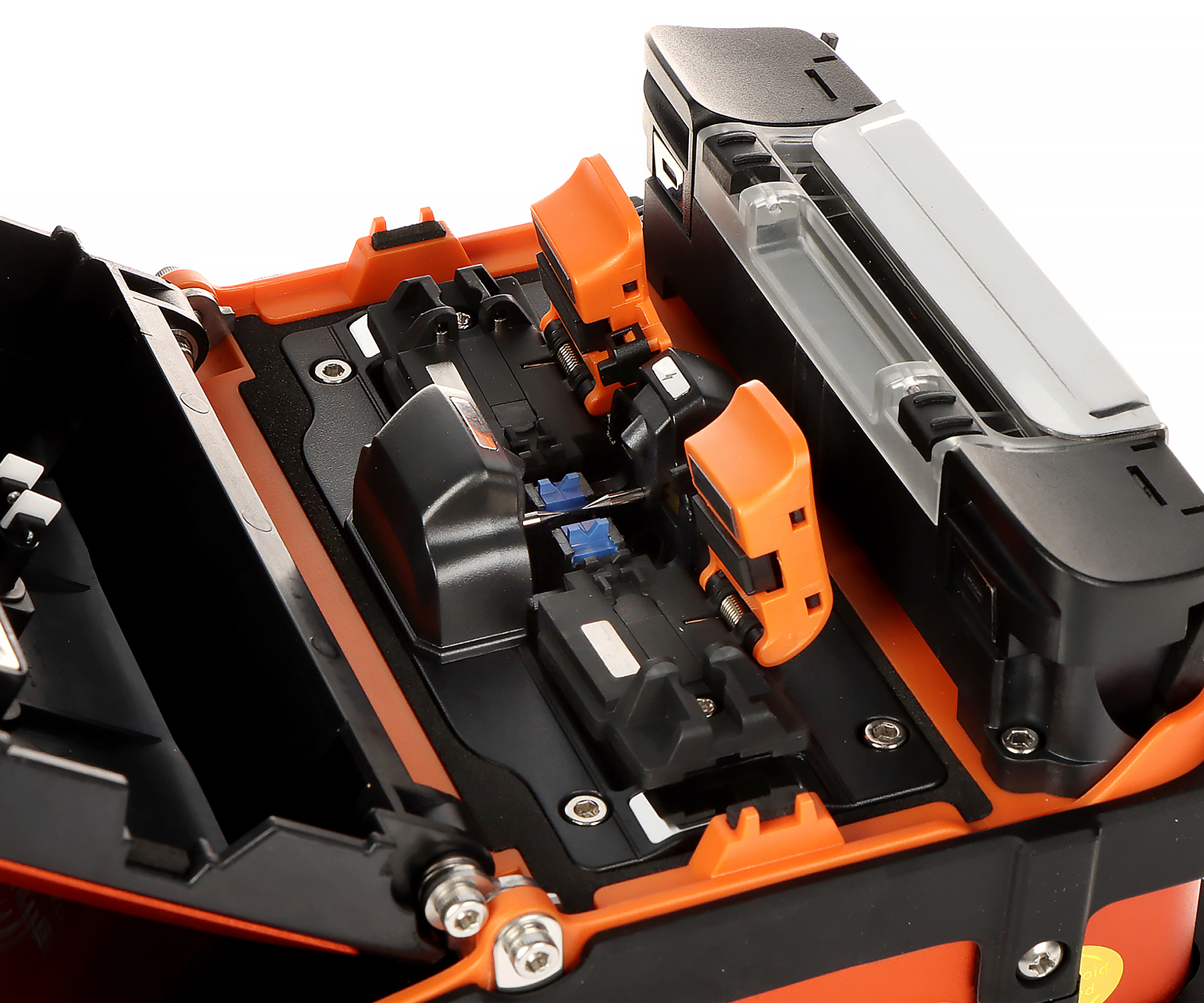

| Fiber alignment method: | 6 motors |
| Fiber positioning: | core alignment, cladding alignment |
| Splicing time: | 5 s |
| Splice protector sleeve heating time: | 15 s - possibility of your own settings |
| Fiber optic type: | |
| Cladding diameter: | 80 ... 150 µm |
| Average splicing loss: | |
| Splicing mode: | automatic, semi-automatic, manual |
| Fiber cleaver knife: | External (included), no built-in |
| Visual Fault Locator of fiber cable (VFL): | |
| Optical Power Meter (OPM): | |
| Image zoom: | |
| Supported splice protector sleeve lengths: | 25 ... 60 mm |
| Mechanical strength test: | 2 N |

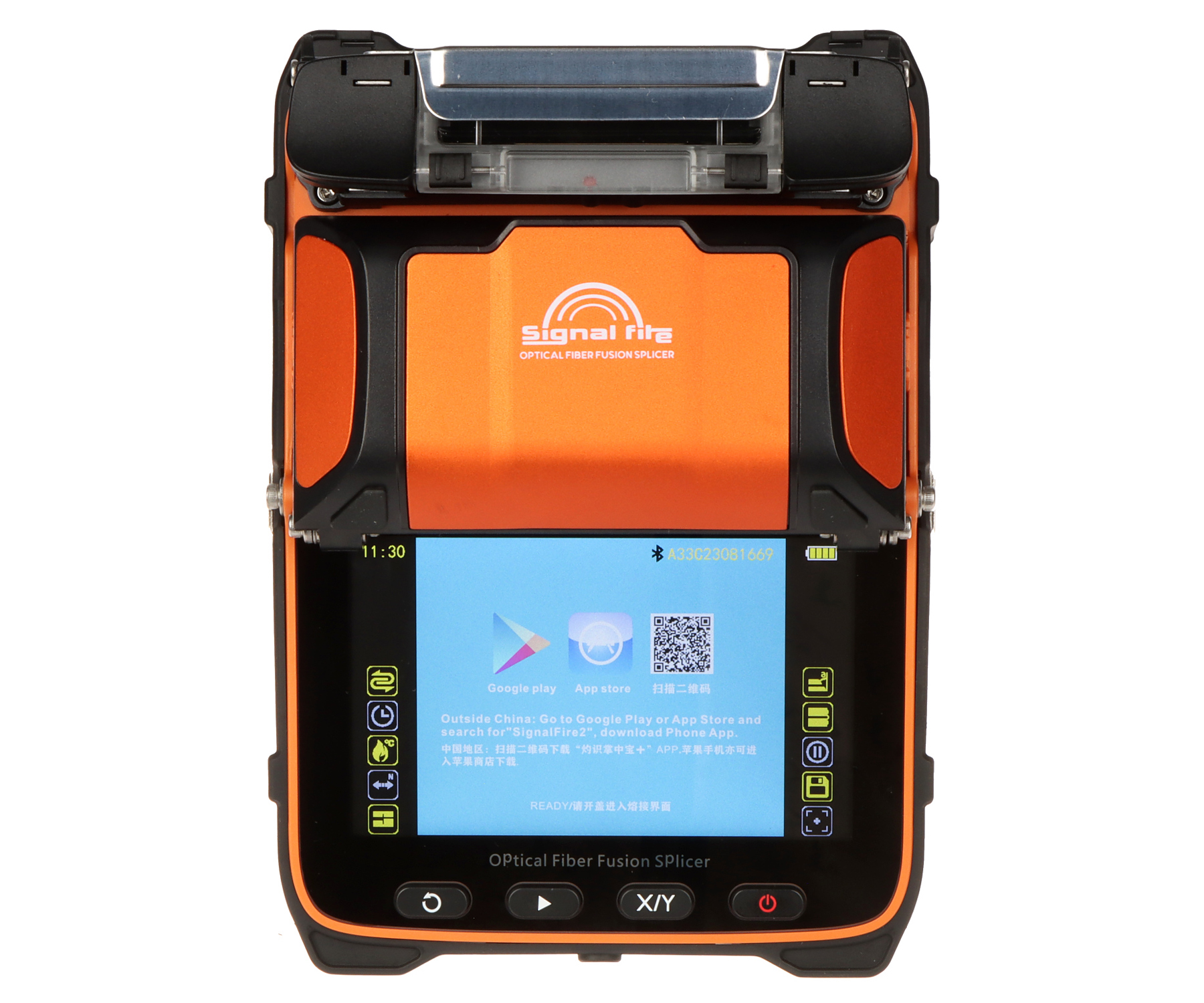

| Display: | 5 " TFT LCD |
| MENU access: | Bluetooth 4.2, Signalfire2 application |
| Main features: | |
| Battery: | |
| Power supply: | 13.5 V DC / 4.8 A (power adapter included) |
| Proper operation conditions: | |
| Supported languages: | Polish, English, Arabic, Chinese, French, Spanish, Portuguese, Russian, Italian |
| Weight: | 2.16 kg |
| Dimensions: | 202 x 145 x 128 mm |
| Manufacturer / Brand: | Signal Fire |
| Guarantee: | 3 years |

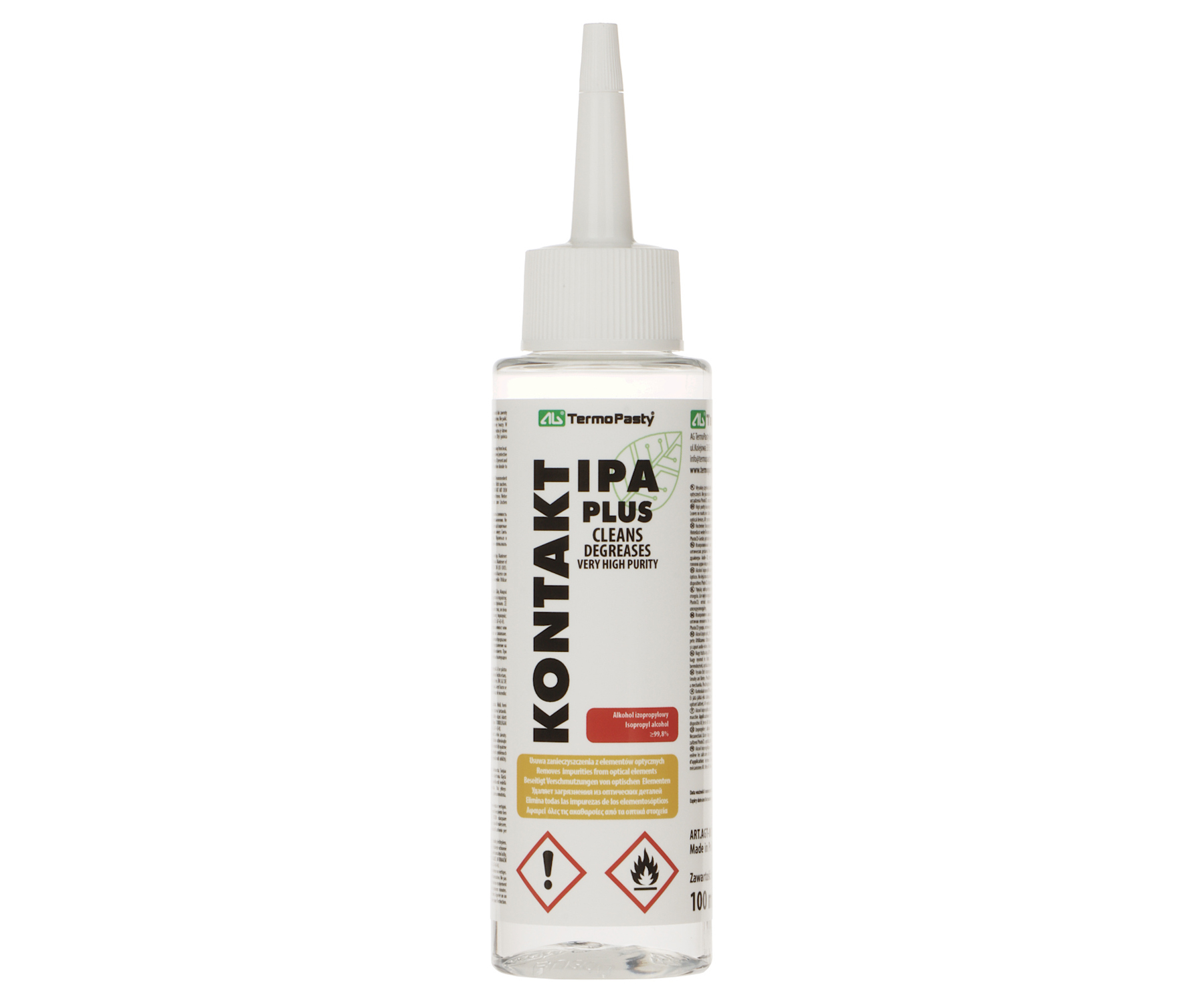

Isopropyl alcohol:
| Package: | Bottle 100 ml |
| Application: | Ideal for removing dirt from optical components |
| Weight: | 0.1 kg |
| Dimensions: | Ø 38 x 165 mm |
| Manufacturer / Brand: | AG TERMOPASTY |

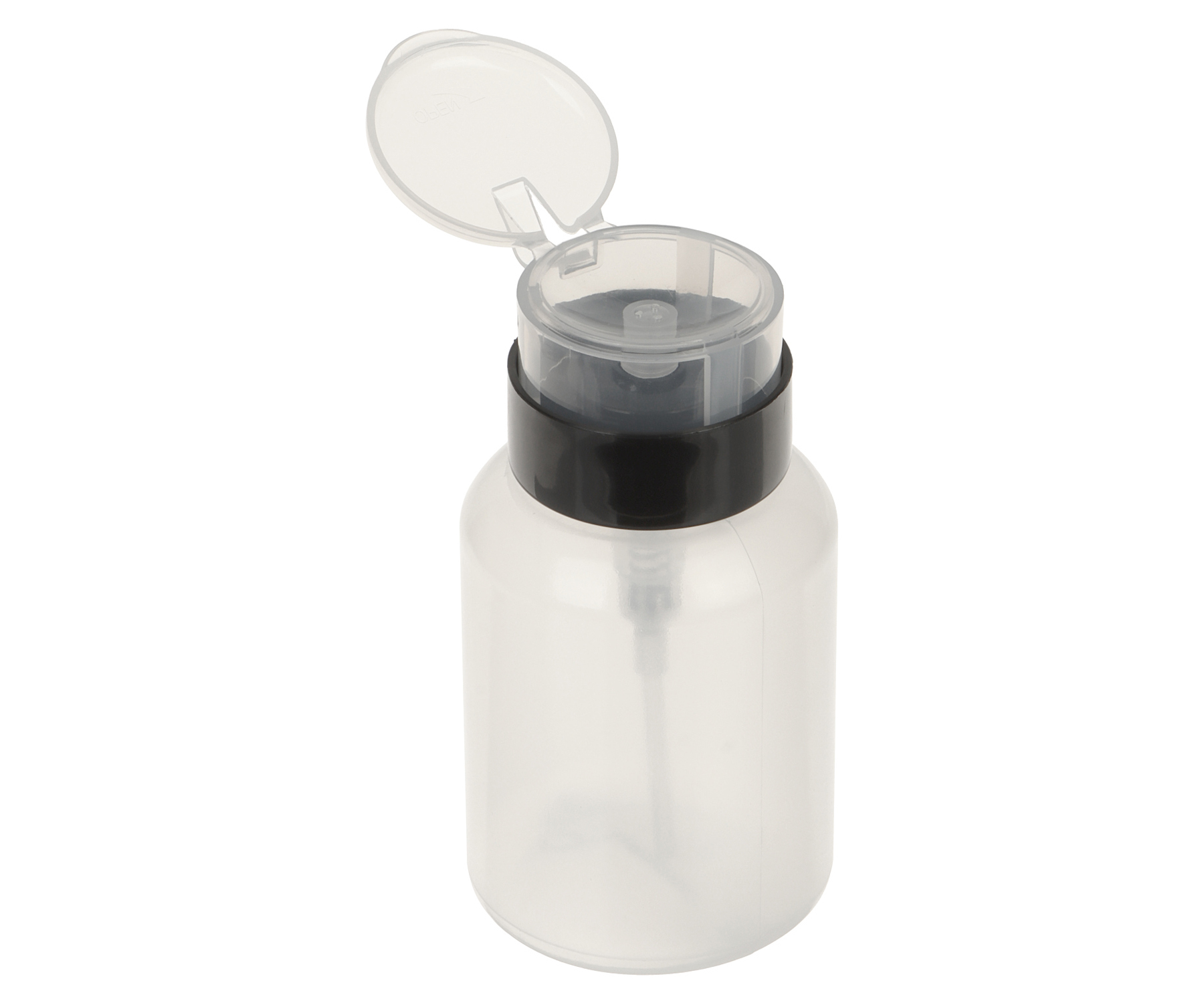

Container for Isopropyl Alcohol:
| Capacity: | 250 ml |
| Weight: | 0.036 kg |
| Dimensions: | Ø 62 x 125 mm |
| Manufacturer / Brand: | Delta Fiber |

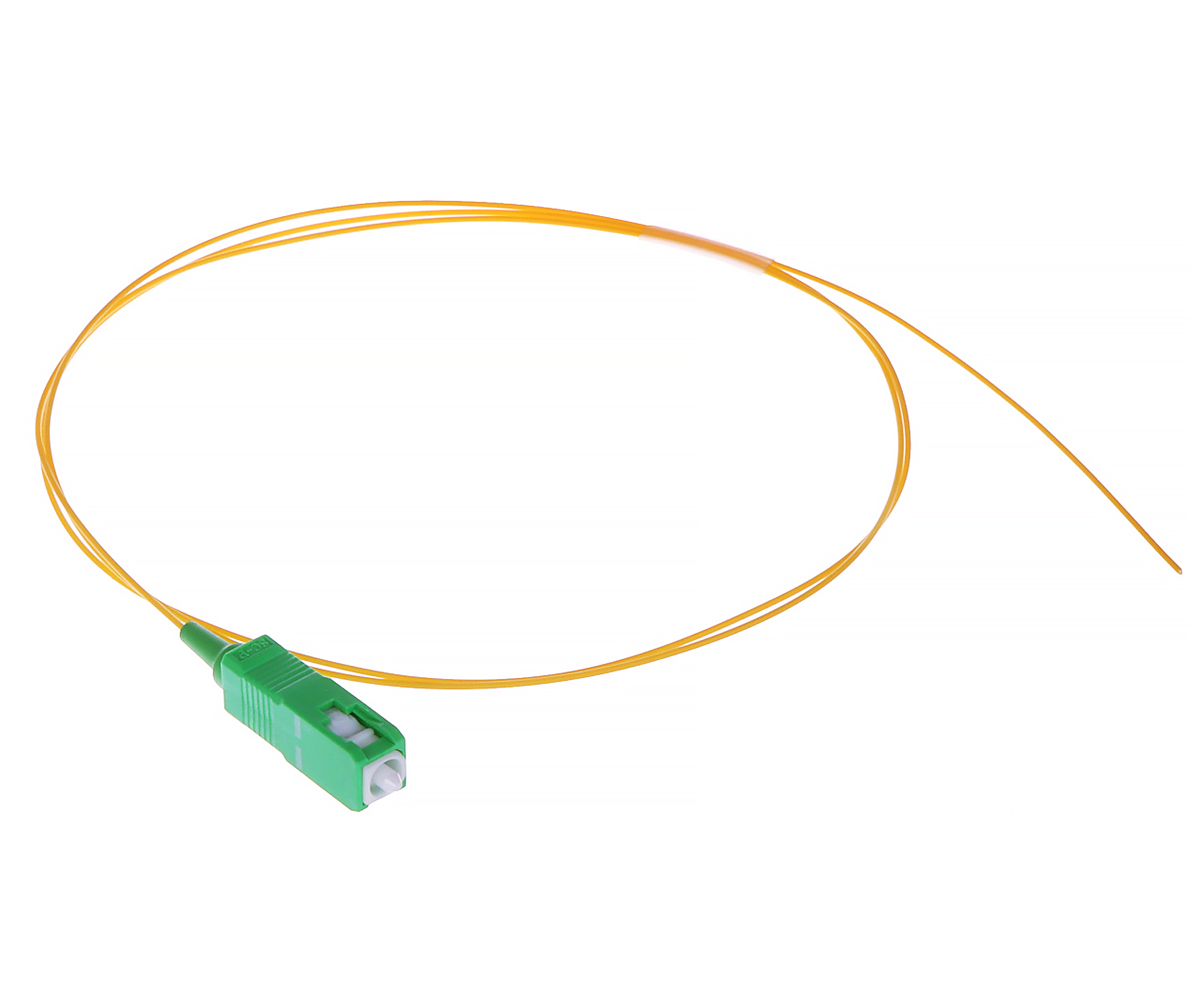

Single-mode Pigtail:
| Connector type: | SC/APC |
| Fiber optic type: | 9 / 125 µm : G.657A1 |
| Length: | 1 m |
| Manufacturer / Brand: | Delta Fiber |
| Guarantee: | 2 years |
Brand:
Delta-Opti
