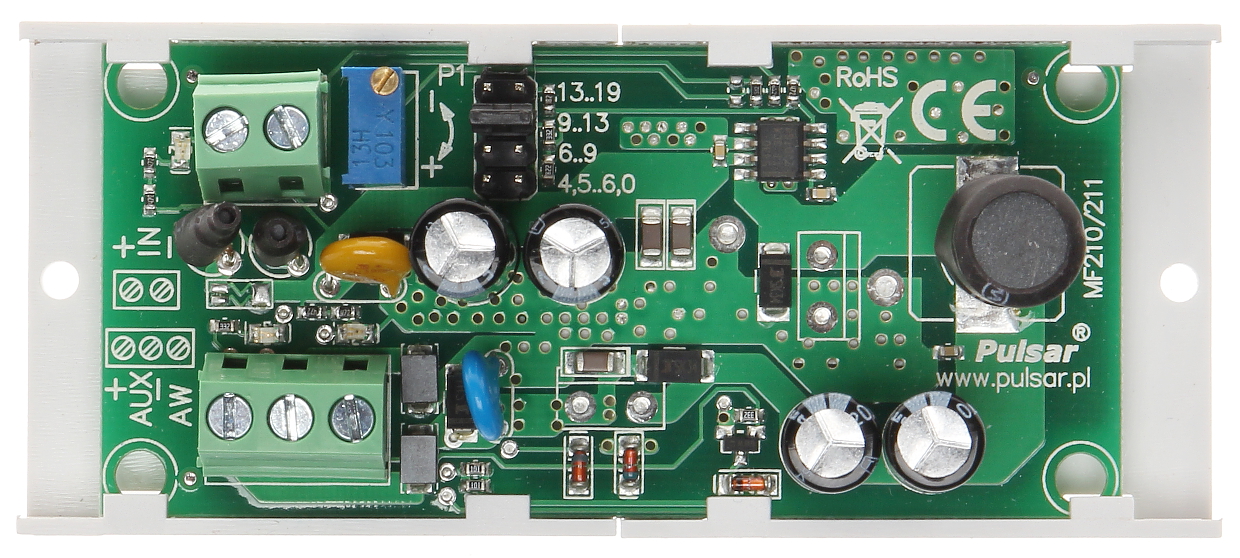

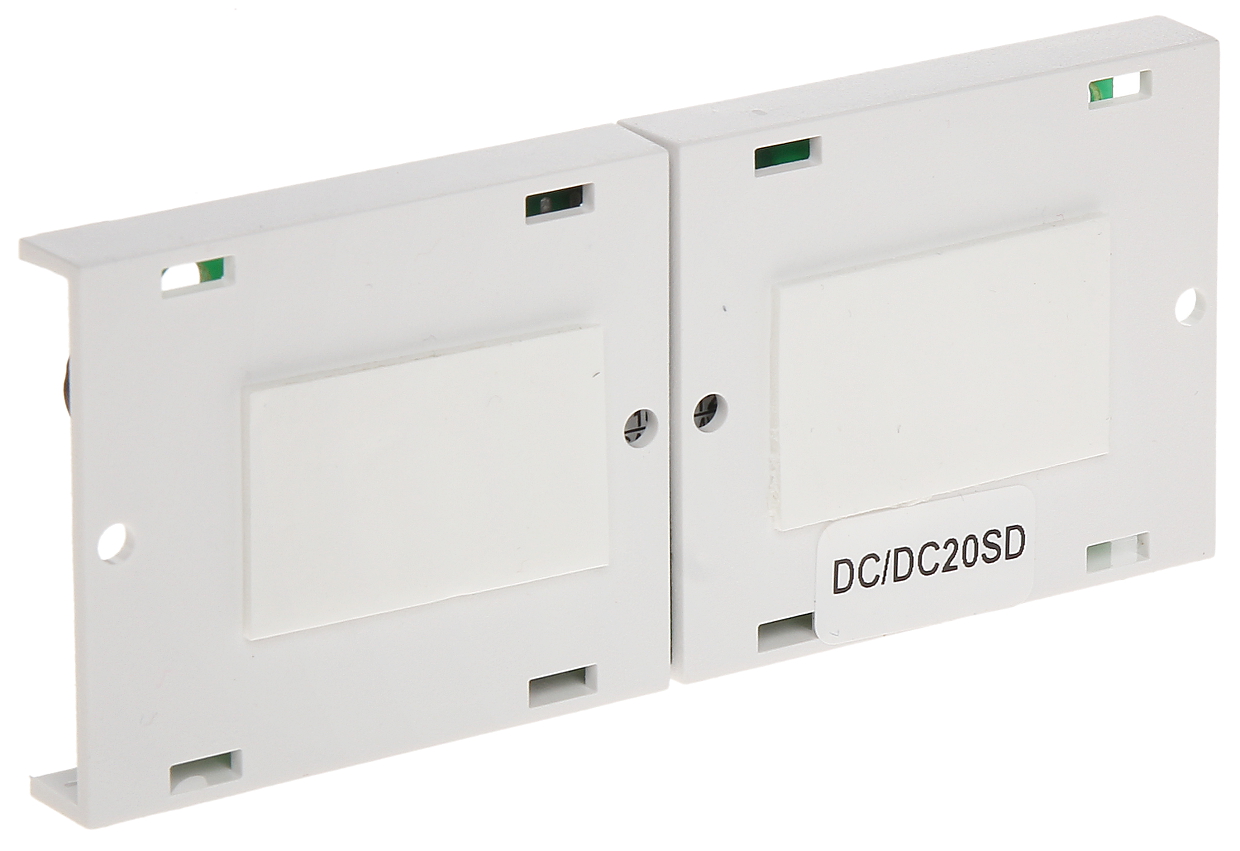

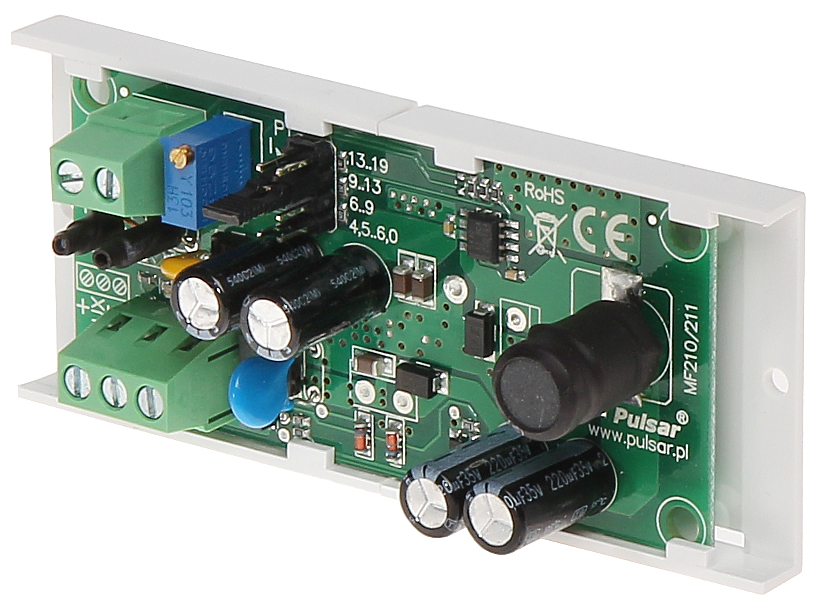

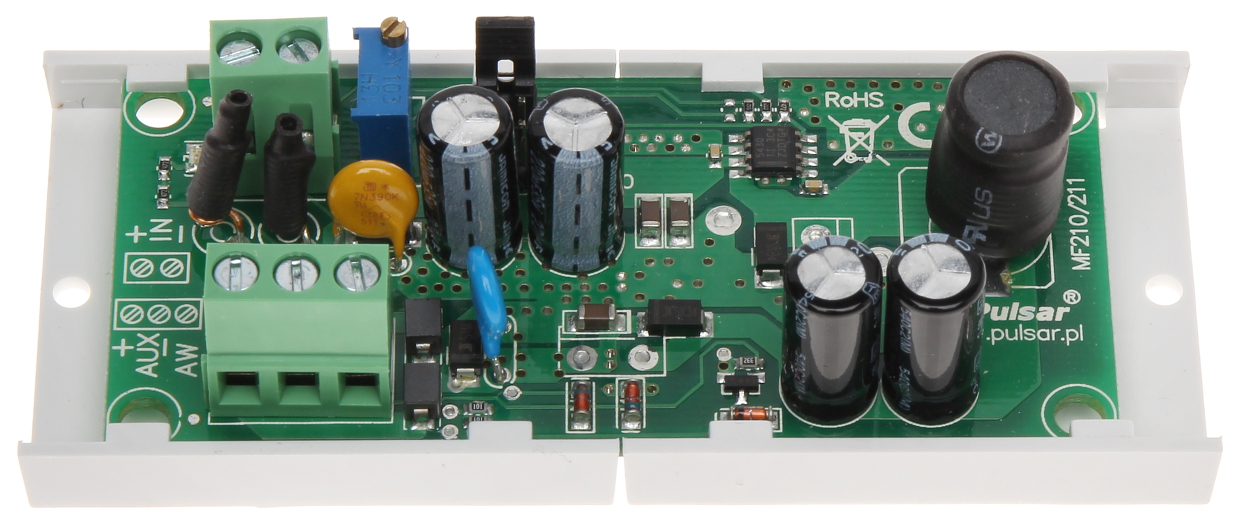

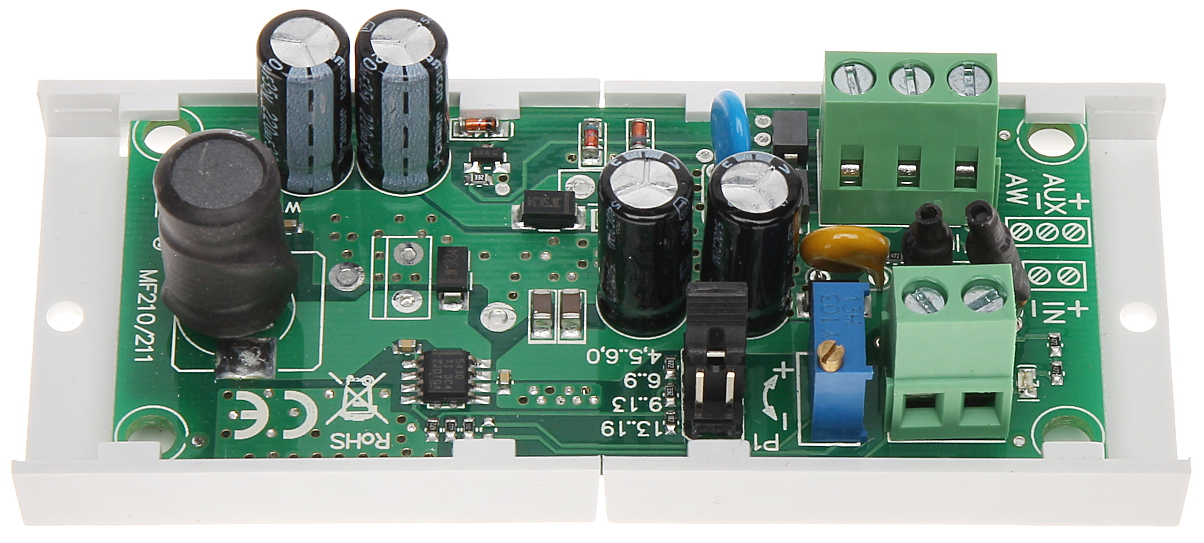

CONVERTER MODULE DCDC-20SD PULSAR [CLONE]
Войдите в учётную запись, чтобы мы могли сообщить вам об ответе
Type: Decreasing the voltage, DC/DC ; Power voltage: 8 V ... 28 V DC ; Output voltage: 4.5 ... 6 V DC, 6 ... 9 V DC, 9 ... 13 V DC, 13 ... 19 V DC, (set by jumpers) ; Output current: 2 A (max) ; Power: 24 W (max) ; Main features: AW output (fault) - OC type 50mA, LED indication of at least one output fault ;
| Type: | Decreasing the voltage, DC/DC |
| Power voltage: | 8 V ... 28 V DC |
| Output voltage: | (set by jumpers) |
| Output voltage adjustment: | By potentiometer |
| Output current: | 2 A (max) |
| Power: | 24 W (max) |
| Minimal voltage difference between out and in: | 3 V |
| Protections: | |
| Main features: | |
| Application: | |
| Weight: | 0.046 kg |
| Dimensions: | 100 x 43 x 27 mm |
| Manufacturer / Brand: | PULSAR |
| Guarantee: | 2 years |
Brand:
Pulsar
