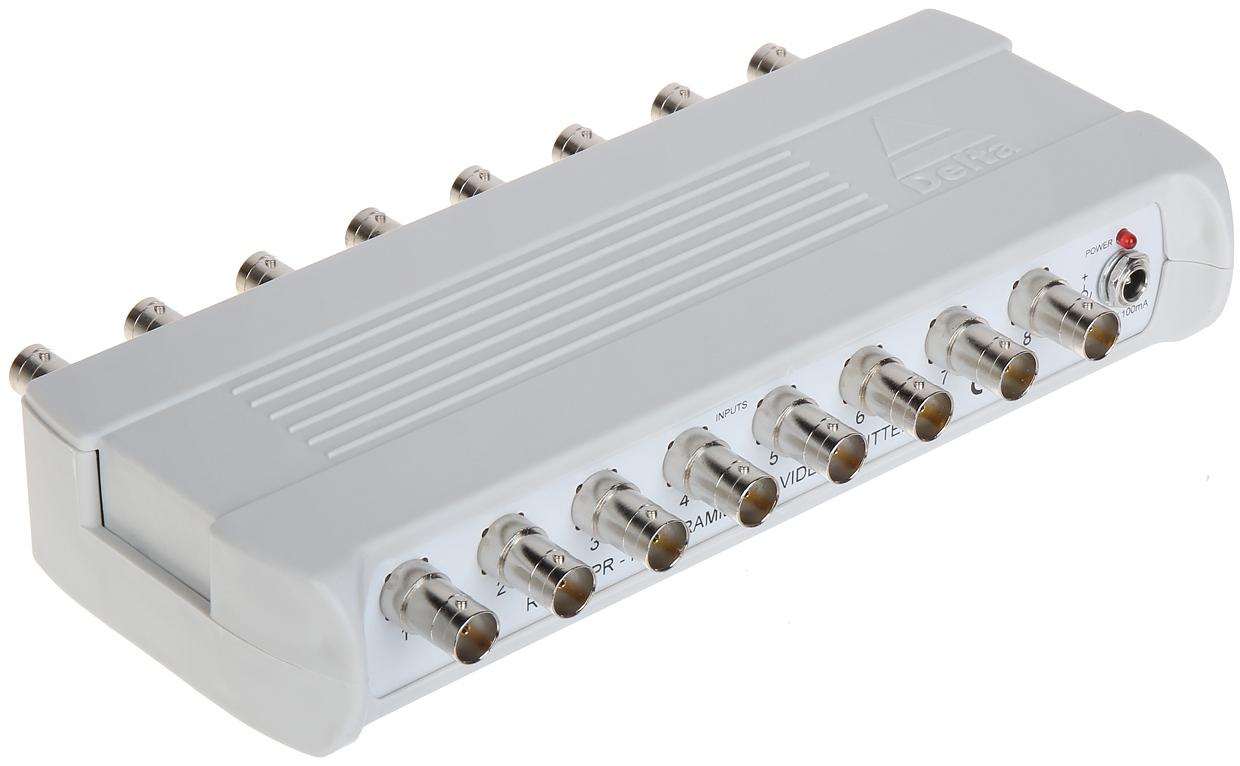

VIDEO SPLITTER RV-8/16PR
Войдите в учётную запись, чтобы мы могли сообщить вам об ответе
User programmable splitter; Standard: CVBS - PAL, NTSC ; Number of inputs: 8 pcs BNC ; Number of outputs: 16 pcs BNC ; Power supply: 12 V DC ;
| Standard: | CVBS - PAL, NTSC |

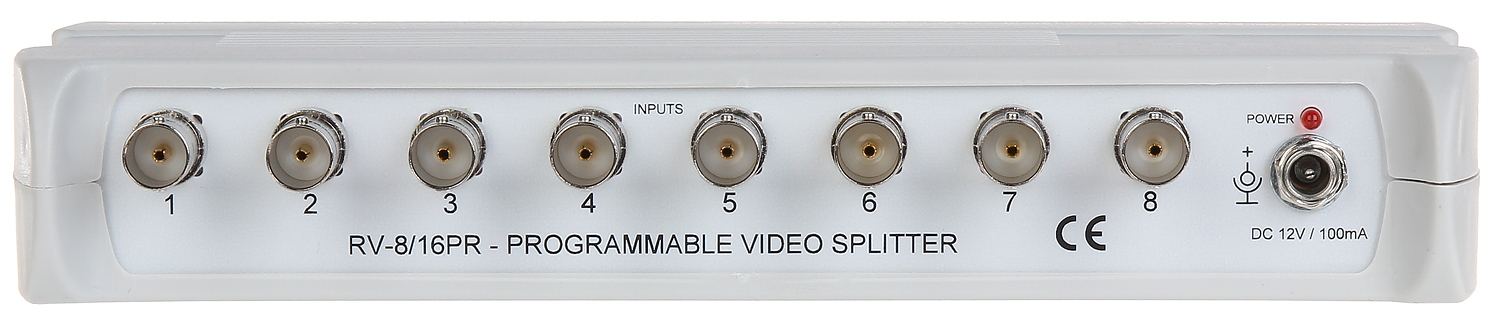

| Number of inputs: | 8 pcs BNC |

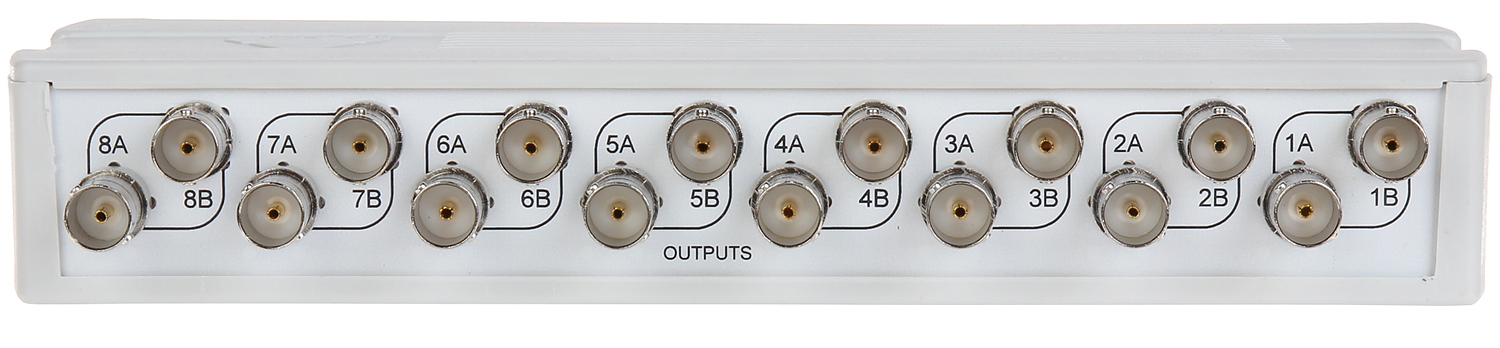

| Number of outputs: | 16 pcs BNC |
| Bandwidth: | 0 ... 40 MHz (-3dB) |
| Inputs impedance: | 75 Ω |
| Outputs impedance: | 75 Ω |
| Outputs configuration: |  |
| Power supply: | 12 V DC (power adapter not included) |
| Current consumption: | 100 mA |
| Gain : | 0 dB |
| Weight: | 0.350 kg |
| Dimensions: | 222 x 36 x 110 mm |
| Manufacturer / Brand: | DELTA |
| Guarantee: | 3 years |
Brand:
Delta
