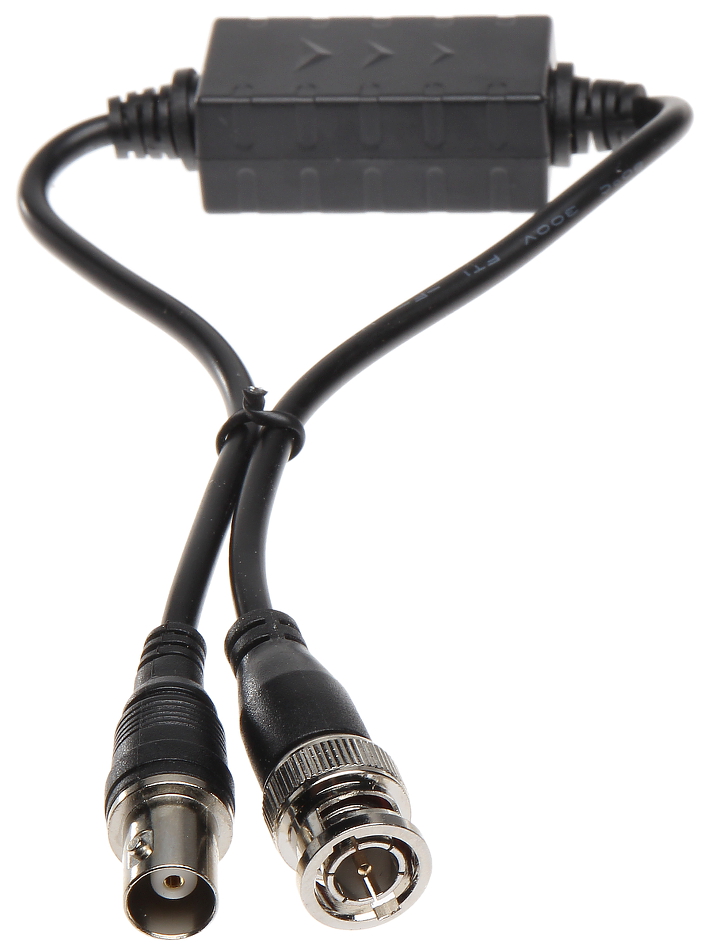

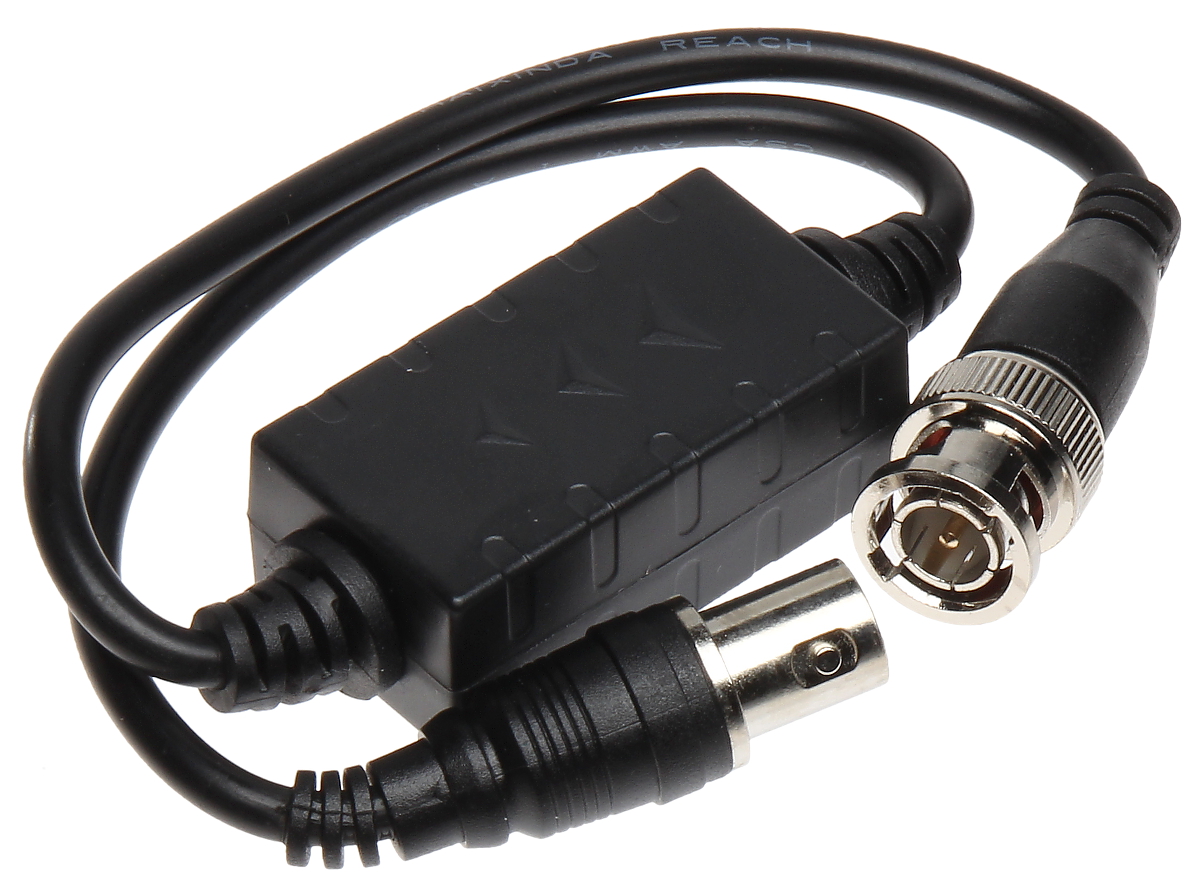

VIDEO SEPARATOR AHD, HD-CVI, HD-TVI, PAL PFM791 DAHUA
Войдите в учётную запись, чтобы мы могли сообщить вам об ответе
Standard: AHD, HD-CVI, HD-TVI, PAL ; Number of inputs: 1 ; Number of outputs: 1 ; Opto-isolation between input and output: 800 V - peak ; Insertion loss: 0.5 dB ; Operation temp: -20 °C ... 55 °C ;
| Standard: | AHD, HD-CVI, HD-TVI, PAL |
| Device type: | Passive |
| Number of inputs: | 1 - BNC socket |
| Number of outputs: | 1 - BNC plug |
| Input impedance: | 75 Ω |
| Output impedance: | 75 Ω |
| Opto-isolation between input and output: | 800 V - peak |
| Insertion loss: | 0.5 dB |
| Bandwidth: | 0 ... 65 MHz |
| Main features: | |
| ESD protection: | 600 V (contact discharge) 8000 V (air-gap discharge) |
| Power supply: |  |
| Housing type: | ABS |
| Operation temp: | -20 °C ... 55 °C |
| Permissible relative humidity: | 0 % ... 95 % |
| Weight: | 0.034 kg |
| Dimensions: | 42 x 23 x 16 mm |
| Manufacturer / Brand: | DAHUA |
| Guarantee: | 3 years |
Brand:
Dahua
