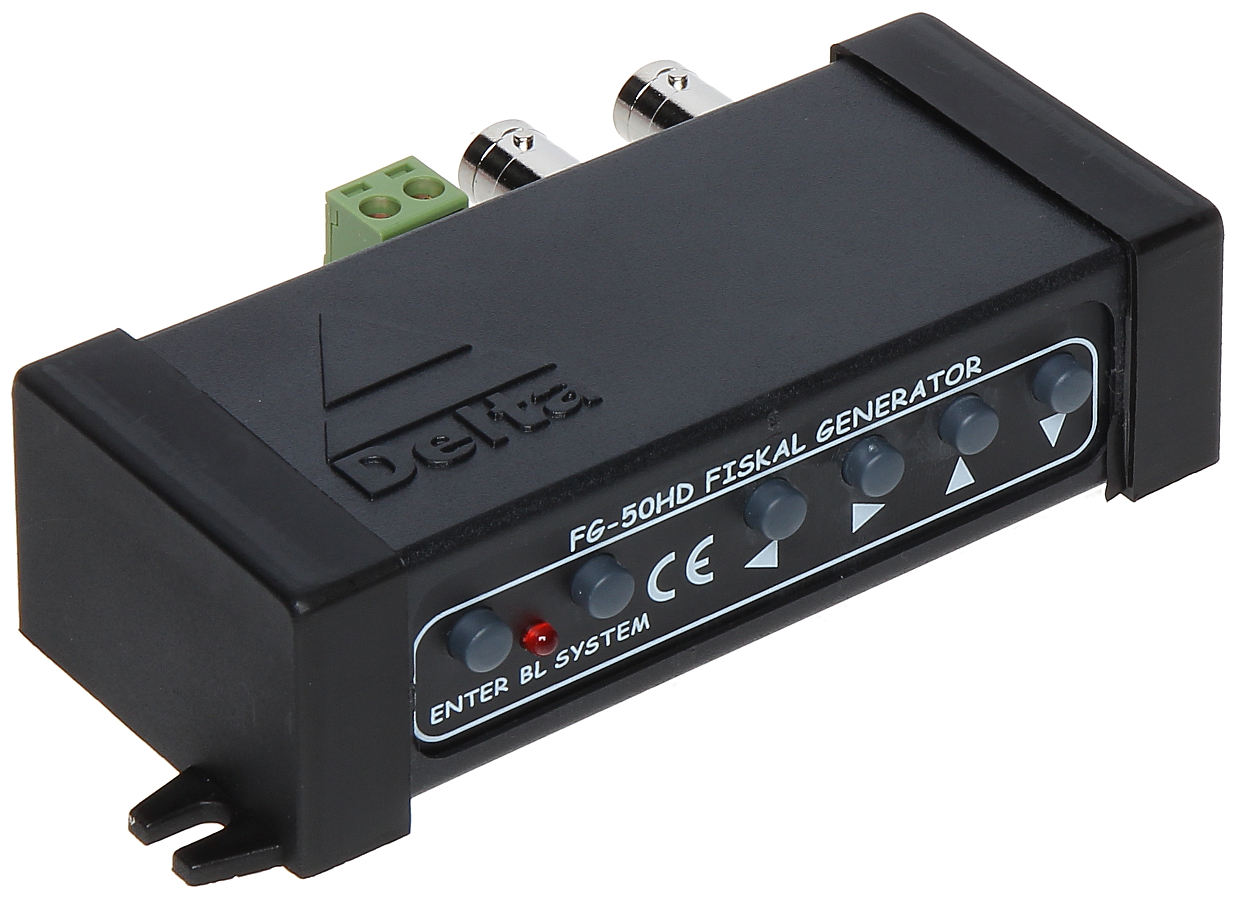

CHARACTER GENERATOR OSD FG-50HD
Войдите в учётную запись, чтобы мы могли сообщить вам об ответе

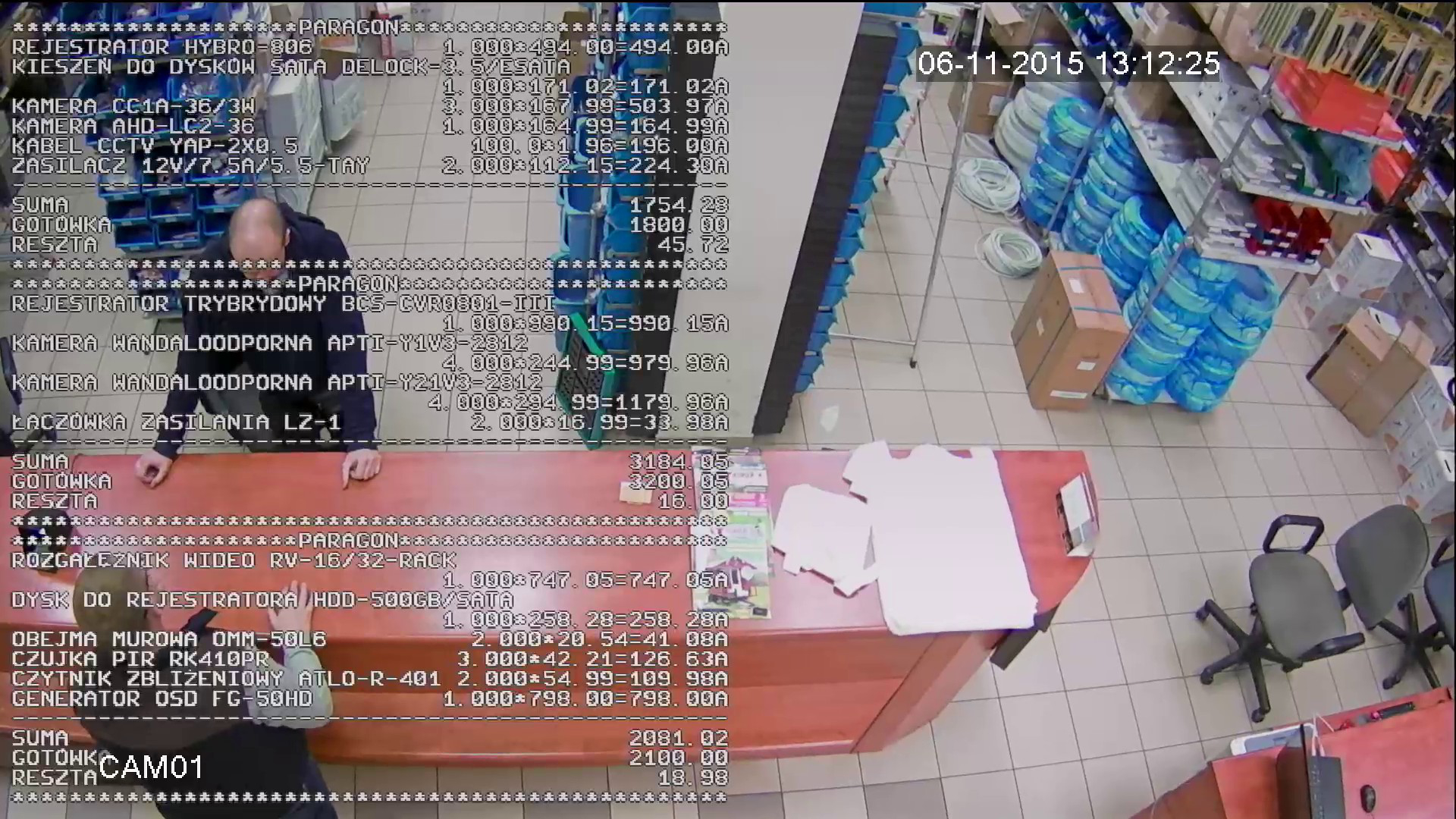

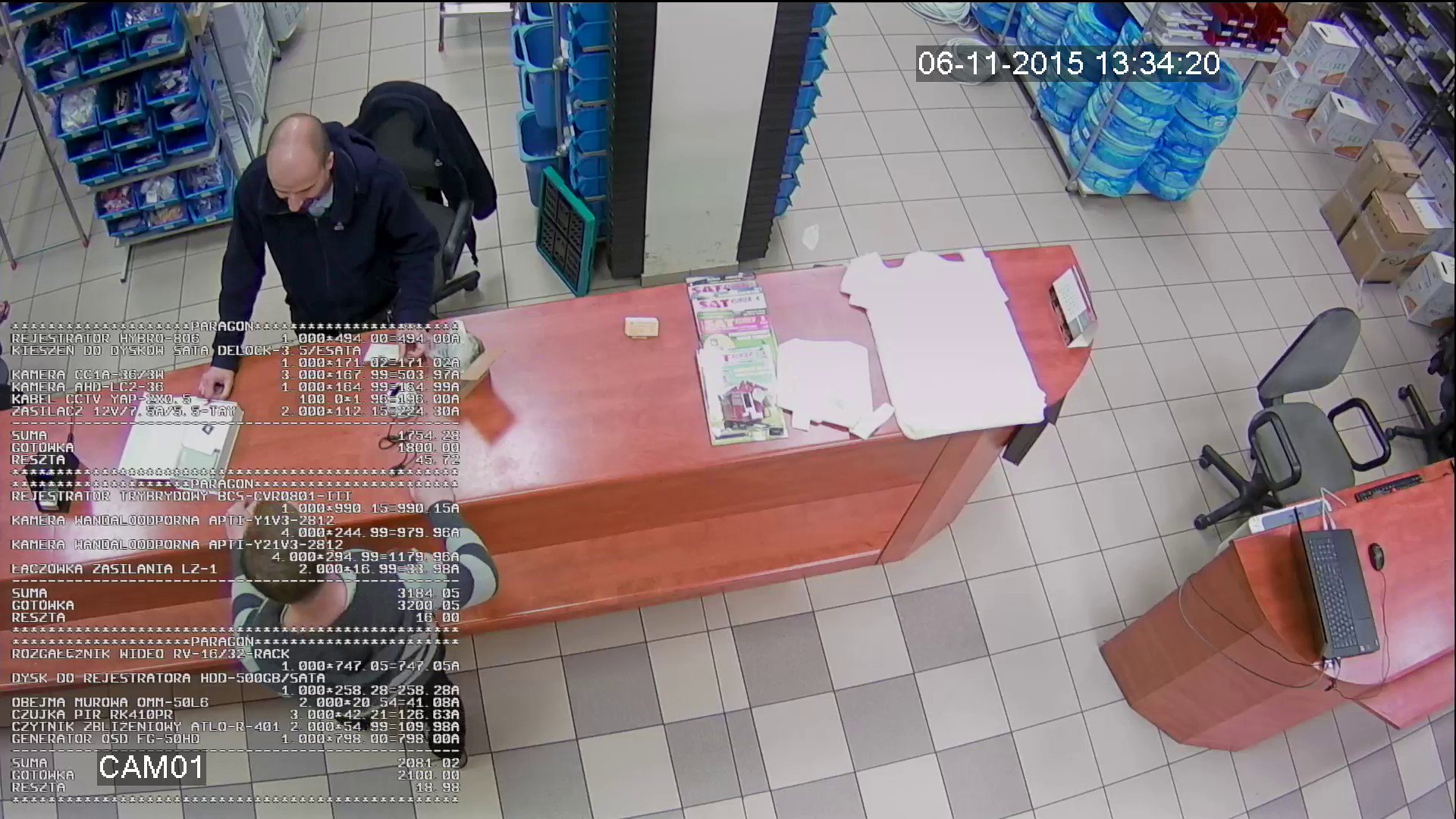

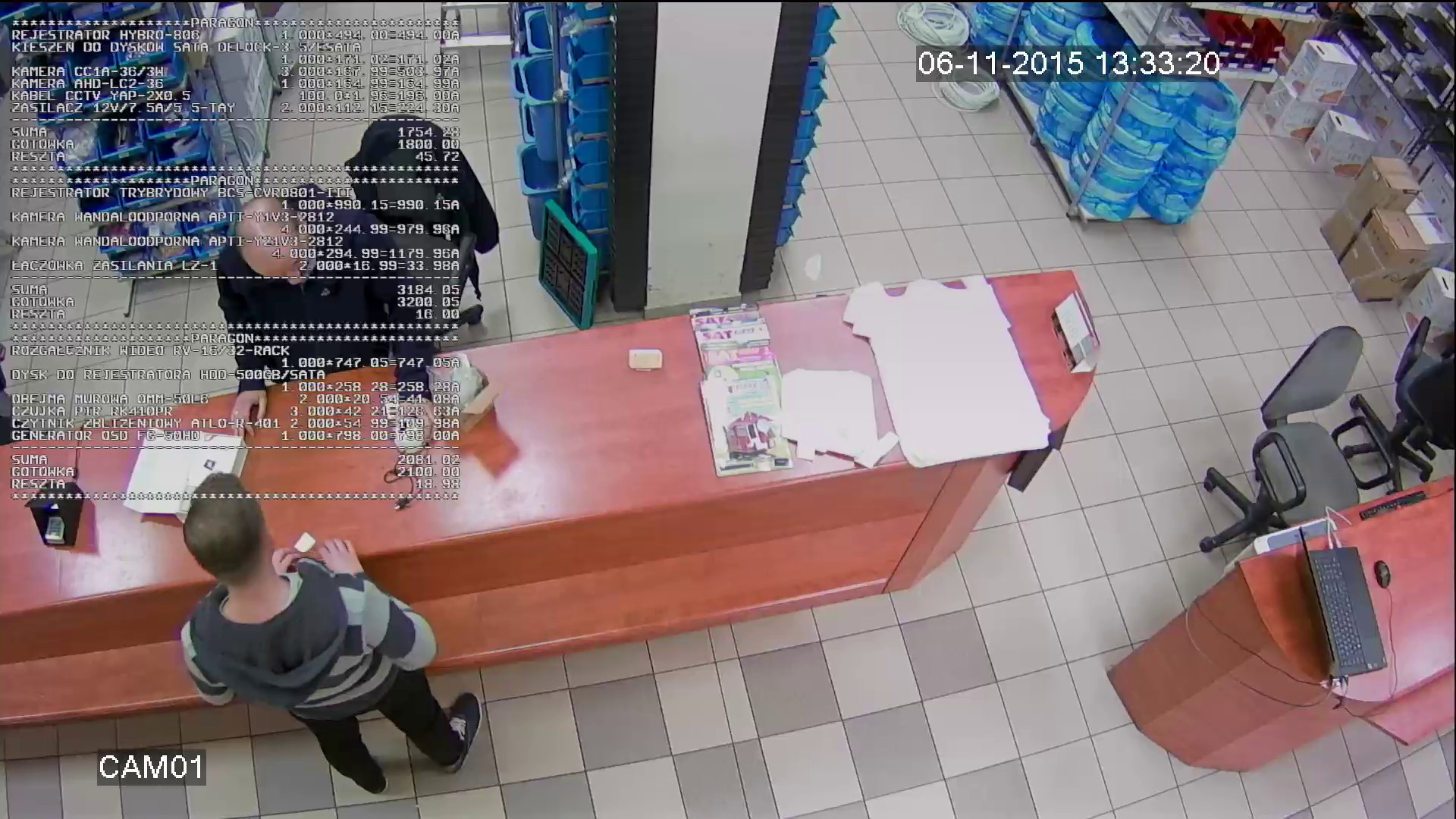

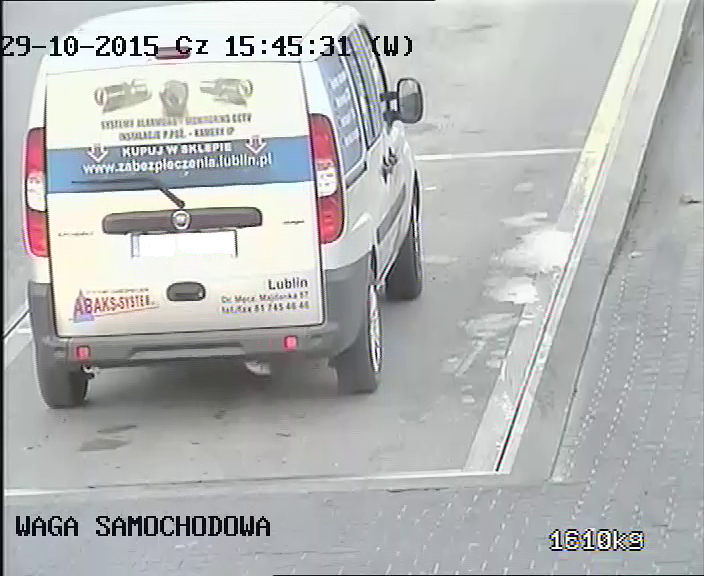

The device is designed for display alphanumeric characters on the image from camera; Supported standards: PAL, 720p, 1080p, HD-CVI - 720p / 1080p, HD-TVI - 720p / 1080p ; Number of video inputs: 1 x BNC socket ; Number of video outputs: 1 x BNC socket ; Range RS-485: 1200 m ; Video signal amplification: 0 dB ; Maximal number of characters in one line: 50 ;
| Supported standards: | |

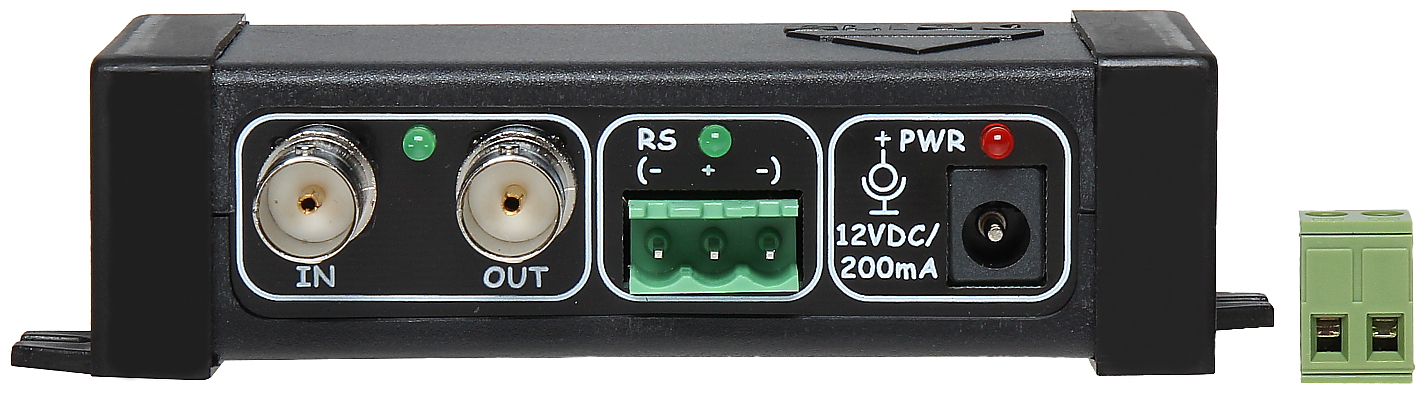

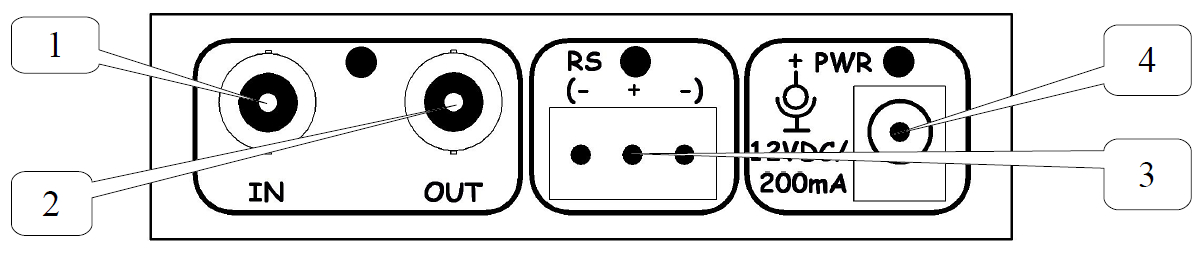

| Number of video inputs: | 1 x BNC socket |
| Number of video outputs: | 1 x BNC socket |
| Range RS-485: | 1200 m |
| Video signal amplification: | 0 dB |
| Maximal number of characters in one line: | 50 |
| Maximal number of lines: | 40 |
| Maximum number of characters on the screen: | 2000 |

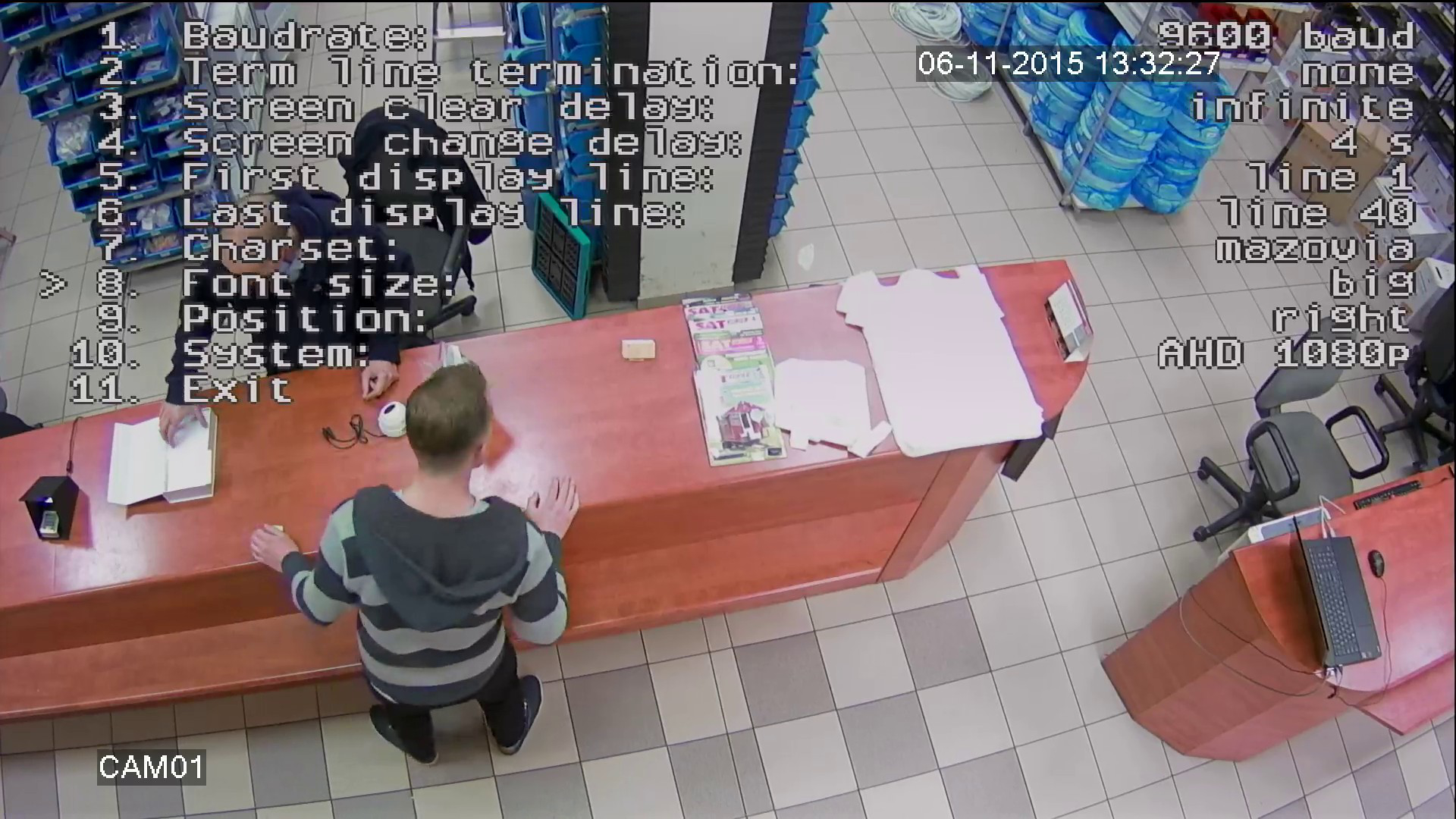

| The ability to change font size: |  |
| The ability to change the position of the titles: | |
| The ability to change the font and create own table of graphic characters: | |
| The ability to firmware upgrade: | |

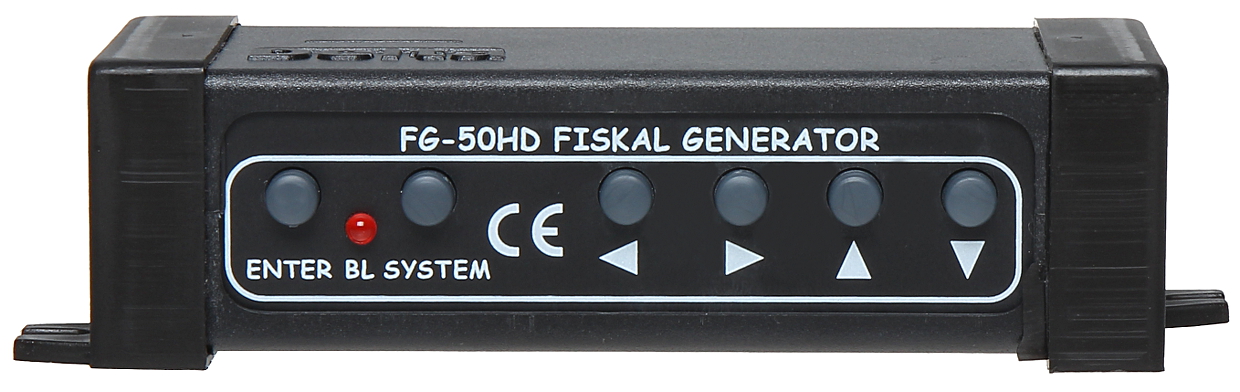

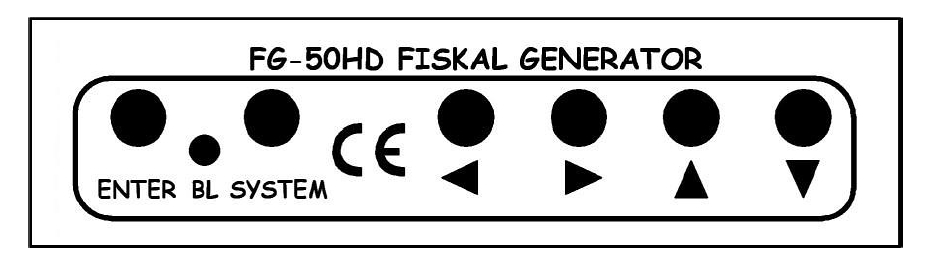

| Keyboard lock: |  |
| Cross generator: | |
| Power supply: | 12 V DC / 200 mA (power adapter not included) |
| Support: | |
| Weight: | 0.095 kg |
| Dimensions: | 100 x 62 x 28 mm |
| Manufacturer / Brand: | DELTA |
| Guarantee: | 3 years |
Brand:
Delta
