VIDEO BALUN TR-1C*P2
Войдите в учётную запись, чтобы мы могли сообщить вам об ответе
In package: 2 pcs The price for package ; Standard: AHD - 8 Mpx, HD-CVI - 8 Mpx 4K UHD, HD-TVI - 8 Mpx 4K UHD, CVBS - PAL, NTSC ; Device type: Passive ; Number of channels: 1 ; Symmetrical socket type: Cable terminals ;
| In package: | 2 pcs The price for package |
| Standard: | |
| Device type: | Passive |
| Number of channels: | 1 |
| Video transmission range: | |
| Coaxial socket voltage range 75Ω (CVBS): | 1 Vpp |

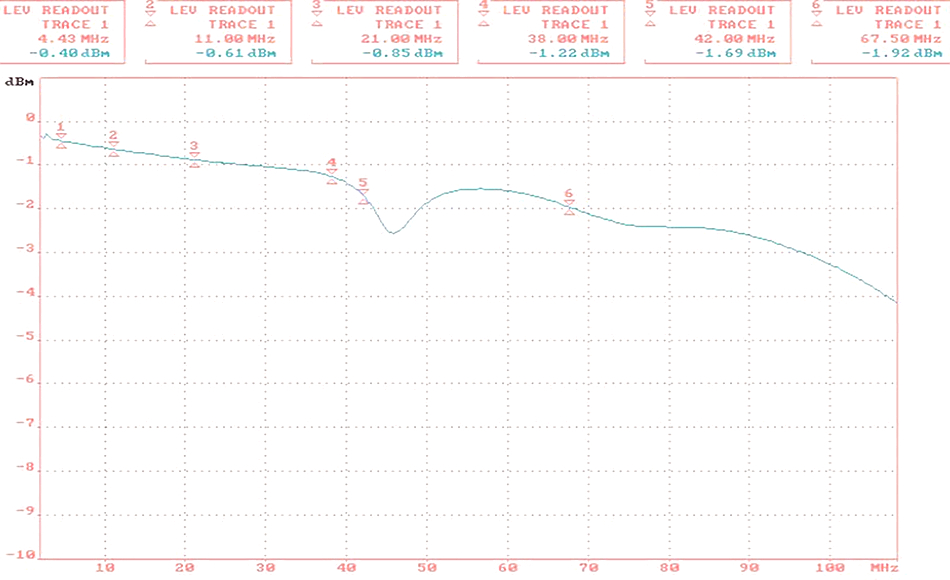

| Attenuation: | |
| CMRR (dB @ 5MHz): | 50 dB |
| Coaxial socket impedance: | 75 Ω |
| Symmetrical socket impedance: | 100 Ω |
| Coaxial socket type: | BNC Straight plug |
| Symmetrical socket type: | Cable terminals |
| Operation temp: | -10 °C ... 55 °C |
| Permissible relative humidity: | < 95 % |
| Weight: | 0.012 kg |
| Dimensions: | 47 x 16 x 15 mm |
| Guarantee: | Lifetime warranty |
Brand:
Delta CCTV
