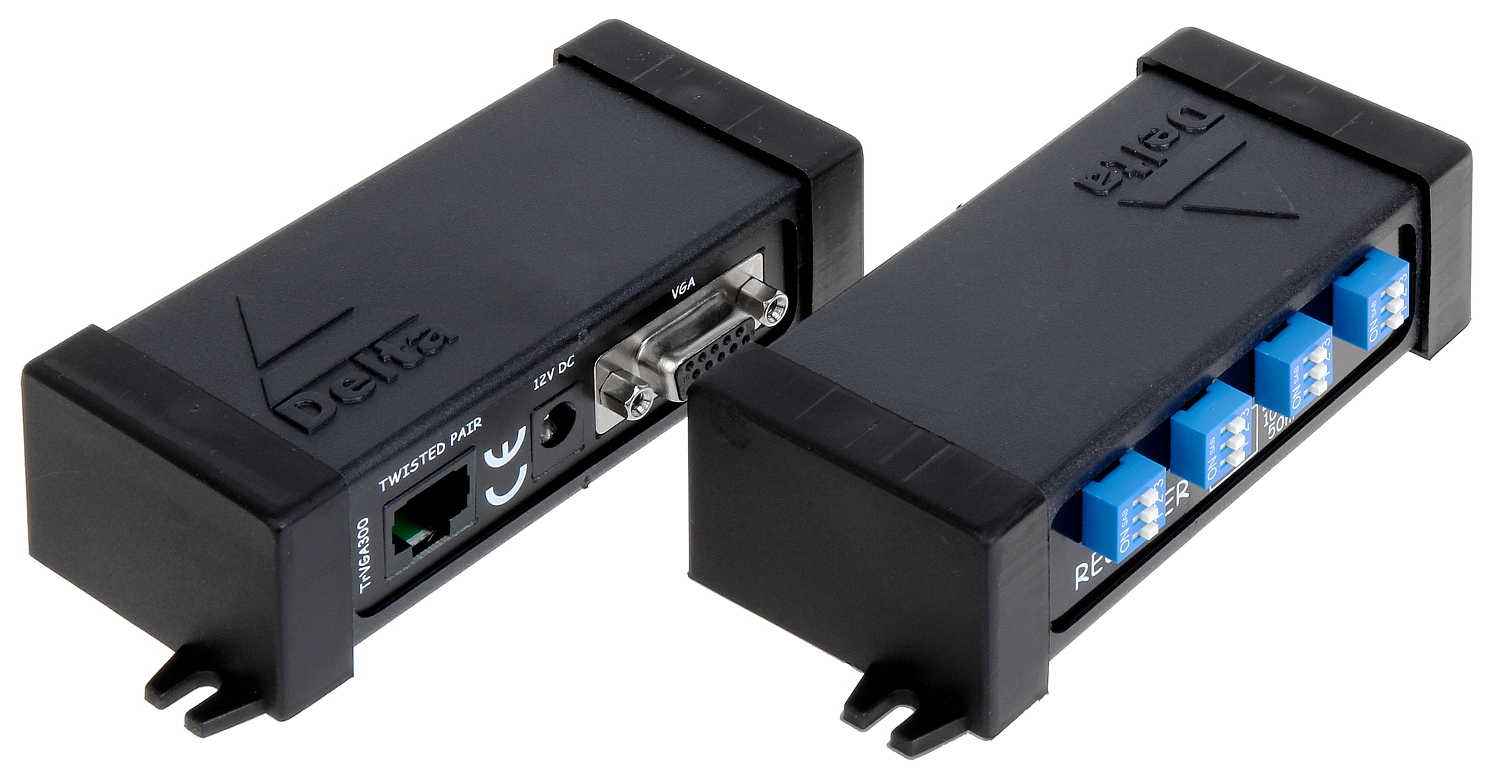

EXTENDER VGA TRVGA-300-P
Войдите в учётную запись, чтобы мы могли сообщить вам об ответе

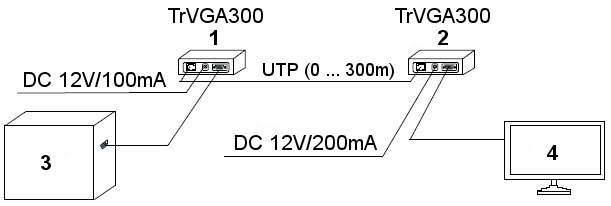

The TRVGA-300-P is designed for active transmission of the VGA signal via twisted-pair cable for the distance up to 300m; Device type: Active ; Number of channels: 1 VGA ; Video transmission range: max. 300 m ;

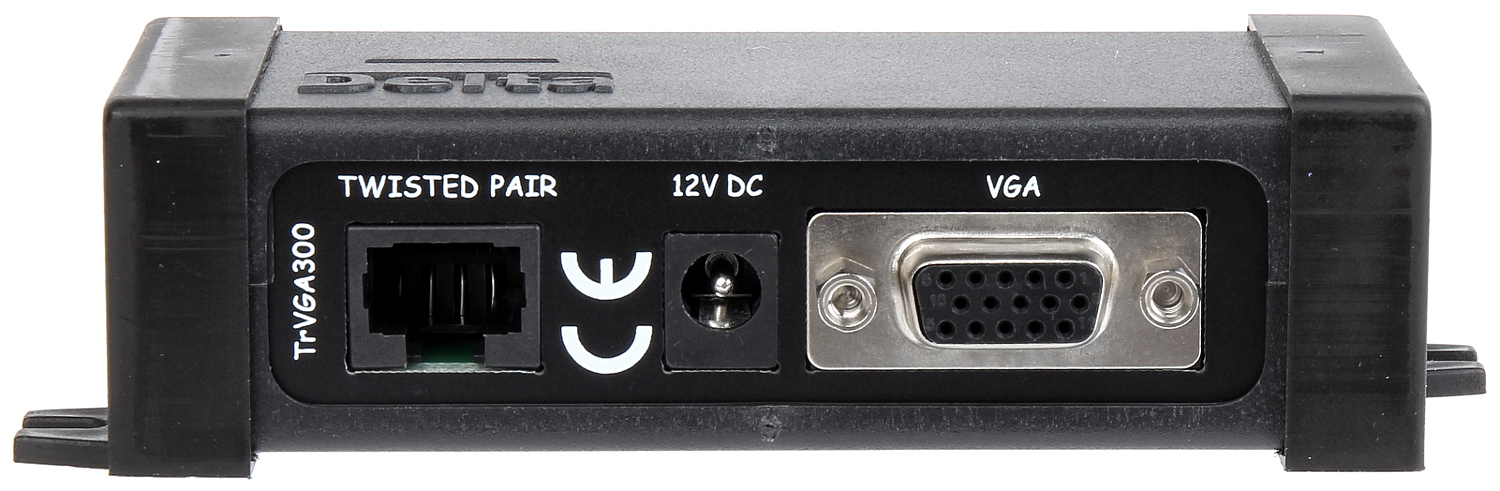

| Device type: | Active / Transmitter |
| Number of channels: | 1 VGA |
| Power supply: | 12 V / 70 mA (power adapter not included) |
| Video transmission range: | max. 300 m |
| Symmetrical socket impedance: | 100 Ω |

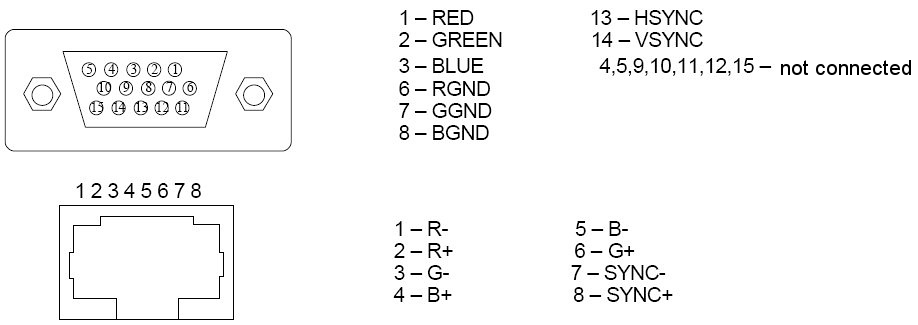

| Connectors type: | VGA Socket |
| Symmetrical socket type: | RJ-45 (8-pin, 4 pairs) Socket |
| Weight: | 0.078 kg |
| Dimensions: | 118 x 30 x 48 mm |

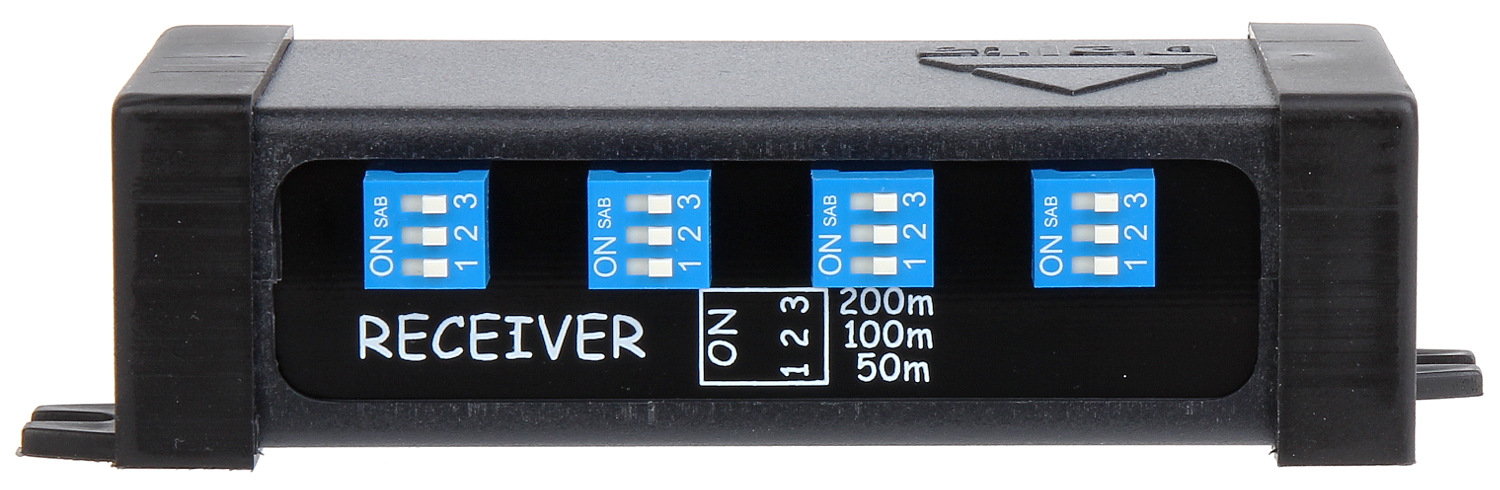

| Device type: | Active / Receiver |
| Number of channels: | 1 VGA |
| Power supply: | 12 V / 170 mA (power adapter not included) |
| Video transmission range: | max. 300 m |
| Symmetrical socket impedance: | 100 Ω |
| Connectors type: | VGA Socket female |
| Symmetrical socket type: | RJ-45 (8-pin, 4 pairs) Socket |
| Weight: | 0.078 kg |
| Dimensions: | 118 x 30 x 54 mm |
| Main features: | |
| Resolution: | |
| Manufacturer / Brand: | DELTA |
| Guarantee: | 3 years |
Brand:
Delta
