IP-тепловизионная камера TPC-BF5601-B13-DC-S2 - 1,4 Мп, 13 мм, DAHUA
Войдите в учётную запись, чтобы мы могли сообщить вам об ответе
Sensor: Uncooled VOx microbolometer ; Matrix size: 640 x 512 px ; Thermal sensitivity (NETD): ≤ 40 mK ; Resolution: max. 1280 x 1024 ; View angle: 48.9 ° ; Video output: CVBS, PAL - 1 Vpp / 75 Ω, BNC ; Power supply: 12 V DC, PoE (802.3af), ePoE ;
| Standard: | IP, CVBS |
| Sensor: | Uncooled VOx microbolometer |
| Matrix size: | 640 x 512 px |
| Pixel pitch: | 17 µm |
| Thermal sensitivity (NETD): | ≤ 40 mK |
| Spectral range: | 8 µm ... 14 µm |
| Resolution: | max. 1280 x 1024 - 1.4 Mpx |
| Lens: | 13 mm |
| View angle: | 48.9 ° |
| Video output: | CVBS, PAL - 1 Vpp / 75 Ω, BNC |
| RS-485 interface: |  |
| Memory card slot: | Micro SD memory cards up to 256GB support (possible local recording) |
| Image compression method: | H.265 / H.264 / MJPEG |
| Alarm inputs / outputs: | 2 / 2 |
| Audio: | |
| Temperature measurement: |  |
| Main stream frame rate: | 25 fps @ 1280 x 1024 |
| Network interface: | 10/100 Base-T (RJ-45) |
| WEB Server: | Built-in |
| Max. number of on-line users: | 20 |
| ONVIF: | |
| Mobile phones support: | Port 37777 |
| Default IP address: | 192.168.1.108 |
| Default admin user / password: | admin / admin |
| Web browser access ports: | 80, 37777 |
| PC client access ports: | 37777 |
| Mobile client access ports: | 37777 |
| Port ONVIF: | 80 |
| RTSP URL: | rtsp://admin:hasł[email protected]:554/cam/realmonitor?channel=1&subtype=0 - Main stream rtsp://admin:hasł[email protected]:554/cam/realmonitor?channel=1&subtype=1 - Sub stream |
| Intelligent Image Analysis: | |
| Main features: | |
| Power supply: | |
| Power consumption: | max. 13 W |
| Housing: | Compact - Metal |
| Color: | White |
| Operation temp: | -40 °C ... 70 °C |
| "Index of Protection": | IP67 |
| Weight: | 1.5 kg |

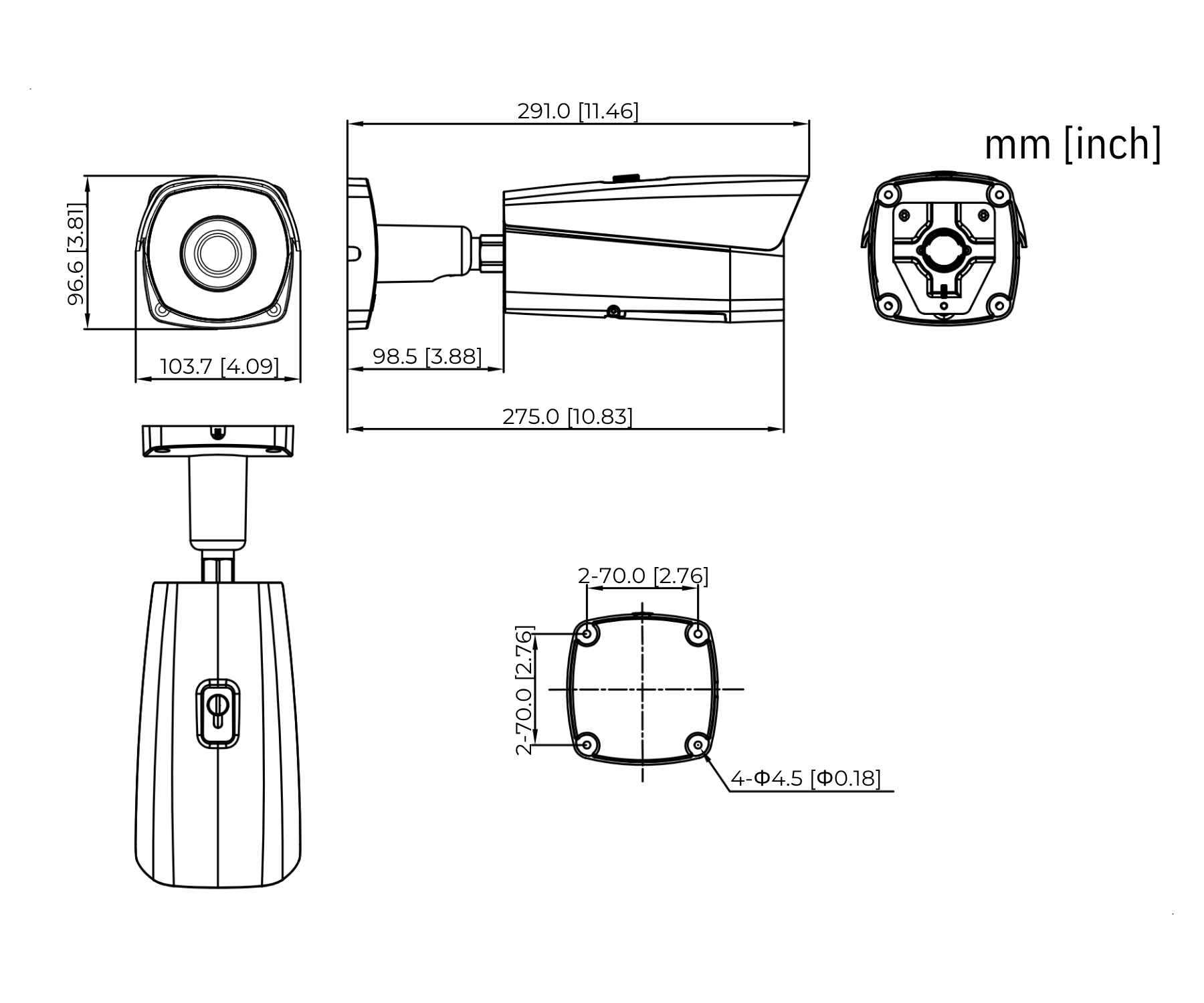

| Dimensions: | 291 x 103 x 97 mm |
| Supported languages: | English |
| Manufacturer / Brand: | DAHUA |
| Guarantee: | 3 years |
Brand:
Dahua
