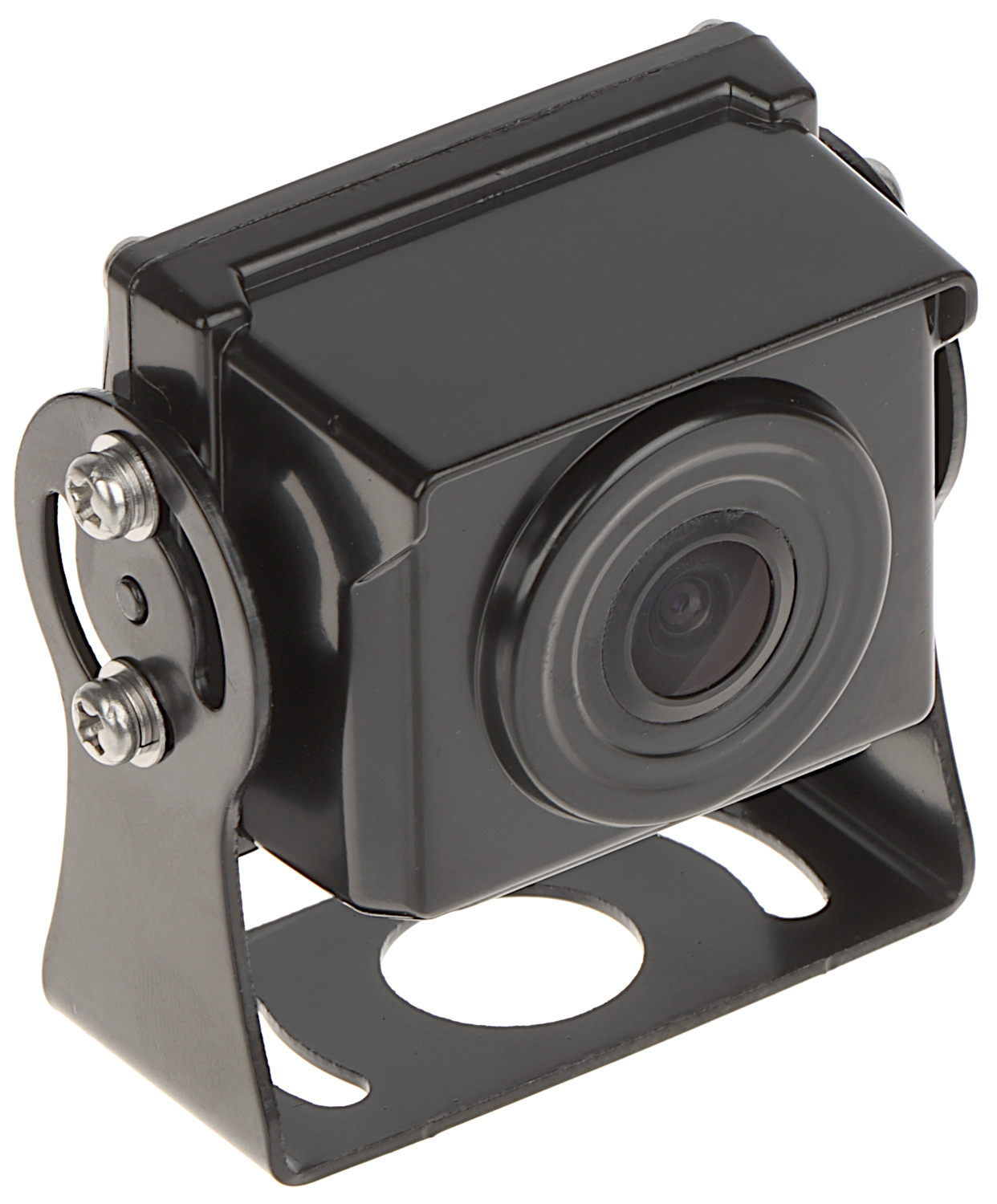

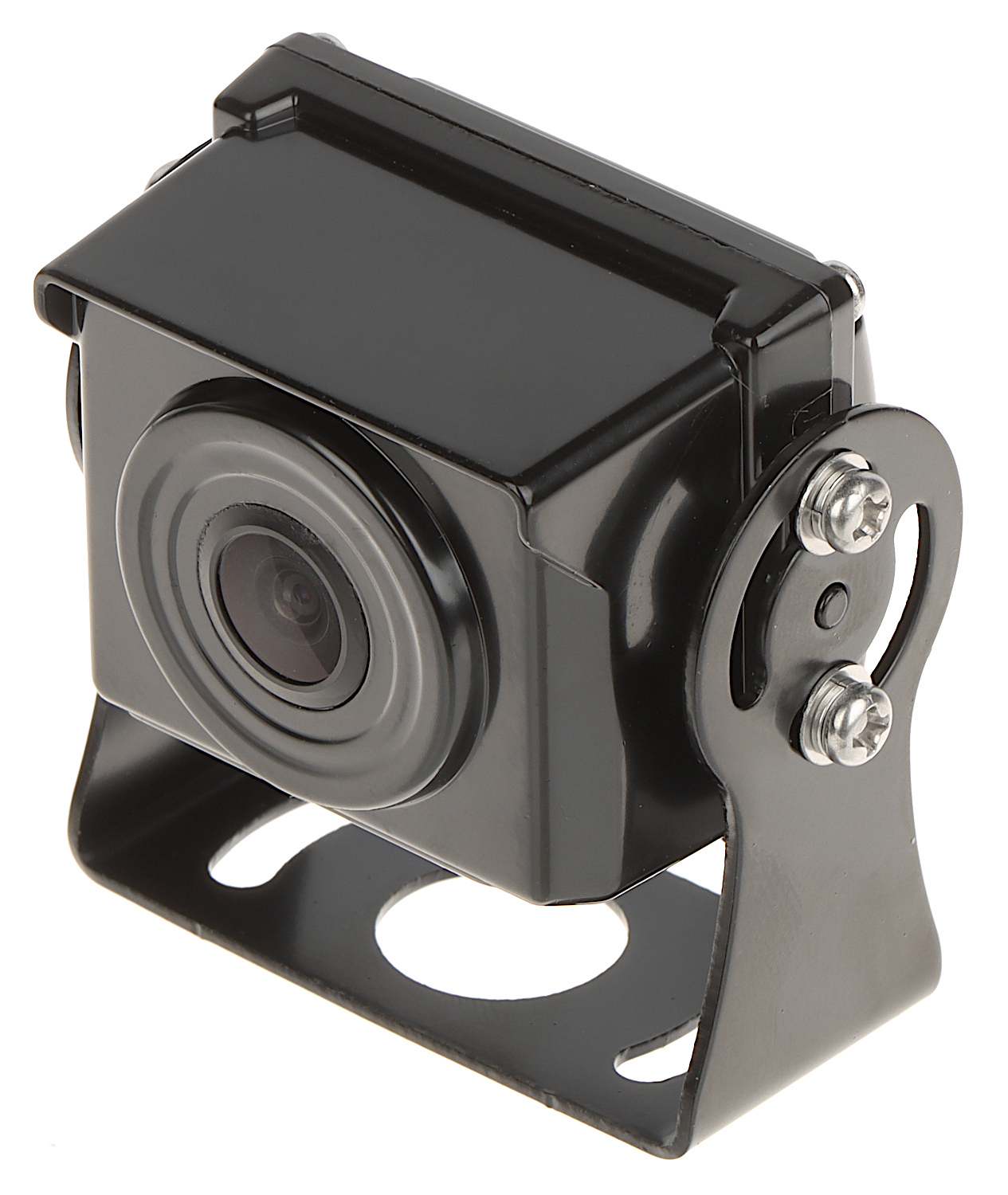

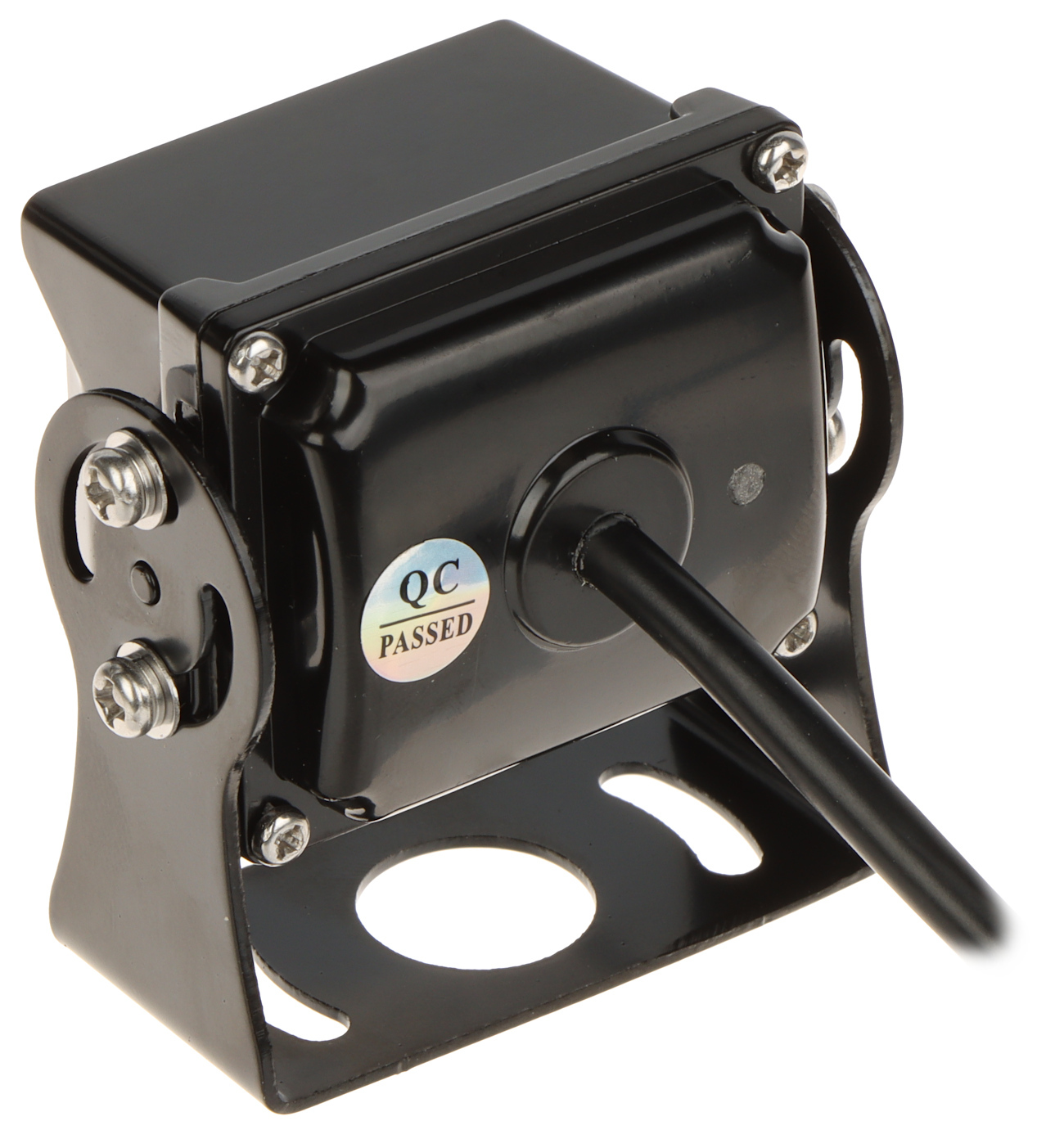

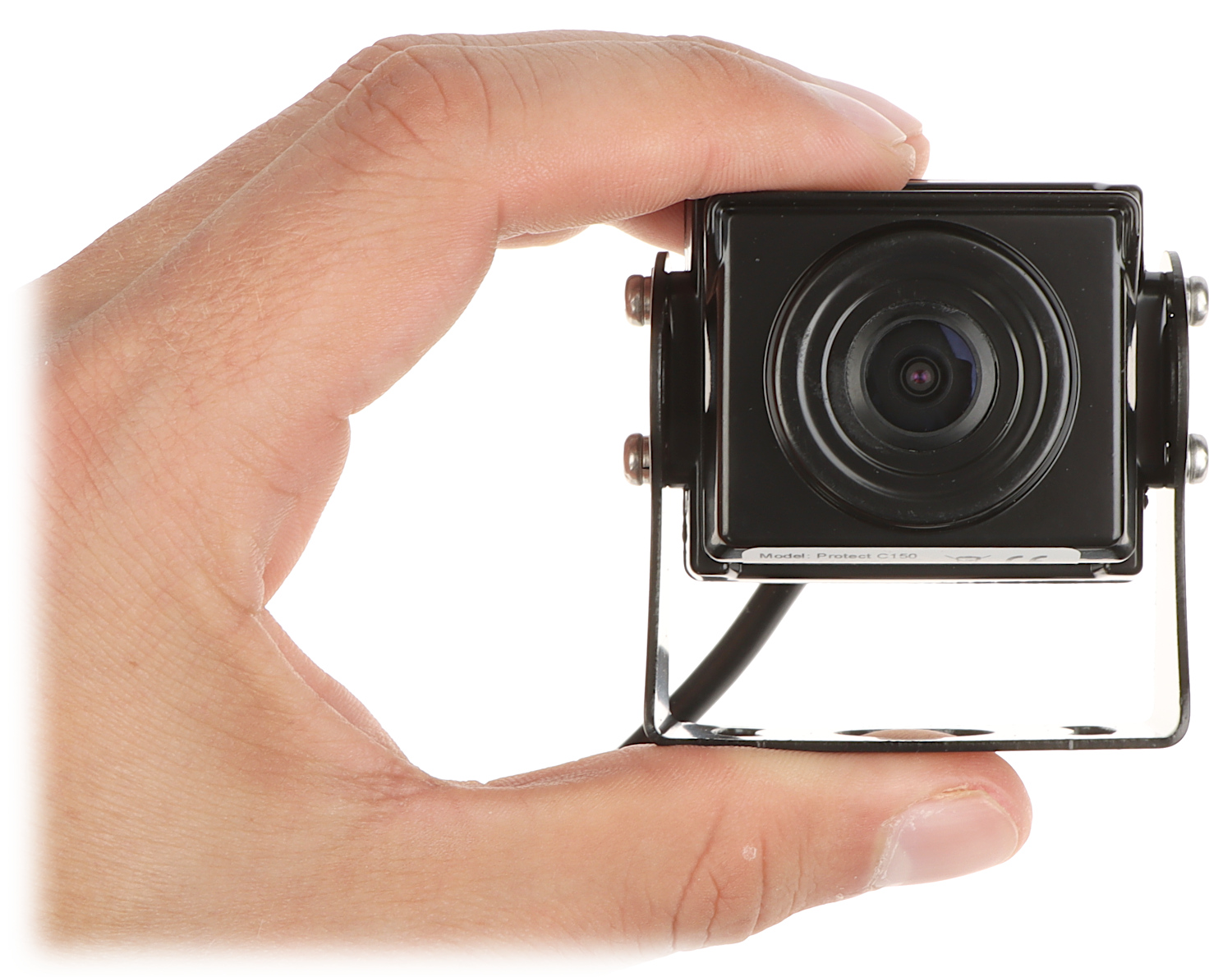

AHD MOBILE CAMERA ATE-CAM-AHD674-R03 - 1080p 2.8 mm AUTONE
Войдите в учётную запись, чтобы мы могли сообщить вам об ответе
Sensor: 1/3 " ; Resolution: 1920 x 1080 - 1080p ; View angle: 100 ° ; Power supply: 12 V DC ;
| Standard: | AHD |
| Sensor: | 1/3 " |
| Matrix size: | 2.1 Mpx |
| Resolution: | 1920 x 1080 - 1080p |
| Lens: | 2.8 mm |

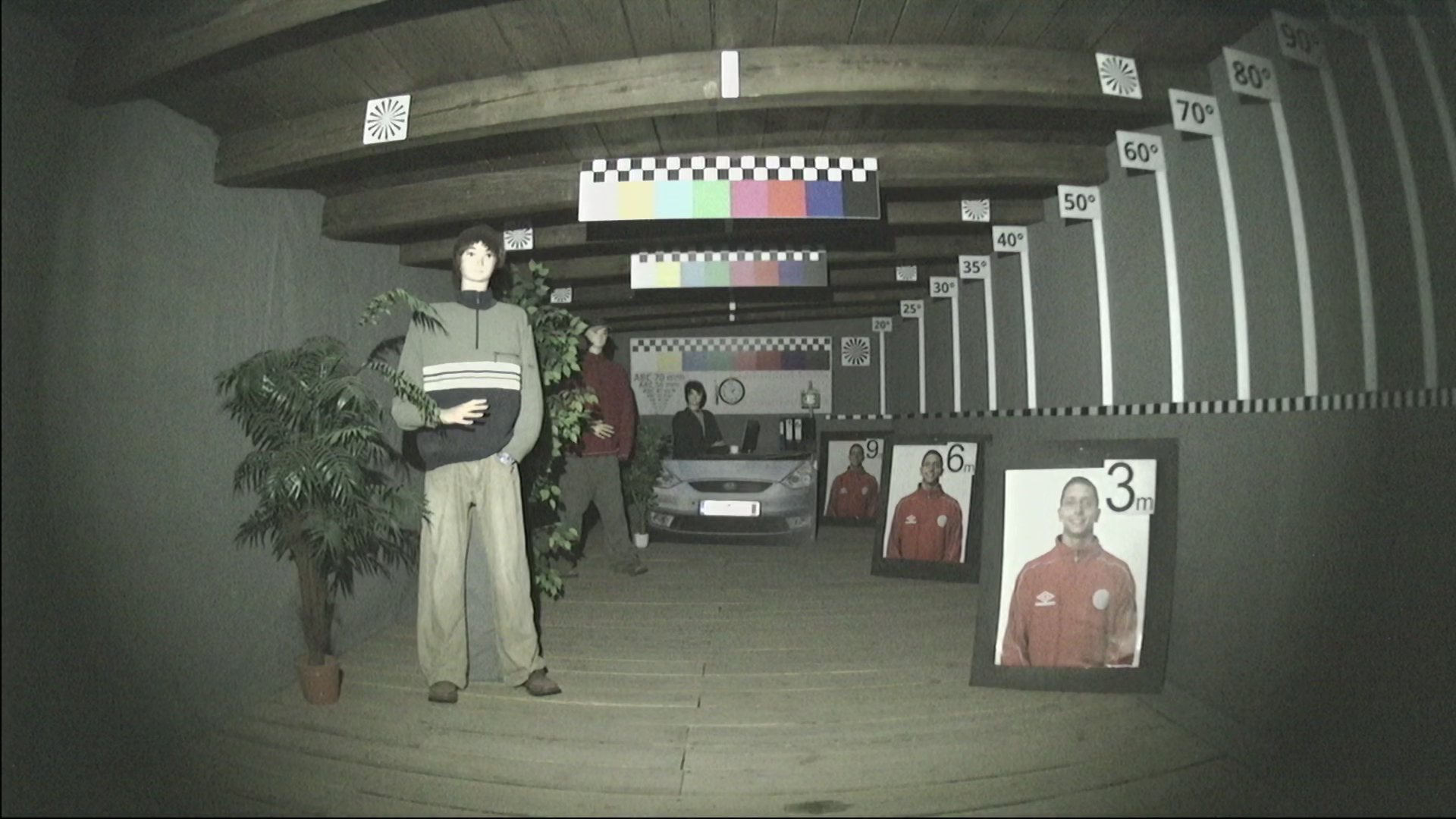

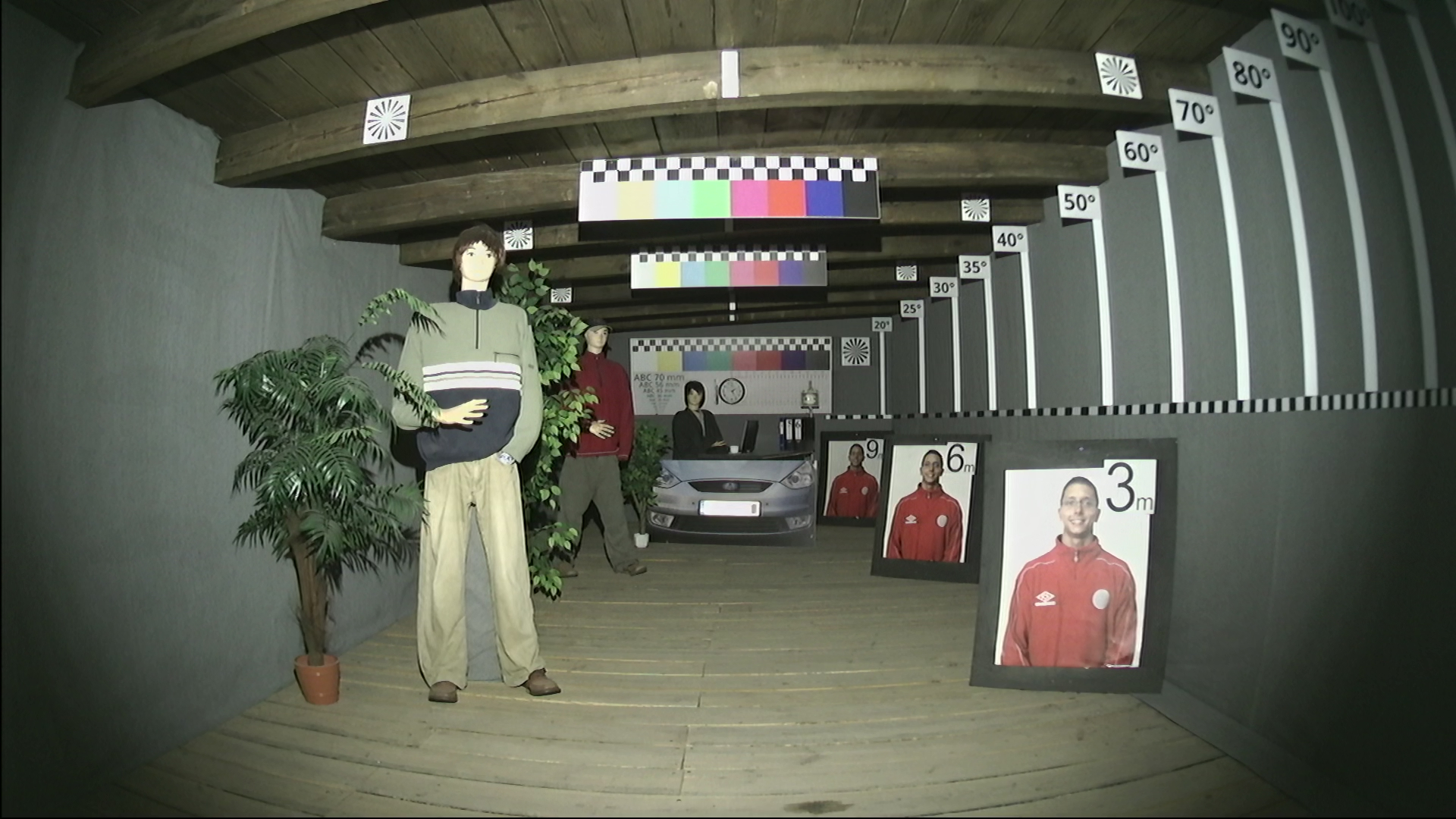

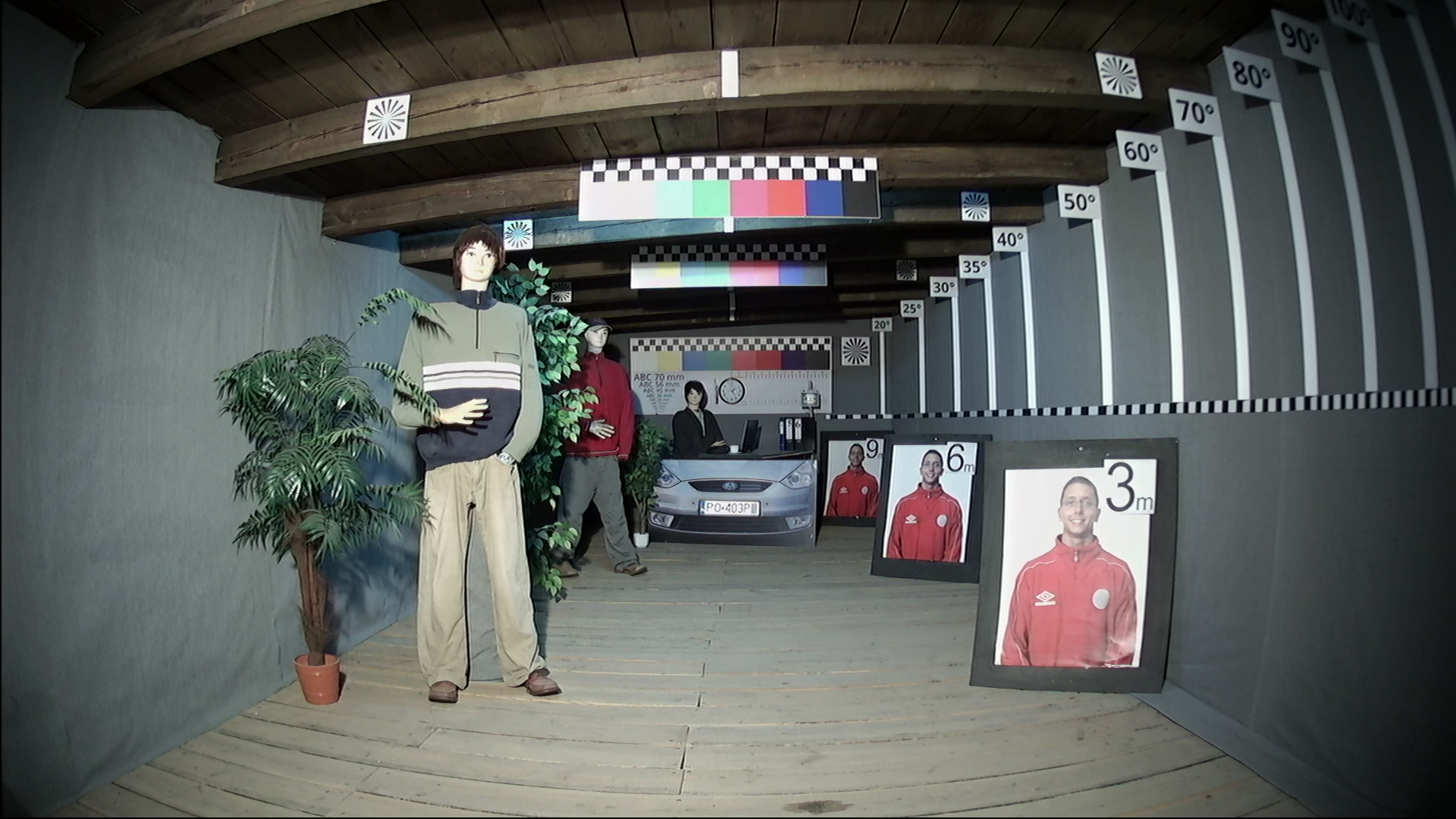

| View angle: | 100 ° (manufacturer data) 104 ° (our tests result) |
| Range of IR illumination: |  |
| S/N ratio: | ≥ 50 dB |

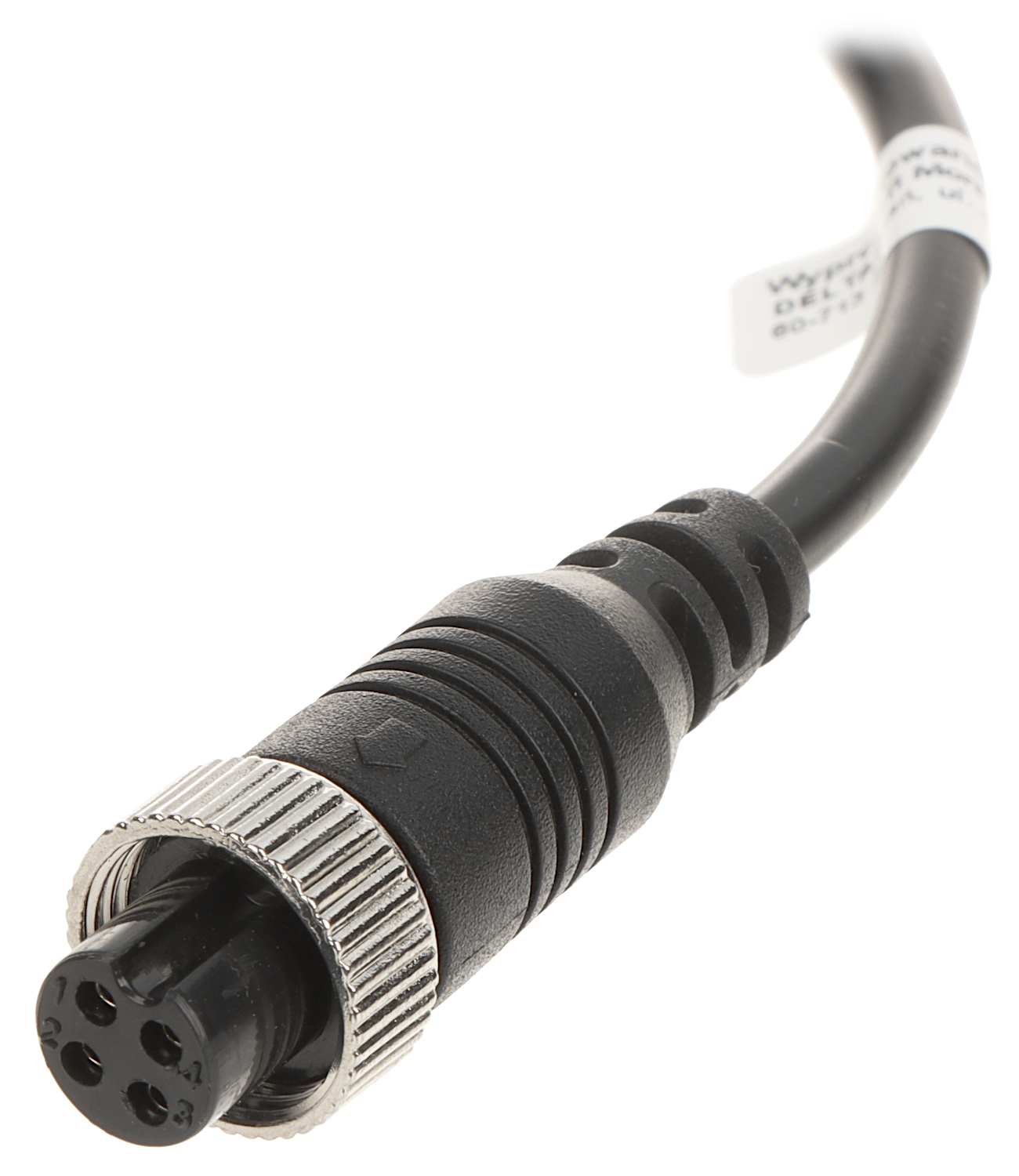

| Video output: | 1 Vpp / 75 Ω - M12, 4-pin socket, Code A |
| Audio: | |
| Main features: | |
| OSD menu: | |
| Housing: | Metal |
| Color: | Black |
| Application: | The camera is designed for installation outside vehicles |
| Power supply: | 12 V DC / 420 mA - Powering the cameras with 12V DC voltage directly from recorder |
| Power consumption: | < 5 W |
| Operation temp: | -20 °C ... 50 °C |
| Weight: | 0.18 kg |

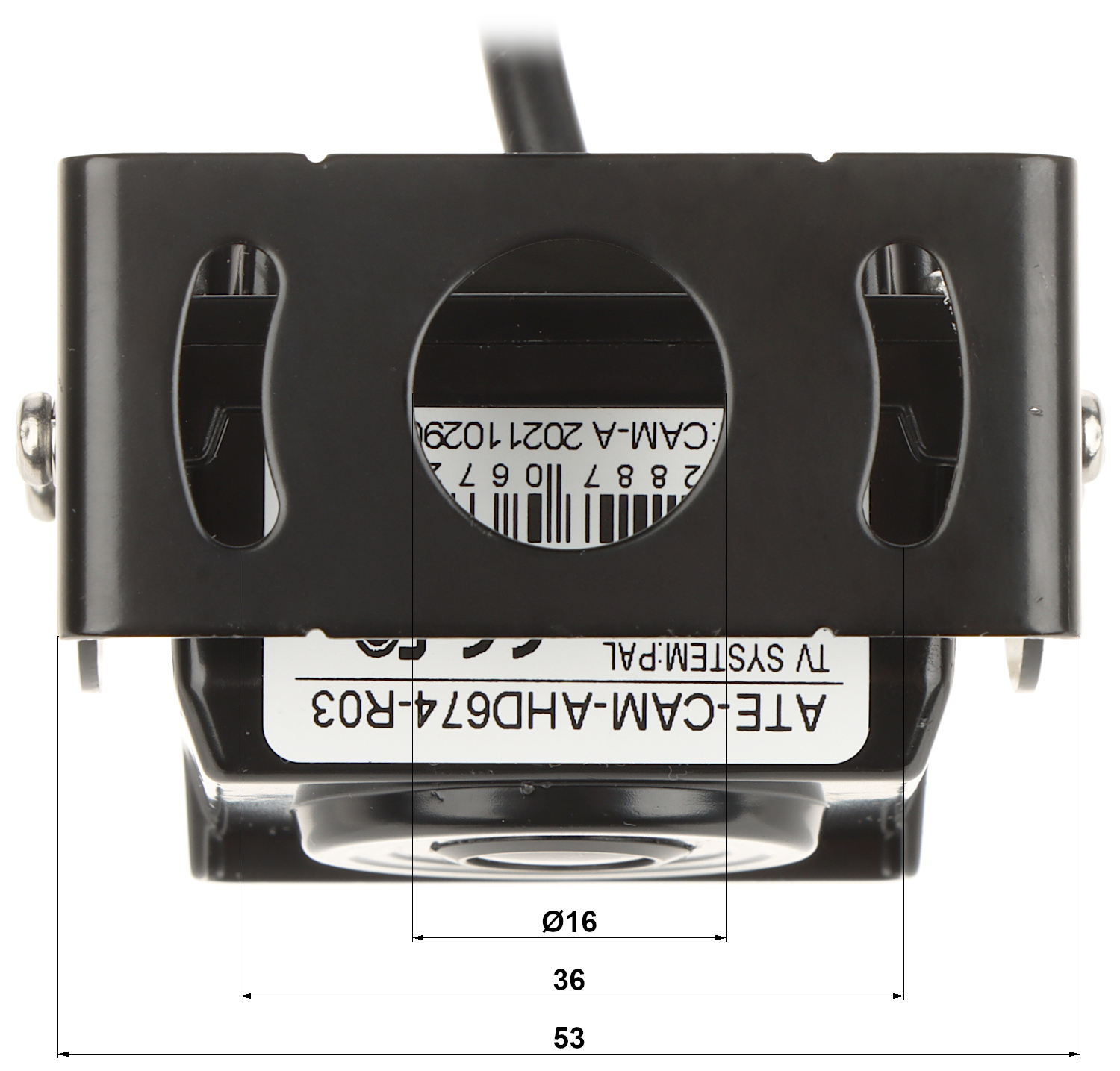

| Dimensions: | 59 x 58 x 38 mm |
| Manufacturer / Brand: | AUTONE |
| Guarantee: | 2 years |
Brand:
Autone
