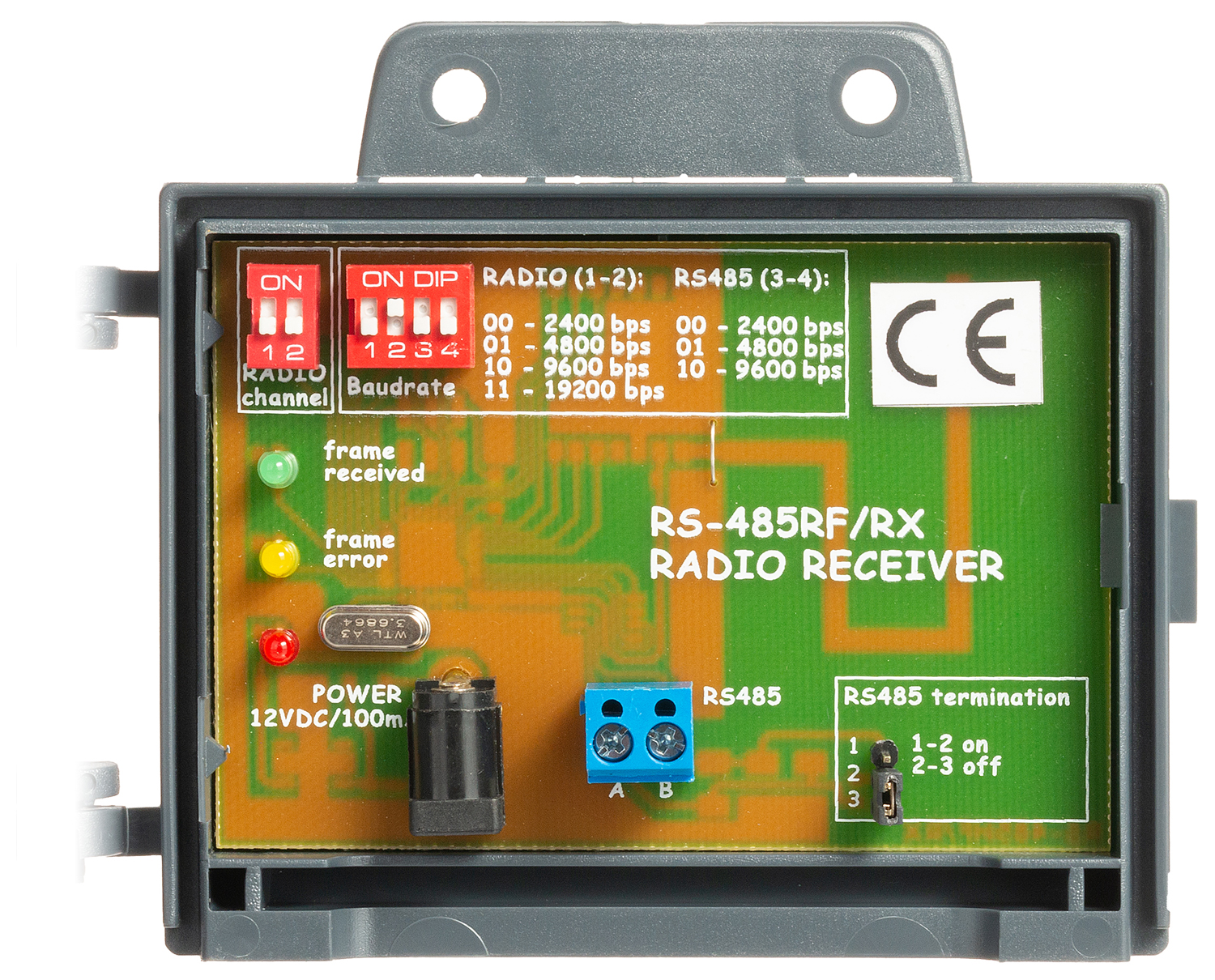

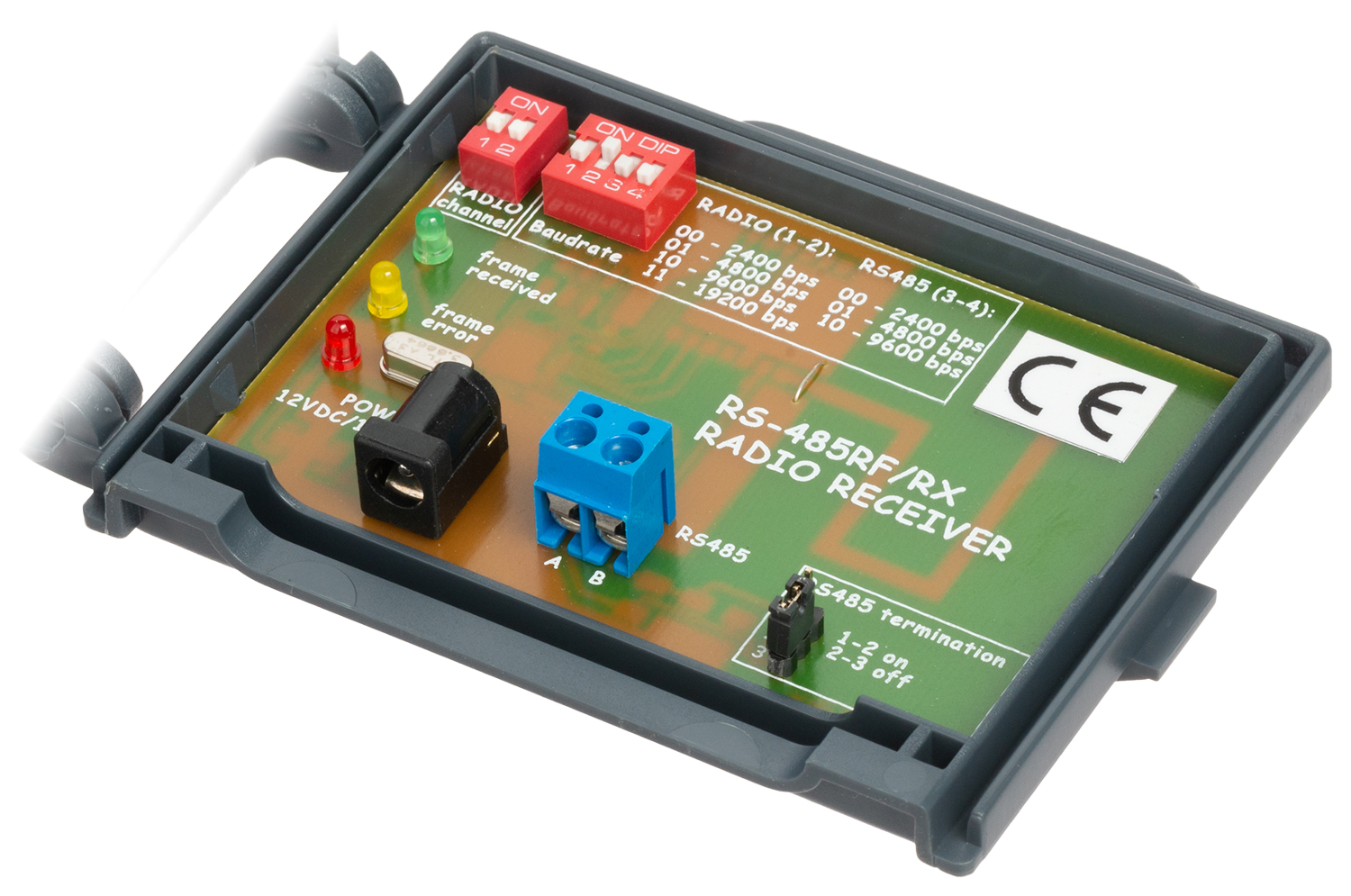

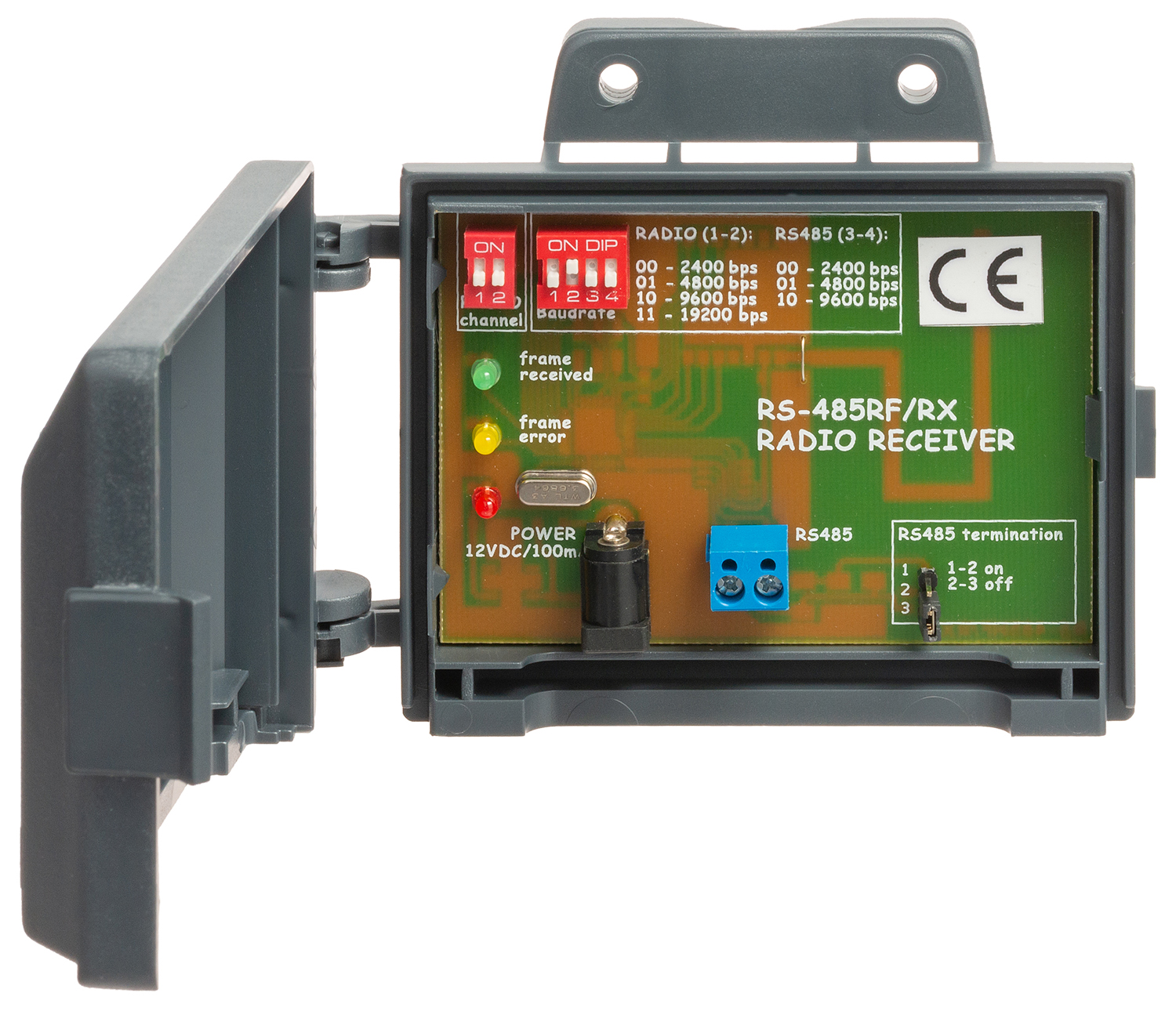

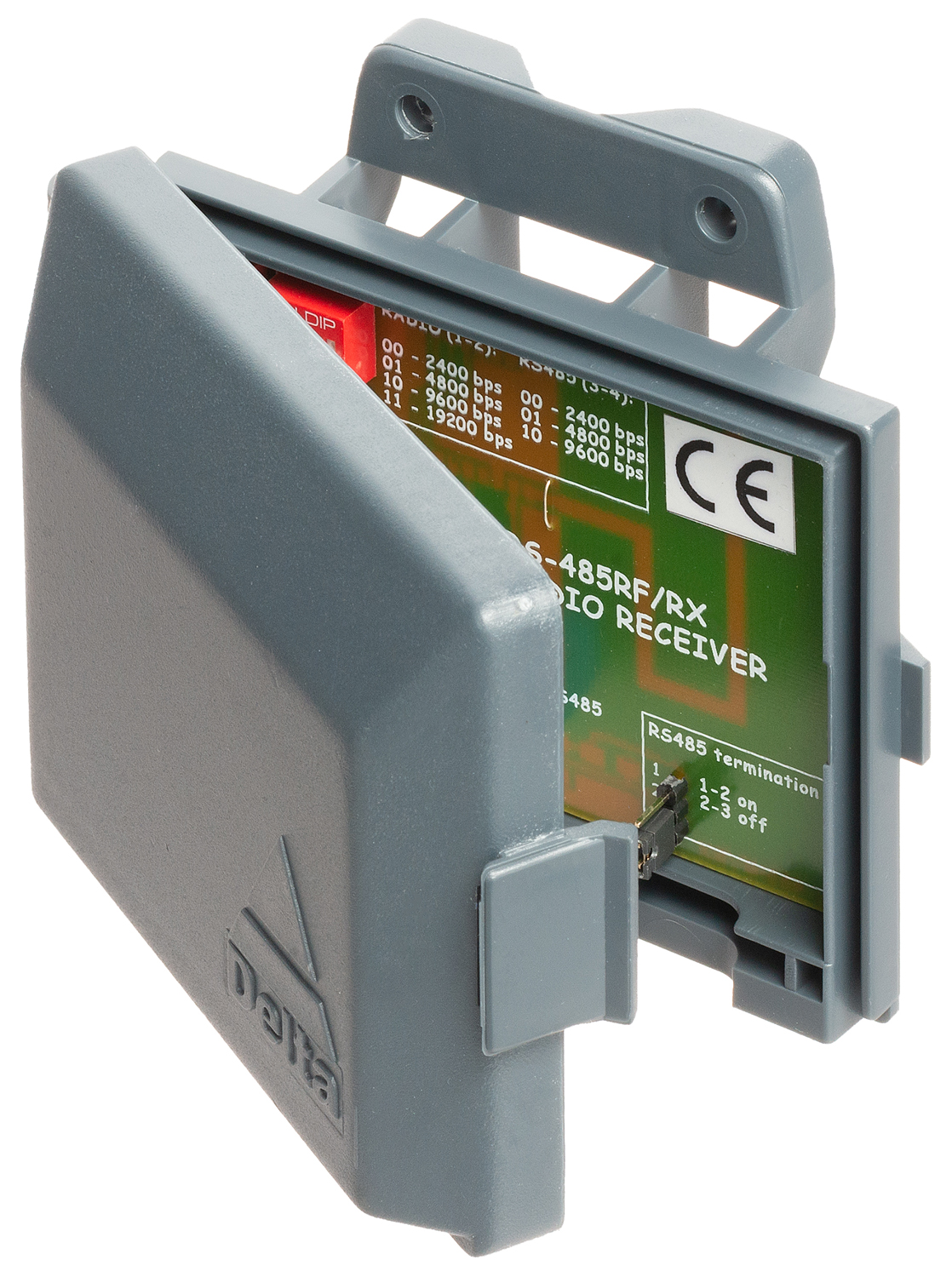

WIRELESS RECEIVER RS-485RF/RX
Войдите в учётную запись, чтобы мы могли сообщить вам об ответе

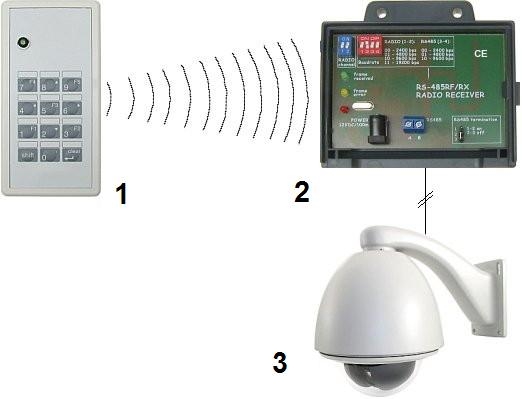

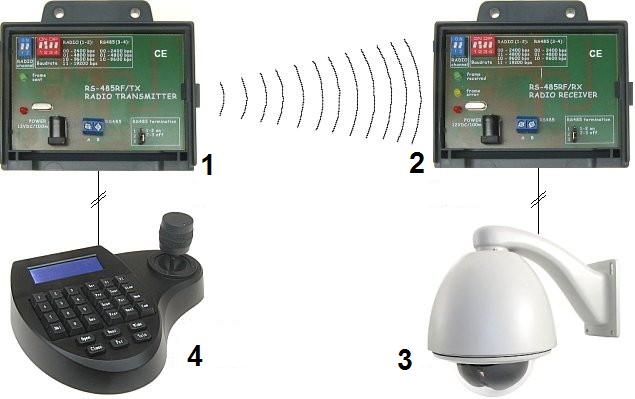

The device is designed to wireless receive the data and transmit them via RS-485 2-wires line; Number of operating motor units: 256 ; Frequency range: 868 MHz ; Number of channels: 4 pcs ; Transmission range: 100 m in open area (for 4800bps baudrate) ;
| Number of operating motor units: | 256 |
| Frequency range: | 868 MHz |
| Number of channels: | 4 pcs |
| Radio transmission baud rates: | 2400, 4800, 9600, 19200 bps |
| RS-485 transmission baud rates: | 2400, 4800, 9600 bps |
| Transmission range: | 100 m in open area (for 4800bps baudrate) |
| Available protocols: | Transparent device |
| Control socket type: | terminals |
| Power socket type: | 2.1/5.5 mm socket |
| Power supply: | 12 V DC / 0.1 A |
| Weight: | 0.08 kg |
| Dimensions: | 112 x 37 x 91 mm |
| Manufacturer / Brand: | DELTA |
| Guarantee: | 3 years |
Brand:
Delta
