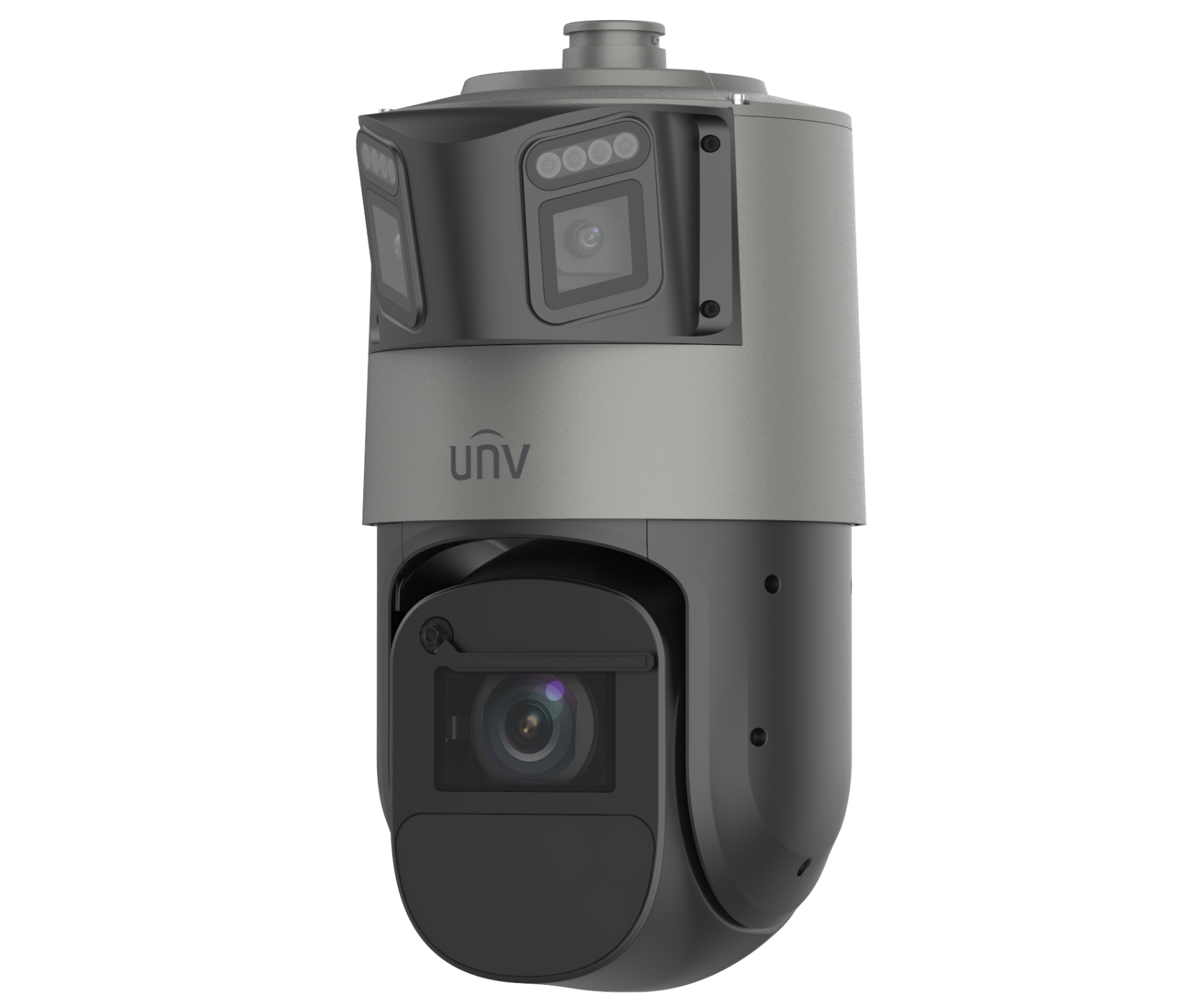

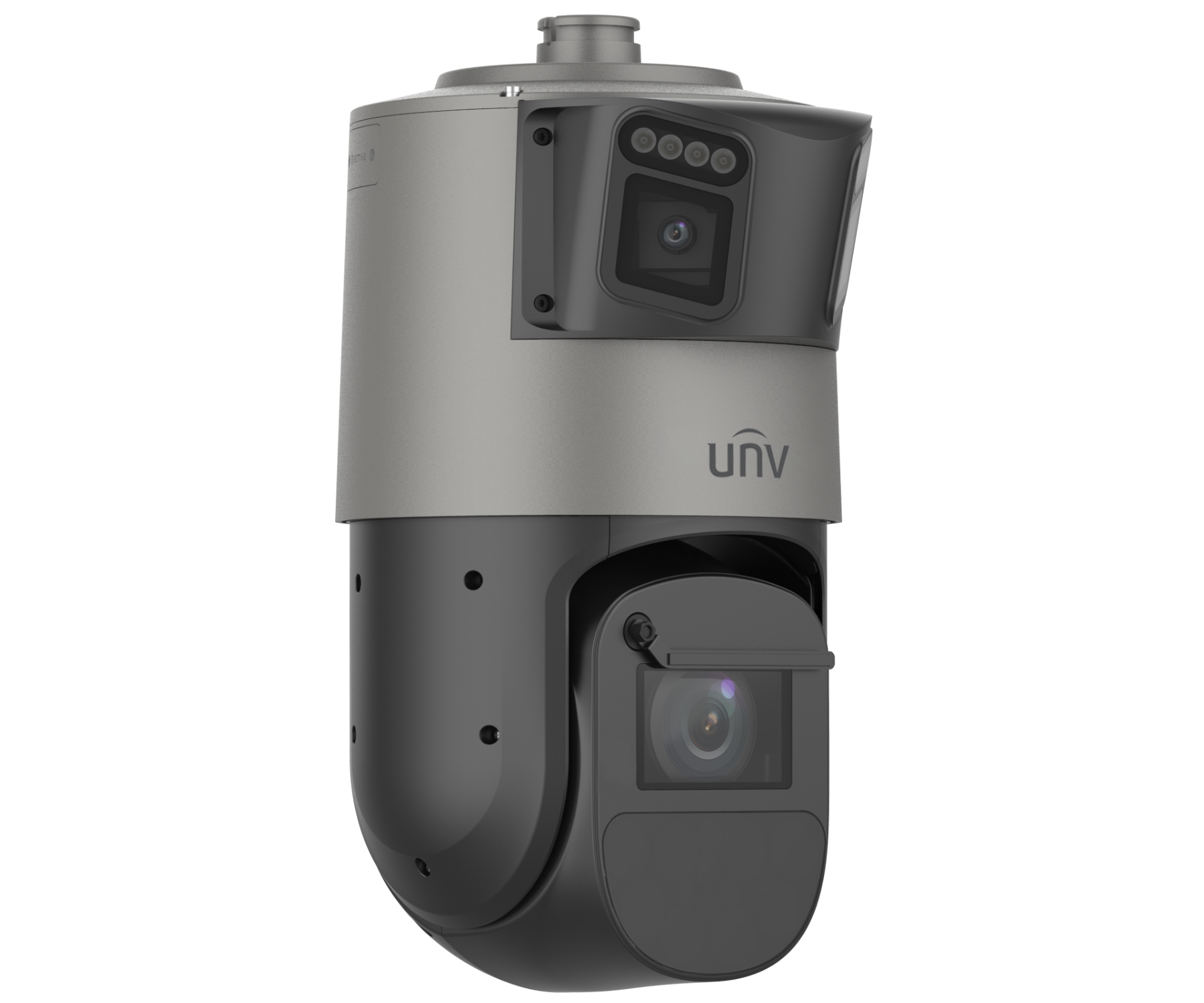

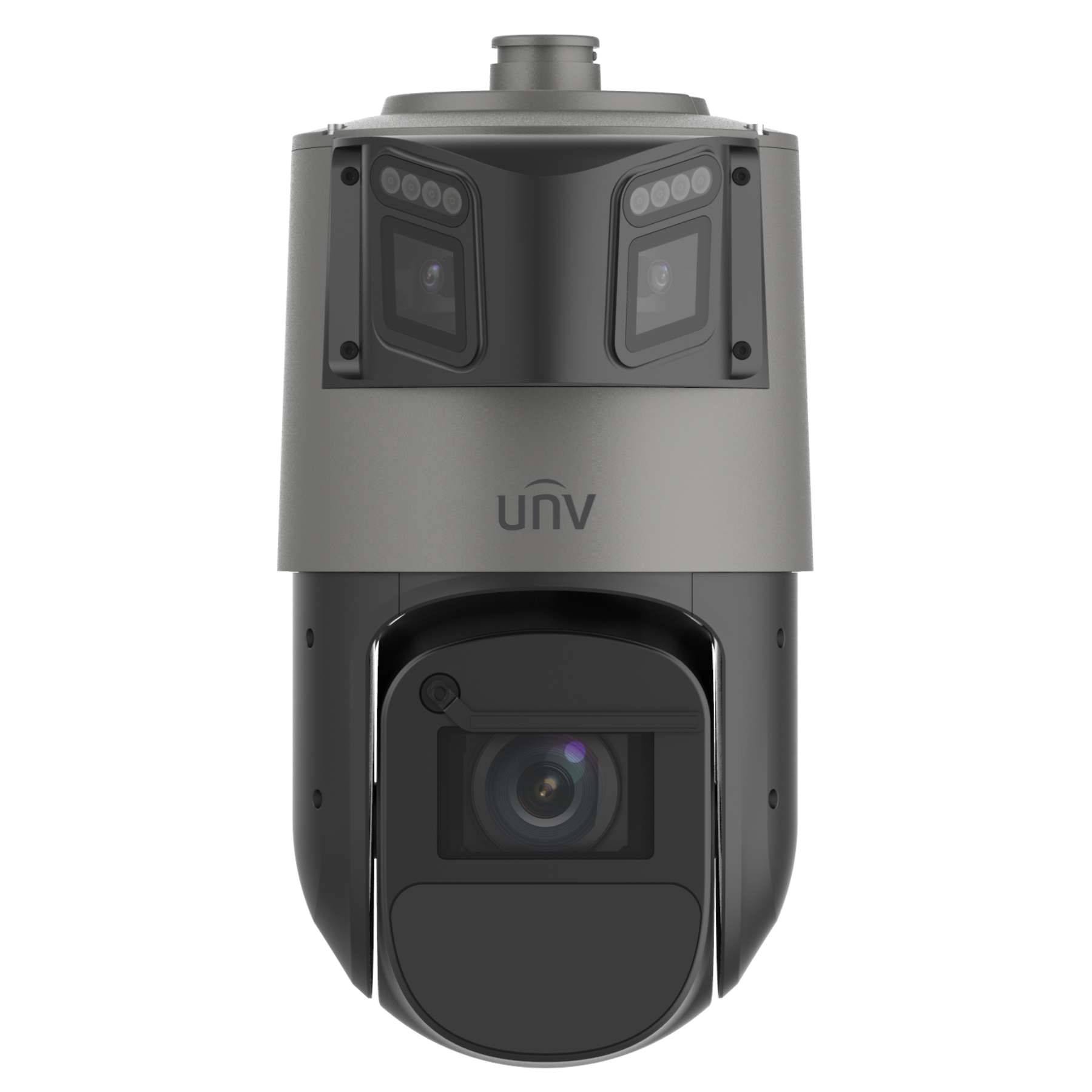

IP SPEED DOME CAMERA IPC98246EFW-X42-W-VH1 PANORAMIC - 4 Mpx, 6 Mpx, 6 ... 252 mm, 2 x 2.2 mm UNIVIEW
Войдите в учётную запись, чтобы мы могли сообщить вам об ответе
Resolution: Camera PTZ : 2688 x 1520, 2560 x 1440, 1920 x 1080, Panoramic camera : 3680 x 1656, 3632 x 1632 ; Sensor: Camera PTZ : 1/1.8 ", Panoramic camera : 2 x 1/1.8 " ; View angle: Camera PTZ : 59.47 ° ... 2.2 °, Panoramic camera : 200 ° ; Optical zoom: x 42 ; Range of IR illumination: 350 m @ Camera PTZ ; White light LED illuminator range: 30 m @ Panoramic camera ; Rotation speed (manual control): 0.1 °/s ... 180 °/s (horizontal), 0.1 °/s ... 180 °/s (vertical) ; Memory card slot: Micro SD card support up to 512GB ; Image compression method: Ultra 265 ; Alarm inputs / outputs: 7 / 2 ; Audio: Bi-directional audio streaming support ; Power supply: PoE (802.3bt) 24 V DC ;
| Standard: | IP |
| Resolution: | Camera PTZ : Panoramic camera : |
| Sensor: | |
| Lens: | |
| View angle: | |
| Optical zoom: | x 42 |
| Digital zoom: | x 16 |
| Range of IR illumination: | 350 m @ Camera PTZ |
| White light LED illuminator range: | 30 m @ Panoramic camera |
| Rotation speed (manual control): | |
| Horizontal rotation range: | Camera PTZ : 360 ° - continuous |
| Vertical rotation range: | |
| RS-485 interface: |  |
| Number of presets: | 1024 |
| Horizontal scan: | |
| Route settings: | 16 |
| Memory card slot: | Micro SD card support up to 512GB |
| Image compression method: | Ultra 265 / H.265 / H.264 / MJPEG |
| Alarm inputs / outputs: | 7 / 2 |
| Audio: | |
| Main stream frame rate: | |
| Interface: | 10/100/1000 Base-T (RJ-45) |
| WEB Server: | Built-in |
| Max. number of on-line users: | 32 |
| ONVIF: | |
| Intelligent Image Analysis: | |
| Main features: | |
| Mobile phones support: | Access by a cloud (P2P) |
| Default IP address: | DHCP or 192.168.1.13 |
| Default admin user / password: | admin / 123456 |
| Web browser access ports: | 80, 554 |
| PC client access ports: | Port no.: 80 or access by a cloud (P2P) - PC: Free app EZStation |
| Mobile client access ports: | 80 |
| Port ONVIF: | 80 |
| RTSP URL: | rtsp://192.168.1.13:554/unicast/c1/s0/live - Main stream rtsp://192.168.1.13:554/unicast/c1/s1/live - Sub stream |
| Power supply: | |
| Power consumption: | max. 74 W |
| Housing: | |
| Color: | Silver + Black |
| Operation temp: | -40 °C ... 70 °C |
| "Index of Protection": | IP67 |
| Mechanical protection class: | IK10 |
| Weight: | 8.4 kg |

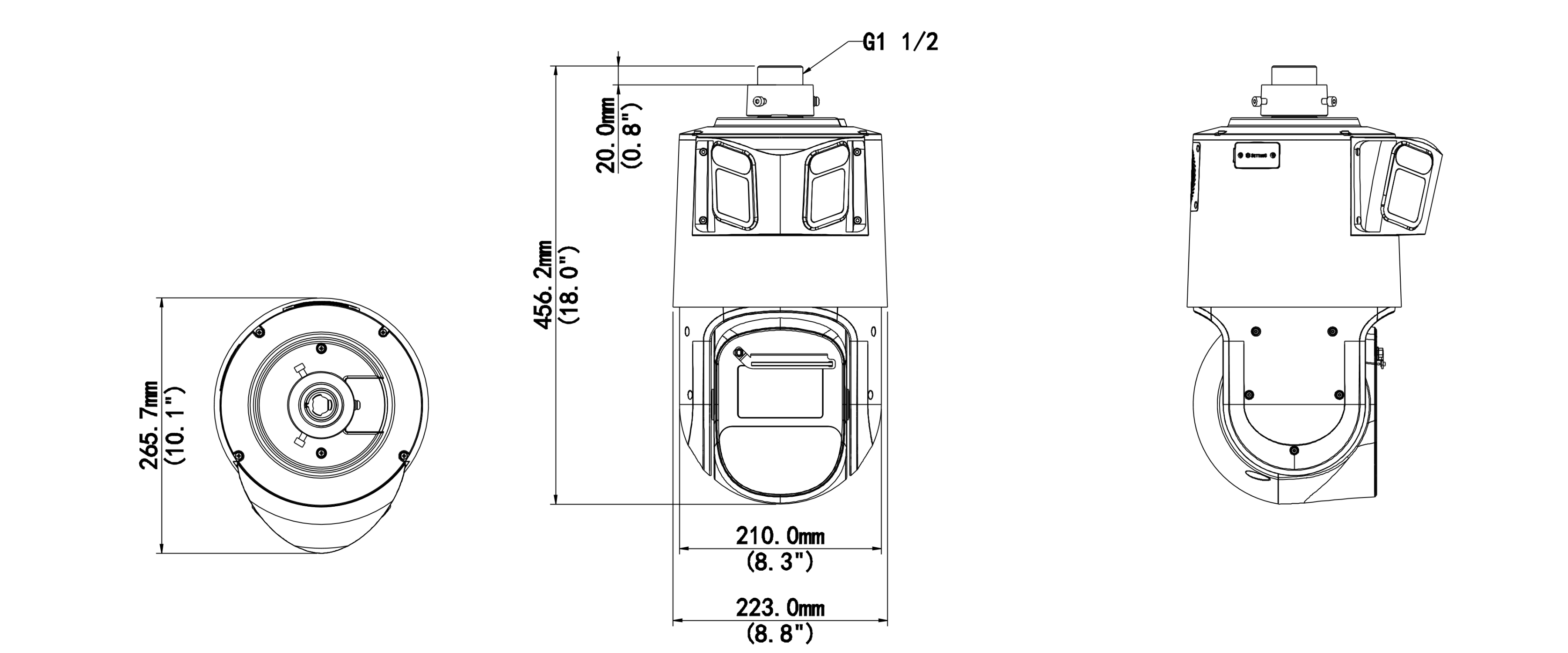

| Dimensions: | 456 x 223 x 266 mm |
| Supported languages: | Polish, English, Czech, French, Spanish, Dutch, German, Portuguese, Russian, Slovak, Turkish, Hungarian, Vietnamese, Italian, Chinese Simplified, Chinese Traditional, Korean, Japanese, Thai, Arabic |
| Manufacturer / Brand: | UNIVIEW |
| Guarantee: | 3 years |
Brand:
Uniview
