OBJECT PROTECTION SYSTEM MANAGEMENT SERVER IVSS7116 DAHUA
Войдите в учётную запись, чтобы мы могли сообщить вам об ответе
Supported resolutions: max. 32 Mpx ; Supported hard drives: 16 x 20 TB SATA, ; Network interface: 4 x 10/100/1000/2500 Mbps ;
| Standard: | TCP/IP |
| Supported resolutions: | max. 32 Mpx |
| Number of video channels: | max. 256 |
| Video outputs: | |
| Audio inputs: | 1 pcs Microphone - Cinch socket |
| Audio outputs: | 1 pcs - Cinch socket |
| Supported hard drives: | 16 x 20 TB SATA , Possibility of operation the disks in RAID 0/1/5/6/10/50/60 array |
| Searching and playback the records: | Records searching: by time and events type. Records playback: forward, backward, fast, slow "Frame by Frame" playback function Records playback from max. 16 channels in the same time |
| Network interface: | 4 x 10/100/1000/2500 Mbps |
| Bitrate: | max. 1280 Mbps (incoming data) max. 1280 Mbps (recording) max. 1280 Mbps (outgoing data) |
| Network functions: | Full support via network, Remote records copying, Web-Server built-in |
| Mobile phones support: |  |
| Default IP address: | 192.168.1.108 |
| Default admin user / password: | admin / - The administrator password should be set at the first start |
| Web browser access ports: | 80, 37777 |
| PC client access ports: | 37777 |
| Alarm inputs / outputs: | 16 / 8 |
| PTZ control: | IP Speed Dome Cameras, RS-485 |
| RS-485: | |
| RS-232: | |
| USB: | 2 x USB 2.0 2 x USB 3.0 |
| Motion Detection: | |
| Intelligent Image Analysis: | |
| Mouse support: | |
| ANPR: | max. 80 cameras |
| Face recognition: | max. 160 cameras |
| Main features: |
|
| Power supply: | 100 ... 127 / 200 ... 240 V AC |
| Weight: | 20.05 kg |

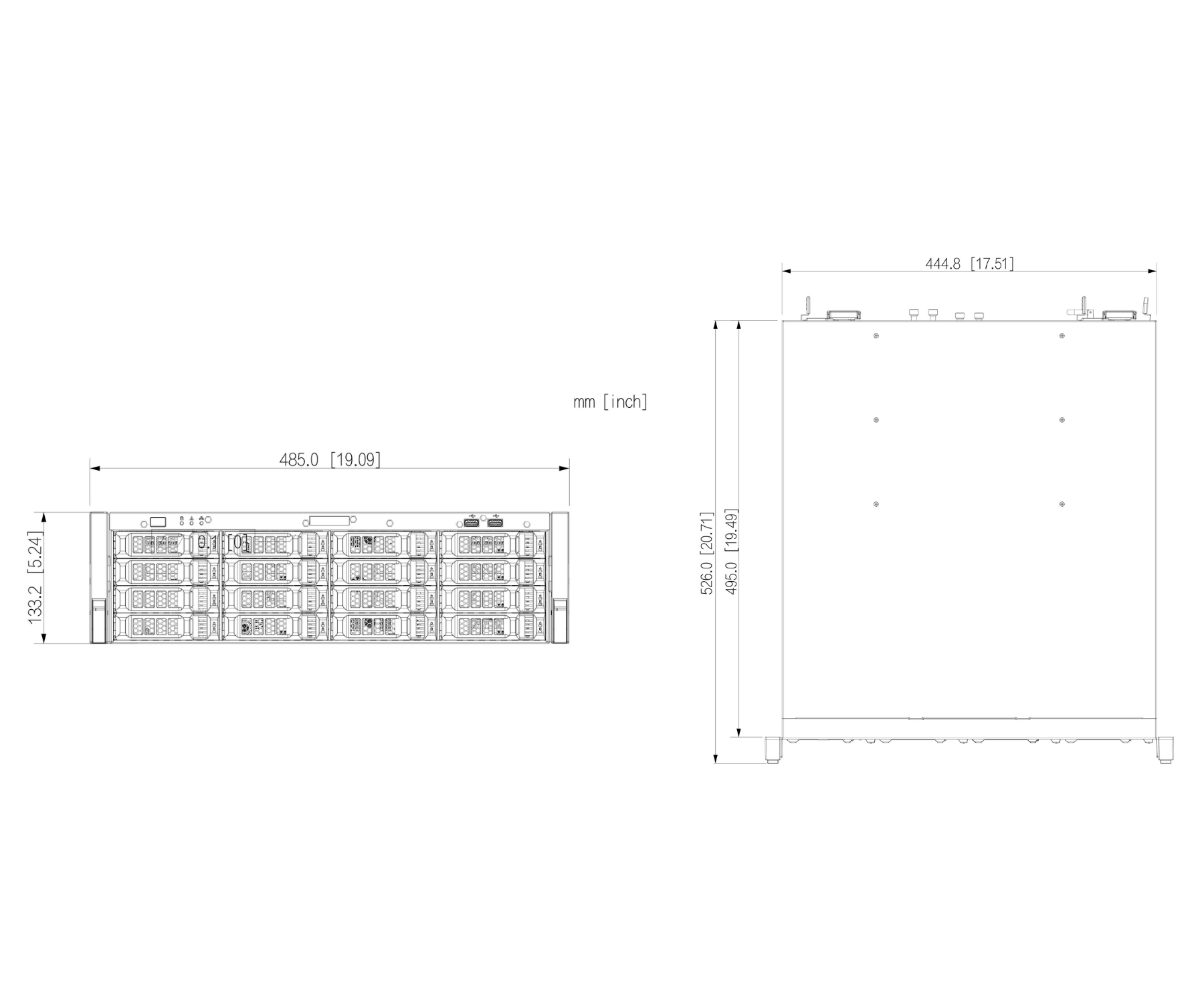

| Dimensions: | 445 x 526 x 133 mm - RACK 19", 3U |
| Manufacturer / Brand: | DAHUA |
| Guarantee: | 5 years |
Brand:
Dahua
