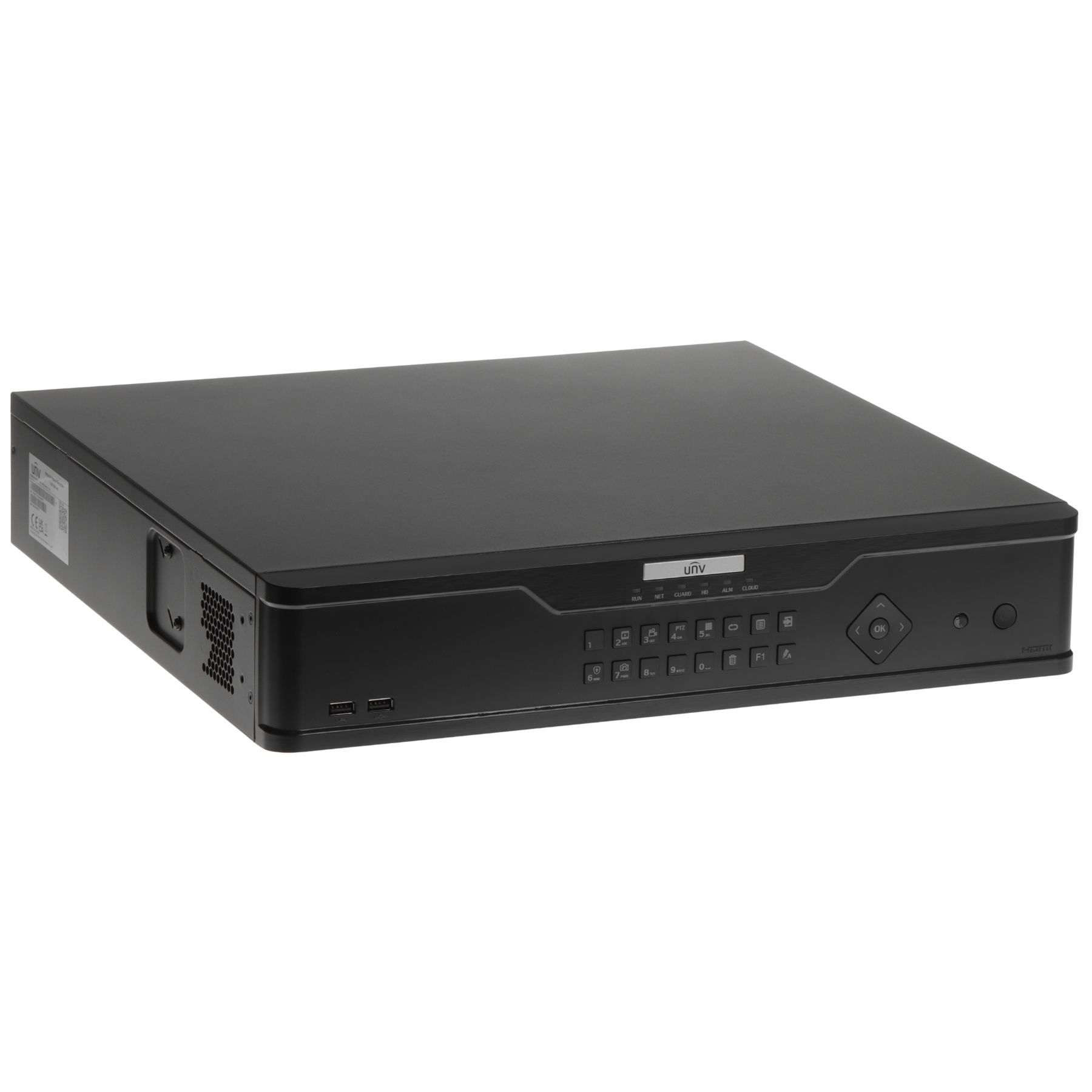

NVR NVR308-64X 64 CHANNELS UNIVIEW

961.07
(Включая налог 21%)
NVR308-64X
1 шт.

Минимальное количество для товара "NVR NVR308-64X 64 CHANNELS UNIVIEW" 1.


Supported resolutions: max. 12 Mpx - 4000 x 3000 px ; Audio support: 64 Channels ; Image compression method: Ultra 265 ; Supported hard drives: 8 x 12 TB SATA + 1 x eSATA ;

Standard: IP
Supported resolutions: max. 12 Mpx - 4000 x 3000 px
Video outputs: 2 pcs HDMI 4K
1 pcs VGA
Audio support:
  • 64 Channels - Audio from cameras
  • Bi-directional audio streaming support
  • Audio inputs: 1 pcs CINCH
    Audio outputs: 1 pcs CINCH
    Image compression method: Ultra 265 / H.265 / H.264
    Bitrate: max. 384 Mbps
    Supported hard drives: 8  x 12 TB SATA + 1  x eSATA
    Possibility of operation the disks in RAID 0/1/5/6/10 array
    Recording modes: Manual, Sensor, Motion detection, Schedule
    External storage devices backup: Backup to USB drive (pendrive, external drive)
    Searching and playback the records: Records searching: by time and events type. Records playback: forward, backward, fast, slow
    1/4/6/8/9/16/25/36 channel synchronous playback
    Network interface: 2 x RJ-45 10/100/1000 Mbps
    Network functions: Full support via network, Remote records copying, Web-Server built-in
    max. 128 on-line users
    ONVIF:
    Default IP address: DHCP or 192.168.1.30
    Default admin user / password: admin / 123456
    Mobile phones support: Port no.: 80 or access by a cloud (P2P)
  • Android: UNV-Link free application
  • iOS (iPhone): UNV-Link free application
  • Web browser access ports: 80, 554
    PC client access ports: Port no.: 80 or access by a cloud (P2P) - PC: EZStation free application
    Mobile client access ports: 80
    RTSP URL: rtsp://192.168.1.30:554/unicast/c1/s0/live - Main stream
    rtsp://192.168.1.30:554/unicast/c1/s1/live - Sub stream
    USB: 2 x USB 2.0
    1 x USB 3.0
    Serial ports: RS-485, RS-232
    Alarm inputs / outputs: 16 / 4
    Motion Detection:
    Intelligent Image Analysis:
    AI powered by recorder:
    AI powered by cameras:
  • intrusion
  • crossing the line (tripwire)
  • entering the marked area
  • leaving the marked area
  • Lens focus loss detection
  • scene changing
  • abandoned/missing object
  • vehicle detection
  • Smoke and temperature detection
  • fire detection
  • smoking detection
  • metadata support
  • Traffic monitoring
  • Detection of people and vehicles
  • people counting
  • counting people in a given area
  • crowd gathering estimation
  • Audio detection
  • Main features:
  • Corridor mode - useful for monitoring corridors, entrance gates and narrow rooms
  • Fisheye-Dewarping - correction of the "fish eye" view to the perspective view
  • VIDEO signal loss alarm
  • ANR - Automatic Network Replenishment allows to save image to the card when the network connection with DVR is break (network failure) and next synchronize its
  • Cloud update
  • Mouse support:
    IR remote controller in the set:
    Switch POE:
    Power supply: 100  ... 240 V AC
    Power consumption: ≤ 25 W (without HDD)
    Operation temp: -10 °C ... 55 °C
    Weight: 5.7 kg
    Dimensions: 442  x 426  x 89 mm
    Supported languages: Polish, English, Czech, French, Spanish, Dutch, German, Portuguese, Slovak, Italian
    Manufacturer / Brand: UNIVIEW
    Guarantee: 3 years
    Brand:
    Uniview
